Halcyon R742 W34 Led Recessed Luminaire Instruction Manual

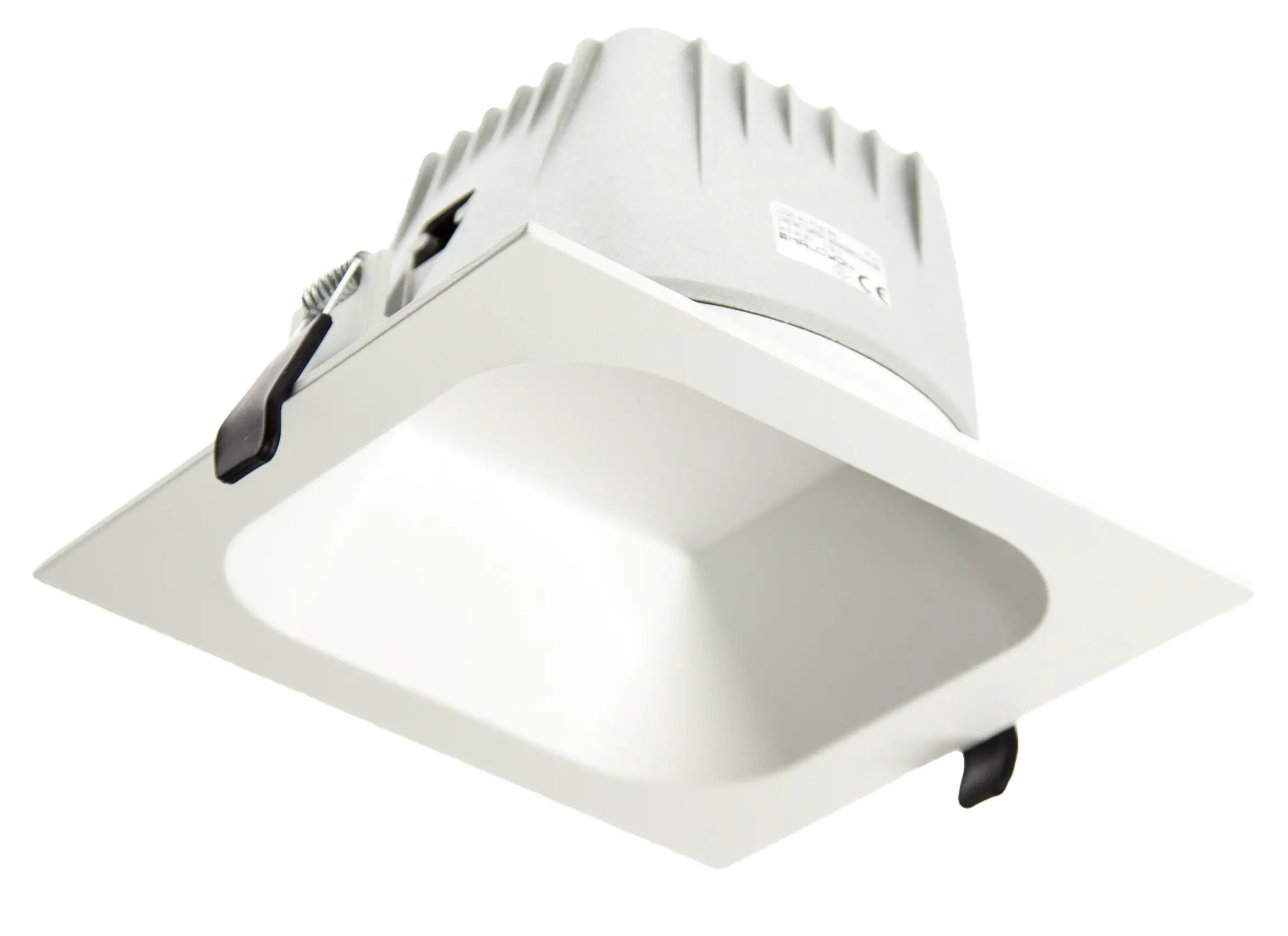

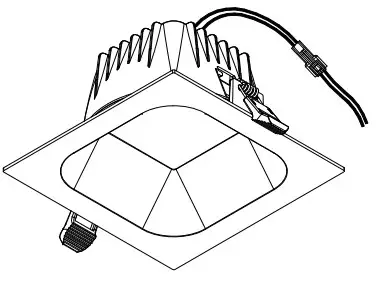

HALCYON R742 W34 LED Recessed Luminaire Instruction Manual

RISK OF FIRE – Required clearance from structural members and building elements
Side Clearance to building element (eg timber, joist or Batten) (SCB): 25mm
Height Clearance to building element (eg timber, joist or Batten) (HCB): 25mm
Minimum Insulation Clearance to building element (MIC): 25mm

Recessed Luminaire Classification:

IC – building insulation that can safely be continuously exposed to 90°C allowed to abut and cover the luminaire.
For indoor use only.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard
This luminaire must be installed by a qualified Registered Electrician to prevent damage to the luminaire and maintain electrical safety
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
DO NOT INSTALL THROUGH JOIST, BEAM, RAFTER OR CEILING BATTEN
Note: Side/Height Clearance is measured from heat sink

Caution,risk of electric shock.

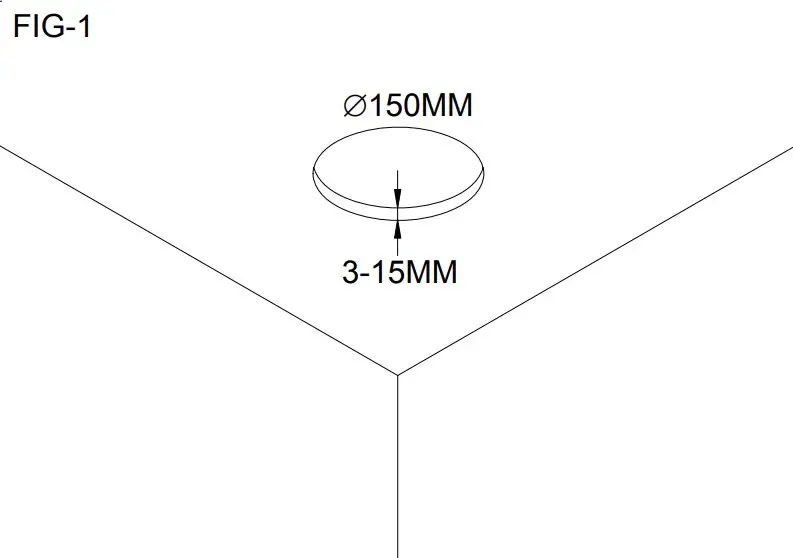

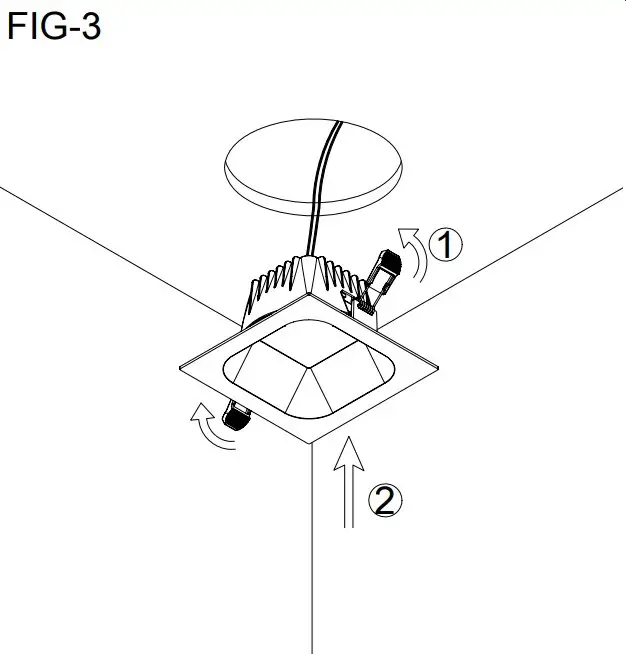

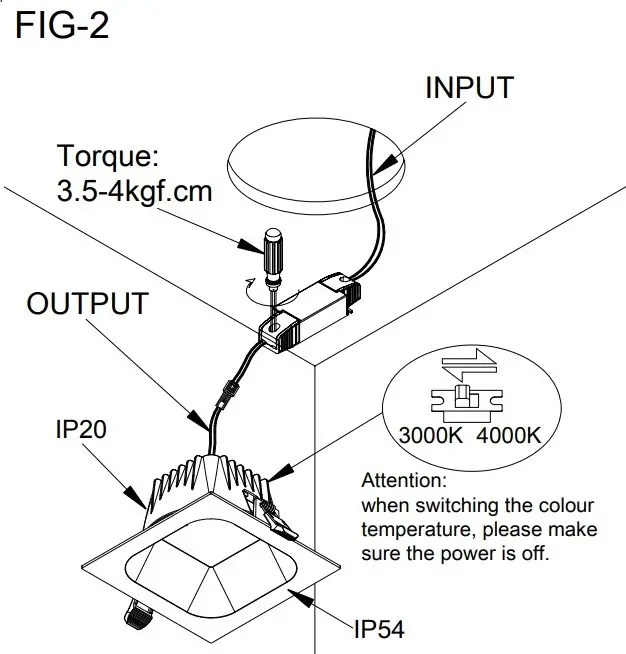

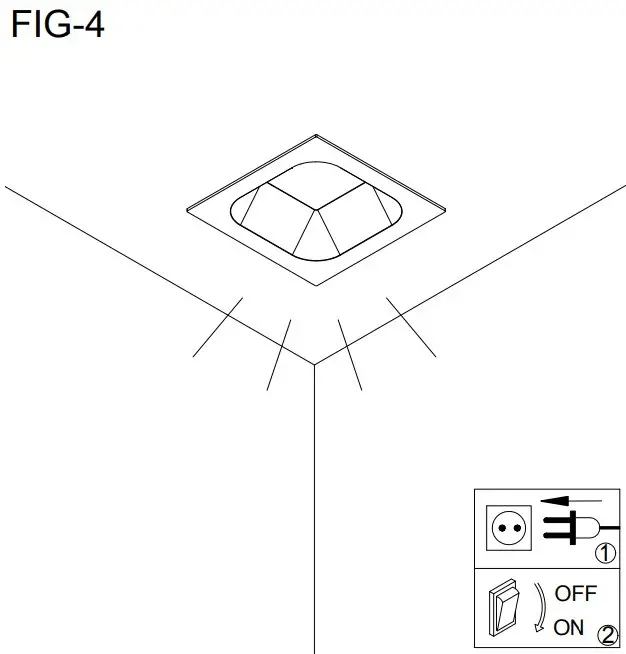

Insrtruction

CLASSIFICATION SHEET /IC

Classification

IC – building insulation that can safely be continuously exposed to 90 oC allowed to abut and cover the luminaire.

In the vicinity of the recessed luminaire, use an insulation product that:
(a) Maintains its dimensions and structural integrity when exposed to a temperature of 90°C; and
(b) Withstands a 30-second needle flame test carried out in accordance with AS/NZS 60695.11.5 with the flame applied to all surfaces of the sample.

Rear of fitting may abut structural members and building elements.
Do not install through or directly into joist, beam, rafter or ceiling batten.

• Side Clearance from heatsink to building element (e.g. timber, joist or batten):  SCB: 25mm
• Height Clearance from heatsink to building element (e.g. timber, joist or batten): HCB: 25mm
• Minimum insulation clearance to building element: MIC: 25mm

Recessed luminaires and their associated equipment may pose a risk of fire or damage to property if not installed and maintained correctly. Halcyon recommends a clearance of 25mm to building elements for optimum lifespan.

Halcyon IC rated luminaires are completely safe to install in sarked timber celling linings.
Halcyon accepts no responsibility if the timber used is not treated correctly and dries out, crack or warps over time due to the constant low heat from the aforementioned “IC Rated” LED recessed lighting.

This data sheet contains information necessary to ensure compliance with the New Zealand Electrical Code of Practice for Installation and Maintenance of Recessed Luminaires and Associated Equipment AS/NZS 60598.2.2:2001
