R867 LED Recessed Luminaire
Instruction Manual
R867 LED Recessed Luminaire
Driver Sold Separately

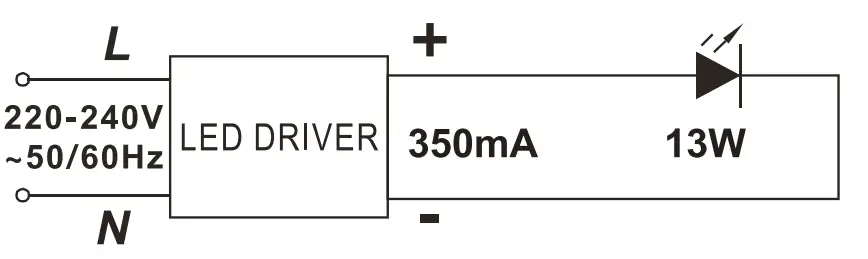

Constant Current – Wire in series
Do not connect luminaire/s to driver if driver is live. Inrush current from live driver will cause instant failure of all connected luminaires. Do not switch secondary side.
Recommended Drivers
| Non-Dimmable Driver Options | Description | Number of fittings |
| DRACC350 20W | Standard 1-20W | lx R867 |
| DRACC350 40W | Standard 14-40W | 2-3x R867 |
| Under Insulation Dimmable Driver Options | Description | Number of fittings |
| DXDUACC350 20W | 10-20W | lx R867 |
| Dali Dimmable Driver Options | Description | Number of fittings |
| DRDDACC 16-25W | 350mA 7-20W | lx R867 |
Driver should be installed above insulation unless using an Under Insulation Driver (UID).
Warning
CA135 only if used in non-tilted or internally tilted position. If luminaire is likely to be frequently adjusted, install as CA135.
IC Rated if used externally tilted position only.
If covering and abutting with insulation always secure the screw on the tilt mechanism to lock tilted position so luminaire cannot be pushed back into housing. If luminaire is not tilted and covered and abutted with insulation, fitting will overheat.
This luminaire must be installed by a qualified Registered Electrician to prevent damage to the luminaire and maintain electrical safety.
Installation Directions
- Switch off mains power supply
- Connect Driver to mains voltage cable (L, N)

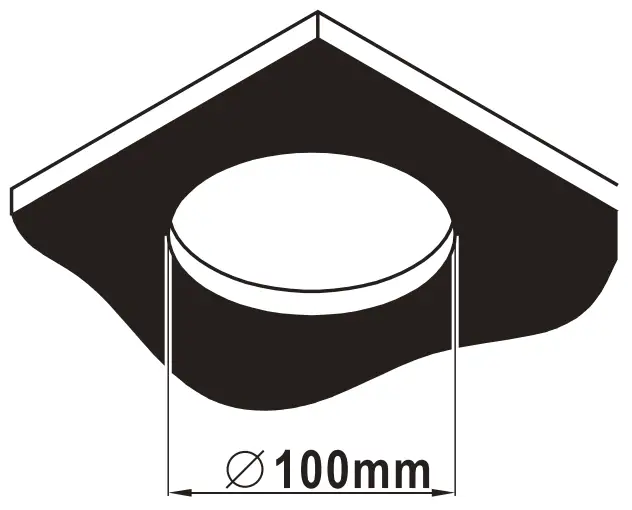

- Carefully install downlight into pre-cut 100mm hole.
- Turn on mains power and switch on lighting circuit.
CLASSIFICATION SHEET
| Manufacturer / Supplier | Halcyon Lighting Ltd |
| Product Code | R867 |
| Product Type | LED Recessed Luminaire |
| Secondary Voltage | 350mA Constant Current |
| Wattage | 13W |
| Ingress Protection Rating | IP20 |
Rear of fittina may abut structural members and buildina elements.
Do not install through or directly into joist, beam, rafter or ceiling batten.

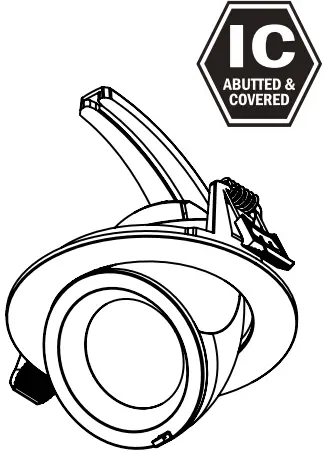

Externally Tilted
| Classification |  | IC— building insulation that can safely be continuously exposed to 90°C allowed to abut and cover the luminaire. |
| Side Clearance from heatsink to building element (e.g. timber, joist or batten) | SCB: 0mm | |
| Height Clearance from heatsink to building element (e.g. timber, joist or batten) | HCB: 0mm | |
| Minimum insulation clearance to building element | MIC: 0mm | |
Halcyon IC rated luminaires are completely safe to install in sarked timber ceiling linings. Halcyon accepts no responsibility if the timber used is not treated correctly and dries out, crack or warps over time due to the constant low heat from the aforementioned “IC Rated” LED recessed lighting.

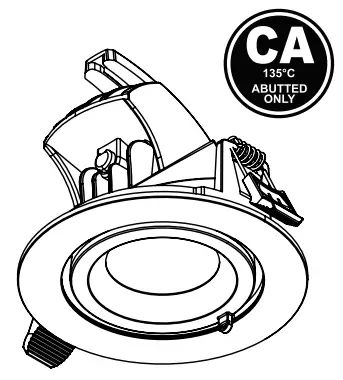

Non-tilted/Internally Tilted Position
| Classification |  | CA 135 — Building insulation that can safely be continuously exposed to 135°C allowed to abut the luminaire. Definition: Can abut the luminaire but NOT cover. |
| Side Clearance from heatsink to building element (e.g. timber, joist or batten) | SCB: 50mm |
| Height Clearance from heatsink to building element (e.g. timber, joist or batten) | HCB: 50mm |
In the vicinity of the recessed luminaire, use an insulation product that: (a) Maintains its dimensions and structural integrity when exposed to a temperature of 90°C; and (b) Withstands a 30-second needle flame test carried out in accordance with AS/NZS 60695.11.5 with the flame applied to all surfaces of the sample.
Recessed luminaires and their associated equipment may pose a risk of fire or damage to property if not installed and maintained correctly.
This data sheet contains information necessary to ensure compliance with the New Zealand Electrical Code of Practice for Installation and Maintenance of Recessed Luminaires and Associated Equipment AS/NZS 60598.2.2:2001
Cutting of holes prior to receiving goods is entirely at the risk of the installer.
10 Basalt Place, East Tamaki, Auckland, PO Box 58-50L Botany. Manukau 2163, Auckland, New Zealand
Ph (0064 9) 273-9177
Fax (0064 9) 273 9155
Email: [email protected]
Web: www.halcyonlights.co.nz
