INSTALLATION R 744
R744 LED Recessed Luminaire
Driver Sold Separately Constant Current – Wire in series
Do not connect luminaire/s to driver if driver is live. Inrush current from live driver will cause instant failure of all connected luminaires. Do not switch secondary side.
Recommended Drivers
| Non-Dimmable Driver Options | Description | Number of fittings |
| DRMACC350 4W | Mini 1-4W | lx R744 |
| DRMACC350 12W | Mini 4-12W | 2-3x R744 |
| DRACC350 20W | Standard 1-20W | 1-5x R744 |
| DRACC350 40W | Standard 14-40W | 5-fix R744 |
| Dimmable Driver Options | Description | Number of fittings |
| DRDMACC350 4W | Mini 2-4W | lx R744 |
| DRDMACC350 12W | Mini 6-12W | 2-3x R744 |
| DXDUACC350 20W | 10-20W | 4-5x R744 |
| DXDUACC350 28W | 14-28W | 5-8x R744 |
This luminaire must be installed by a qualified Registered Electrician to prevent damage to the luminaire and maintain electrical safety.
Installation Directions
- Switch off mains power supply

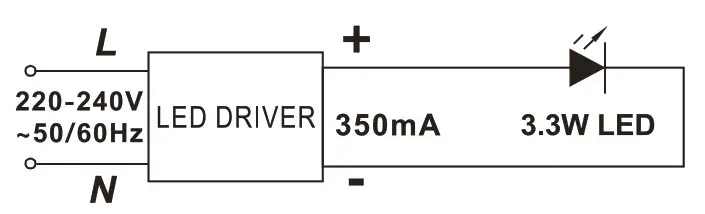

- Connect Driver to mains voltage cable (L, N)

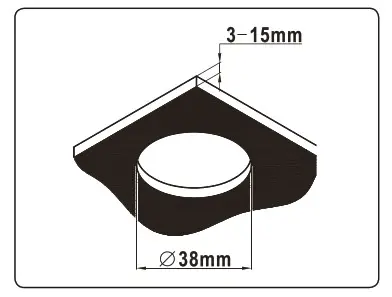

- Carefully install downlight into pre-cut 38mm hole.
- Turn on mains power and switch on lighting circuit.
Approved Clearances Note: 0mm required but 25mm always recommended for optimum product lifespan through effective heat dissipation.
Example 1: 0mm Approved Height Clearance Building element abutting rear, insulation abutting sides of fitting.
Example 2: 0mm Approved Side Clearance Building element abutting side of fitting, insulation abutting and covering fitting.
All exterior luminaires (with the exception of copper) require periodic cleaning to protect t esuace an or coating rom corrosion and ensure tidy appearance for the lifespan of the product. Wash with care using a soft brush and warm soapy water using a neutral detergent. Coastal areas require extra attention, especially fittings which are under eaves/soffits and do not have any exposure to rain. Do not use a water blaster or high pressure hose. do not submerge fittings for extended periods of time. 316 stainless steel fittings will still develop surface rust or “tea staining’ if left uncared for.
Cutting of holes prior to receiving goods is entirely at the risk of the installer.
10 Basalt Mace. East Tamaki, Auckland. PO Boa 58-501 Botany, Manukau 2161 Auckland, New Zealand Ph(C064 9) 273-9177 Fax (0069 9) 273 9155 Email: sales4Ohalcyon.co.nz web: wena.nalcyonaghta.co.nz
CLASSIFICATION SHEET / IC
| Manufacturer / Supplier | Halcyon Lighting Ltd |
| Product Code | R744 |
| Product Type | LED Recessed Luminaire |
| Secondary Voltage | 350mA Constant Current |
| Wattage | 3.3W |
| Ingress Protection Rating | P44 |
| Classification |  | IC — building insulation that can safely be continuously exposed to 90°C allowed to abut and cover the luminaire. |
In the vicinity of the recessed luminaire, use an insulation product that:
(a) Maintains its dimensions and structural integrity when exposed to a temperature of 90°C; and
(b) Withstands a 30-second needle flame test carried out in accordance with AS/NZS 60695.11.5 with the flame applied to all surfaces of the sample.
Rear of fitting may abut structural members and building elements.
Do not Install through or directly Into joist, beam, rafter or ceiling batten.
| Side Clearance from heatsink to building element (e.g. timber, joist or batten) | SCB: 0mm |
| Height Clearance from heatsink to building element (e.g. timber, joist or batten) | HCB: 0mm |
| Minimum insulation clearance to building element | MIC: 0mm |
Recessed luminaires and their associated equipment may pose a risk of fire or damage to property if not installed and maintained correctly. Halcyon recommends a clearance of 25mm to building elements for optimum lifespan.
Halcyon IC rated luminaires are completely safe to install in sarked timber ceiling linings.
Halcyon accepts no responsibility if the timber used is not treated correctly and dries out, crack or warps over time due to the constant low heat from the aforementioned “IC Rated” LED recessed lighting.
This data sheet contains information necessary to ensure compliance with the New Zealand Electrical Code of Practice for Installation and Maintenance of Recessed Luminaires and Associated Equipment AS/NZS 60598.2.2:2001
