INSTALLATION R865
Instruction Manual
R865 LED Recessed Luminaire
Driver Sold Separately

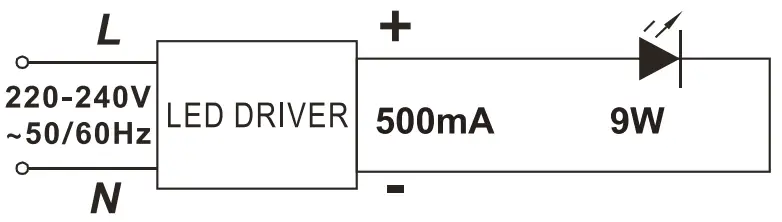

Constant Current – Wirein series
Do not connect luminaire/s to driver if driver is live.
Inrush current from live driver will cause instant failure of all connected luminaires. Do not switch secondary side.
Recommended Drivers
| Non-Dimmable Driver Options | Description | Number of fittings |
| DRMACC500 12W | Mini 4-12W | lx R865 |
| DRACC500 20W | Standard 1-20W | 1-2x R865 |
| Under Insulation Dimmable Driver Options | Description | Number of fittings |
| DXDUACC500 12W | 6-12W | lx R865 |
| DXDUACC500 20W | 10-20W | 2x R865 |
| DXDUACC500 30W | 15-30W | 2-3x R865 |
Driver should be installed above insulation unless using an Under Insulation Driver ( UID ).
Warning
CA135 only if used in non-tilted o r internally tilted position.
I fluminaire is likely to be frequently adjusted, install as CA135.
IC Rated if used externally tilted position only.
If covering and abutting with insulation always secure the screw on the tilt mechanism to lock tilted position so luminaire cannot be pushed back into housing. If luminaire is not tilted and covered and abutted with insulation, fitting will overheat.
This luminaire must be installed by a qualified Registered Electrician to prevent damage to the luminaire and maintain electrical safety.
Installation Directions
- Switch off mains power supply
- Connect Driver to mains voltage cable (L, N)

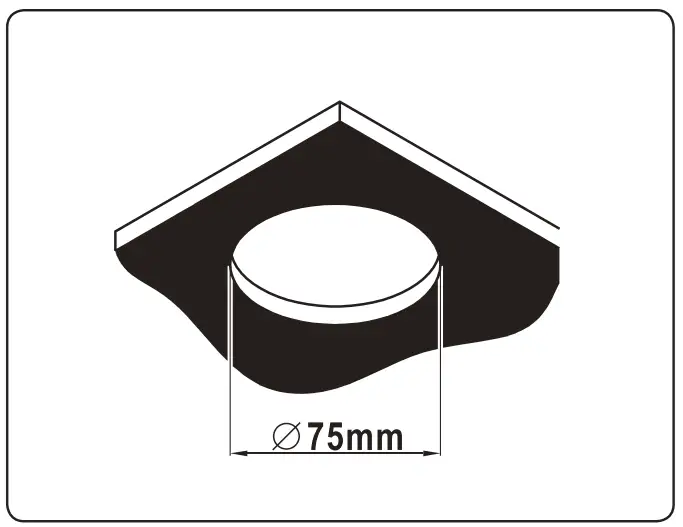

- Carefully install downlight into pre-cut 75mm hole.
- Turn on mains power and switch on lighting circuit.
CLASSIFICATION SHEET
| Manufacturer / Supplier | Halcyon Lighting Ltd |
| Product Code | R865 |
| Product Type | LED Recessed Luminaire |
| Secondary Voltage | 500mA 18VDC Constant Current |
| Wattage | 9W |
| Ingress Protection Rating | IP20 |
Rear of fitting may abut structural members and building elements.
Do not install through or directly into joist, beam, rafter or ceiling batten.

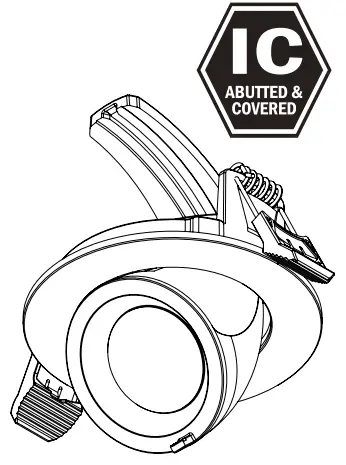

Externally Tilted
Classification
IC — building insulation that can safely be continuously exposed to 90°C allowed to abut and cover the luminaire.
| Side Clearance from heatsink to building element ( e . g . timber, joist o r batten) | SCB: 0mm |
| Height Clearance from heatsink to building element (e.g. timber, joist o r batten) | HCB: Omm |
| Minimum insulation clearance to building element | MIC: Omm |

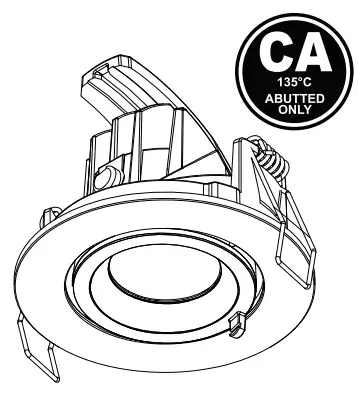

Non-tilted/Internally Tilted Position
Classification
CA 135 — Building insulation that can safely be continuously exposed to 135°C allowed to abut the luminaire. Definition: Can abut the luminaire but NOT cover.
| Side Clearance from heatsink to building element ( e . g . timber, joist o r batten) | SCB: 50mm |
| Height Clearance from heatsink to building element ( e . g . timber, joist o r batten) | HCB: 50mm |
In the vicinity of the recessed luminaire, use an insulation product that:
(a) Maintains its dimensions and structural integrity when exposed to a temperature of 90°C; and
(b) Withstands a 30-second needle flame test carried out in accordance with AS/NZS 60695.11.5 with the flame applied to all surfaces of the sample.
Recessed luminaires and their associated equipment may pose a risk of fire or damage to property if not installed and maintained correctly.
This data sheet contains information necessary to ensure compliance with the New Zealand Electrical Code of Practice for Installati on and Maintenance of Recessed Luminaires and Associated Equipment AS/NZS 60598.2.2:2001
