LED High Bay Light
Installation Instructions
Installation note: Do not install on the same circuits as Metal halide, Fluorescent and other “Low power factor” devices.
When installed on the same circuit it can cause flickering and/or premature failure of the “high power factor” electronic drivers.
The harmonic distortion from low power factor devices alters the Waveform of the AC supply which can cause componentry in high power factor electronic drivers to resonate, run over temperature and fail after prolonged exposure.

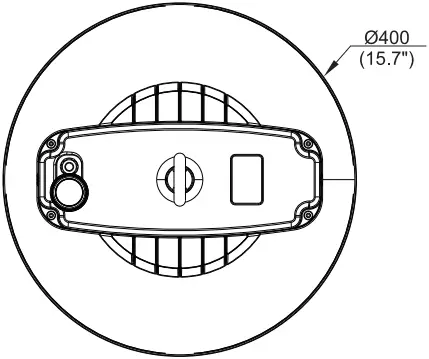

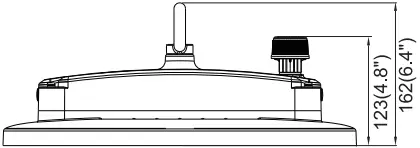

Physical Dimensions(Unit:mm/inch)

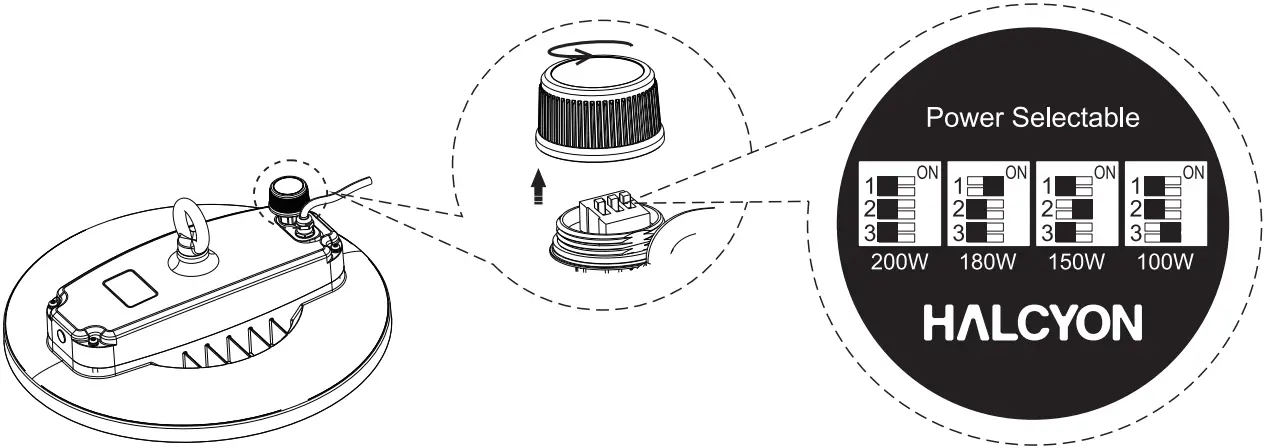

200W/180W/150W/100W Selectable
Please select a suitable power by the DIP switch before installation.
Default factory setting: 150W

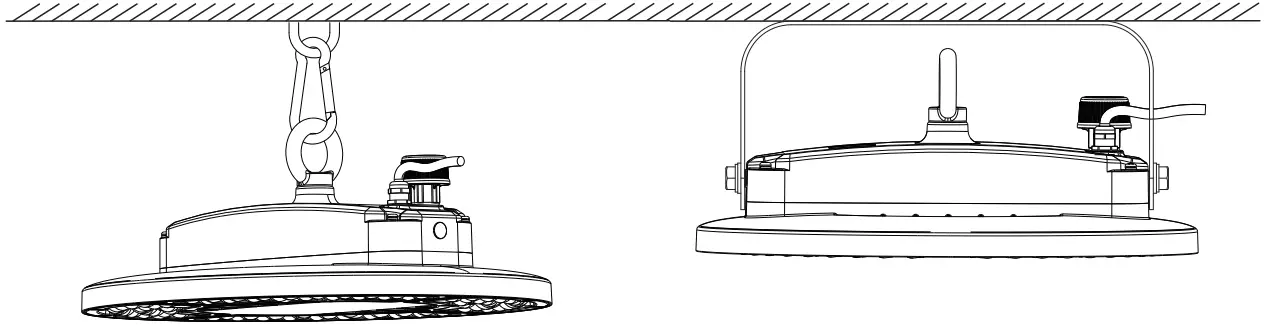

Mounting Options

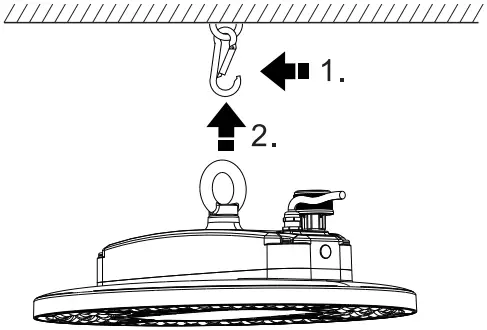

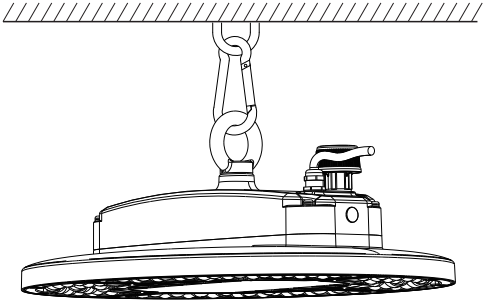

Suspension mounting
1
2

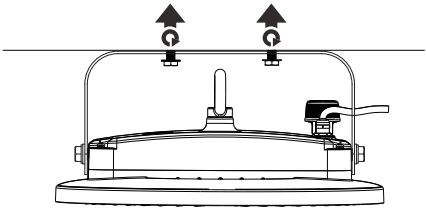

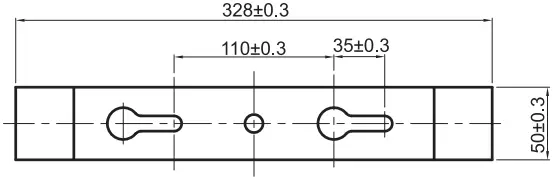

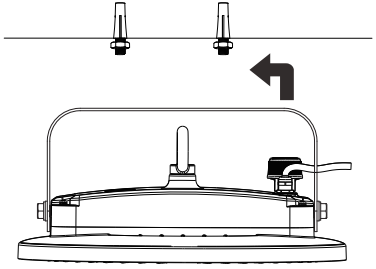

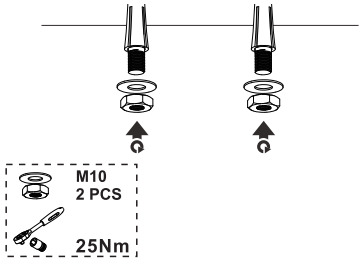

Ceiling mounting
1
2
3
Product Specifications | 200W/180W/150W/100W Selectable |
| Input Voltage | 100-240Vac |
Power Frequency | 50 / 60 Hz |
| Outlook Dimensions | ∅400×162(∅15.7″x6.37″) |
Net Weight | 5.5±0.3kg(12.13±0.66Lbs) |
| Working Temperature | -30°C to + 50°C(-22°F to +122°F) |
Storing Temperature | -40°C to +70°C(-40°F to +158°F) |

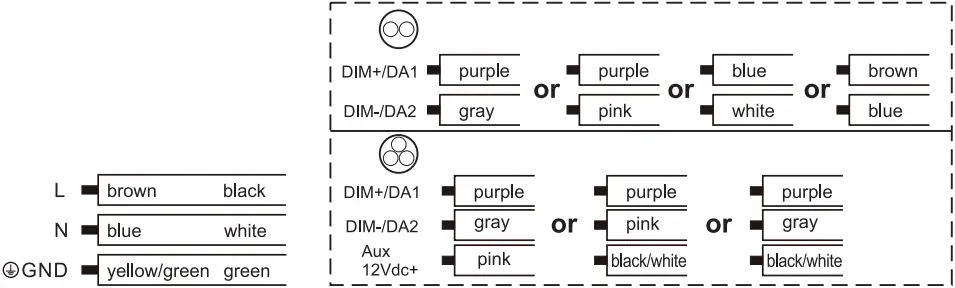

Dimmable
Warning! do not wire dim cord to high voltage, or dim function will fail.
- The luminiaire is suggested to be mounted above 4 meters height and indoor application.
- We highly suggest users to maintain and clean dust from the luminaire regularly, to keep its lifespan.
- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
- For type Y attachments:
if the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
