ORIENTek T49 FTTx Fusion Splicer
Feature Description
- Efficient, versatile, lightweight & portable
- Working platform design for aerial work
- Special 3-in-1fiber holde
- 3 Year warranty policy
- Electrode life around 5000 times(Replaceable)

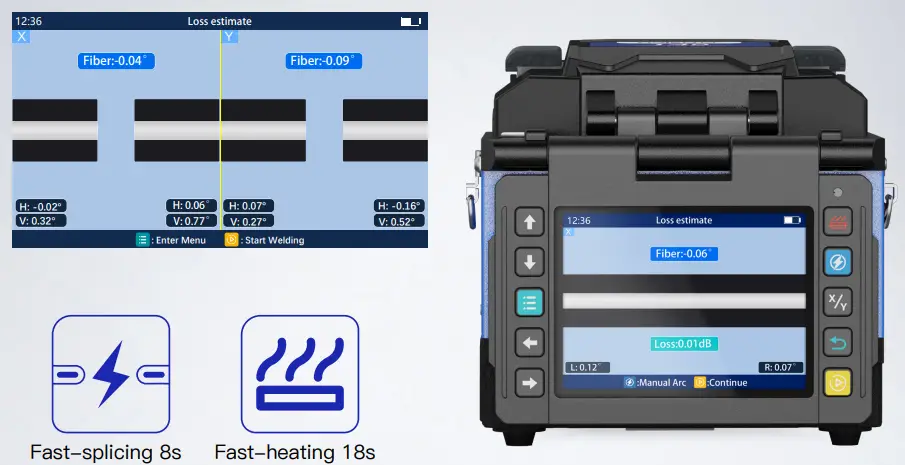

- Automatic splicing & automatic heating
- Innovatively no need tools to replace electrodes
- Support 120 times of splicing + heating when fully charged.
Main Features

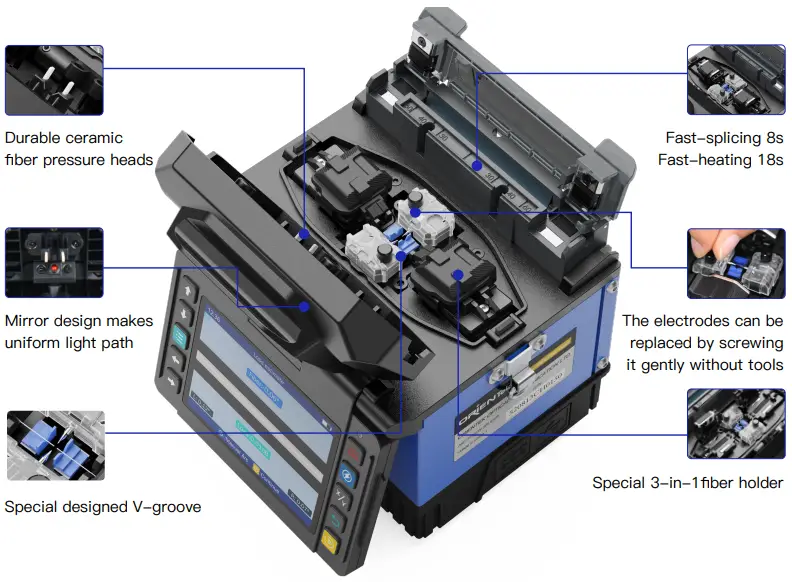

3-IN-1 Fiber Holder
Fiber holder suitable for Bare Fiber/ 3.0mm, Jump Fiber/ Pigtail and Fiber/Rubber-insulated fiber cable.
Introduction of fiber optic cleaver operating platform
（Operation platform be ordered separately）

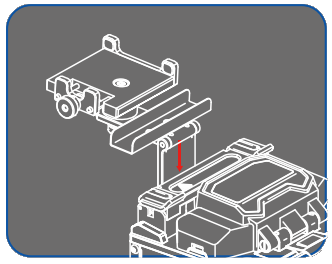

Installation instructions of fiber optic operating platform

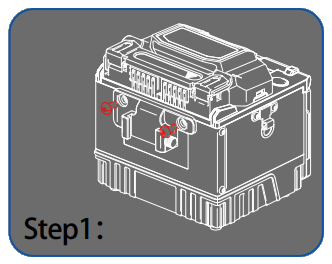

Fasten the fixing base to the back of the splicer with screws.
Insert the support frame into the socket of the base, adjust it to a proper height, and tighten the screws.

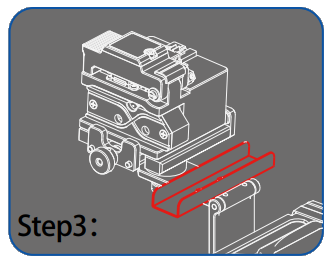

Place the cooling tray on the support frame, and make its hole position coincide with the point position on the support plate.

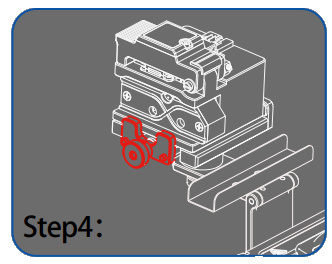

Place the fiber cleaver on the operating table, adjust the depth of the screw to make the rubber pad and the cleaver completely fit.

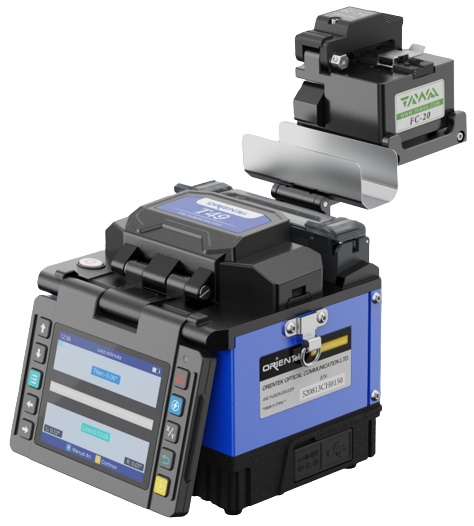

Installation completion effect
Invention patent application number 202210544729.X
Utility model patent application number 202221202906.8
(Operation platform be ordered separately)
Specification
Splice Method: | Active Clad-Alignment |
| Applicable Fibers : | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
Compatible Fiber/Cable : | 0.25~3.0 mm / indoor flat cable |
| Fiber Holder: | Replaceable |
Fiber Diameter : | Cladding: 80-150µm, Coating: 100-lOOOµm |
| Fiber Cleave Length : | 8-16 mm |
Splice mode : | Max 128 modes |
| Typical Splice Loss: | SM: 0.03dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.03dB ★① |
Return Loss: | >>60dB |
| Splicing Time : | SM Quick mode : 8 sec / SM Average: 10 Sec |
Estimated Splice Loss : | Available |
| Heating Time : | Quick mode 18 sec.(SM G652 250μm 40mm Sleeve) adjustable★② |
Protection Sleeve Length | 20mm, 30mm, 40mm, 50mm, 60mm |
| Heat Programs: | Max 32 modes |
Battery: | 3400mAh Battery Capacity, Typical 120 Cycles (Splice& Heat) per Charge★③ |
| Electrode Life : | 5000 arcs （replaceable） ★④ |
Auto-start : | Splice / Heating |
| Automatic Fiber Identification : | / |
Automatic ARC Identification : | Automatic arc calibration by air pressure and temperature |
| Results Storage : | The last 10,000 splice records and 2,000 result images |
Tension Test : | 1.96~2.25N |
| Operating Condition : | Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s |
| Storage Condition : | 0~95% relative humidity, -20~60°C |
| Display: | 3.5” color high resolution (800 x 480) display |
Fiber Magnification : | X, Y, XY, X/Y : 320X Magnification |
| Power Supply : | AC: 100-240V DC: 9-14V |
Terminal : | USB2.0 |
| Weight : | 1.06kg without battery / 1.35kg with battery |
Size: | 130H x 113W x 126D mm |
★1.With identical fibres (in room temperature). Measured by cut-back method relevant to ITU-T and IEC standards.
★2.0.25mm Fiber, may vary depending on the battery status and operating environment.
★3.Splice & Heat cycles based on 40mm shrink tube.
★4. Electrode life may vary depending on the operating environment.

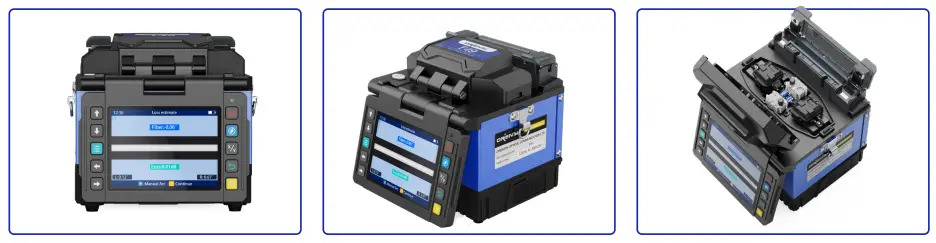

Product Display

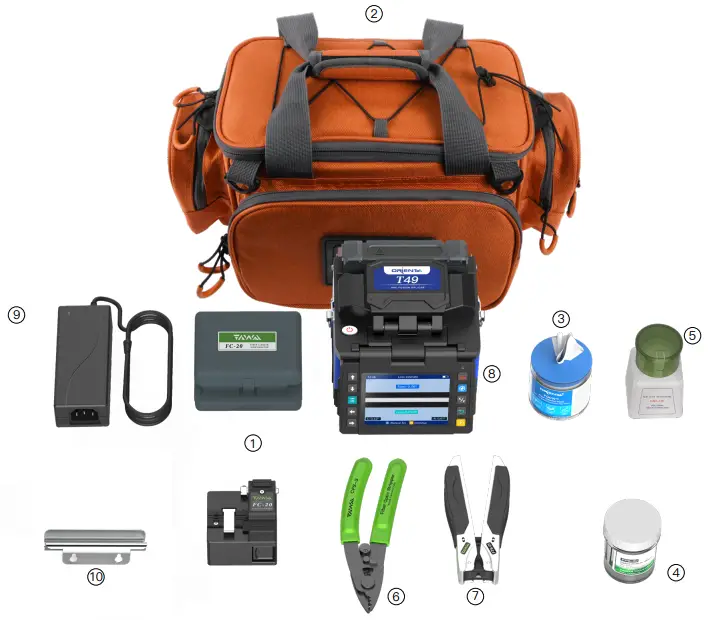

Packing List
- Fiber optic cleaver
- Carry bag (Including Suspenders & belts)
- Cleaning wipes(box)
- Splicing protector sleeves (piece)
- Alcohol bottle
- Fiber Stripper CFS-3
- Flat Cable Stripper FTS-01
- Fusion splicer
- Power charger
- Cooling Tray
