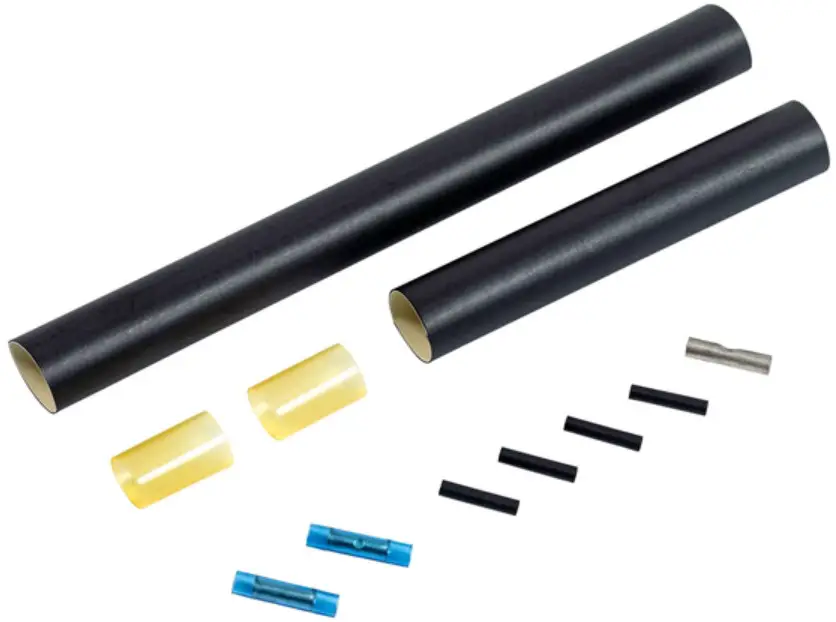

nVent RAYCHEM S-20 Splice Kit Instruction Manual

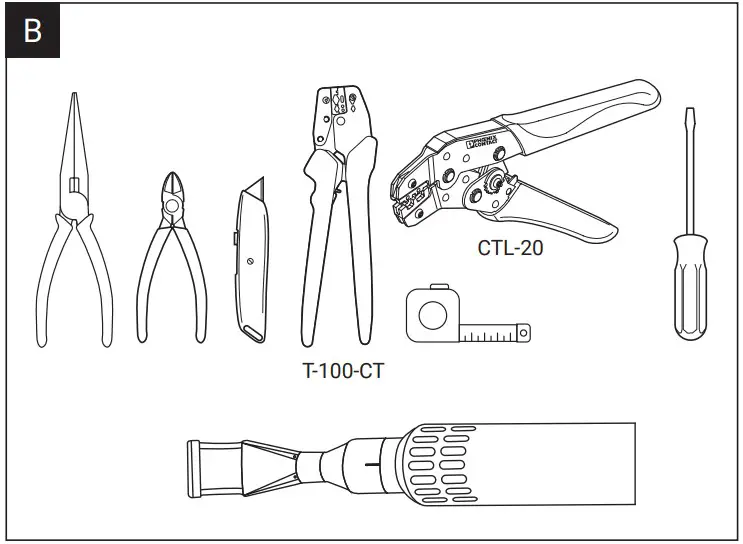

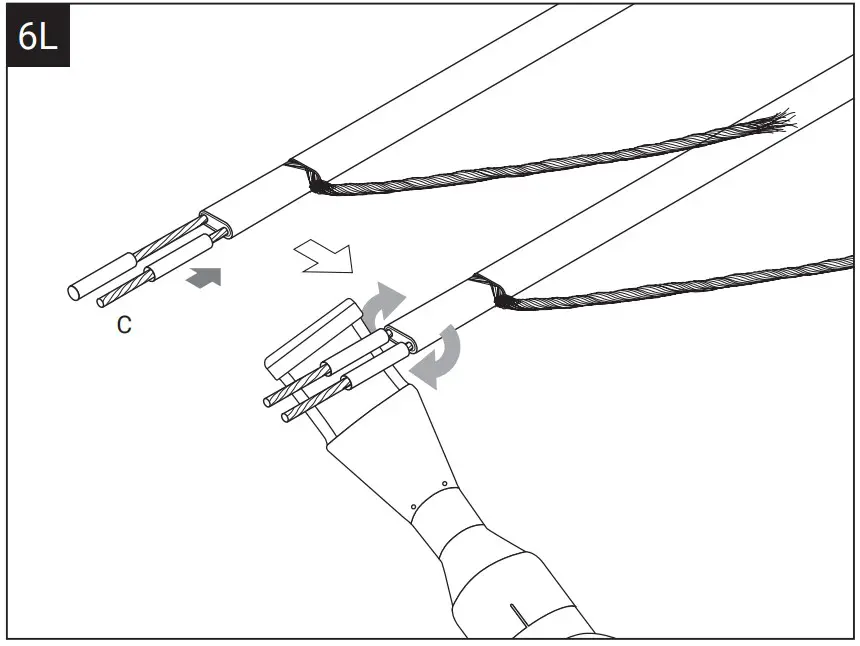

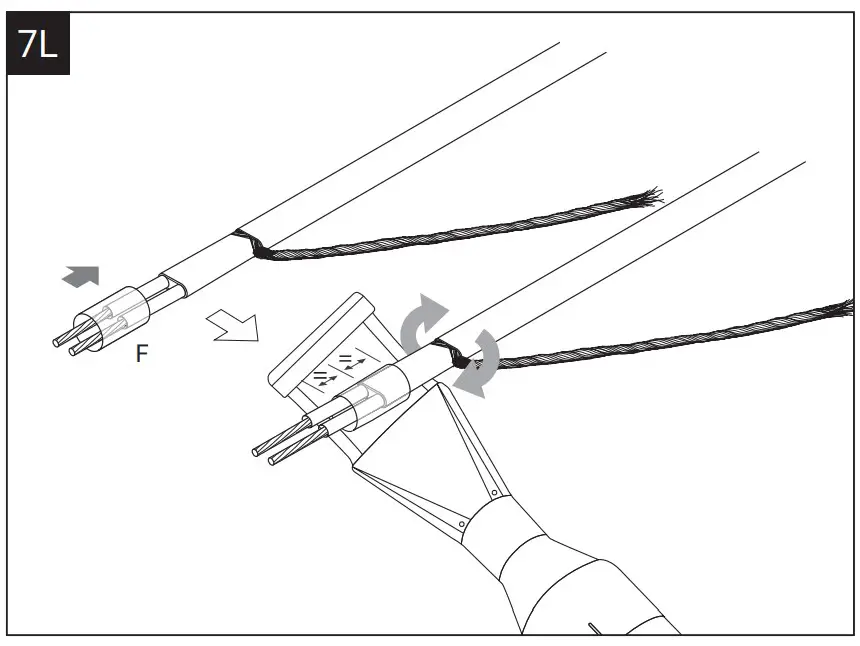

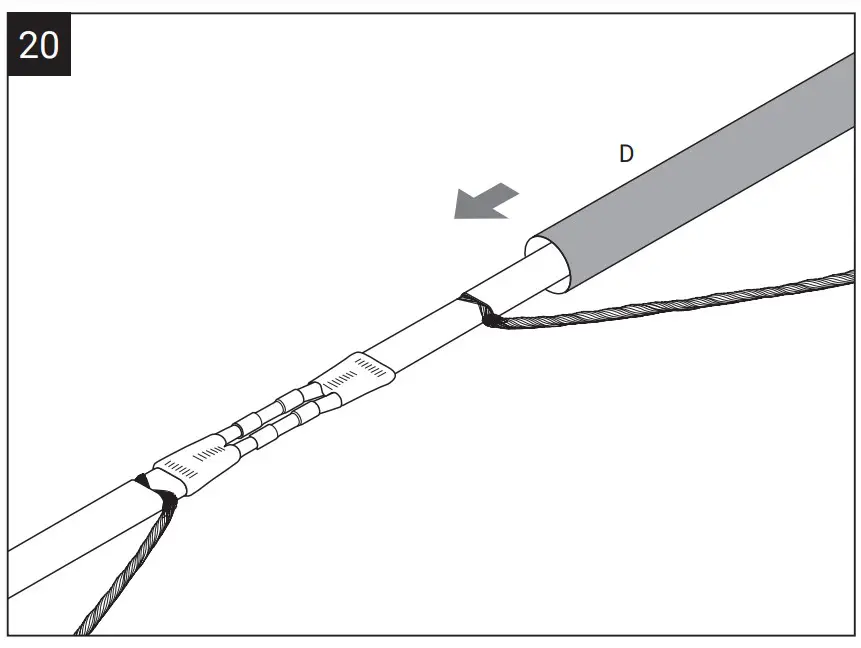

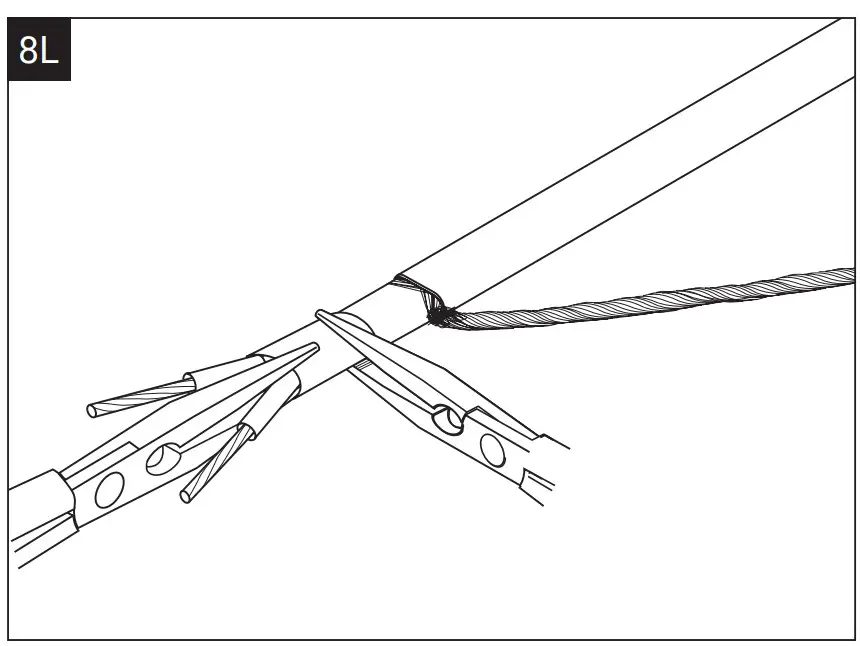

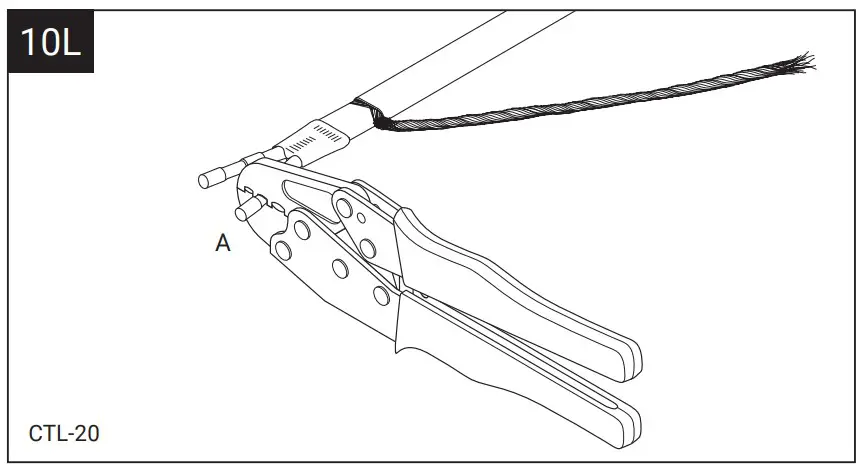

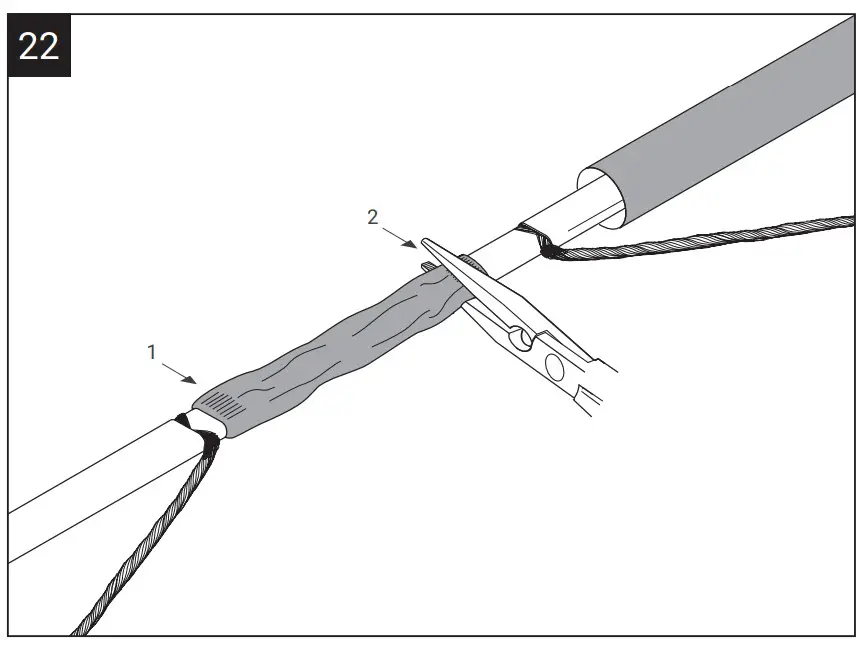

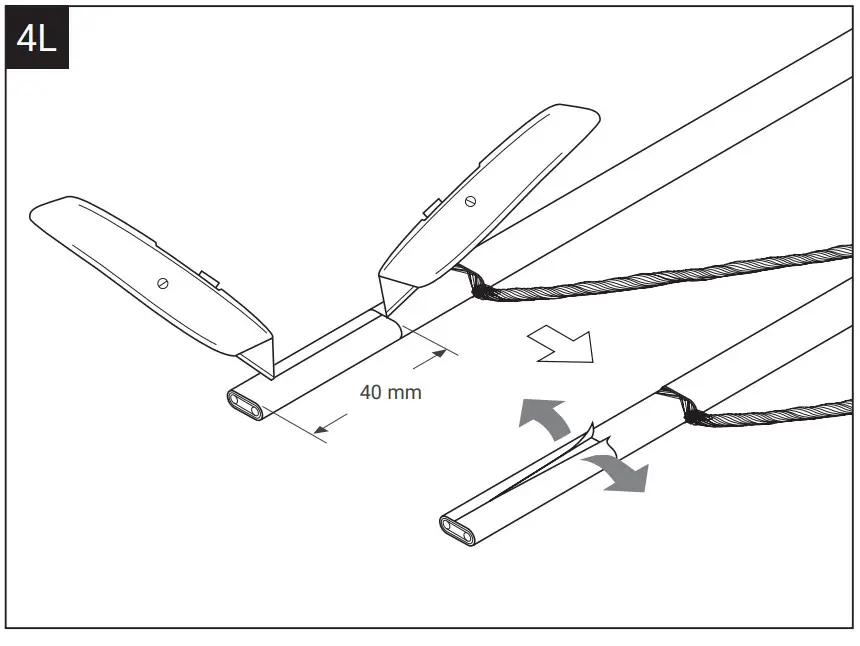

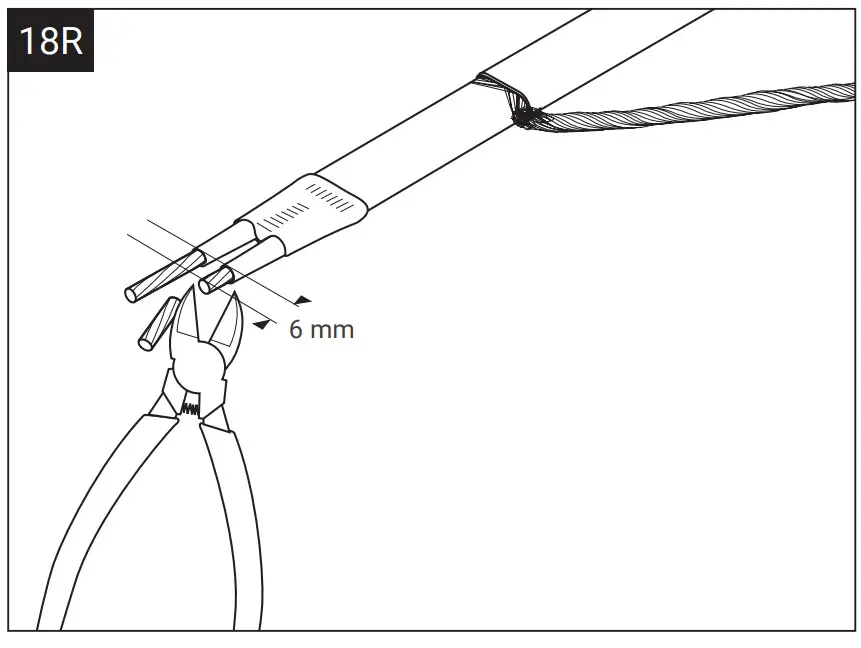

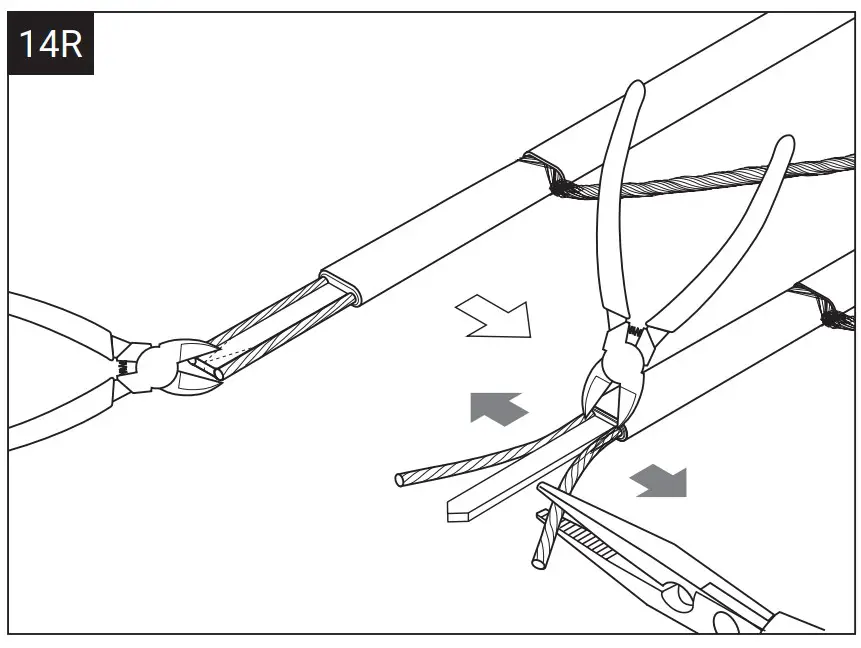

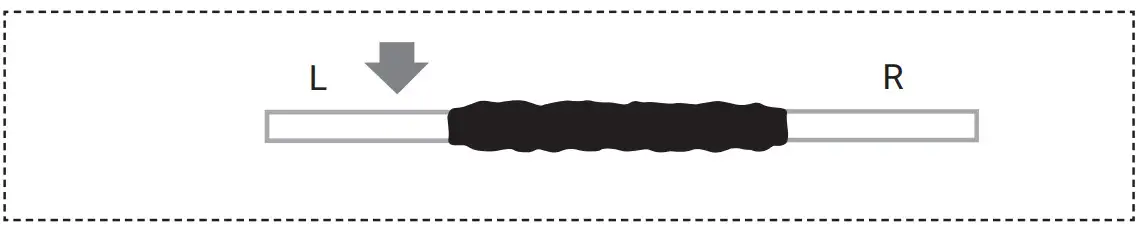

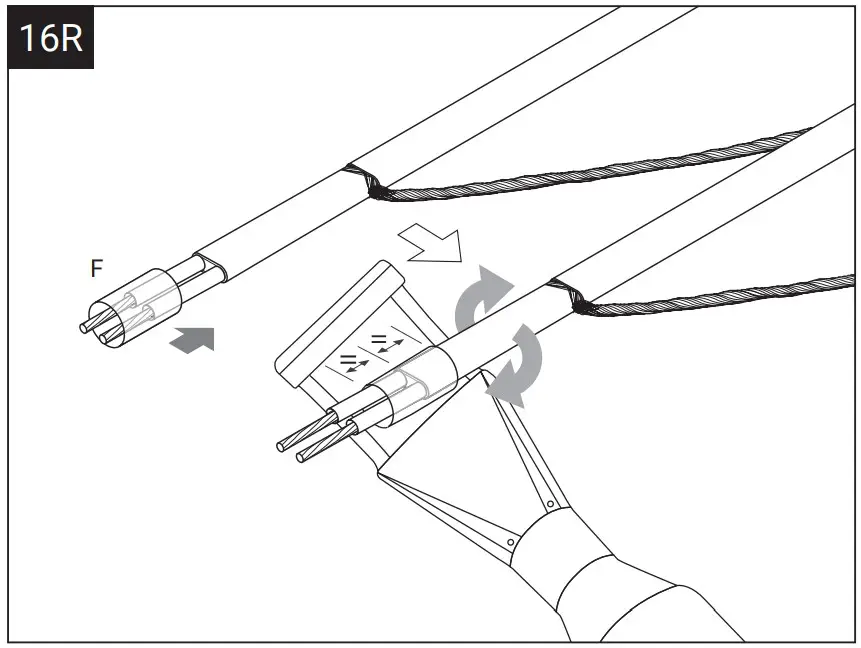

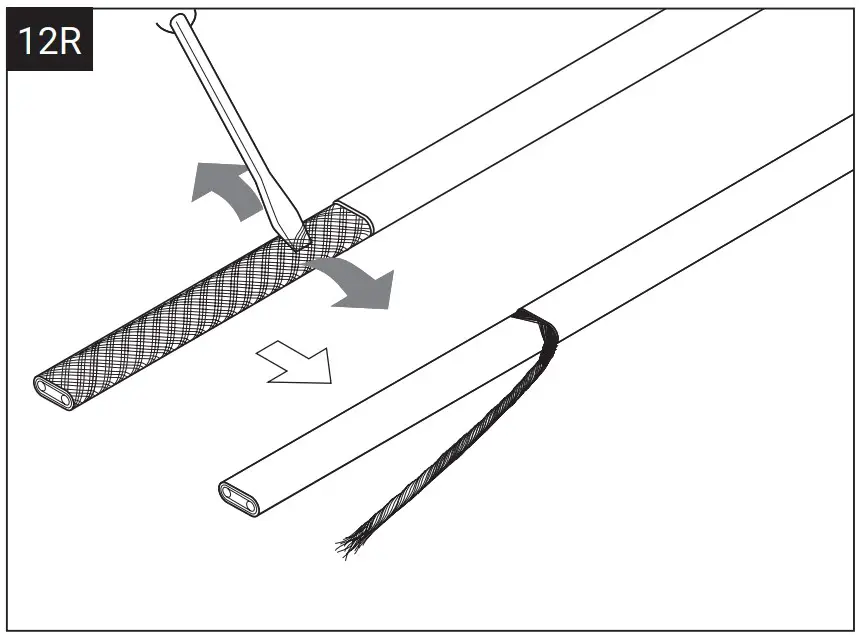

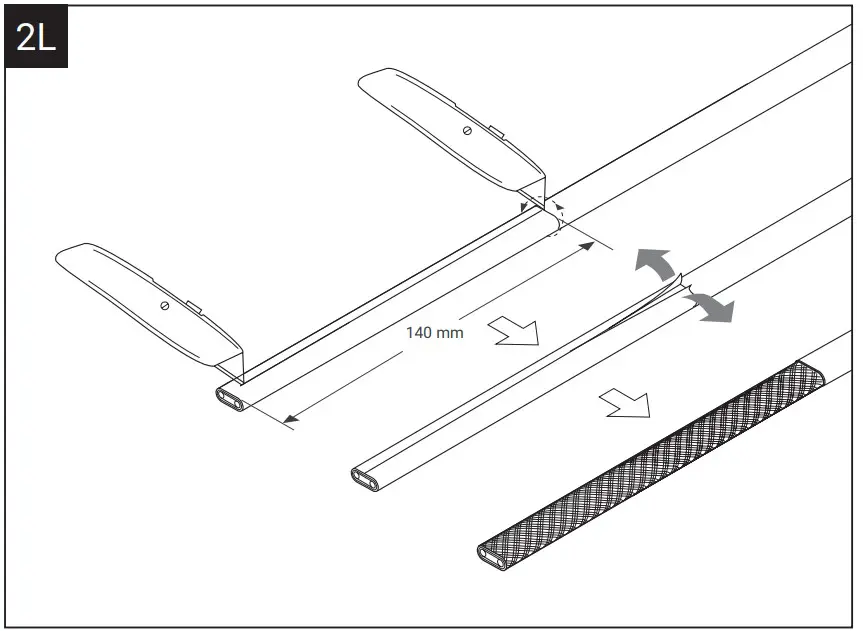

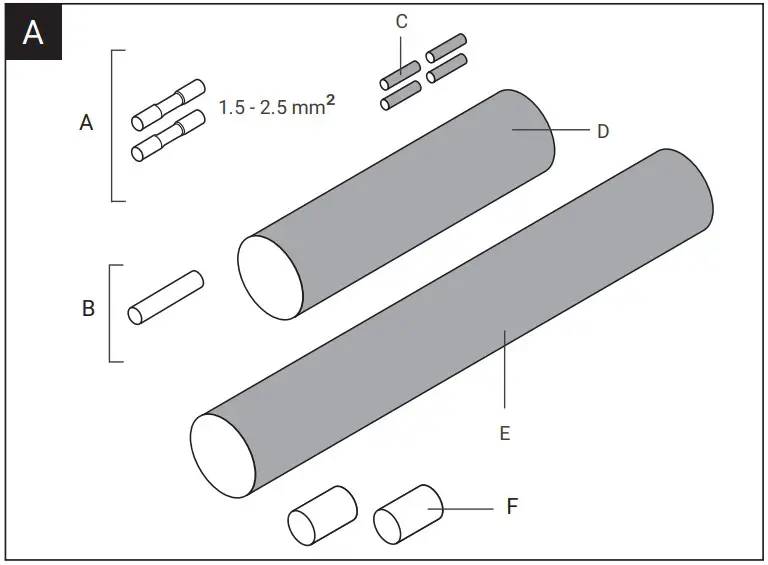

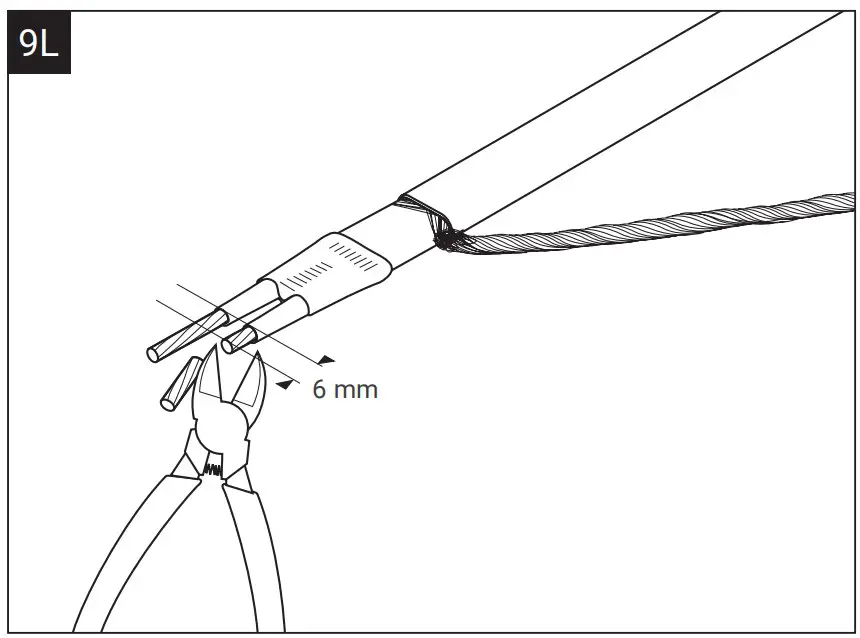

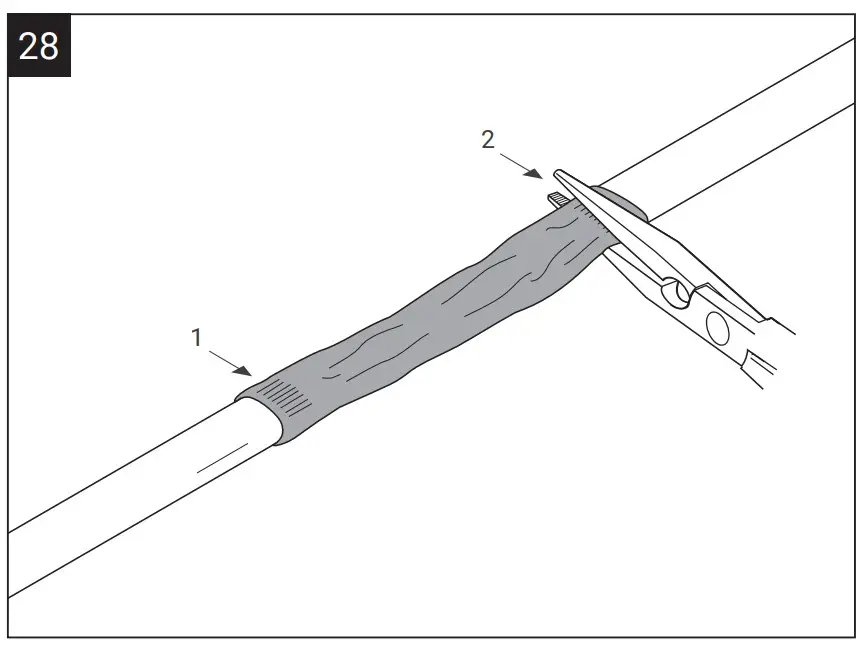

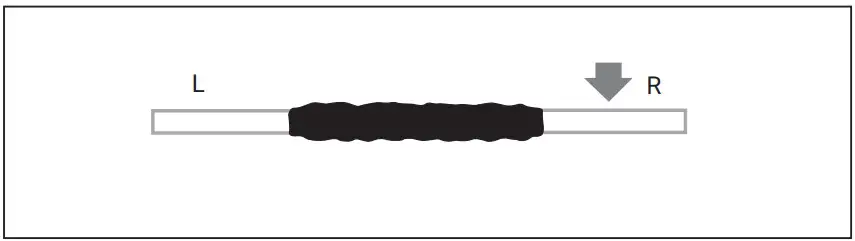

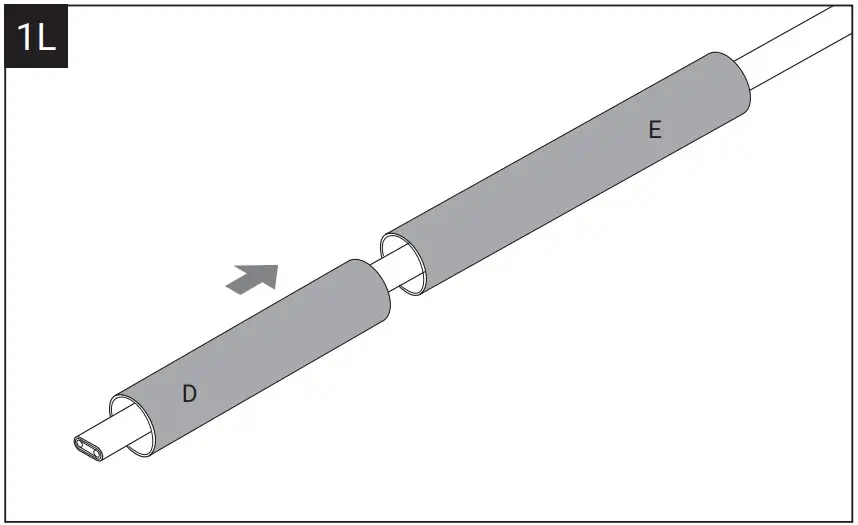

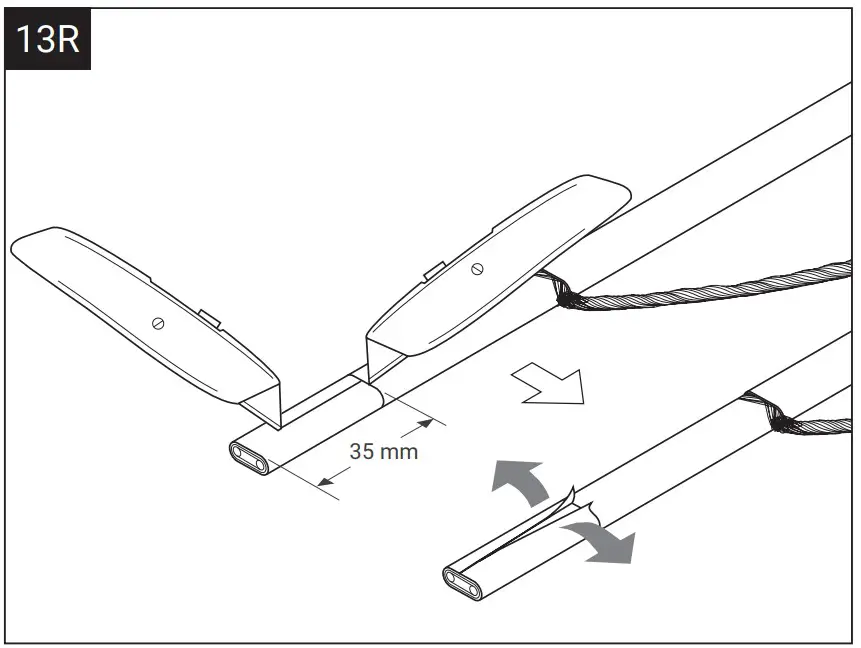

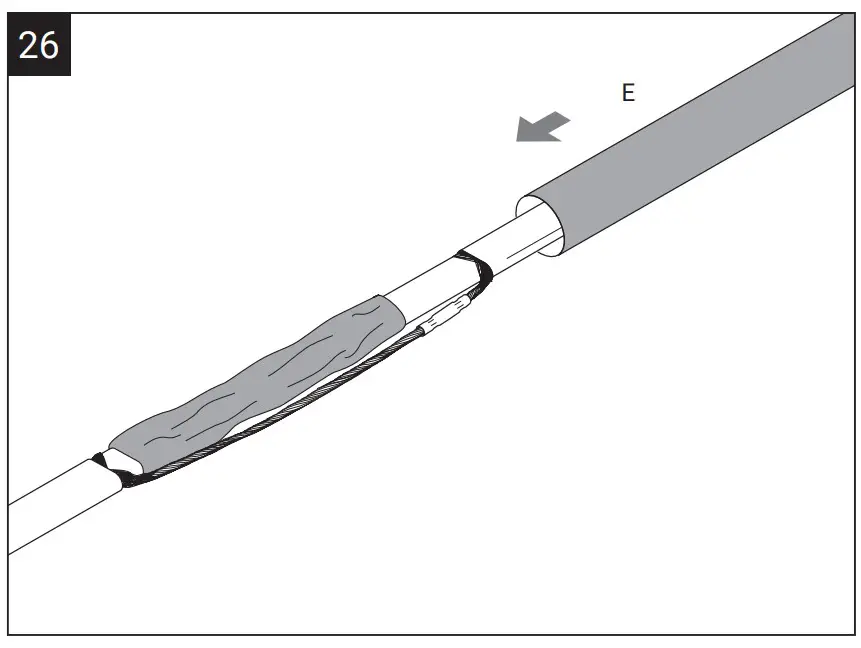

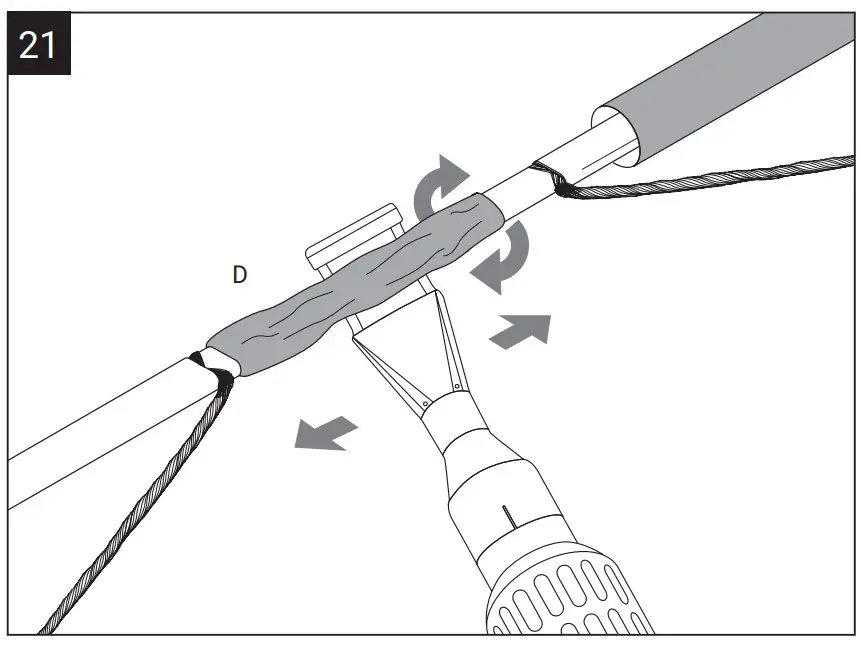

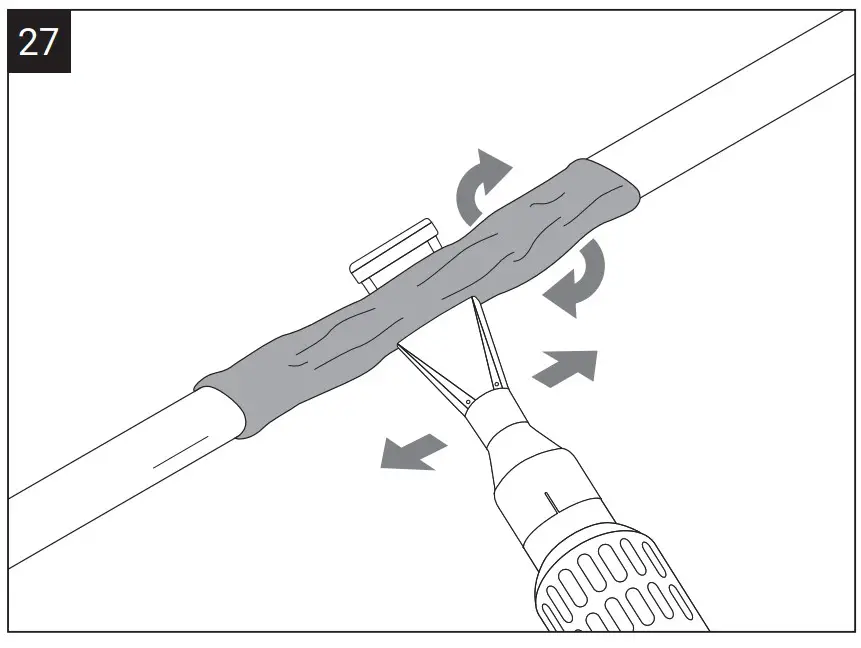

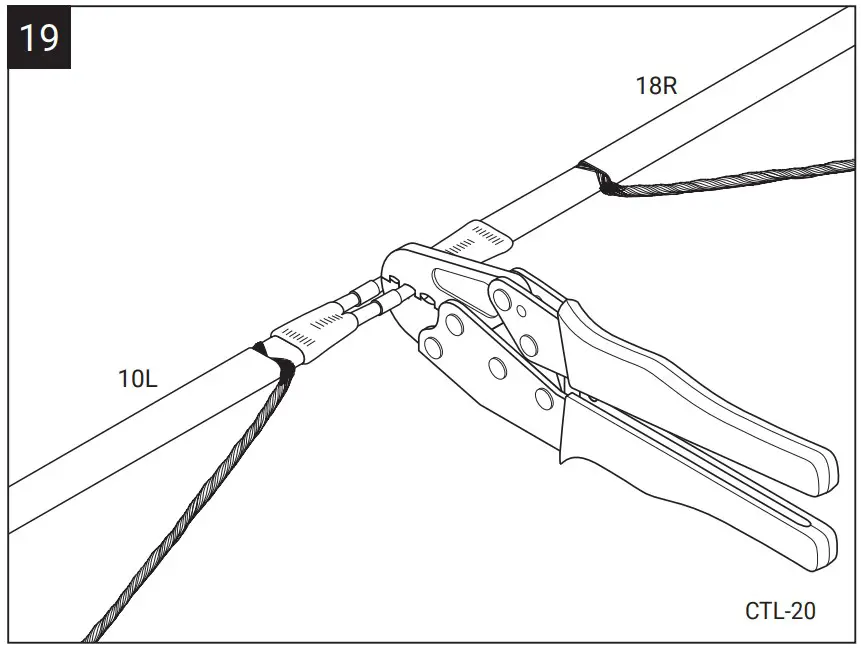

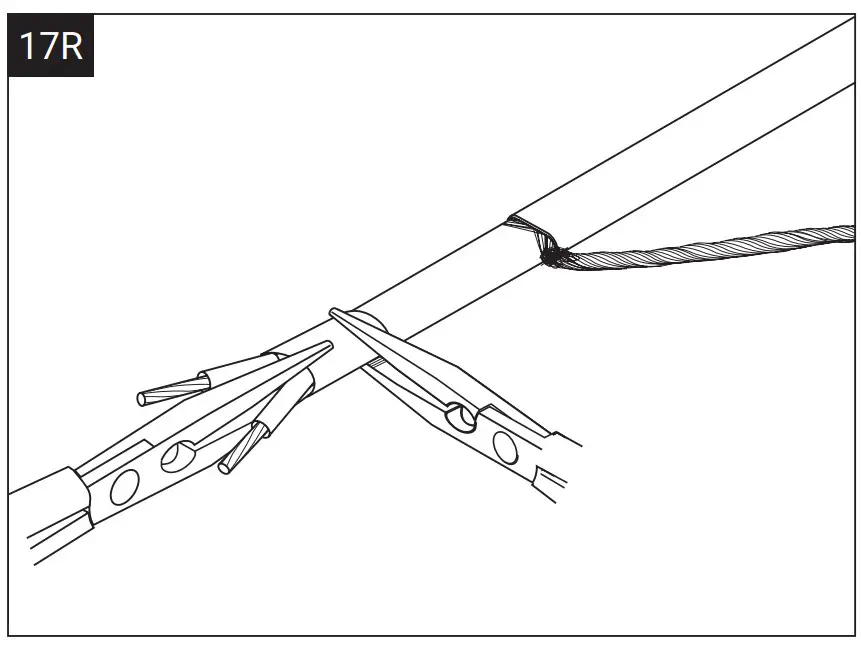

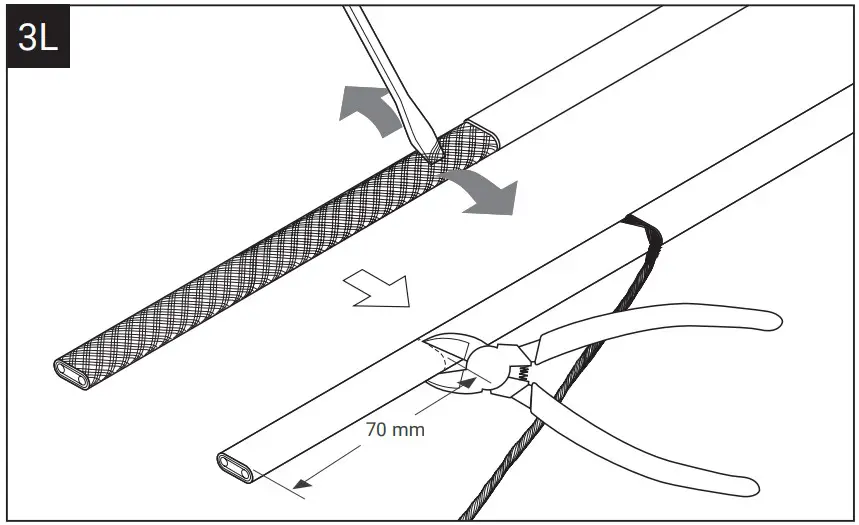

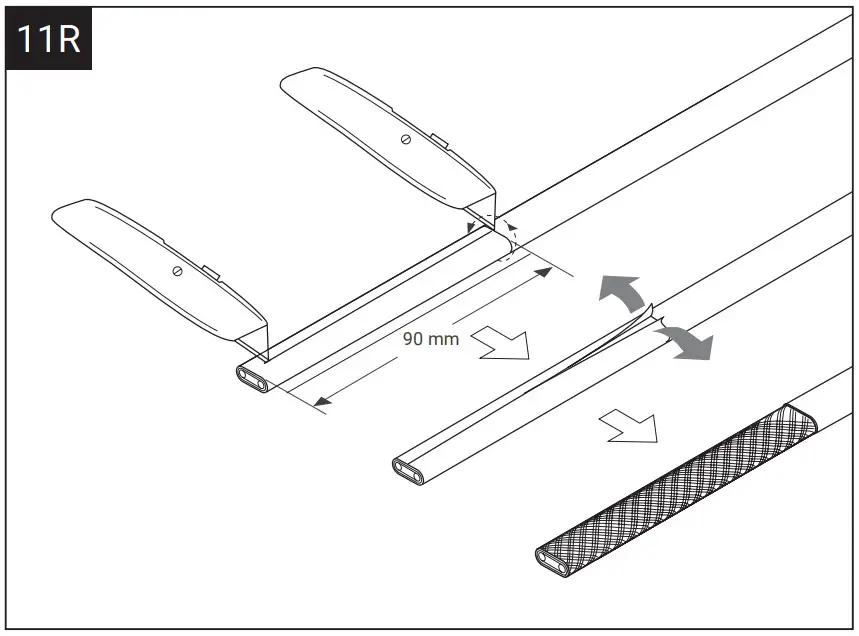

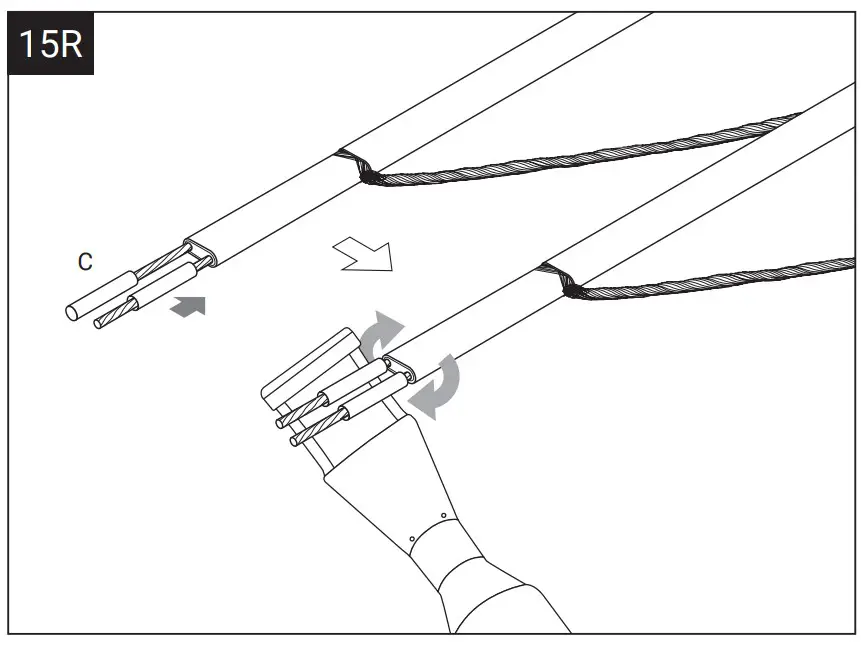

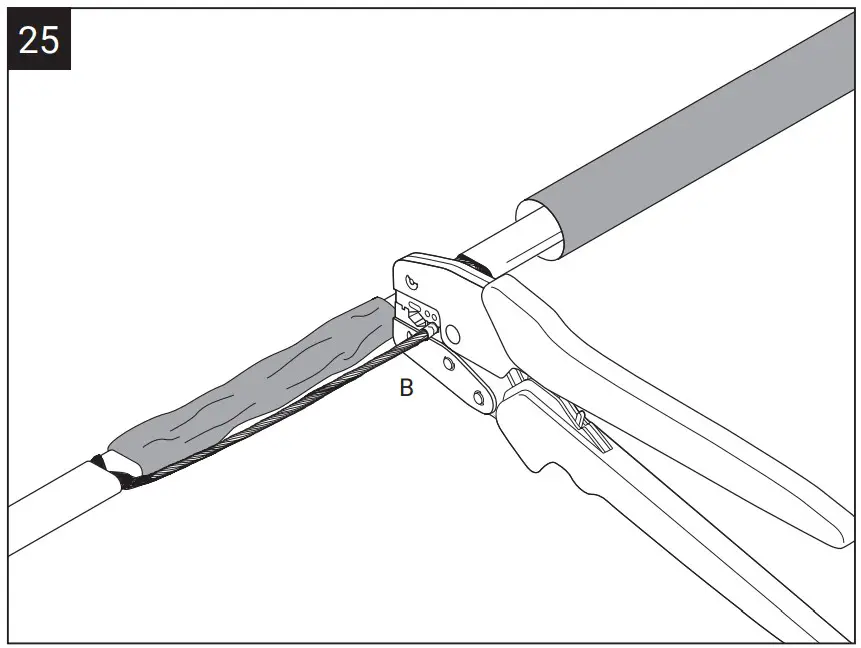

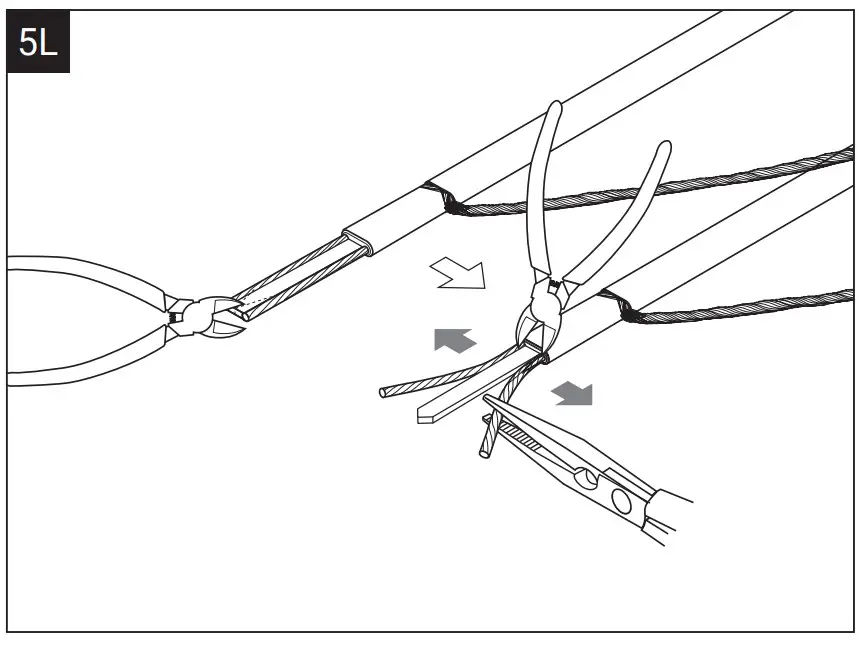

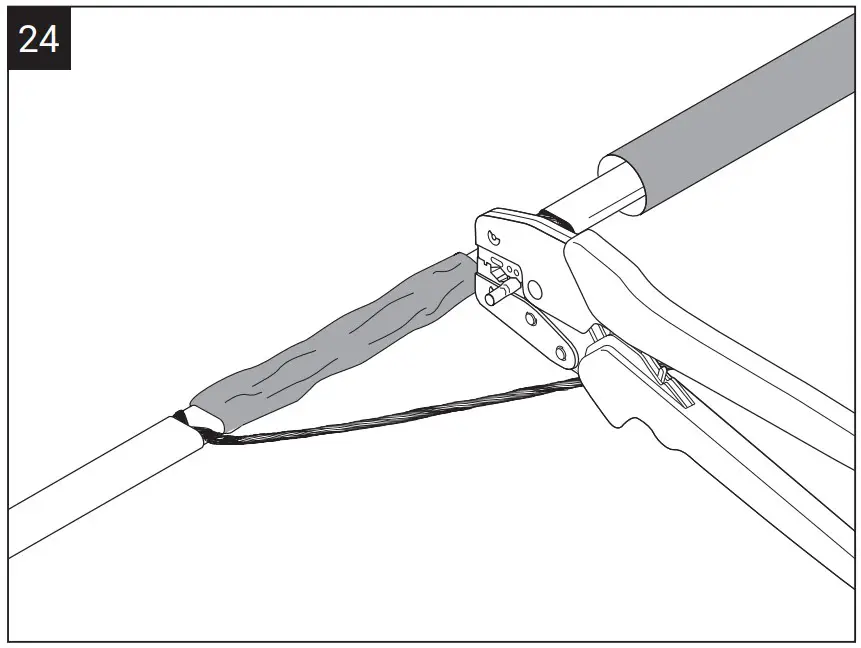

Assembly Instructions
BTV/QTVR (Hazardous area*)
| ATEX / UKEX | IECEx | |
| BTV | SGS20ATEX0048X / BAS21UKEX0497X | IECEx BAS.06.0043X |
| II 2 G Ex 60079-30-1 eb IIC T6 Gb | Ex 60079-30-1 eb IIC T6 Gb | |
| II 2 D Ex 60079-30-1 tb IIIC T80°C D | Ex 60079-30-1 tb IIIC T80°C Db | |
| II 2 G Ex 60079-30-1 eb mb IIC T6 Gb | Ex 60079-30-1 eb mb IIC T6 Gb | |
| II 2 D Ex 60079-30-1 mb tb IIIC T80°C Db | Ex 60079-30-1 mb tb IIIC T80°C Db | |
| Tmin –60°C | Tmin –60°C | |
| QTVR | SGS20ATEX0050X / BAS21UKEX0498X | IECEx BAS.06.0045X |
| II 2 G Ex 60079-30-1 eb IIC T4 Gb | Ex 60079-30-1 eb IIC T4 Gb | |
| II 2 D Ex 60079-30-1 tb IIIC T130°C Db | Ex 60079-30-1 tb IIIC T130°C Db | |
| II 2 G Ex 60079-30-1 eb mb IIC T4 Gb | Ex 60079-30-1 eb mb IIC T4 Gb | |
| II 2 D Ex 60079-30-1 mb tb IIIC T130°C Db | Ex 60079-30-1 mb tb IIIC T130°C Db | |
| Tmin –60°C | Tmin –60°C | |
 | BE.8.B.01728/21 | |
| 1 Ex e IIC T* Gb X Ex tb IIIC T* Db X | ||
| TЕМП ОКР СРЕДЫ –60 to +56°C | ||
North America
 BTV | Class/division when | Zone when installed with S-20 |
| installed with S-20 | ||
| cCSAus Certificate 1333271 | cCSAus Certificate 1333271 | |
| Class I Division 2 Group | US: Class I Zone 1 AEx eb IIC T6 | |
| A,B,C,D | Gb Zone 21 AEx tb IIIC T85°C Db | |
| Class II Division 2 Group | Canada: Ex 60079-30-1 IIC | |
| E, F,G | T6 Gb | |
| Class III T6 | Ex 60079-30-1 IIIC T85°C Db | |
 QTVR | cCSAus Certificate 1333271 | cCSAus Certificate 1333271 |
| Class I Division 2 Group | US: Class I Zone 1 AEx eb IIC | |
| A,B,C,D | T4 Gb Zone 21 AEx tb IIIC | |
| T135°C Db | ||
| Class II Division 2 Group | Canada: Ex 60079-30-1 IIC | |
| E, F,G | T4 Gb | |
| Class III T4 | Ex 60079-30-1 IIIC T135°C Db | |
| Um= 277 V max. |
Hazardous area
WARNING: Please make sure the installation is carried out in clean, dry conditions and all cable ends are protected from moisture. Follow instructions carefully.
WARNING: The purchaser should make the manufacturer aware of any external effects or aggressive substances that the equipment may be exposed to.
Specific conditions of use
Maximum exposure temperature: 110°C (230ºF)
Minimum exposure temperature: –60°C (–76ºF)
Minimum installation temperature: –20°C (–4ºF)
Maximum current: 35A (QTVR)

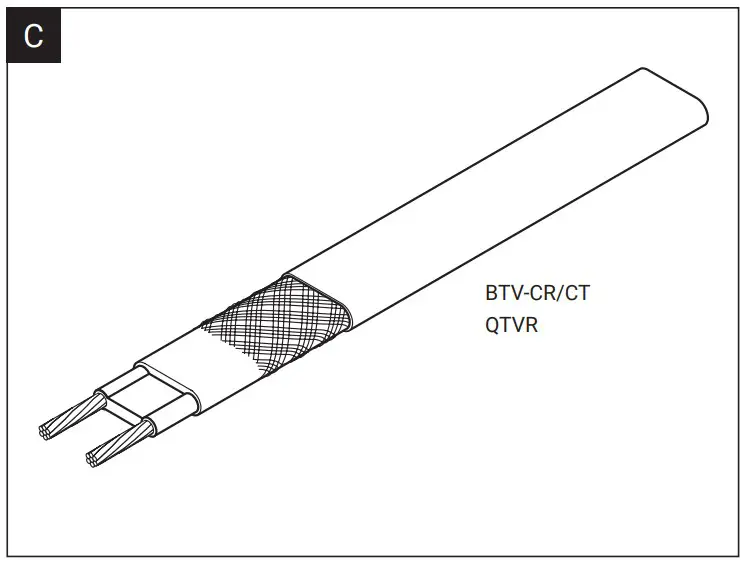

For use with the heating cable types as shown in the table
- Refer to installation manual. A ground fault circuit interrupter shall be used with this device.
- Earth fault equipment protection is required for each circuit.
- De-energise circuits before installation or servicing.
- Keep ends of heating cables and kit components dry before and during installation.
- The electrically conductive covering of this heating cable shall be connected to a suitable earthing terminal.
- The presence of the heating cables shall be made evident by the posting of caution signs or markings at appropriate locations and/or at frequent intervals along the circuit.
- The insulation resistance of the heating cable shall be measured and recorded after installation and shall not less than 20Mohm.
- Persons involved in the installation and testing of electric trace heating systems shall be suitably trained in all special techniques required.
- Installation shall be carried out under the supervision of a qualified person.
