Nedes LC722SM Microwave Sensor Instruction Manual

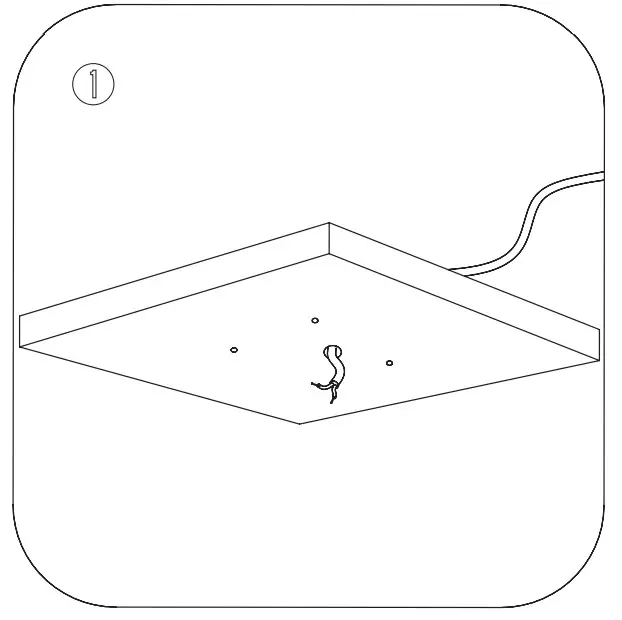

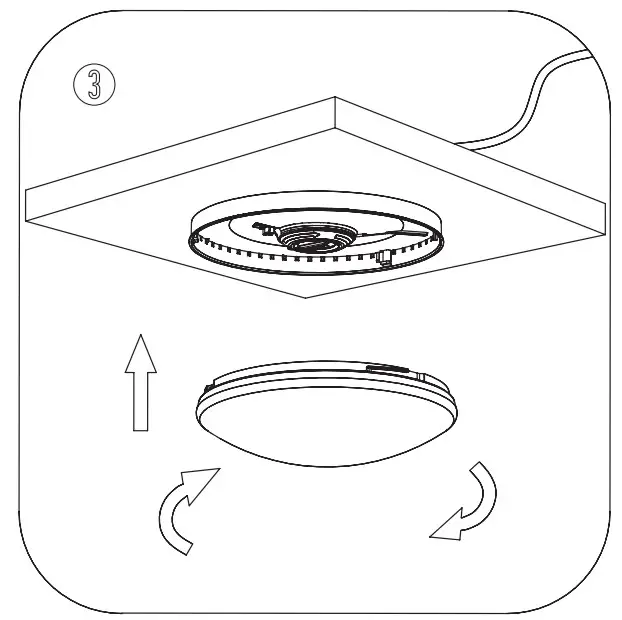

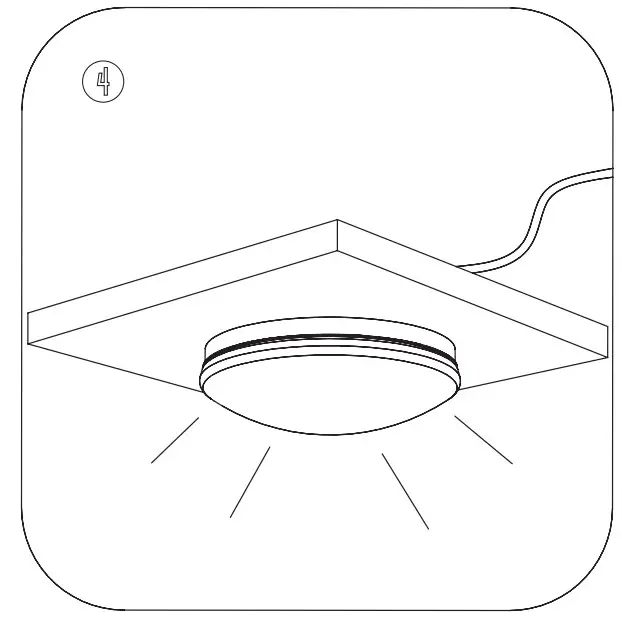

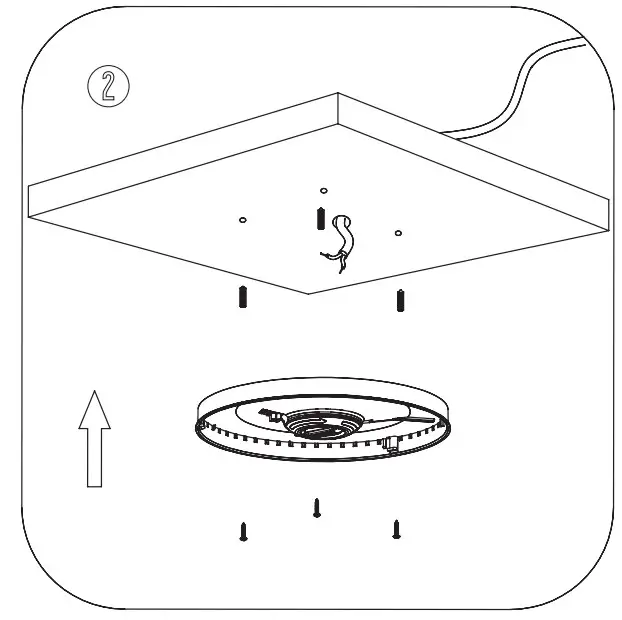

Installtion
NEUTRAL WHITE / LED CEILING LAMP / THE INSTALATION CAN BE PERFORMED ONLY BY APPROPRIATELY QUALIFIED PERSON ACCORDING INSTRUCTION / ANY ACTIVITIES TO BE DONE WITH DISCONNECTED POWER SUPPLY AFTER PRODUCT S WARMING DOWN / DONT USE CHEMICAL DETERGENTS / LED’S AREN’T POSSIBLE TO CHANGE

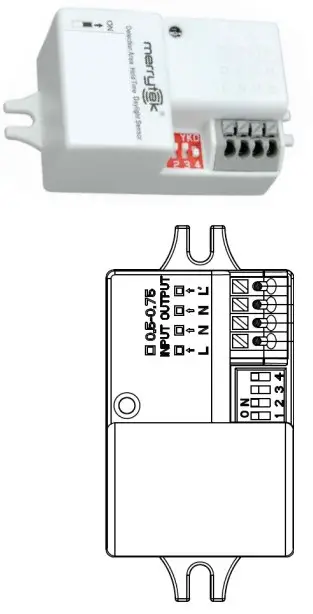

Microwave Sensor
0.6-15m/s 5.8GHz
LUX: 25/2000LUX (
)
SENS: 4M/8M
TIME: 5sec/1min/3min/10min 180-260V/AC 50Hz 150
LUX: 25/2000LUX ()
| 4 | |
| 25Lux | ON |
| _ |
SENS: 4M/8M
| 1 | |
| 100% | ON |
| 50% | – |
TIME: 5sec/1min/3min/10min
| 2 | 3 | |
| 5sec | ON | ON |
| 1 min | ON | – |
| 3min | – | ON |
| 10min | – | – |
This product contains a light source of energq efficiencq class F
