Tenio Eh0491-000 Small Fiber Optic Splice Closure User Manual

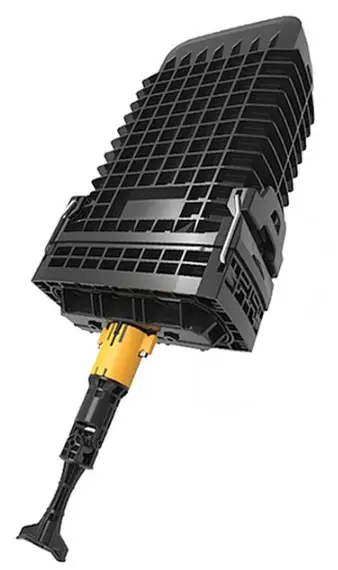

TENIO EH0491-000 Small Fiber Optic Splice Closure

TENIO™ Small Fiber Optic Splice Closure, Gel Cable sealing, 8 pre-installed 12-splice trays

introduction

• Single-ended, toolless closure for splicing feeder, access and drop cables
• Features modular building blocks that fastens installation and reduces inventory
• Gel cable sealing technology allows easy adding or removing of a wide size range of cables
• Compatible with most common cable types: e.g. loose tube, central core, ribbon fiber
• Compatible with CommScope’s CWDM modules and optical splitter trays

Product Classification

• Regional Availability
  EMEA
• Product Type
  Single-ended, rectangular fiber closure
• Product Brand
  TENIO™
• Product Series
  TENIO

General Specifications

• Cable Entry Drop Port Style
  Gel block
• Cable Entry Main Port Style
  Gel block
• Cable Ports Quantity, total
  6 multi-out ports (30 cables)
• Cable Sealing Type
  Compressed gel
• Closure Sealing Type
  Side latch
• Closure Style
  Single-ended
• Color
  Black
• Mounting
  Wall
• Network Area Type
  Distribution | Drop
• Splice Tray Included, quantity
  8
• Splice Tray Type Included
  12-way, heat shrink
• Splices per Tray, quantity
  12
• Splicing Capacity, Single Fusion, maximum
  144
• Splicing Type, Supported
  Single fusion

Dimensions

• Height
  230 mm | 9.055 in
• Width
  134 mm | 5.276 in
• Length
  389 mm | 15.315 in
• Main Cable Diameter, maximum
  16 mm | 0.63 in

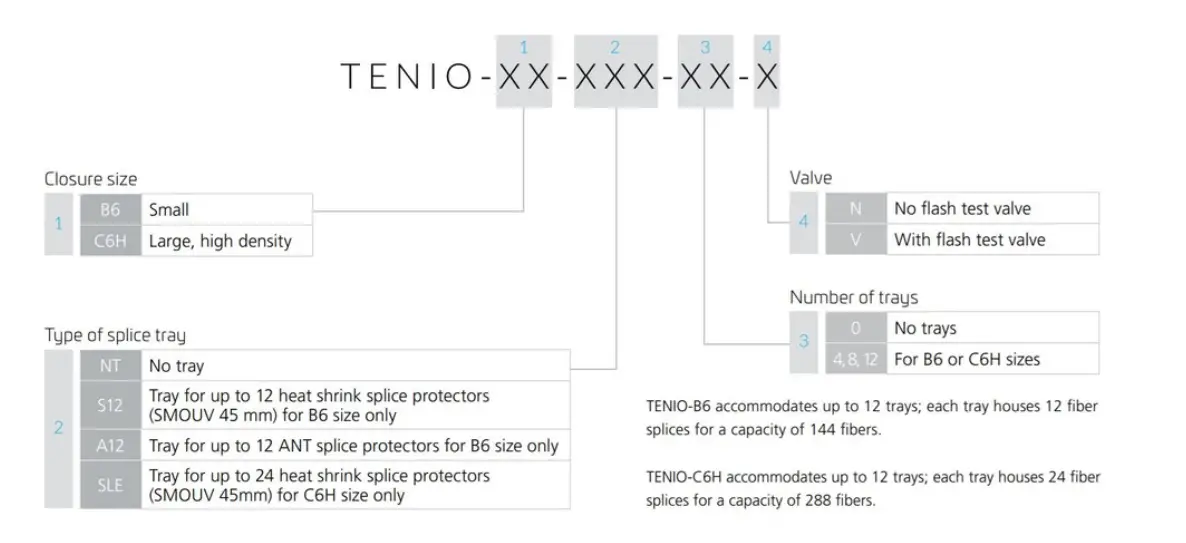

Ordering Tree

Material Specifications

• Material Type
  Impact-resistant polymer

Environmental Specifications

• Environmental Space
  Below ground | Buried
• Qualification Standards
  IEC 61300, 2 m waterhead

Packaging and Weights

• Packaging quantity
  1
• Packaging Type
  Box | Carton
• Weight, net
  1 kg | 2.205 lb

Regulatory Compliance/Certifications

• Agency                         Classification
• CHINA-ROHS             Below maximum concentration value
• ISO 9001:2015               Designed, manufactured and/or distributed under this quality management system
• REACH-SVHC             Compliant as per SVHC revision on www.commscope.com/ProductCompliance
• ROHS                             Compliant
