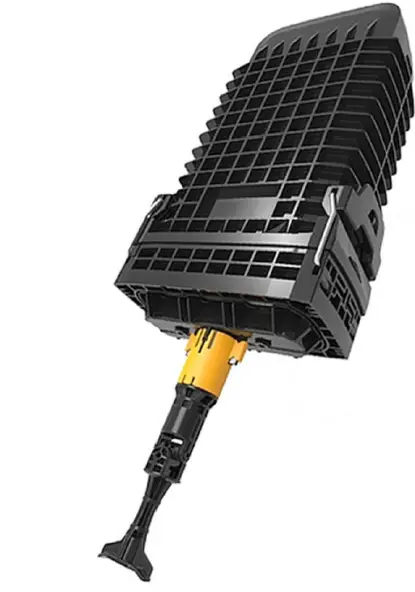

TENIO CV6319-000 Small Fiber Optic Splice Closure
TENIO™ Small Fiber Optic Splice Closure, Gel Cable sealing, no pre-installed trays
- Single-ended, toolless closure for splicing feeder, access and drop cables
- Features modular building blocks that fasten installation and reduce inventory
- Gel cable sealing technology allows easy adding or removing of a wide size range of cables Compatible with most common cable types: e.g. loose tube, central core, ribbon fiber Compatible with
- CommScope’s CWDM modules and optical splitter trays
Product Classification
- Regional Availability EMEA | Latin America
- Product Type Single-ended, rectangular fiber closure
- Product Brand TENIO™
- Product Series TENIO
General Specifications
- Cable Entry: Drop Port Style Gel block
- Cable Entry: Main Port Style Gel block
- Cable Ports: Quantity, total 6 multi-out ports (30 cables)
- Cable Sealing: Type Compressed gel
- Closure Sealing: Type Side latch
- Closure Style: Single-ended
- Color: Black
Mounting Wall
- Network Area: Type Distribution | Drop
- Splice Tray: Included, quantity 0
- Splices per: Tray, quantity 12
- Splicing Capacity: Single Fusion, maximum 144
- Splicing Type: Supported Single fusion
Dimensions
- Height 230 mm | 9.055 in
- Width 134 mm | 5.276 in
- Length 389 mm | 15.315 in

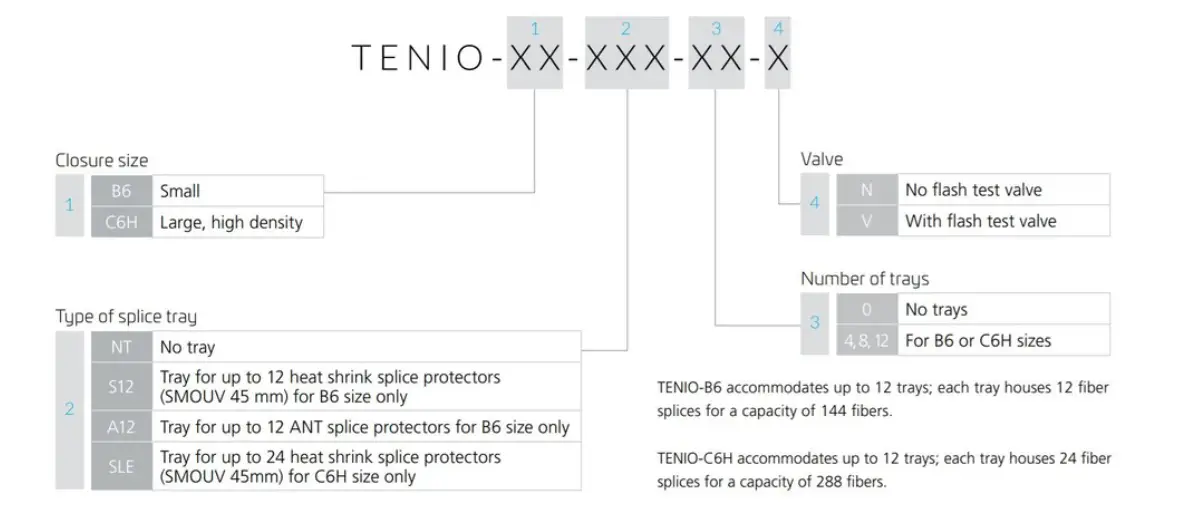

Ordering Tree
Material Specifications
- Material Type Impact-resistant polymer
Environmental Specifications
- Environmental Space Below ground | Buried
- Qualification Standards IEC 61300, 2 m Waterhead
Packaging and Weights
- Packaging quantity 1
- Packaging Type Box | Carton
- Weight, net 1 kg | 2.205 lb
Regulatory Compliance/Certifications
Agency & Classification
- CHINA-ROHS
- Below maximum concentration value
- ISO 9001:2015
- Designed, manufactured, and/or distributed under this quality management system
- REACH-SVHC
- Compliant as per SVHC revision on www.commscope.com/ProductCompliance
- ROHS
- Compliant
