MID-RISE SCISSORS
SMART LIFT
MRL 09

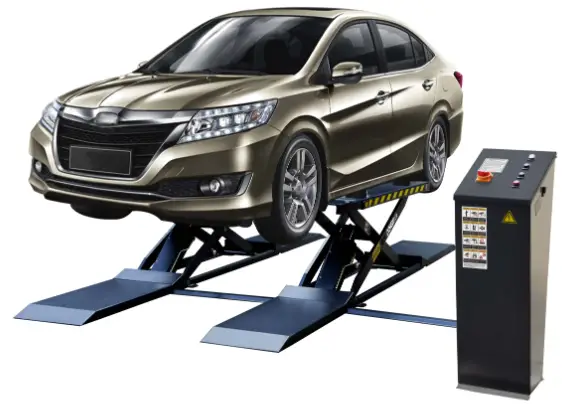

AMGO mid-rise scissors lift model MRL09 is designed with hydraulic locking system, and double entrance drive-in ramps which are suitable for most vehicles, especially lower chassis car.
Main Features
√ 9,000LBS(4000kg) capacity.
√ Mid rise scissors lift, 24V Safety voltage control
√ Dual hydraulic synchronization & hydraulic locking system;
√ The lifting scissors are made of thickened steel which is more strong;
√ Adjustable lift platform length, applicable to vehicles with different wheelbases;

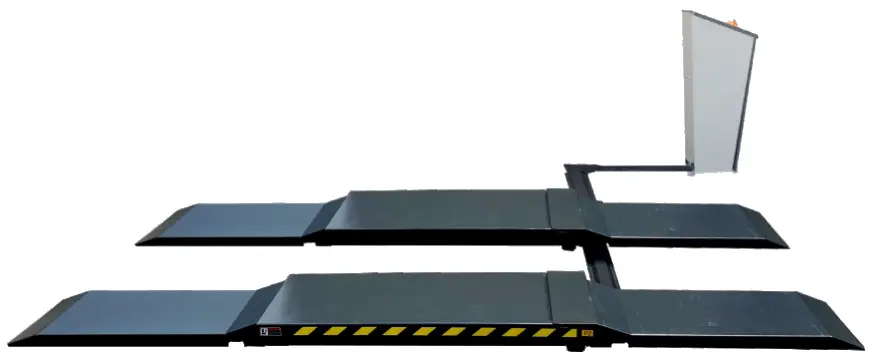

√ Two-stage drive in ramps, suitable for lifting ultra-low chassis vehicles;
√ Flexible structure design, users can choose either flush mount or surface mount installation;
√ Standard ETL certificated power unit;
√ AMGO global 5-3-2 warranty policy
5 year Warranty on Steel Components,
3 year Warranty on Hydraulic Parts,
2 years Warranty on Electrical Components.

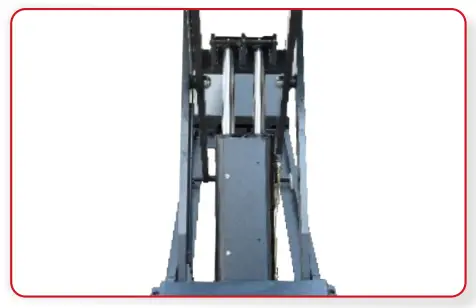

Dual hydraulic synchronization & hydraulic locking system;

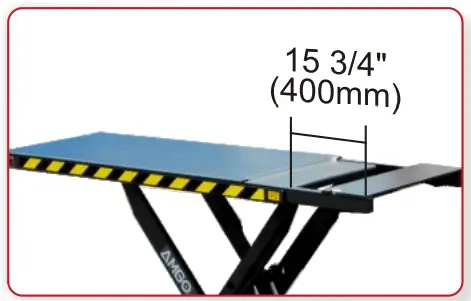

Adjustable lift platform length, applicable to vehicles with different wheelbases.

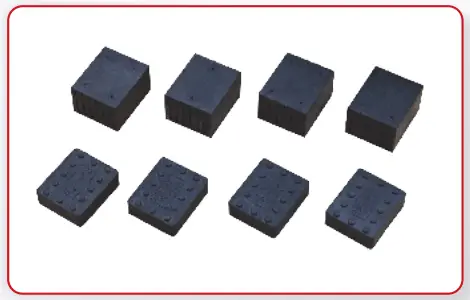

Both 1 1/2″ and 3″ height rubber pads included as standard supply.
SPECIFICATIONS
| Model | MRL09 | |
| Lifting Capacity | 9,000lbs (4000kg) | |
| Lifting Time | 298 | |

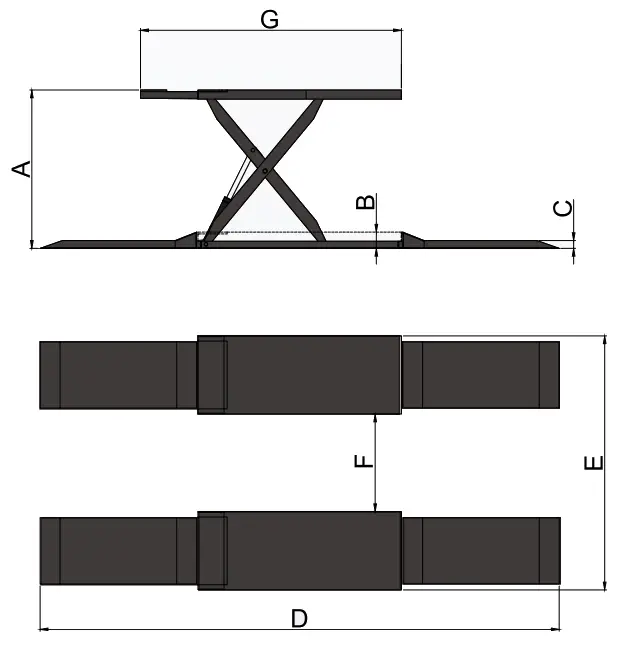

| Max. Lifting Height | A | 47 1/4″ (1200mm) |
| Minimum Height | B | 53/8″ (135mm) |
| First Stage Ramp Height | C | 2 1/2″ (65mm) |
| Overall Length(Inc. ramps) | D | 156 3/4″ (3980mm) |
| Overall Width | E | 76 3/4″ (1950mm) |
| Width Between Runways | F | 291/2″(750mm) |
| Runway Length | G | 613/8″-77 1/8* (1560-1960mm) |
| Gross Weight | 1,788 Ibs (811kg) | |
| Motor | 2.0HP,220V/60Hz,single phase |
