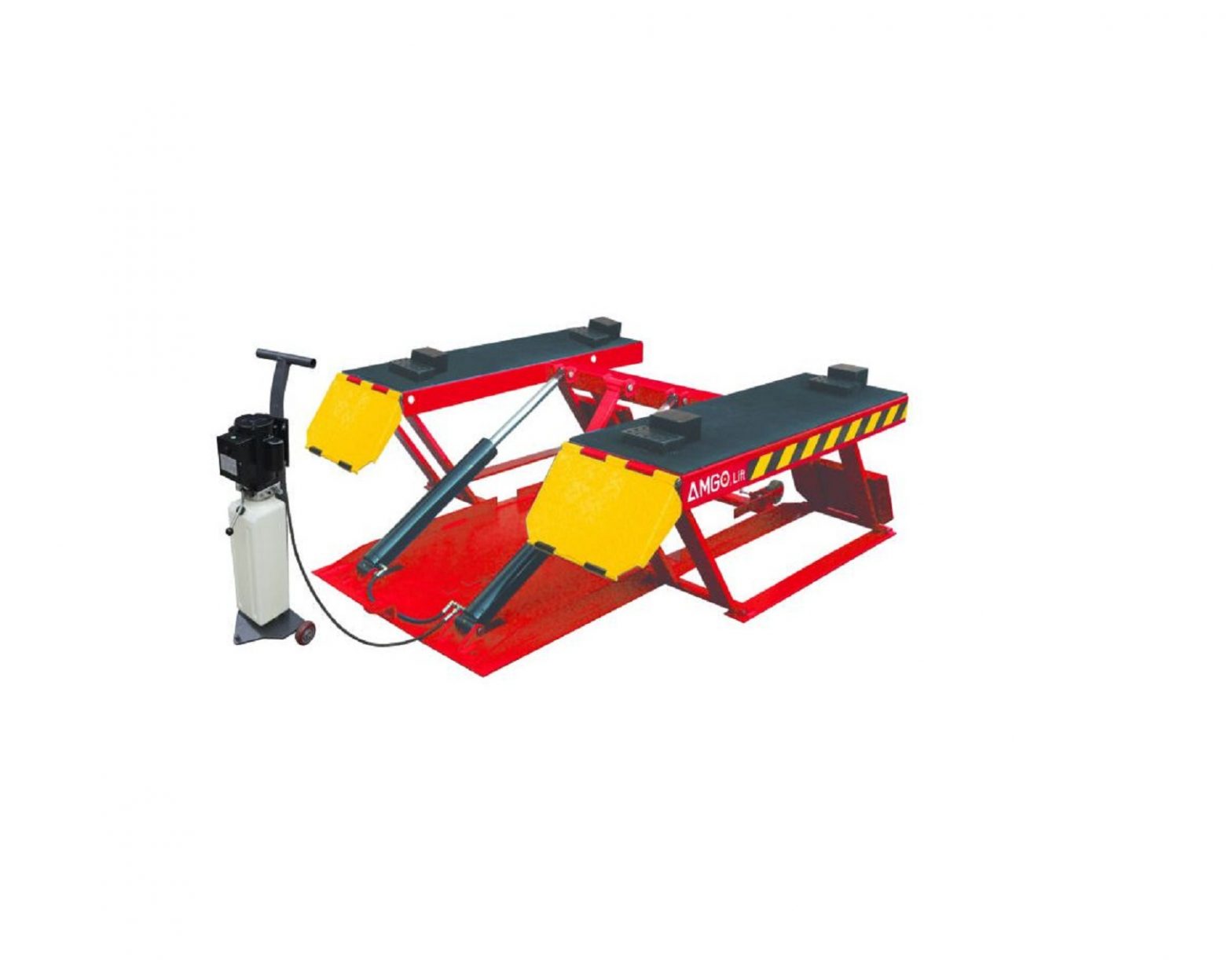

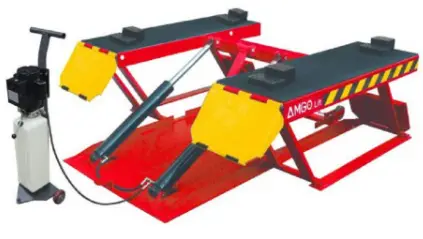

AMGO Portable Low-Rised Lift LR10
PORTABLE LIFT
The Portable low-rised lift is an excellent choice for low ceiling or adding a bay for seasonal increases in business.
Provides good working height for tires, brakes and body repairs.
MAIN FEATURES
- Automatic multiful safety locksd.
- Automatical safety lock release.
- Portable unit is easy to move with the power unit stand.
- High speed: From 105-600 mm(4 1/8″-23 5/8”) in just 50 seconds .

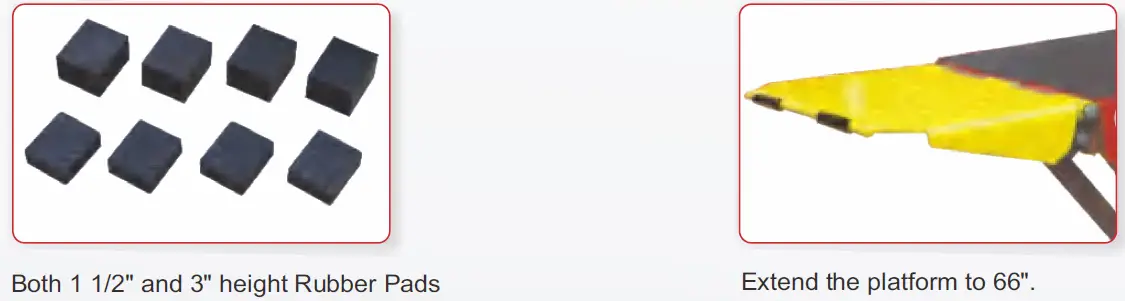

- Standard rubber pads included.
SPECIFICATIONS
| Model | LR10 | |
| Lifting Capacity | 10,000lbs (4500kg) | |
| Lifting Time | 50S | |
| Lifting Height | A1 | 23 5/8″ (600mm) |
| Minimum Height | A2 | 4 1/8″ (105mm) |
| Runway Length | B | 53 1/4″ (1352mm) |
| Overall Runway Length (Inc. Ramp) | C | 66″ (1676mm) |
| Runway Width | D | 21 3/4″ (556mm) |
| Overall Length | E | 76 1/4″（1938mm) |
| Overall Width | F | 78 “(1980mm) |
| Gross Weight | 1,069 lbs (485kg) | |
| Motor | 1.0HP,110V/60Hz,single phase 2.0HP,220V/60Hz,single phase | |
