BWT myPOOL Inverter

Heat Pump
MP-IHP 50 ­ MP-IPH 62 ­ MP-IPH 80
MP-IPH 96 ­ MP-IPH125 ­ MP-IPH 165

BWT Inverter Heat Pump 2BWT com

R32Warning:
a. Please read the following tips before installation, use and maintenance.
b. Installation, removal and maintenance must be carried out by professional personnel in accordance with the instructions.
c. Gas leakage test must be done before and after installation.

1. Use
a. It must be installed or removed by professionals, and it is forbidden to dismantle and refit without permission.
b. Don’t put obstacles before the air inlet and outlet of the heat pump.

2. Installation
a. This product must be kept away from any source of fire.

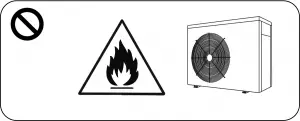

BWT Inverter Heat Pump - Installation a

b. The installation can’t be in a closed environment or indoors, and must be kept well ventilated.

BWT Inverter Heat Pump - Installation b

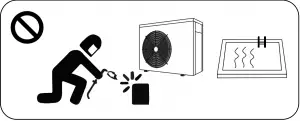

c. Vacuum completely before welding, field welding is not allowed, welding can only be performed by professional personnel in professional maintenance center.

BWT Inverter Heat Pump - Installation c

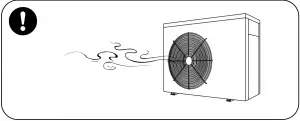

d. Installation must be stopped if any gas leakage, and the unit must be returned to professional maintenance center.

BWT Inverter Heat Pump - Installation d

3. Transportation & Storage
a. Sealing is not allowed during transportation
b. Transporting goods at a constant speed is needed to avoid sudden acceleration or sudden braking, so as to reduce the collision of goods.
c. The unit must be far away from any source of fire.
d. Storage place must be bright, wide, open and good ventilation, ventilation equipment is required.

4. Maintenance Notice
a. If maintenance or scrap is required, contact an authorized service center nearby
b. Qualification requirement
All operators who dispose gas must be qualified by valid certification which issued by professional agency.
c. Please strictly comply with the requirement from manufacturer when maintenance or filling gas. Please refer to the technical service manual.

Thank your choosing our product and your trust in our company. To help you get maximum pleasure from using this product, please read this instruction manual carefully and operate strictly according to the user manual before starting the machine, otherwise the machine may be damaged or cause you unnecessary harm.

I. Application

  1. Set swimming pool water temp efficiently and economically to provide you comfort and pleasure.
  2. User may choose the model technical parameter according to professional guide, this series of swimming pool heater has been optimized in factory (refer to technical parameter table).

II. Features

  1. High efficient titanium heat exchanger.
  2. Sensitive and accurate temp control and water temp display.
  3. High pressure and low pressure protection.
  4. Exceeding low temp auto stop protection.
  5. Temp control compulsory defrosting.
  6. International brand compressor.
  7. Easy installation and operation.

III. Technical Parameter

ModelMP-IHP 50MP-IHP 62MP-IHP 80MP-IHP 96MP-IHP 125MP-IHP 165
Advised pool volume (m3 )10~2414~2820~3520~4030~5535~70
Operating air temperature (℃)0~43
Performance Condition: Air 26°C, Water 26°C, Humidity 80%
Heating capacity (kW)5.06.28.09.612.516.5
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)4.04.86.07.39.012.0
Performance Condition: Air 35°C, Water 28°C, Humidity 70%
Cooling capacity (kW)2.02.23.33.84.96.3
Rated input power at air 15°C (kW)0.43~0.870.29~1.090.34~1.40.35~1.70.36~2.10.57~2.7
Rated input current at air 15°C (A)1.87~3.781.26~4.741.48~6.01.52~7.391.57~8.72.48~11.7
Power supply230V/1 Ph/50Hz
Advised water flux (m³/h)2~42~42~43~44~66~8
Water pipe in-out Spec (mm)50
Net Dimension LxWxH (mm)744×359× 648744×359× 648864×359× 648864×359× 648864×359× 648954×359× 648
Net Weight (kg)424246474960
Notice:
  1. This product can work well under air temp 0ºC∼+43ºC, efficiency will not be guaranteed out of this range. Please take into consideration that the pool heater performance and parameters are different under various conditions.
  2. Related parameters are subject to adjustment periodically for technical improvement without further notice. For details please refer to nameplate.

IV. Dimension

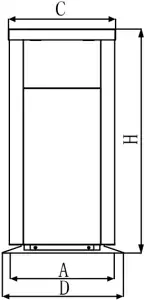

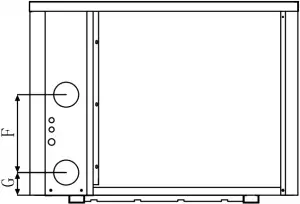

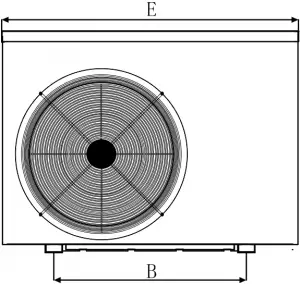

Dimension 1Dimension 2Dimension 3

UNIT=MMABCDEFGH
MODELMP-IHP 5033449031835974431074648
MP-IHP 6233449031835974431074648
MP-IHP 8033456031835986425074648
MP-IHP 9633456031835986425074648
MP-IHP 12533456031835986432074648
MP-IHP 16533456031835995435074648

BTW PointAbove data is subject to modification without notice.

Note:
The picture above is the specification diagram of the pool heater, for technician’s installation and layout reference only. The product is subject to adjustment periodically for improvement without further notice.

V. Installation instruction

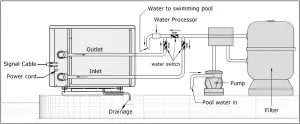

1. Drawing for water pipes connection

Pool Heater Piping Diagram

Pool Heater Piping Diagram

(Notice: The drawing is just for demonstration, and layout of the pipes is only for reference.)

2. Connecting your power wire

Connecting your power wire 1Connecting your power wire 2Connecting your power wire 3

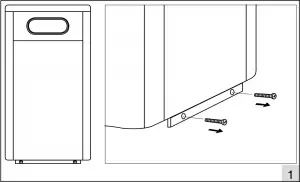

  1. Please use cross screwdriver to take off the 2 screws at the bottom of the right side panel. Take off the lower half of the panel.
  2. Unscrew the 3 screws on the cover of the electrical box.

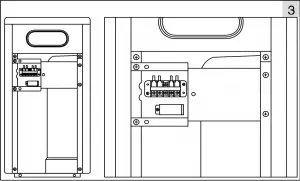

  3. Connect the terminals according to the electrical diagram.

(Note: please open the back panel for power connection. The operation is the same as above.)

For power supply: 230V 50Hz

For power supply 230V 50Hz
Distribution Box (Customer prepare)

Note:
Warning Must be hard wired, no plug allowed.
Warning The swimming pool heater must be earthed well.

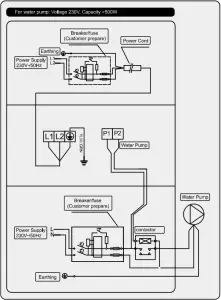

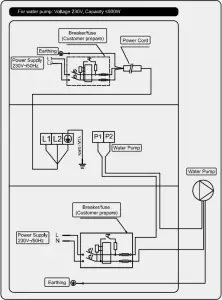

3. Electric Wiring Diagram

Options for protecting devices and cable specification

MODELMP-IHP 50MP-IHP 62MP-IHP 80MP-IHP 96MP-IHP 125MP-IHP 165
BreakerRated Current A8.08.09.511.515.020.5
Rated Residual Action Current mA303030303030
Fuse A8.08.09.511.515.020.5
Power Cord (mm2 )3×1.53×1.53×1.53×2.53×2.53×4
Signal cable (mm2 )3×0.53×0.53×0.53×0.53×0.53×0.5

BTW Point Above data is subject to modification without notice.

Note: The above data is adapted to power cord ≤ 10m. If power cord is>10m, wire diameter must be increased. The signal cable can be extended to 50m at most.

4. Installation instruction and requirement
The heat pump must be installed by a professional team. The users are not qualified to install by themselves, otherwise the heat pump might be damaged and risky for users’ safety.

A. Installation
1) The inlet and outlet water unions can’t bear the weight of soft pipes. The heat pump must be connected with hard pipes!

Installation instruction and requirement 1
2) In order to guarantee the heating efficiency, the water pipe length should be ≤10m between the pool and the heat pump.

B. Installation instruction

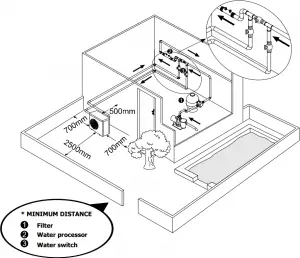

1) Location and size
Warning The heat pump should be installed in a place with good ventilation

Installation instruction - Location and size 1

* MINIMUM DISTANCE Filter Water processor Water switch

2) The frame must be fixed by bolts (M10) to concrete foundation or brackets. The concrete foundation must be solid and fastened; the bracket must be strong enough anti rust treated;
3) Please don’t stack substances that will block air flow near inlet or outlet area, and there is no barrier within 50cm behind the main machine, or the efficiency of the heater will be reduced or even stopped;
4) The machine needs an appended pump (Supplied by the user). The recommended pump specification-flux: refer to Technical Parameter, Max. lift ≥10m;
5) When the machine is running, there will be condensation water discharged from the bottom, please pay attention to it. Please hold the drainage nozzle (accessory) into the hole and clip it well, and then connect a pipe to drain the condensation water out.

C. Wiring

  1. Connect to appropriate power supply; the voltage should comply with the rated voltage of the products.
  2. Earth the machine well.
  3. Wiring must be handled by a professional technician according to the circuit diagram.
  4. Set leakage protector according to the local code for wiring (leakage operating current ≤30mA).
  5. The layout of power cable and signal cable should be orderly and not affecting each other.

D. Switch on after finishing all wiring construction and re-checking.

VI. Operation instruction

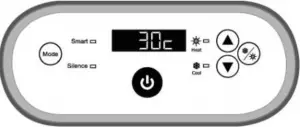

Operation instruction 1

SYMBOLDESIGNATIONOPERATION
Power ON OFFPower ON/OFFPress to power on or off the heat pump
ModeModePress to select Smart/Silence mode

Smart mode:100%-20% capacity

Silence mode:80%-20% capacity

Heat Cool AutoHeat/Cool/AutoPress to shift among cooling, heating and auto
Up_DownUp/ DownPress to set desired water temperature

Note:

  • You may set the desired water temperature from 12 to 40°C.
  • The center of the screen shows the inlet pool temperature, when the up and down keys are pressed, the digital flashing displays the set temperature.
  • After you turn on the heat pump, the fan will start to run in 3 minutes. In another 30 seconds, the compressor will start to run.
  • During heating, the icon will be light. During cooling, Cool will be light.
2.2.1. Mode selections
  • Smart Smart Switch will be light as standard when you turn on the heat pump.
  • Press the Mode button to enter the Silence mode, the Silence Smart Switch will be light.
  • Press the Mode button again to exit and enter the SMART mode.
2.2.2. Compulsory defrosting
  • When the heat pump is heating and the compressor is working continuously for 10 minutes, press both “Mode” and “Down key” buttons for 5 seconds to start compulsory defrosting. (Note: the interval between compulsory defrosting should be more than 30 minutes.)
  • The heating light will be twinkling when heat pump is in compulsory or auto defrosting.
  • The running process and ending of compulsory defrosting are the same as auto-defrosting.

VII. Testing

1. Inspection before use

A. Check installation of the whole machine and the pipe connections according to the pipe connecting drawing;
B. Check the electric wiring according to the electric wiring diagram and earthing connection;
C. Make sure that the main machine power switch is off;
D. Check the temperature setting;
E. Check the air inlet and outlet.

2. Trial

A. The user must “Start the Pump before the Machine, and Turn off the Machine before the Pump”, or the machine will be damaged;
B. The user should start the pump, check for any leakage of water; and then set suitable temperature in the thermostat, and then switch on power supply;
C. In order to protect the swimming pool heater, the machine is equipped with a time lag starting function, when starting the machine, the blower will run 1 minute earlier than the compressor;
D. After the swimming pool heater starts up, check for any abnormal noise from the machine.

VIII. Precautions

1. Attention

A. Set proper temperature in order to get comfortable water temperature to avoid overheating or over cooling;
B. Please don’t stack substances that can block air flow near inlet or outlet area, or the efficiency of the heater will be reduced or even stopped;
C. Please don’t put hands into outlet of the swimming pool heater, and don’t remove the screen of the fan at any time;
D. If there are abnormal conditions such as noise, smell, smoke and electrical leakage, please switch off the machine immediately and contact the local dealer. Don’t try to repair it yourself;
E. Don’t use or stock combustible gas or liquid such as thinners, paint and fuel to avoid fire;
F. In order to optimize the heating effect, please install heat preservation insulation on pipes between swimming pool and the heater. During running period of the swimming pool heater, please use a recommended cover on the swimming pool;
G. Connecting pipes of the swimming pool and the heater should be ≤10m, or the heating effect of the heater cannot be ensured;
H. This series of machines can achieve high efficiency under air temperature of +15°C∼+25°C.

2. Safety

A. Please keep the main power supply switch far away from the children;
B. When a power cut happens during running, and later the power is restored, the heater will start up automatically. So please switch off the power supply when there is a power cut, and reset temp when power is restored;
C. Please switch off the main power supply in lightning and storm weather to prevent from machine damage that caused by lightning;
D. If the machine is stopped for a long time, please cut off the power supply and drain water clear of the machine by opening the tap of inlet pipe.

IX. Maintenance

Caution: Danger of electric shock
“Cut off” power supply of the heater before cleaning, examination and repairing

A. In winter season when you don’t swim:

  1. Cut off power supply to prevent any machine damage
  2. Drain water clear of the machine.

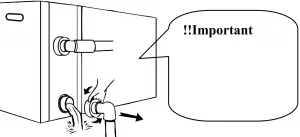

Unscrew the water nozzle of inlet pipe to let

!!Important:
Unscrew the water nozzle of inlet pipe to let the water flow out.
When the water in machine freezes in winter season, the titanium heat exchanger may be damaged.

3. Cover the machine body when not in use.

B Please clean this machine with household detergents or clean water, NEVER use gasoline, thinners or any similar fuel.
C Check bolts, cables and connections regularly.

X. Trouble shooting for common faults

FAILUREREASONSOLUTION
Heat pump doesn’t runNo powerWait until the power recovers
Power switch is offSwitch on the power
Fuse burnedCheck and change the fuse
The breaker is offCheck and turn on the breaker
Fan running but with insufficient heatingevaporator blockedRemove the obstacles
Air outlet blockedRemove the obstacles
3 minutes start delayWait patiently
Display normal, but no heatingSet temp. too lowSet proper heating temp.
3 minutes start delayWait patiently
If above solutions don’t work, please contact your installer with detailed information and your model number. Don’t try to repair it yourself.

Note: If the following conditions happen, please stop the machine immediately, and cut off the power supply immediately, then contact your dealer:
a) Inaccurate switch action;
b) The fuse is frequently broken or leakage circuit breaker jumped.

Failure code

NO.DISPLAYNOT FAILURE DESCRIPTION
1E3No water protection
2E5Power supply excesses operation range
3E6Excessive temp difference between inlet and outlet water(Insufficient water flow protection)
4EbAmbient temperature too high or too low protection
5EdAnti-freezing reminder
NO.DISPLAYFAILURE DESCRIPTION
1E1High pressure protection
2E2Low pressure protection
3E43 phase sequence protection (three phase only)
4E7Water outlet temp too high or too low protection
5E8High exhaust temp protection
6EAEvaporator overheat protection (only at cooling mode)
7P0Controller communication failure
8P1Water inlet temp sensor failure
9P2Water outlet temp sensor failure
10P3Gas exhaust temp sensor failure
11P4Evaporator coil pipe temp sensor failure
12P5Gas return temp sensor failure
13P6Cooling coil pipe temp sensor failure
14P7Ambient temp sensor failure
15P8Cooling plate sensor failure
16P9Current sensor failure
17PARestart memory failure
18F1Compressor drive module failure
19F2PFC module failure
20F3Compressor start failure
21F4Compressor running failure
22F5Inverter board over current protection
23F6Inverter board overheat protection
24F7Current protection
25F8Cooling plate overheat protection
26F9Fan motor failure
27FbPower filter plate No-power protection
28FAPFC module over current protection

XI. Appendix 1: Heating priority (Optional)

Appendix 1 - Heating priority

XII. Appendix 2: Heating priority (Optional)

Appendix 2 - Heating priority

Parallel connection with filtration clock

A: Water pump timer

Parallel connection with filtration clock
B: Water pump wiring of Heat Pump

Note: The installer should connect A parallel with B (as above picture). To start the water pump, condition A or B is connected. To stop the water pump, both A and B should be disconnected.

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
