Rheem Rp15az42aj2na Heat Pump System User Manual

Heat Pumps
RP15AZ
The new degree of comfort®.
Endeavor™ Line Classic Plus® Series
iM Heat Pumps
User Manual

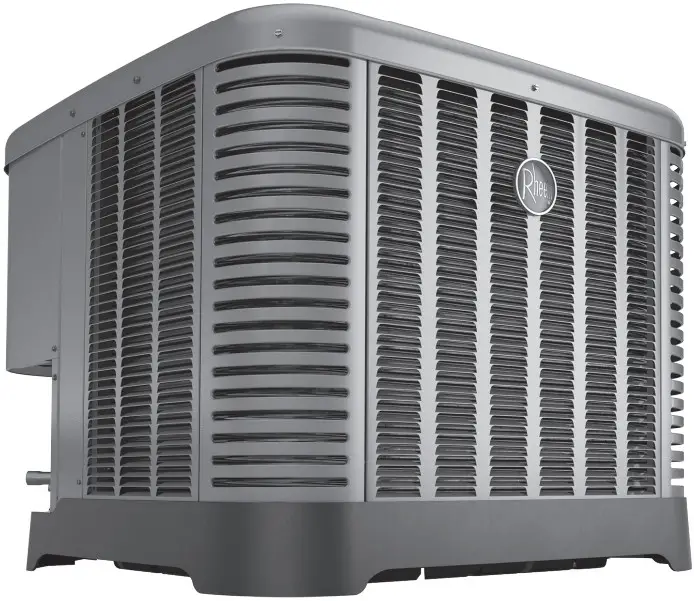

RP15AZ42AJ2NA Heat Pump System

RP15AZ
Cooling Efficiencies up to: 16 SEER2 / 11.7 EER2
Heating Efficiencies up to: 8.1 HSPF
Nominal Sizes: 1.5 to 5 Tons [5.3 to 17.6 kW] Cooling & Heating Capacities: 13.36 kBTU to 45.6 kBTU

*Proper sizing and installation of equipment is critical to achieve optimal performance. Split system air conditioners and heat pumps must be matched with appropriate coil components to meet Energy Star. Ask your Contractor for details or visit www.energystar.gov.

Features and Benefits

• Two-Stage Scroll Compressor: Features two speeds (high and low) of cooling and heating, providing more precise temperature control, lower humidity and greater efficiency when compared to single stage compressors
• 7 mm Condenser Copper Coil1: Requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability
• Inverted Reversing Valve: Allows for faster heat transfer with gravity assist shifting and reduced joint stress for increased reliability
• PlusOne® Expanded Valve Space: 3 in. – 4 in. – 5 in. service valve space — provides a minimum working area of 27-square inches for easier access
• PlusOne®Triple Service Access: 15″ wide, industry leading corner service access, two fastener, removeable corner and individual louver panels — makes repairs easier and faster

Model Number Identification

RP15AZ
Heat Pumps

[ ] Designates Metric Conversions

STANDARD EQUIPMENT

• R-410A Refrigerant
• Scroll Compressor
• Field Installed Filter Drier
• Front Seating Service Valves
• Internal Pressure Relief Valve
• Internal Thermal Overload
• Long Line capability
• Low Ambient capability with Kit
• 3-4-5 Expanded Valve Space
• Composite Basepan
• 2 Screw Control Box Access
• 15″ Access to Internal Components
• Quick release louver panel design
• No fasteners to remove along bottom
• Optimized Venturi Airflow
• Single row condenser coil
• Powder coated paint
• Rust resistant screws
• QR code
• External gauge ports
• Service trays

General Data/Electrical Data

RP15AZ

1. Refrigerant charge sufficient for 15 ft. length of refrigerant lines. For longer line set requirements see the installation instructions for information about set length and additional refrigerant charge required.
2. HACR type circuit breaker of fuse.
3. Refer to National Electrical Code manual to determine wire, fuse and disconnect size requirements.

Accessories/Weighted Sound Power

RP15AZ
Accessories

Weighted Sound Power Level (dBA)

NOTE: Tested in accordance with AHRI Standard 270-08 (not listed in AHRI)

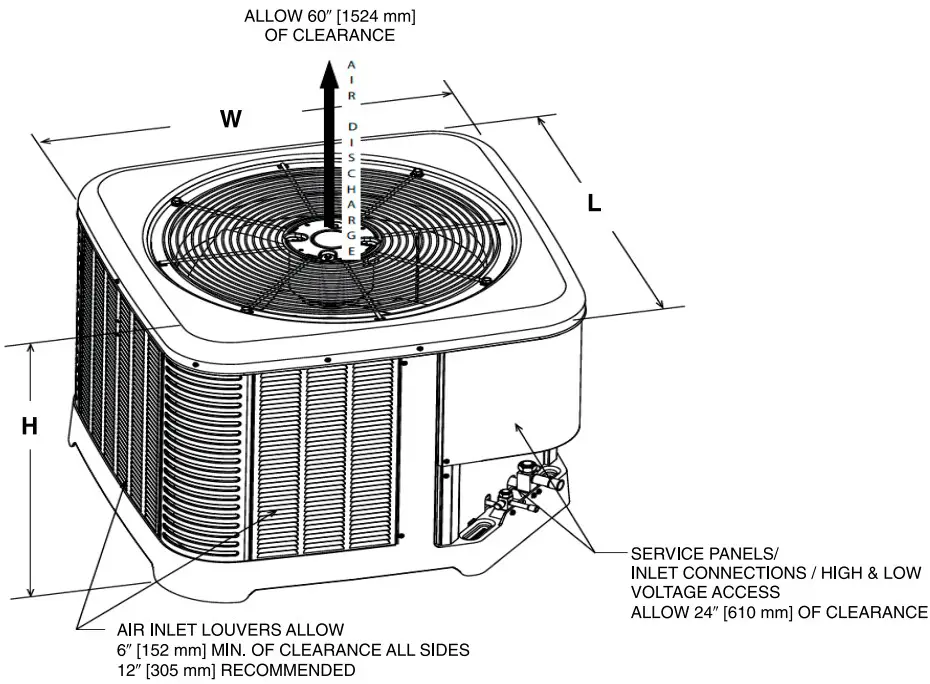

Unit Dimensions

RP15AZ
Unit Dimensions

[ ] Designates Metric Conversions

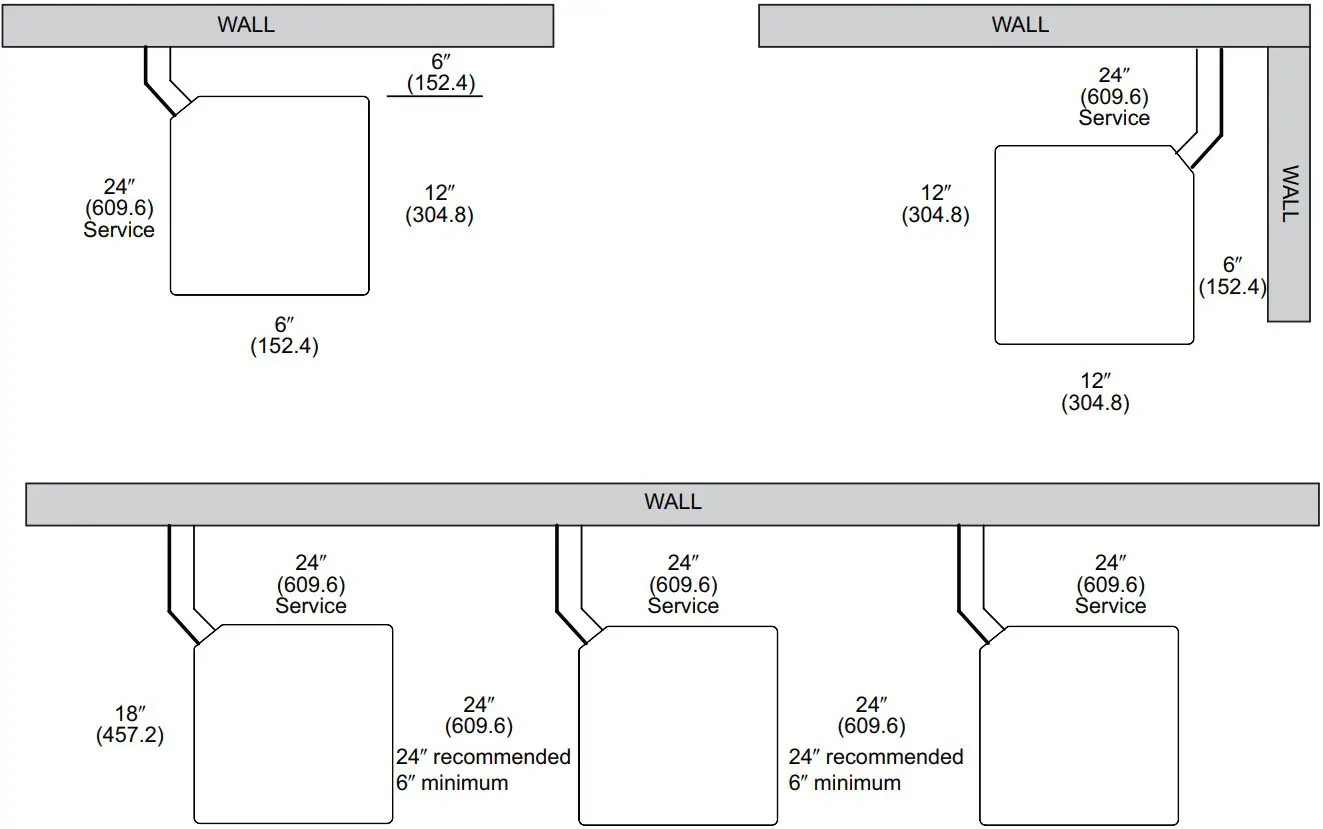

Clearances

RP15AZ

Refrigerant Line Size Information

RP15AZ

NOTES:

1. Maximum Equivalent Line Length may not exceed 250′.
2. Maximum Actual Line Length may not exceed 200′.
3. Light Grey shaded areas are considered long line and may require accessories as recommended in Long Line Set Guide.
4. Refer to supplemental Long Line Set Guide for applications that require liquid line size other than 3/8″.
5. DO NOT use suction line traps in the suction riser as this adds additional unwanted pressure drop in the system.

NOTES:

1. Maximum Equivalent Line Length may not exceed 76 Meters.
2. Maximum Actual Line Length may not exceed 61 Meters.
3. Light Grey shaded areas are considered long line and may require accessories as recommended in Long Line Set Guide.
4. Refer to supplemental Long Line Set Guide for applications that require liquid line size other than 3/8″.
5. DO NOT use suction line traps in the suction riser as this adds additional unwanted pressure drop in the system.

Performance Data

Performance Data@ AHRI Standard Conditions – Cooling

NOTE: This data includes DTC (Designated Test Combination) ratings and is for reference purposes only. A full listing of official ratings and system match-ups, along with downloadable certificates, will be accessible from the AHRI website: www.ahridirectory.org later this year.
[ ] Designates Metric Conversions

GENERAL TERMS OF LIMITED WARRANTY*
Rheem will furnish a replacement for any part of this product which fails in normal use and service within the applicable period stated, in accordance with the terms of the limited warranty.
*For complete details of the Limited and Conditional Warranties, including applicable terms and conditions, contact your local contractor or the Manufacturer for a copy of the product warranty certificate.
Conditional Parts
(Registration Required) ……………………………Ten (10) Years
Before proceeding with installation, refer to installation instructions packaged with each model, as well as complying with all Federal, State, Provincial, and Local codes, regulations, and practices.
© 2023 Rheem Manufacturing Company. Rheem trademarks owned by Rheem Manufacturing Company.
In keeping with its policy of continuous progress and product improvement, Rheem reserves the right to make changes without notice.

The new deg ree of comfort®.
Rheem Heating, Cooling & Water Heating • 5600 Old Greenwood Road
Fort Smith, Arkansas 72908 • www.rheem.com
Rheem Canada Ltd./Ltée • 125 Edgeware Road, Unit 1
Brampton, Ontario • L6Y 0P5 • rheem.ca
PRINTED IN U.S.A. 6/23 QG FORM NO. P11-827 REV. 1
