FUJITSU 15LZBS1 Inverter Driven Heat Pump
Inverter Driven Heat Pump
- Job Name
- Location
- Engineer
- Submitted To
- Submitted By
- Reference
- Date
- Approval
- Construction
- Unit No
- Drawing No
15,000 BTU Single Zone High SEER Wall Mounted System
PRODUCT FEATURES
- Auto Changeover
- Weekly & 24 hr. Timer
- Auto Louver: 4 way
- Minimum Heat Mode
- Auto Restart
- Economy Mode
- Energy Saving Program(ESP)
- Wireless Remote control
- Outdoor Unit Low Noise Schedule
| MODEL NUMBERS | |||
| Indoor Unit | ASUG15LZBS | ||
| Outdoor Unit | AOUG15LZAS1 | ||
| System | 15LZBS1 | ||
| EFFICIENCIES | |||
| SEER | 25.3 | ||
| EER | 13.9 | ||
| HSPF | 13.4 | ||
| COP | kW/KW | 4.60 | |
| BTU/hW | 15.70 | ||
| OUTDOOR TEMPERATURE OPERATION RANGE | |||
| Cooling | ˚F(˚C) | 14 to 115 (-10 to 46) | |
| Heating | -5 to 75 (-21 to 24) | ||
| CAPACITIES | |||
| Cooling | Rated | BTU/hW | 14,500 |
| Min.—Max. | 3,100-18,400 | ||
| Heating | Rated | 18,000 | |
| Min.—Max. | 3,100-23,900 | ||
| LINESET REQUIREMENTS | |||
| Connection Method | Flare | ||
| Liquid | in (mm) | Ø 1/4 (Ø 6.35) | |
| Gas | Ø 1/2 (Ø 12.7) | ||
| Pre-Charge Length | ft (m) | 49 (15) | |
| Minimum Length | 16 (5) | ||
| Maximum Length | 66 (20) | ||
| Max. Height Diff. | 49 (15) | ||
| INDOOR DIMENSIONS & WEIGHT | |||
| Net (H x W x D) | in | 11 x 38-9/16 x 9-7/16 | |
| mm | 280 x 980 x 240 | ||
| Gross (H x W x D) | in | 12- 11/16 x 42- 7/16 x 13- 10/16 | |
| mm | 322 x 1078 x 346 | ||
| Net Weight | lb (kg) | 29 (13) | |
| Gross Weight | 37 (17) | ||
| OUTDOOR DIMENSIONS & WEIGHT | |||
| Net (H x W x D) | in | 24-7/8 x 31-7/16 x 11-7/16 | |
| mm | 632 x 799 x 290 | ||
| Gross (H x W x D) | in | 27- 4/16 x 37 x 14- 12/16 | |
| mm | 692 x 940 x 375 | ||
| Net Weight | lb (kg) | 86 (39) | |
| Gross Weight | 95 (43) | ||
Warranty Information
- 7 Year Compressor, 5 Year Parts out-of-the-box Warranty
- 10 Year Compressor, 10 Year Parts Warranty when registered within 60 days of installation in a residence
- 12 Year Compressor, 12 Year Parts Warranty when registered within 60 days of installation in a residence, and installed by a Fujitsu Elite contractor
ACCESSORIES | |
| UTY-TTRX | 3rd Party Thermostat Converter |
| UTY-TWRXZ2 | Interface Kit |
| UTY-RNRUZ5 | Wired Remote Controller (Touch Panel) |
| UTY-RSRY | Simple Remote Control |
| UTY-RHRY | Simple Remote Control (Hospitality) |
| UTY-TFSXF1 | WiFi Interface Module |
This system combination is Energy Star qualified
+App available in Apple® App Store and Google® Play Store.
Due to continuous product improvements, specifications are subject to change without notice. Please log in to the Fujitsu Portal for the most up-to-date documentation https://portal.fujitsugeneral.com
Inverter Driven Heat Pump
| FAN DATA | ||||
| Indoor Unit Airflow Rate | Cooling | High | CFM (m3/h) | 583 (996) |
| Medium | 459 (780) | |||
| Low | 312 (530) | |||
| Quiet | 241 (410) | |||
| Heating | High | 583 (996) | ||
| Medium | 459 (780) | |||
| Low | 312 (530) | |||
| Quiet | 241 (410) | |||
| Outdoor Unit Airflow Rate | Cooling | 1218 (2,070) | ||
| Heating | 1348 (2,290) | |||
| SOUND PRESSURE | ||||
| Indoor Unit | Cooling | High | dB (A) | 45 |
| Medium | 40 | |||
| Low | 32 | |||
| Quiet | 26 | |||
| Heating | High | 45 | ||
| Medium | 39 | |||
| Low | 32 | |||
| Quiet | 26 | |||
| Outdoor Unit | Cooling | 49 | ||
| Heating | 50 | |||
| REFRIGERANT | ||||
| Type R410A | ||||
| Charge | lb oz | 2lb 16oz | ||
| kg | 1 | |||
| Oil Type POE (RB68) | ||||
| ELECTRICAL SPECIFICATIONS | ||||
| Voltage/Frequency/Phase 208/230 V / 1Ø / 60Hz | ||||
| Voltage Range 187-253V~60HZ | ||||
| Current | Cooling | Rated |
A | 4.8 |
| Heating | Rated | 5.2 | ||
| Maximum Operating Current | Cooling | 9.9 | ||
| Heating | 13.4 | |||
| Starting Current | 5.2 | |||
| MCA | 16.5 | |||
| Maximum Circuit Breaker | 20 | |||
| Input Power | Cooling | Rated | kW | 1.04 |
| Min.—Max. | 0.15—1.56 | |||
| Heating | Rated | 1.15 | ||
| Min.—Max. | 0.15—2.19 | |||
| Power Factor | Cooling | % | 94 | |
| Heating | 96 | |||
| OTHER | ||||
| Moisture Removal | pints/h (L/h) | 4 (1.9) | ||
| Energy Star | Yes | |||
| Drain hose | Material | PP+LLDPE | ||
| Size | in (mm) | Ø 17/32 (Ø 13.8) (I.D.) Ø 5/8 to Ø 21/32 (Ø 15.8 to Ø 16.7) (O.D.) | ||
| Operation Range | Cooling | °F (°C) | 64 to 90 (18 to 32) | |
| %RH | 80 or less | |||
| Heating | °F (°C) | 60 to 86 (16 to 30) | ||

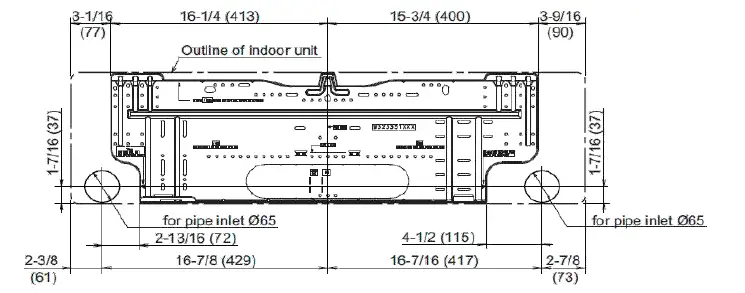

Wall Bracket Data
Inverter Driven Heat Pump

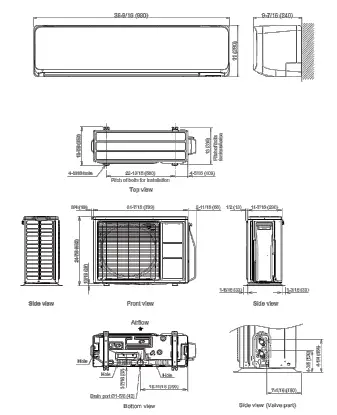

DIMENSIONS
