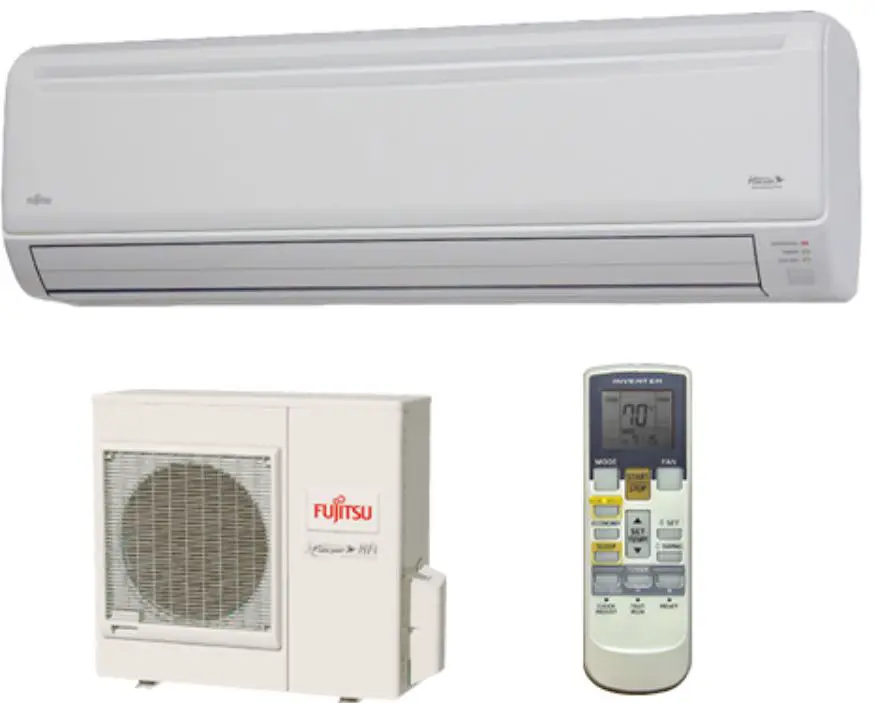

FUJITSU 36LPAS1 Inverter Driven Heat Pump
PRODUCT FEATURES
- Auto Changeover
- Weekly & 24 hr. Timer
- Auto Louver
- Minimum Heat Mode
- Auto Restart
- Economy Mode
- Wireless Remote control
Warranty Information
7 Year Compressor, 5 Year Parts out-of-the-box Warranty EFFICIENCIES 10 Year Compressor, 10 Year Parts Warranty when registered within 60 days of installation in a residence.12 Year Compressor, 12 Year Parts Warranty when registered within 60 days of installation in a residence, and installed by a Fujitsu Elite contractor.
| MODEL NUMBERS | |||
| Indoor Unit | ASUH36LPAS | ||
| Outdoor Unit | AOUH36LPAS1 | ||
| System | 36LPAS1 | ||
| EFFICIENCIES | |||
| SEER | 18 | ||
| EER | 8.1 | ||
| HSPF | 11 | ||
| COP | kW/KW | 3.21 | |
| BTU/hW | 11.00 | ||
| OUTDOOR TEMPERATURE OPERATION RANGE | |||
| Cooling | ˚F(˚C) | 14 to 115 (-10 to 46) | |
| Heating | 5 to 75 (-15 to 24) | ||
| CAPACITIES | |||
| Cooling | Rated | BTU/hW | 33,000 |
| Min.—Max. | 9,900 – 34,100 | ||
| Heating | Rated | 34,000 | |
| Min.—Max. | 8,700 – 35,000 | ||
| LINESET REQUIREMENTS | |||
| Connection Method | Flare | ||
| Liquid | in (mm) | Ø3/8 (Ø9.52) | |
| Gas | Ø5/8 (Ø15.88) | ||
| Pre-Charge Length | ft m | ||
| Minimum Length | 66 (20) | ||
| Maximum Length | 164 (50) | ||
| Max. Height Diff. | 98 (30) | ||
| INDOOR DIMENSIONS & WEIGHT | |||
| Net H x W x D | in | 13-3/8 × 45-1/4 × 11 | |
| mm | 340 x 1,150 x 280 | ||
| Gross H x W x D | in | 15-15/16 × 50 × 17-11/16 | |
| mm | 405 × 1,270 × 450 | ||
| Net Weight | lb (kg) | 39 (17.5) | |
| Gross Weight | 51 (23.0) | ||
| OUTDOOR DIMENSIONS & WEIGHT | |||
| Net H x W x D | in | 31 × 37 × 12-5/8 | |
| mm | 788 × 940 × 320 | ||
| Gross H x W x D | in | 38-1/16 × 40-7/16 × 17-1/2 | |
| mm | 966 × 1,027 × 445 | ||
| Net Weight | lb (kg) | 117 (53) | |
| Gross Weight | 134 (61) | ||
Accessories that required
| ACCESSORIES | |
| UTY-RNRUZ* | Wired Remote Controller (Touch Panel) |
| UTY-RSRY | Simple Remote Control |
| UTY-RHRY | Simple Remote Control (Hospitality) |
| UTY-XWZXZ5 | Dry Contact Wire Kit |
| UTY-TTRXZ1 | 3rd Party Thermostat Converter |
| UTY-TWRXZ2 | Interface Kit |
| UTY-TFSXF1 | WIFI Module |
| UTY-VMSX | Modbus Converter |
| FJ-AC-BAC-1L | BACnet Adapter |
This system combination is Energy Star qualified.
App available in Apple App Store and Google Play Store.
Due to continuous product improvements, specifications are subject to change without notice. Please log in to the Fujitsu Portal for the most up to date documentation https://portal.fujitsugeneral.com

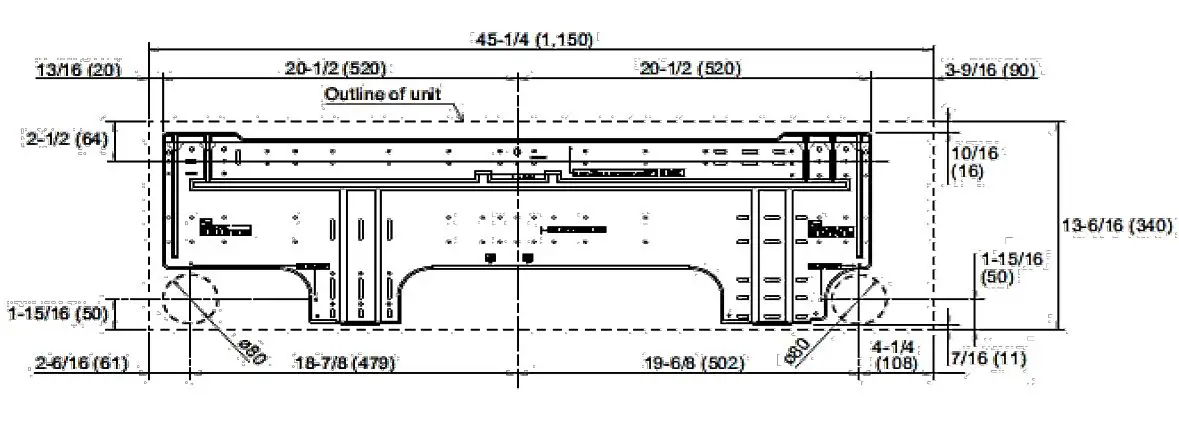

Wall Bracket Data
Inverter Driven Heat Pump

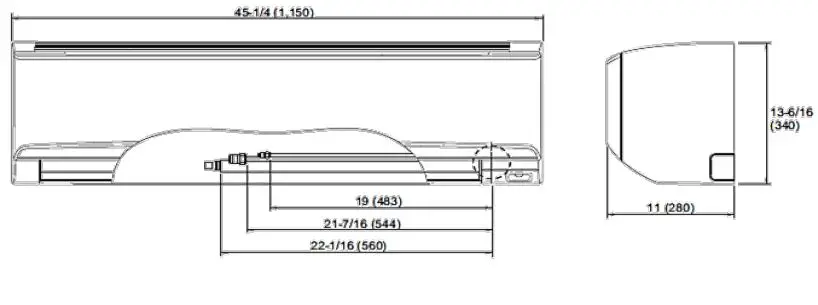

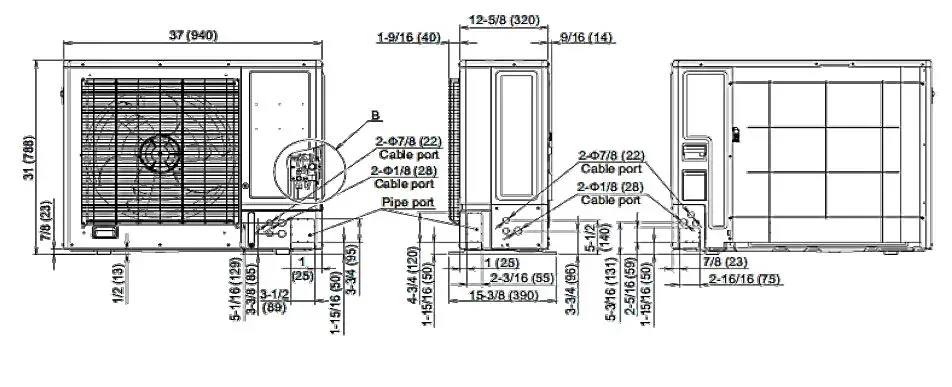

DIMENSIONS
Outdoor Unit

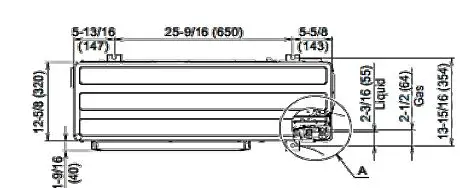

TOP VIEW
FRONT, SIDE AND REAR VIEW

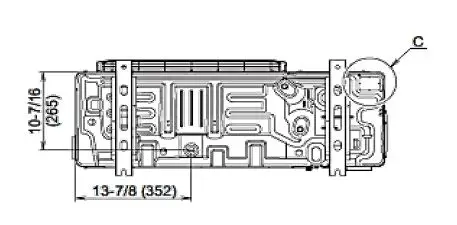

BOTTOM VIEW
The Fujitsu logo is a worldwide trademark of Fujitsu General Limited. The Halcyon logo and name is a worldwide trademark of Fujitsu General Limited and is a registered trademark in Japan, the USA and other countries or areas. Copyright 2022 Fujitsu General America, Inc. Fujitsu’s products are subject to continuous improvements. Fujitsu reserves the right to modify product design, specifications and information in this brochure without notice and without incurring any obligations.
Note
Specifications are based on the following conditions: Cooling: Indoor temperature of 80°F (26.7°C) DB/67°F (19.4°C) WB, and outdoor temperature of 95°F (35°C) DB/75°F (23.9°C) WB. Heating: Indoor temperature of 70°F (21.1°C) DB/60°F (15.6°C) WB, and outdoor temperature of 47°F (8.3°C) DB/43°F (6.1°C) WB. Pipe length: 25ft 7.5m, Height difference: 0ft. 0m Outdoor unit indoor unit.
