OpenAir® GNP/GAP Series
Rotary Fail-Safe and Fail-in-Place
Installation Instructions

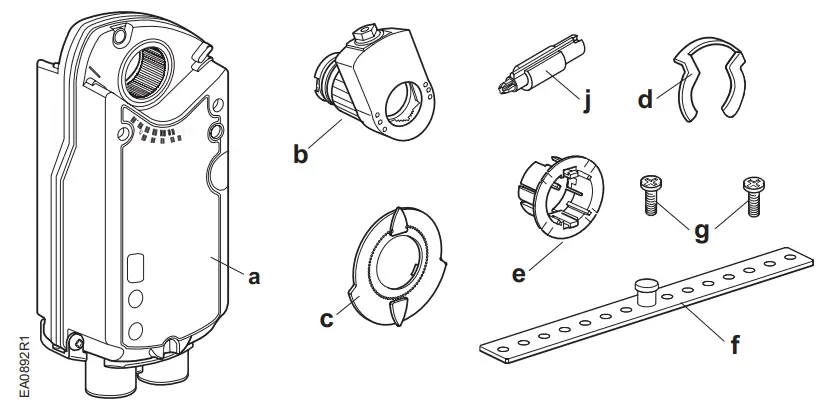

Contents
a. Actuator
b. Self-centering shaft adapter
c. Position indicator
d. Shaft adapter locking clip
e. Position indicator adapter
f. Mounting bracket
g. Mounting screws
j. Auxiliary switch adjustment tool
Hints/Warnings
Keep this instruction guide together with the actuator or with the plant documentation!
Warning
Do not open the actuator !
Do not expose the actuator’s connecting cables to water or lay the cables in water.
Device of protection class II(protective insulation)
Device of protection class III (protective insulation)
Manual override of the actuator
Only allowed after mounting of shaft adapter and position indicator, according to section C1 and C2.
Wiring and commissioning
Additional information is found in Technical Instructions GNP/GAP 155-771.

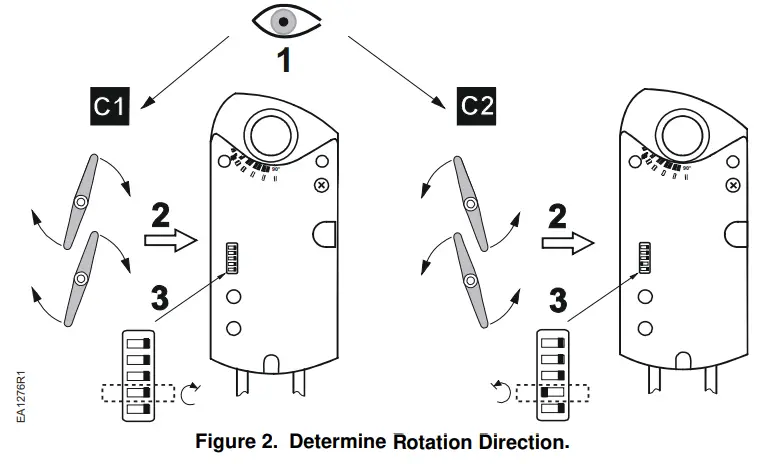

NOTE: Mark the rotation and power-fail direction of the damper on the ductwork before beginning the installation or removing the existing actuator.

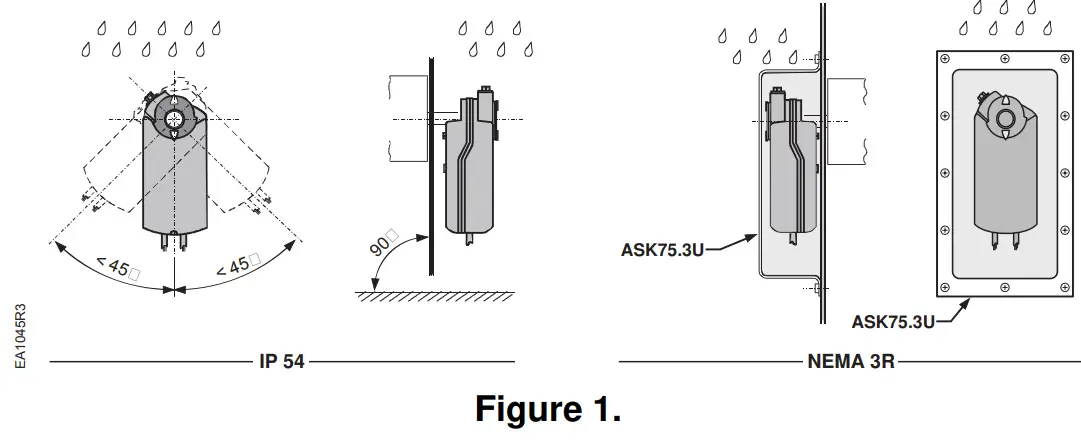

Mounting Position
Adapter Mounting

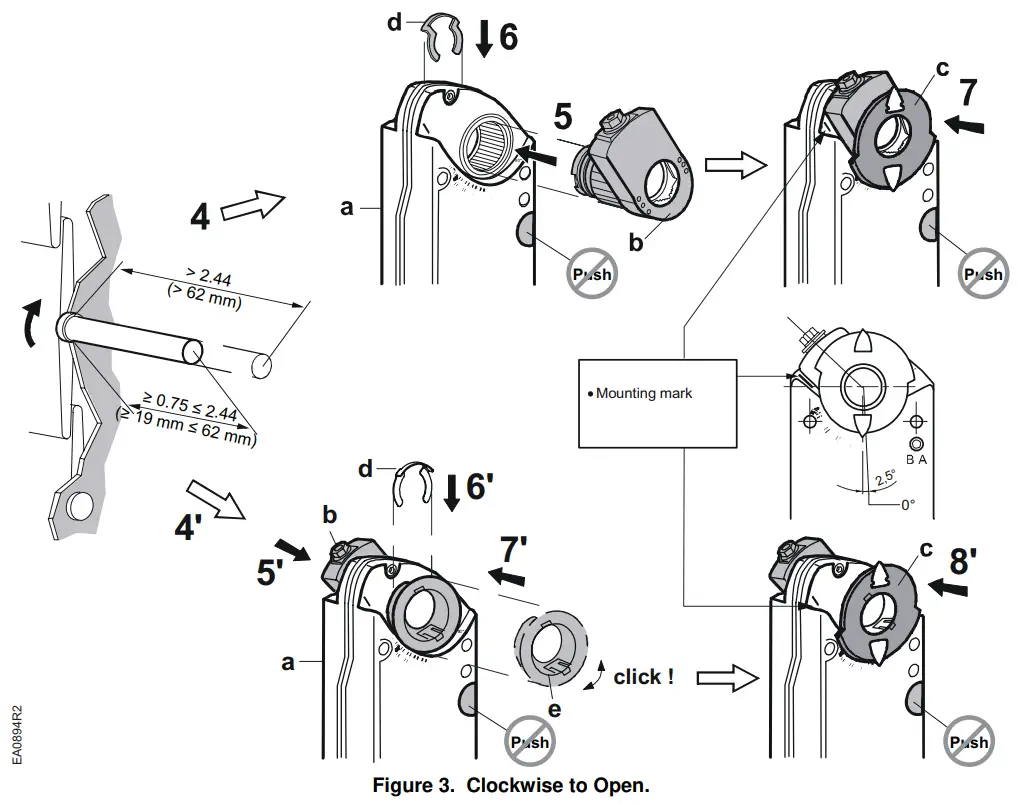

Clockwise to Open

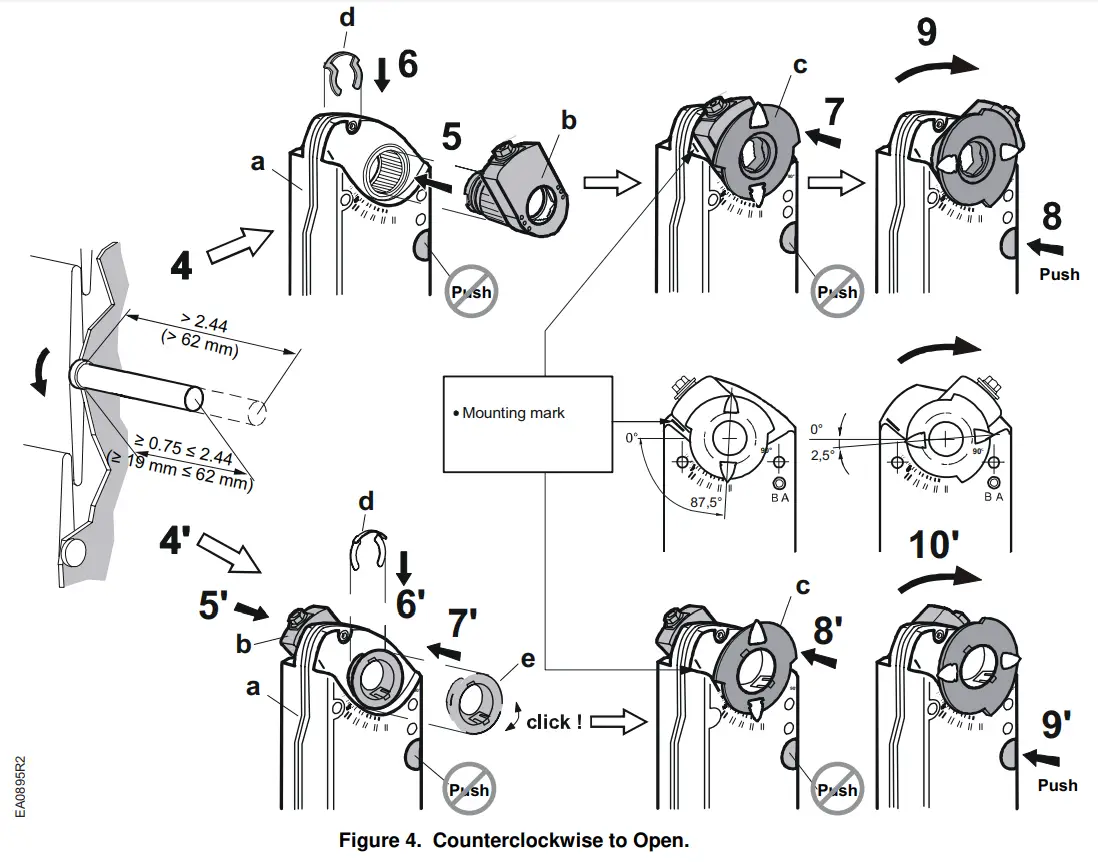

Counterclockwise to Open

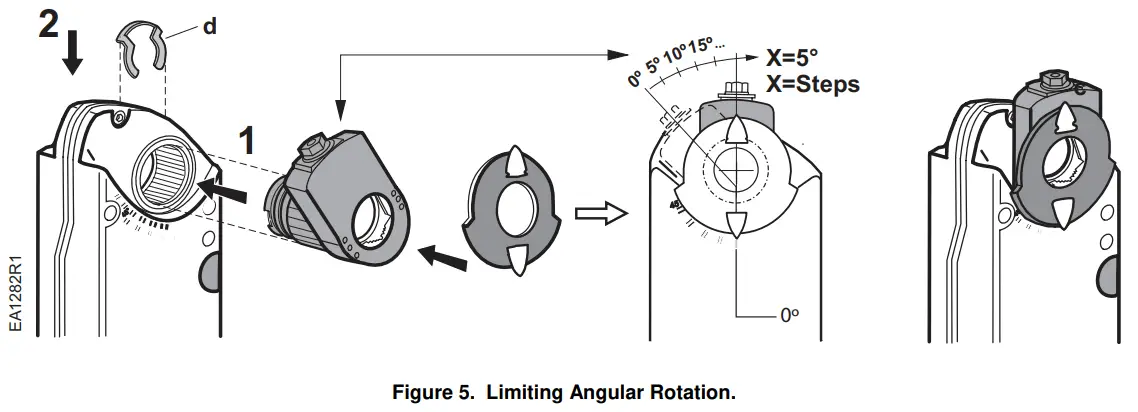

Limits for Angular Rotation

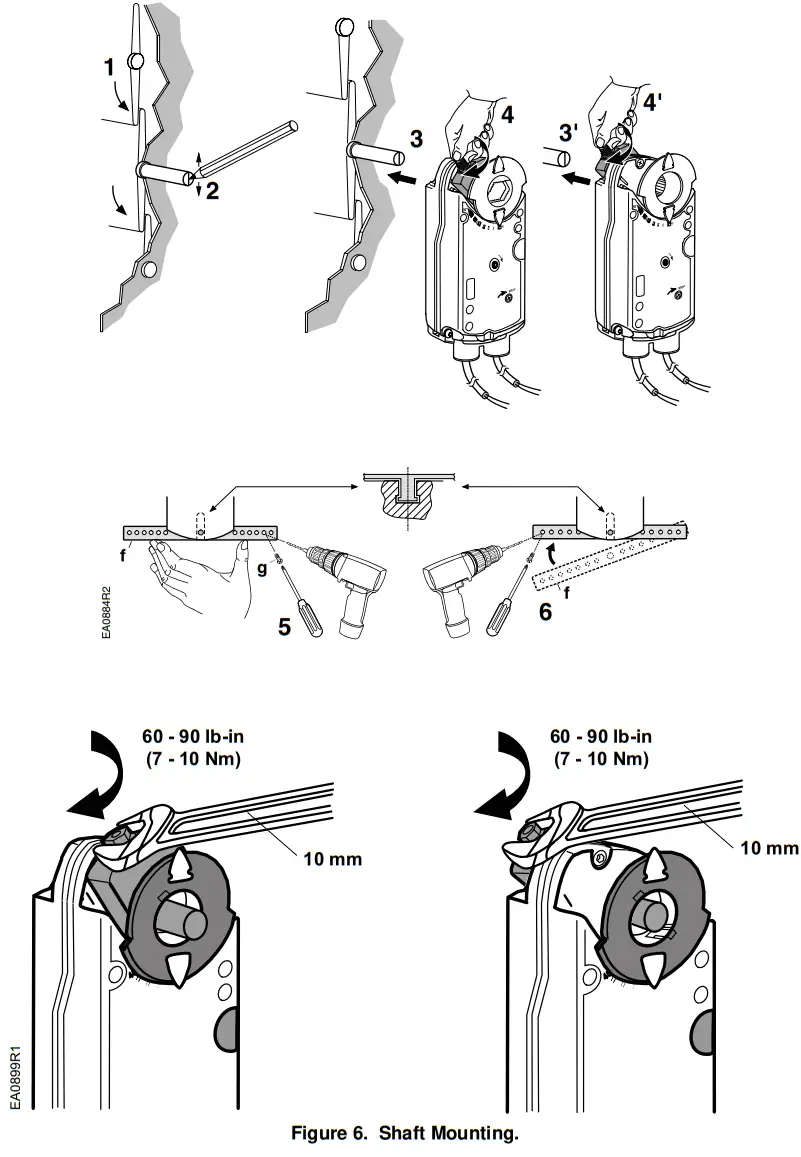

Shaft Mounting

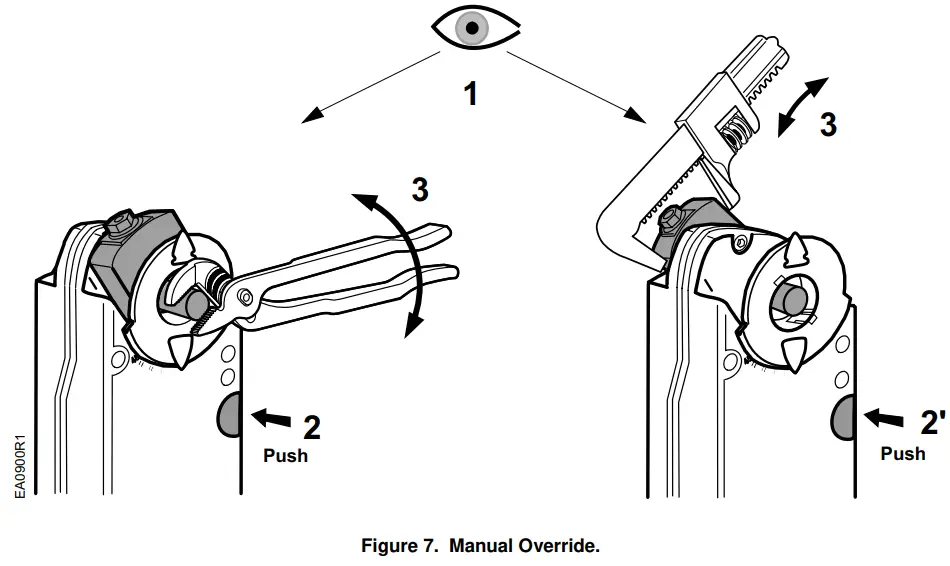

Manual Override
Setting: Auxiliary Switches A, B
For setting auxiliary switches see Technical Instructions 155-771.

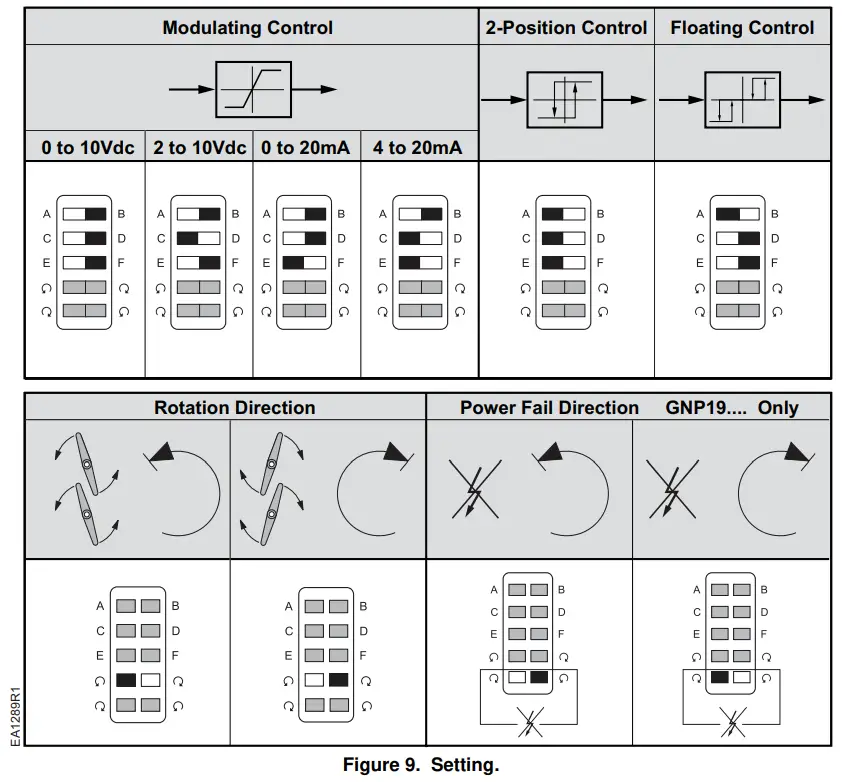

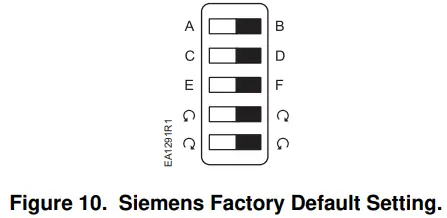

DIP Switches
NOTE:
- The black position indicates the active switch setting.
- For Siemens FHC/LRC pulsed control signal applications, see Section F2.
- On initial power-up, and after a power-fail event, the GNP actuators require up to 90 seconds to fully charge their capacitors. During this time the actuator will respond to positioning commands, but will not power-fail until the capacitors are fully charged.
NOTE: An improperly tuned loop will cause excessive repositioning that will shorten the life of the actuator.

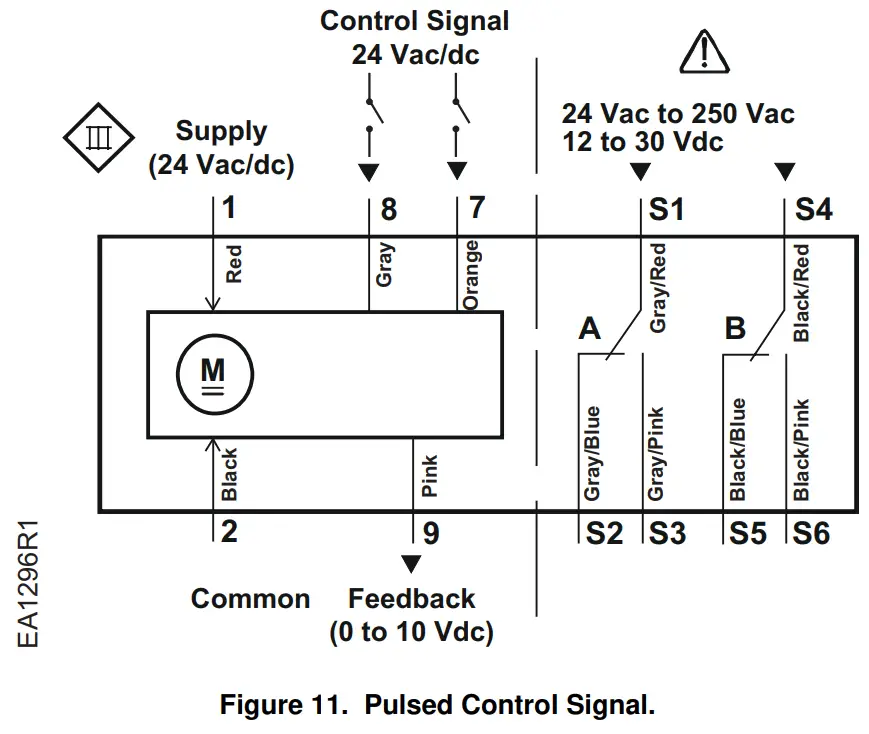

Siemens FHC/LRC Pulsed Control Signal
 |  | |||
| Actuator Action | Wire 7 (Orange) | Wire 8 (Gray) | Wire 7 (Orange) | Wire 8 (Gray) |
| Rotate clockwise | 24V | 24V | — | — |
| Rotate counterclockwise | — | — | 24V | 24V |
| Hold position | 24V | — | 24V | — |
| Hold position | — | 24V | — | 24V |
CAUTION:
Unused wires must be properly terminated.
Wiring diagrams
CAUTION:
Unused wires must be properly terminated.

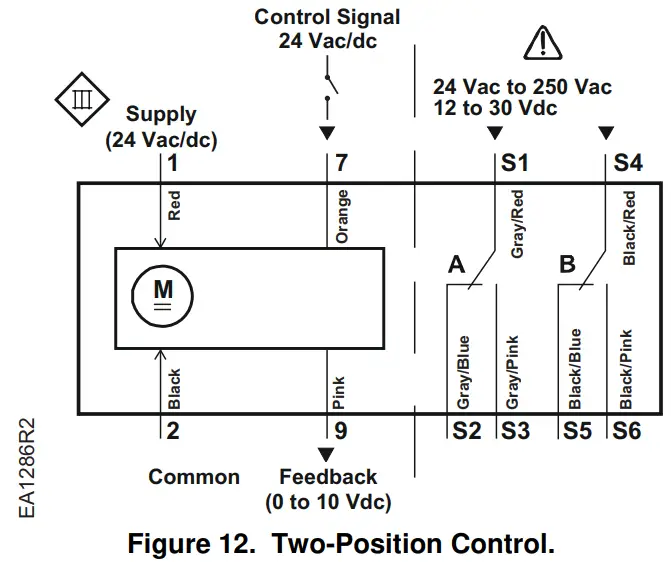

2-position control
NOTE: 2-position control requires three wires.

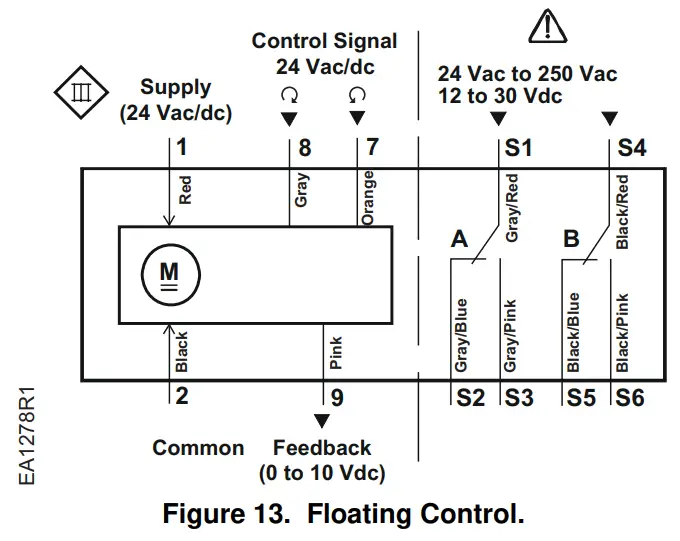

Floating control

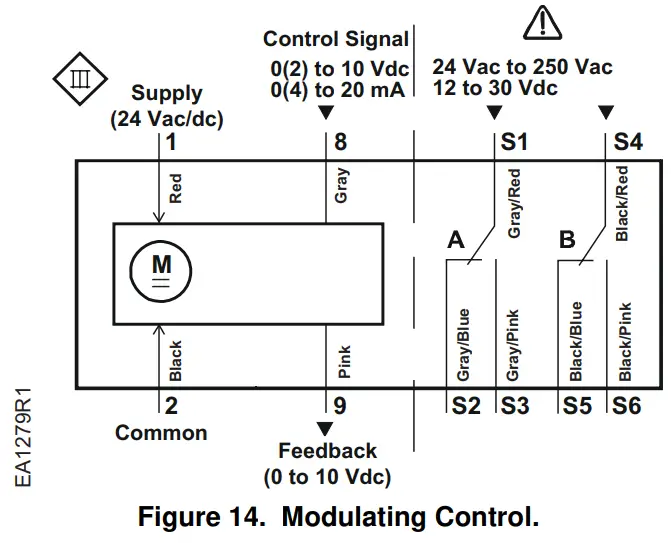

Modulating control
Wiring diagrams, continued
Table 1. Wire Designations.
| Connecting | Standard Symbol | Function | Color | Color Symbol |
| 24 Vac/dc Actuator | 1 | Supply | Red | RD |
| 2 | Common | Black | BK | |
| 7 | 2-position control signal Floating (CCW) Control signal | Orange | ge OG | |
| 8 | Modulating: 0(2) to10 Vdc / 0 (4) to 20 mA Floating: (CW) Control signal | Gray | GY | |
| 9 | Feedback: 0 to 10 Vdc | Pink | PK | |
| Auxiliary Switches | S1 | Switch A Common | Gray/red | GYRD |
| S2 | Switch A N.C. | Gray/blue | GYBU | |
| S3 | Switch A N.O. | Gray/pink | GYPK | |
| S4 | Switch B Common | Black/red | BKRD | |
| S5 | Switch B N.C. | Black/blue | BKBU | |
| S6 | Switch B N.O. | Black/pink | BKPK |

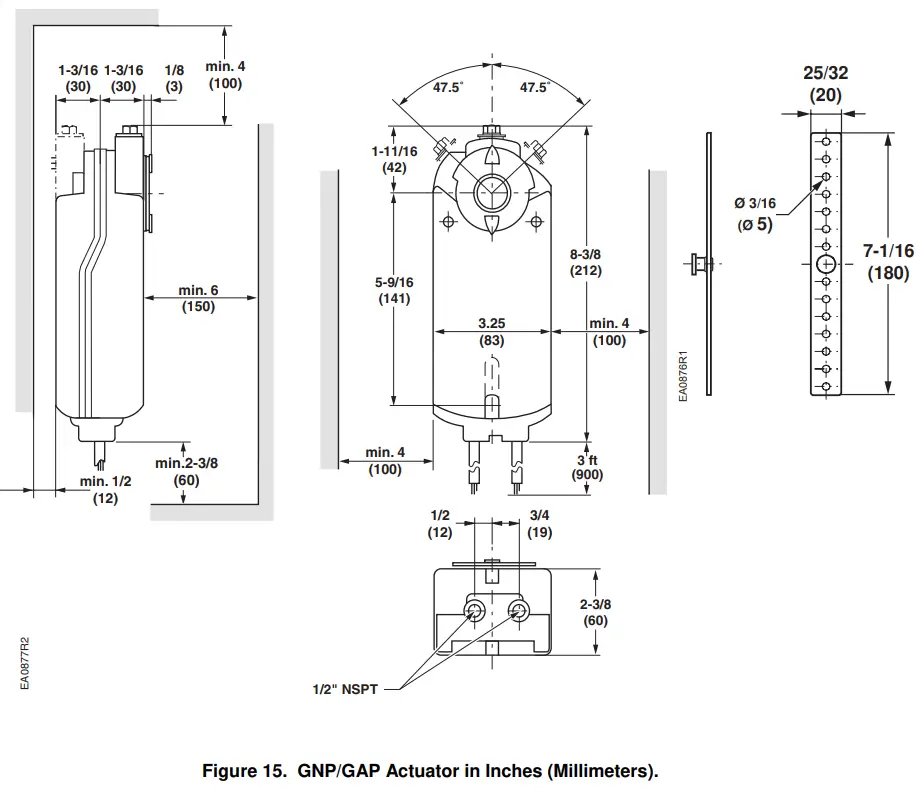

Dimensions
Information in this publication is based on current specifications. The company reserves the right to make changes in specifications and models as design improvements are introduced. OpenAir is a registered trademark of Siemens Scheiwz AG. Other product or compannames mentioned herein may be the trademarks of their respective owners. © 2012 Siemens Industry, Inc.
Siemens Industry, Inc.
Building Technologies Division
1000 Deerfield Parkway
Buffalo Grove, IL 60089
USA
+ 1 847-215-1000
Your feedback is important to us. If you have comments about
this document, please send them to
[email protected]
Document No. 129-541
Printed in the USA
Document No. 129-541
April 2, 2013
