SIEMENS GEB161.1E Rotary Air Damper Actuator
Mounting instructions

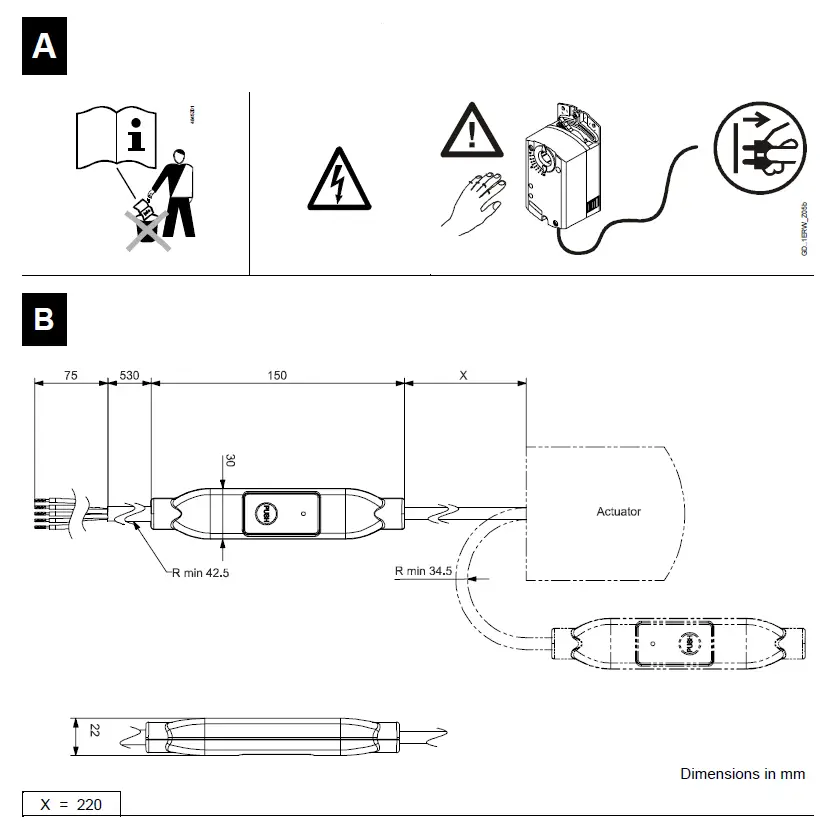

Dimensions
Wiring diagrams
- G..A161.1E/MO AC 24 V / DC 24 V
- GEB161.1E/MO AC 24 V / DC 24 V
- GIB161.1E/MO AC 24 V
AC 24 V / DC 24 V
- Modulating control Modbus RTU
| en | Wire designations | |
| Cable Color Abbr. | Meaning | |
| red RD | System potential AC 24 V ~ / DC 24 V ⎓ *) | |
| black BK | System neutral | |
| purple VT | Reference (Modbus RTU) | |
| grey GY | Bus (Modbus RTU) | |
| pink PK | Bus (Modbus RTU) | |
Modbus
| G..A161.1E/MO A6V101037201 | GIB161.1E/MO A6V101037253 | GEB161.1E/MO A6V12450913 | |
| en |  |  |  |
