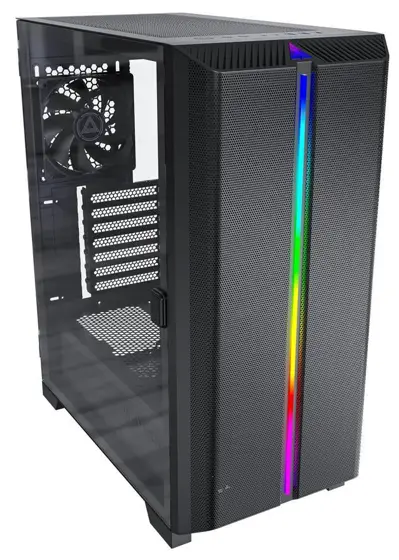

SKY ONE LITE MID TOWER ATX CASE
SPECIFICATIONS
| Product Name | SKY ONE LITE | Pre-Installed Fan(s) | Front | 120mm*2 (High Airflow Fan) |
| Available Color | Black/White | Rear | 120mm*1(High Airflow Fan) | |
| Dimensions (L*W*H) | 416*220*490mm | Top | — | |
| Motherboard Support | ATX/Micro-ATX/Mini-ITX | Fan Support | Front | 120 / 140mm*3 |
| Expansion Slots | 7 | Rear | 120mm | |
| Hard Disk Support | 2.5″SSD*4/3.5″HDD*2 or 2.5″SSD*2 | Top | 120 / 140mm*2 | |
| I/O Port | USB3.0*2/USB 3.11/Mic*1/Audio*1/LED & Reset Button | Inside | 120mm*2 | |
| GPU | 350mm | Radiator Support | Front | 120 / 140 / 240 / 280 / 360mm |
| CPU Cooler | 170mm | Rear | 120mm | |
| Dust Filters | Top, Bottom | Top | 120 / 140 / 240 / 280mm | |
| Lighting Support | Front ARGB LED Strip*1 | PSU Support | Bottom Mount ATX | |
ACCESSORY BAG
 | Standoff Remover | 1 |
 | Motherboard Screw/SSD Screw | 33 |
 | PCIE Screw/PCIEM | 6 |
 | HDD Screw/HDD | 8 |
 | Internal Speaker | 1 |
 | Cable Tie | 5 |

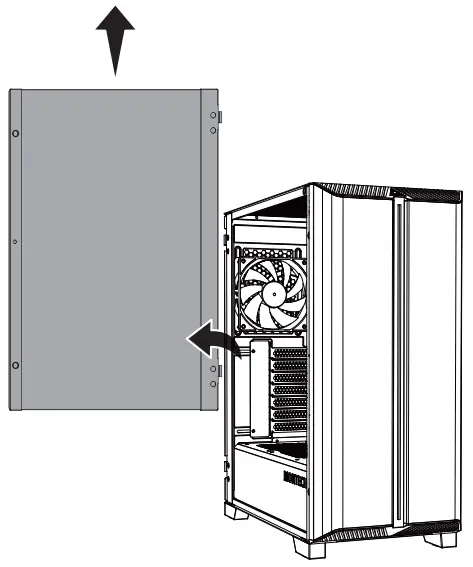

REMOVING GLASS SIDE PANEL
After opening the glass door, take out the glass vertically.

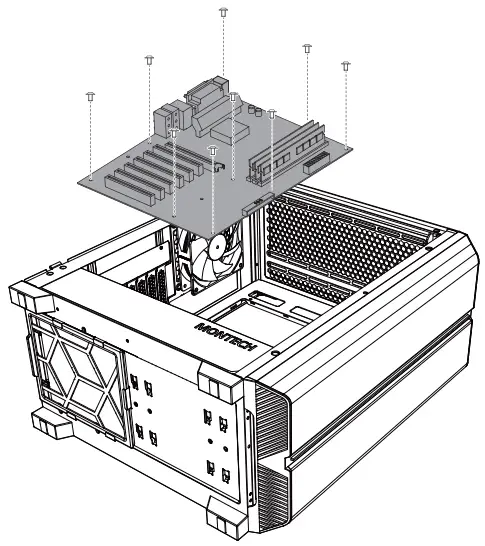

MOTHERBOARD INSTALLATION
Support
ATX / Micro-ATX / Mini-ITX

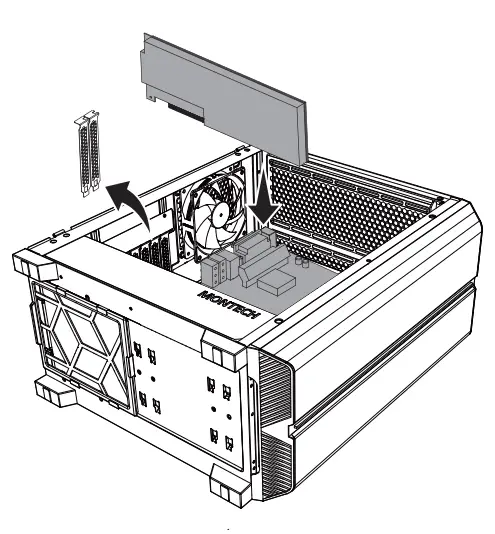

GPU INSTALLATION
Support
350mm/310MM (If installed front radiator)
*The rear PCle slot implements a reusable design

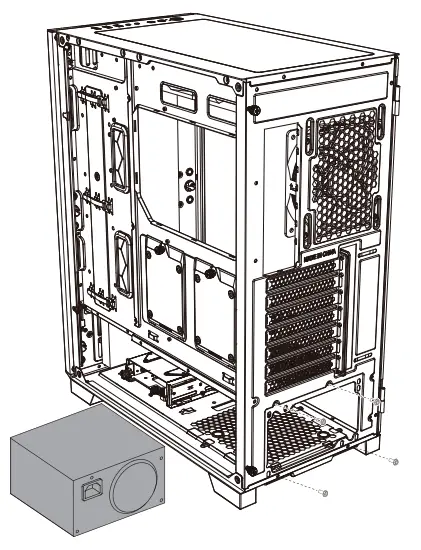

PSU INSTALLATION
Support
180mm High-End Power Supply (200mm if HDD cage removed)

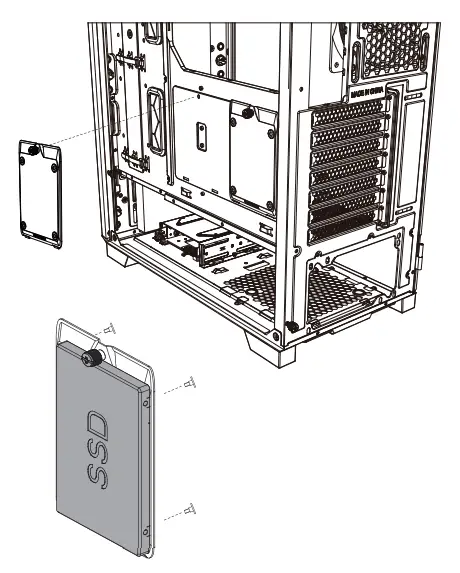

2.5 SSD INSTALLATION

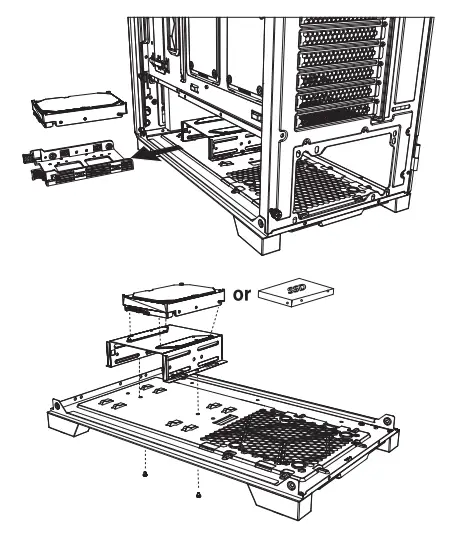

3.5 HDD & 2.5 SSD INSTALLATIO

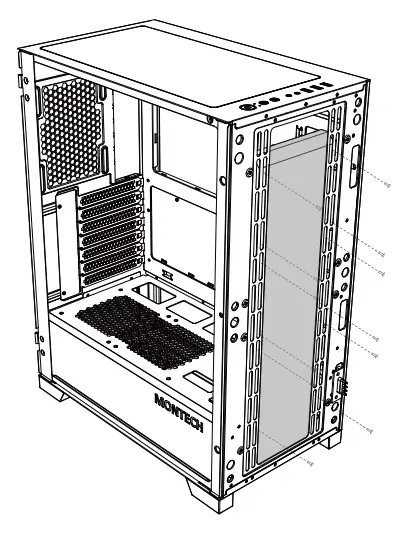

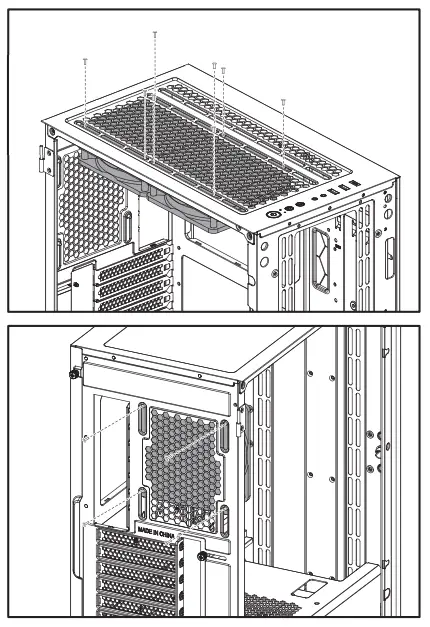

RADIATOR INSTALLATION
Front 120 / 140 / 240 / 280 /360mm
Top 120 / 140 / 240 / 280mm
Rear 120mm

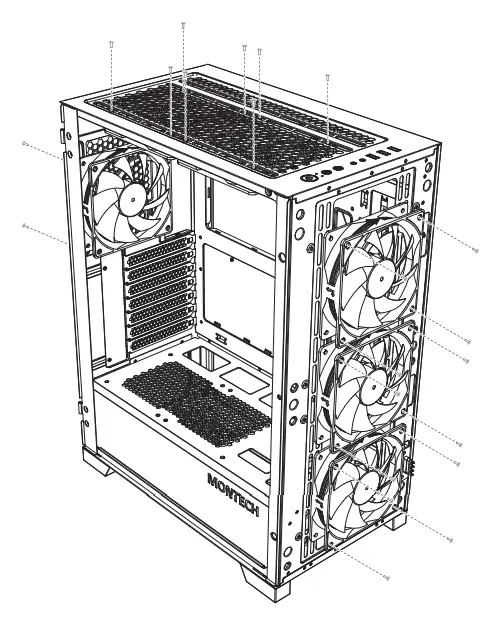

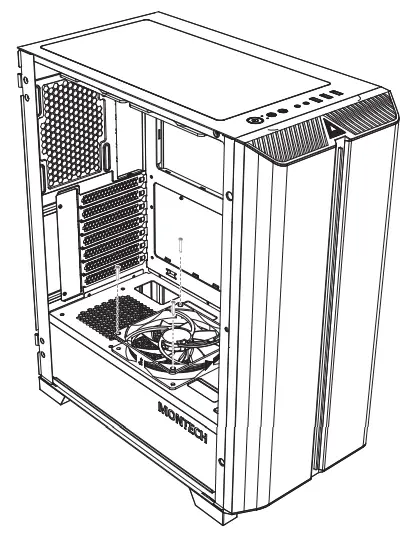

FAN INSTALLATION
Front 120 / 140mm*3
Top 120 / 140mm*2
Rear 120mm
Inside 120mm*2

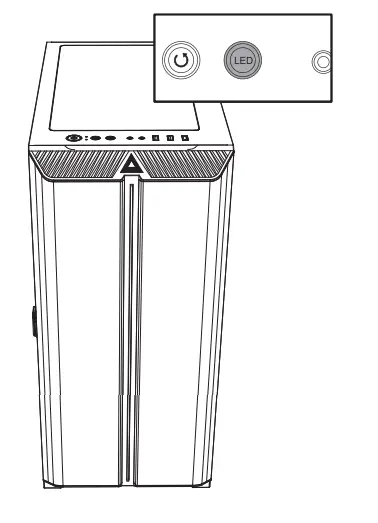

ARGB CONTROL
*Change Effect: Short press LED button
*Turn Off the Light: Press LED button for 3 seconds
*Sync with Motherboards: After connecting the ARGB wir
ALL RIGHTS RESERVED
Specifications are subject to change without notice.
Actual products and accessories may differ from the illustrations (except for omissions and typographical errors.)
Shipping contents may vary by country or region. Certain trademarks may be considered the property of others.
MONTECH © 2022
