Domestic Water Centre
Braukmann

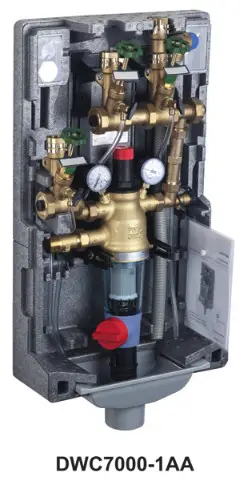

PrimusCenter DWC7000
Domestic water center
APPLICATION
PrimusCenter is a compact product solution that brings together the complete spectrum of domestic water installation technology: Backflow preventer, back washable filter, pressure-reducing valve, drinking water distribution for storage tank and domestic water installation, and tank safety group.
 |  |  |
SPECIAL FEATURES
All components are DVGW certified
- Modular construction
- Ready for connecting a water-softening unit
- Ready for connecting a heating fill or refill unit
- Expandable with additional cold water connections
- Two water pressure strengths: The filtered water is available unreduced for the garden and garage water connection, or reduced for comfortable water usage in the house*
- User-friendly – users only need to open the view window to carry out reverse rinsing
- Elegant – domestic water installation is brought together in one insulated housing
- Connection to the drinking water heater consists of a shut-off valve, a testable backflow preventer, and a safety valve
- Reverse rinsing actuator can be easily and quickly retrofit with bayonet connection
- Both pressure gauges of the filter combination and the dripping water of the safety valve are easy to inspect because of the transparent view window
- Red indicator on the view window for setting the next reverse rinsing
- 3-point installation system so that unevenness and sloping walls can be offset
- Supply line connection can be changed from left to right connection if required
- Connection option for sampling valve available
- Front and backpressure gauges are endpoints resilient
*DWC7000-1AAOA: the filtered and non reduced connection port is closed by a plug; retrofitting with the complete connection set (SOV70-3/4AA) is possible
Product Specification Sheet • EN0H-1165GE23 R0420 • Subject to change
PrimusCenter DWC7000 – Domestic water centre
TECHNICAL DATA
This product is solely suitable for distributing drinking water according to DIN EN 806/DIN 1988 in single and multi-family houses of up to 4 parties. It must not be used to distribute processed water or liquids other than drinking water.
| Media | |
| Medium: | Drinking water |
| Max. flow rate kvs (∆p= 1 bar): | 4.2 m3/h |
| Connections/Sizes | |
| Safety valve connection size- inlet: | Rp 3/4″ |
| Safety valve connection size- outlet: | Rp 3/4″ |
| Filter mesh size: | 100 μm |
| Pressure values | |
| Operating pressure: | 1.5 – 16 bar |
| Max. inlet pressure: | 16 bar |
| Max. outlet filtered, not pressure reduced*: | 16 bar |
| Check valve EA Type up to liquid category 2, opening pressure: | approx. 0.01 bar |
| Pressure reducing valve Inlet pressure: | 1.5 bar – 16 bar |
| Pressure reducing valve Outlet pressure: | 1.5 bar – 6 bar |
| Operating temperatures | |
| Max. operating temperature medium: | 5 °C to 30 °C |
| Specifications | |
| Pressure reducing valve Required nominal load Qn acc. to DIN EN 1567: | 2.3m3/h with ∆p = 1.1 bar |
| Pressure reducing valve kvs – value outlet filtered, not pressure reduced: | 5.8 m3/h |
| Safety valve capacity of hot water tank: | up to 1000 l |
| Safety valve max. heat input: | 100 kW |
PrimusCenter DWC7000 – Domestic water centre
CONSTRUCTION

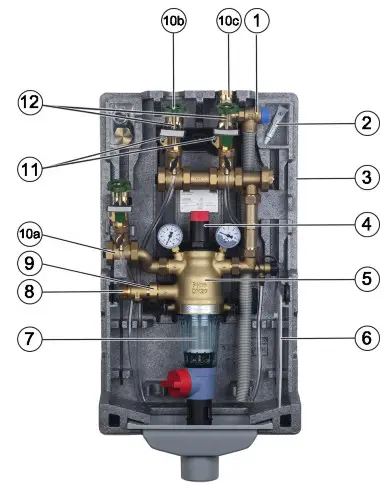

Overview
Components | Materials | |
| 1 | Safety valve | Brass housing, EPDM diaphragm, PA6 cap |
| 2 | Replacement seals including mounting grease | – |
| 3 | Insulation shell with integrated 3- point installation system, drain funnel, clear window and adapter in the shell | Expandable polypropylene |
| 4 | Pressure reducing valve | Dezincification-resistant brass housing, Synthetic material spring bonnet, guide piece, valve insert, filter mesh carrier, adjustment knob and reverse rinsing handle, fibre- reinforced NBR diaphragm, EPDM sealing washers |
| 5 | FK7000 filter combination with pressure reducing valve and 2 pressure gauges on the input and output sides | – |
| 6 | Installation instructions, operating manual | – |
| 7 | Fine filter | Stainless steel Shock-resistant, transparent synthetic material filter bowl |
| 8 | R1 filter connection fitting with backflow preventer | – |
| 9 | Check valve | Dezincification-resistant brass |
| 10 | 3 supply discharge lines with emptying and drain out functions | – |
| 10a | • 1x filtered and not reduced with check valve | |
| 10b | • 1x filtered and pressure reduced | |
| 10c | • 1x filtered and pressure- reduced with check valve and 10 bar safety valve for the closed drinking water heater | |
| 11 | Inscription labels for segments | – |
| 12 | Shut-off valves | Brass EPDM sealing washers |
Not depicted components: | |
| Installation wrench for filter bowl | Plastic |
| Accessories for wall fastening | – |
| Drilling template | – |
| G1 sealing cap incl. flat seal | – |
| Inscription labels for segments | – |
| Piping | Dezincification-resistant brass T-piece, spacer, eccentric, segments with drain valves, threaded nipple, and angle with brass drain valve |
METHOD OF OPERATION
The domestic water center combines in one appliance, backflow preventer, back washable filter, pressure-reducing valve, drinking water distribution for storage tank and domestic water installation, and tank safety group.
Check valve
The check valve is a mechanical securing system and only allows flow-through in one direction. It opens automatically if the pressure on the supply side is greater than the pressure on the filter combination. If there is greater pressure on the filter combination than on the supply line, then the check valve automatically closes because of the action force. In this way, no water can flow back out of the building if the public water supply lacks line pressure.
Filter combination
The filter combination combines reverse rinsing filter and pressure reducing valve in one appliance.
The fine filter set consists of an upper part and a lower part. In the”Filtering” operating status, the small top filter is closed so that the water can only flush the main filter from outside to inside. When the ball valve is opened for “backwashing”, the filter is pushed downwards until the water supply to the outside of the main filter is interrupted.
The water flow through the top filter is simultaneously opened. During backwashing, the top screen is flushed from the outside to the inside; the rotating impeller and the main filter are flushed from the inside to the outside. This guarantees effective filter cleaning with full pressure along the entire screen area. When the ball valve is closed, the filter switches automatically back to the operating position.
The integrated pressure-reducing valve functions according to the force comparison principle. This means, in the pressure-free state, the spring pushes downwards and the valve opens. If the pressure builds up in the pressure-reducing valve of the downstream line, this acts on the membrane in a way that closes against the spring force. Pressure fluctuations on the front side do not influence the back pressure.
Safety valve
At heating water in the service water tank, the heated liquid expands and the pressure rises in the system. If the maximum permitted system pressure is exceeded, the spring and membrane inside the integrated safety valve are pushed backward.
The liquid is drained until the pressure in the system has sunk back under the maximum permitted pressure.
TRANSPORTATION AND STORAGE
Keep parts in their original packaging and unpack them shortly before use.
The following parameters apply during transportation and storage:
Parameter | Value |
| Environment: | clean, dry and dust free |
| Min. ambient temperature: | 5 °C |
| Max. ambient temperature: | 40 °C |
| Min. ambient relative humidity: | 25 % * |
| Max. ambient relative humidity: | 85 % * |
INSTALLATION GUIDELINES
Setup requirements
- Install in horizontal pipework with discharge and filter bowl downwards
- This position ensures optimum filter efficiency
- These domestic water centers are armatures that need to be maintained regularly
- Ensure good access
- The pressure gauge can be read off easily
- The degree of contamination can be easily seen with a clear filter bowl
- Simplifies maintenance and inspection
- The installation location should be protected against frost
- Related to the EN 806-2 it is recommended to install the device immediately after the water meter
- In order to avoid flooding, it is recommended to arrange a permanent, professionally dimensioned wastewater connection

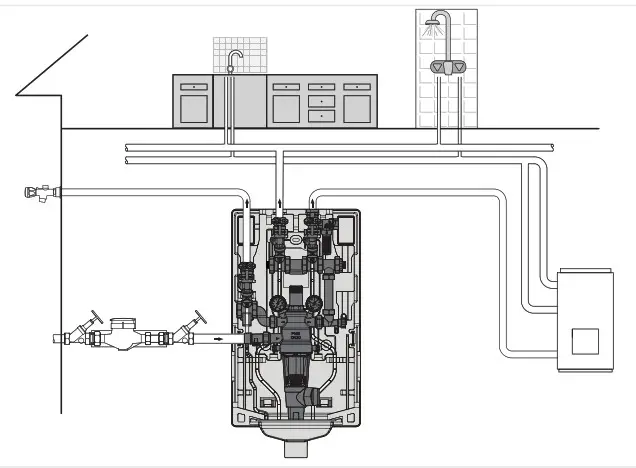

Installation Example
Fig. 1 Installation example for DWC7000-1AA

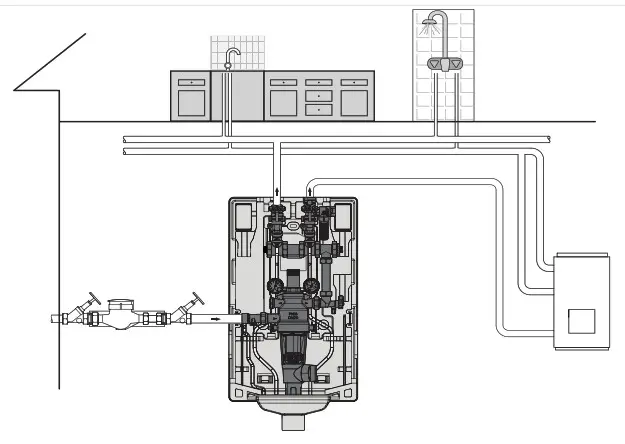

Fig. 2 Installation example for DWC7000-1AAOA

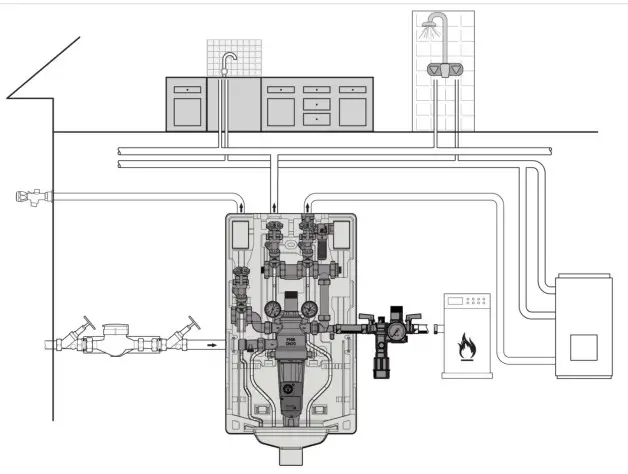

Fig. 3 Installation example for DWC7000-1AAHR
TECHNICAL CHARACTERISTICS
kvs-Values
| Connection sizes: | 25 |
| kvs-value (m3/h): | 4.2 |

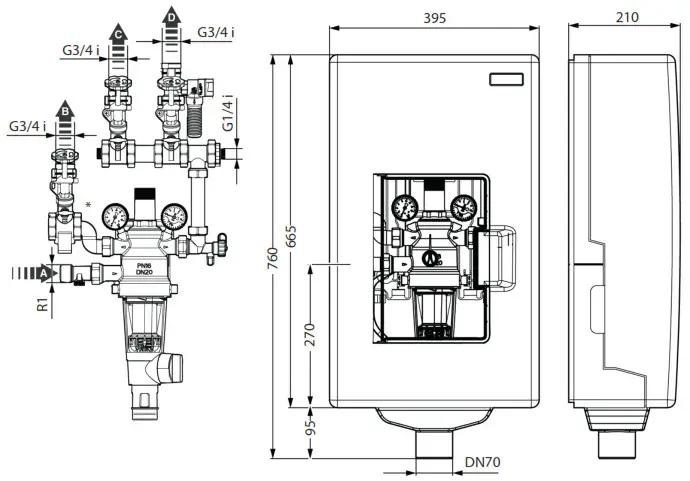

DIMENSIONS
Overview
*DWC7000 – 1AA and DWC7000 – 1AAHR only
Parameter | Values | |
| Nominal size diameter: | DN | 25 |
| Dimensions: | W | 395 |
| H | 760 | |
| D | 210 | |
| The adjustment range for wall distance of filter combination | 65 – 115 | |
| Weight: | kg | 11.0 |
Note: All dimensions in mm unless stated otherwise.
ORDERING INFORMATION
The following tables contain all the information you need to make an order of an item of your choice. When ordering, please always state the type, the ordering or the part number.
Options
The Domestic Water Centre is available in DN25.
- standard
– not available
| DWC7000- 1AA | DWC7000-1AAOA | DWC7000-1AAHR | ||
| Connection type: | Domestic water center for single or multifamily houses of up to 4 parties | • | – | – |

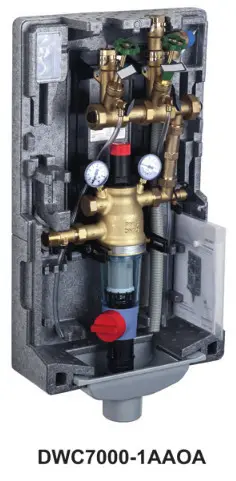

| Domestic water center for single or multifamily houses of up to 4 parties. Without the filtered and non-reduced connection. This port is closed by a plug. Retrofitting with the complete connection set (SOV70-3/4AA) is possible | – | • | – | |

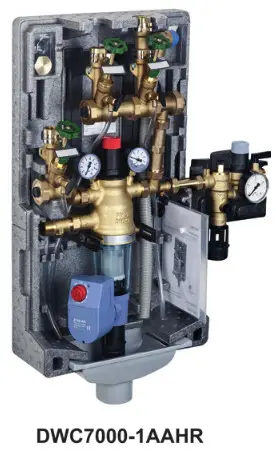

| Domestic water center for single or multifamily houses of up to 4 parties incl. NK300S refilling combination with matching connection set and Z74S-AN reverse rinsing actuator | – | – | • | |
Accessories
Description | Dimension | Part No. | ||

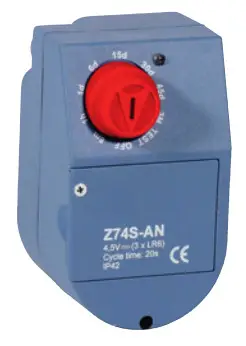

 | Z74S-AN | Automatic reverse rinsing actuator For automatic filter cleaning at presettable intervals | ||
| Z74S-AN | ||||

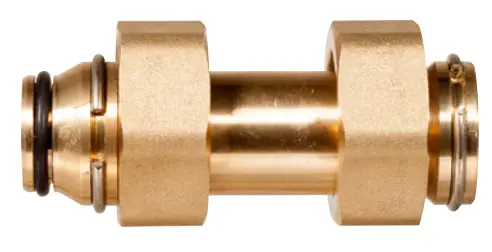

| CK70HN | Connection set for refilling combination | ||
| For direct connection of refilling combinations | CK70HN-3/4A | |||

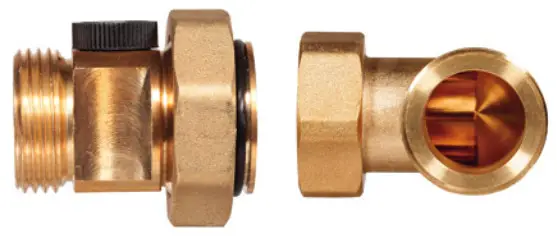

| CK70WS | Connection set for softening unit | ||
| Installation components for additional connection of softening units | CK70WS-3/4A | |||
|

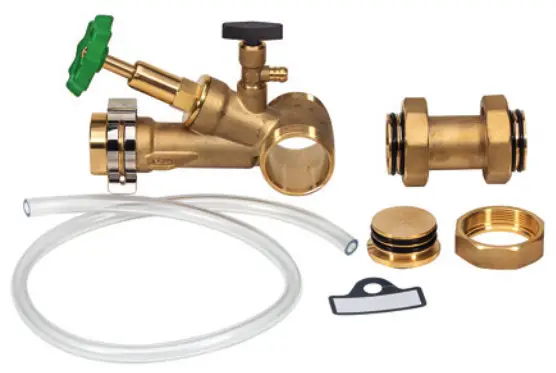

| SOV70 | Extension set for additional drinking water connection | ||
| Retrofit closing valve set for cold water: valve and connection piece | SOV70-3/4K | |||
| SOV70 | Extension set for DWC7000-1AAOA | |||
| Retrofit valve set for filtered and non-reduced outlet incl. connection set | SOV70-3/4AA | |||

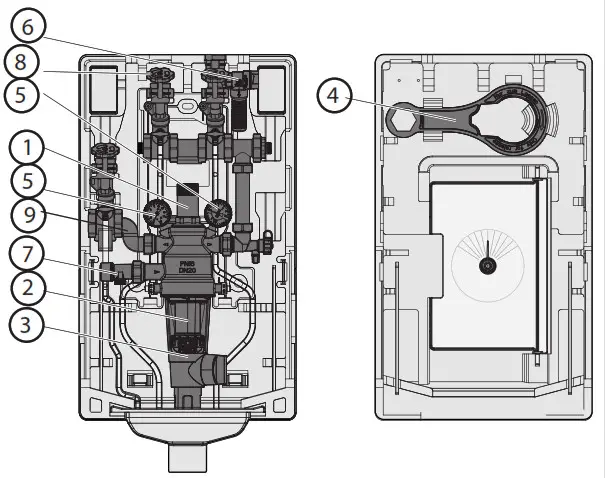

Spare Parts
Domestic Water Centre DWC7000, from 2012 onwards
| Overview | Description | Dimension | Part No. |
 | 1 | Valve insert complete (without filter) | ||
| 1″ + 1/4″ | D06FA-1B | |||
| 2 | Filter insert complete | |||
| 100 μm | 1/2″ – 11/4″ | AF74-1A | ||
| 50 μm | 1/2″ – 11/4″ | AF74-1C | ||
| 200 μm | 1/2″ – 11/4″ | AF74-1D | ||
| 3 | Clear filter bowl | |||
| 1/2″ – 11/4″ | KF74CS-1A | |||
| 4 | Double ring wrench for removing the filter bowl and spring bonnet | |||
| ZR70K-1 | ||||
| 5 | Pressure gauge | |||
| 0-10 bar | M70AF- A10MR | |||
| 0-16 bar | M70AF-A16 | |||
| 6 | Safety valve | |||
| Opening pressure 6 bar | SM150-1/2A | |||
| Opening pressure 8 bar | SM150-1/2B | |||
| Opening pressure 10 bar | SM150-1/2C | |||
| 7 | Check valve R1xG1 | |||
| RV7000-1A | ||||
| 8 | Shut-off valve cold water | |||
| SOV70-3/4K | ||||
| 9 | Shut-off valve cold water for the filtered and not reduced outlet with connection piece! | |||
| SOV70-3/4AA | ||||
| Sealing set (Not depicted components) | ||||
| DS70-3/4A | ||||
 | Manufactured for and on behalf of Pittway Sàrl, Z.A., La Pièce 4, 1180 Rolle, Switzerland by its authorised representative Ademco 1 GmbH | For more information homecomfort.resideo.com/europe Ademco 1 GmbH, Hardhofweg 40, 74821 MOSBACH, GERMANY Phone: +49 6261 810 Fax: +49 6261 81309 |
© 2020 Resideo Technologies, Inc. All rights reserved.
