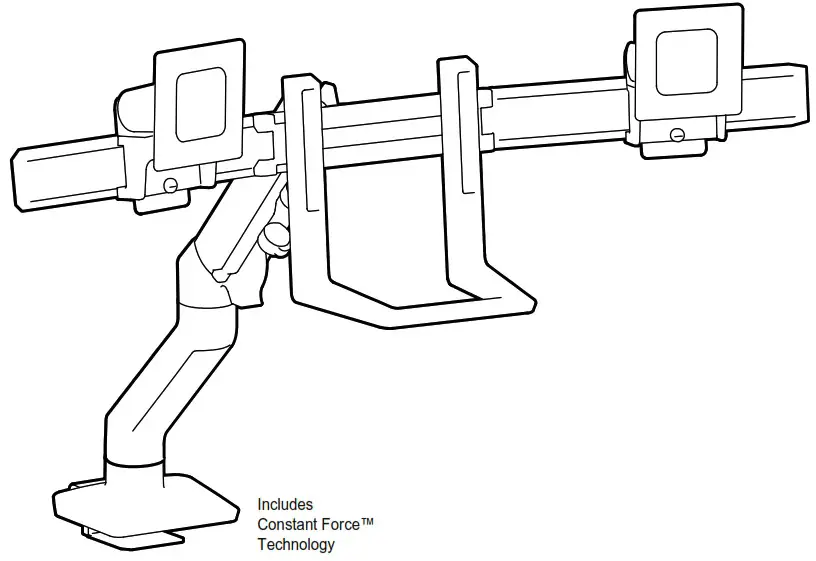

HX Desk Dual Monitor Arm
With Top Mount Low Profile C-clamp
HX Desk Dual Monitor Arm With Top Mount Low Profi le C-clamp
User Guide

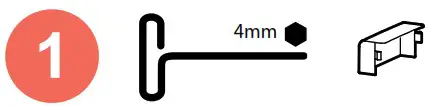

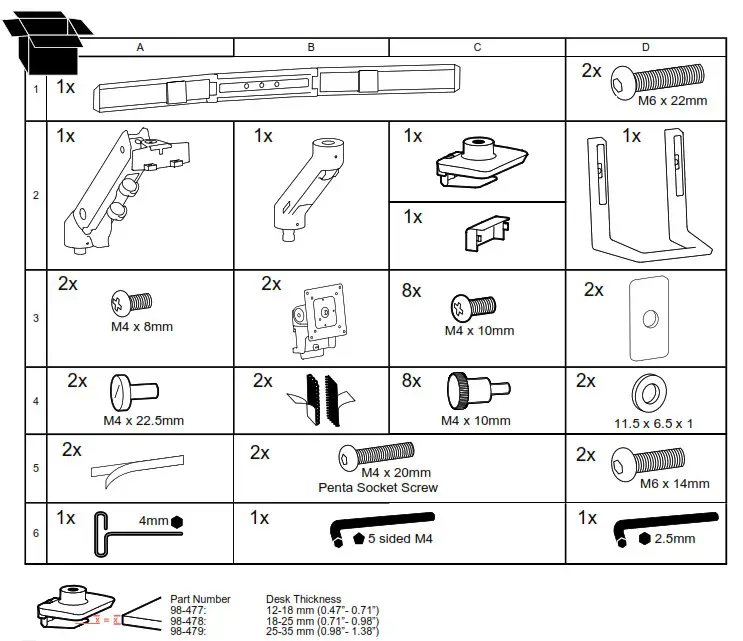

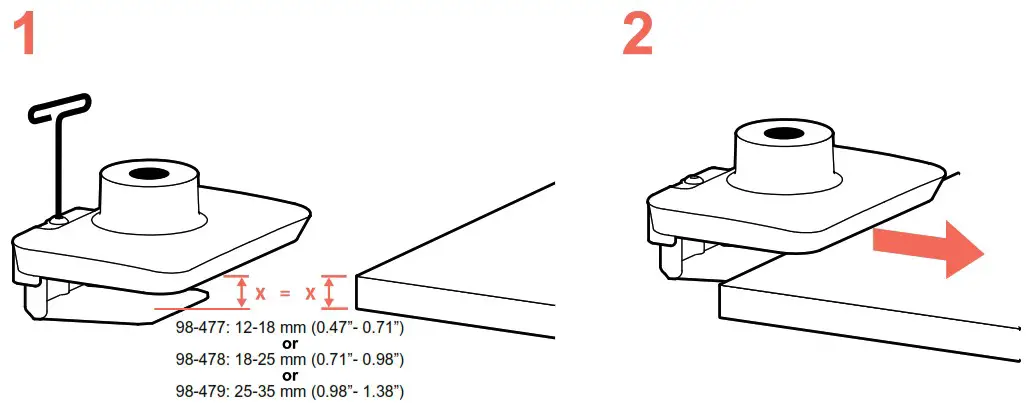

Your product comes with only one of these clamp dimensions. The other size clamps are sold separately.
Your product comes with only one of these clamp dimensions. The other size clamps are sold separately.
Warning: Failure to match your desk thickness with your clamp specifi cations will cause an unstable condition and may result in equipment damage and or personal injury.

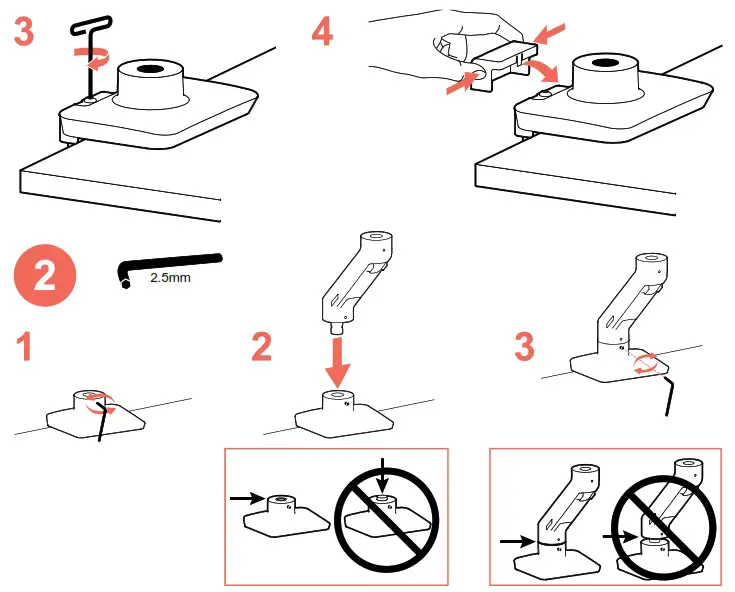

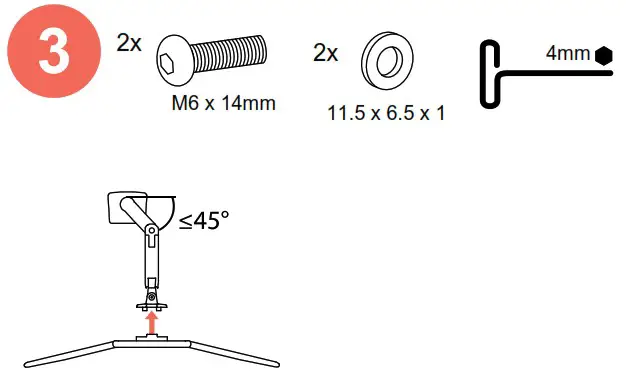

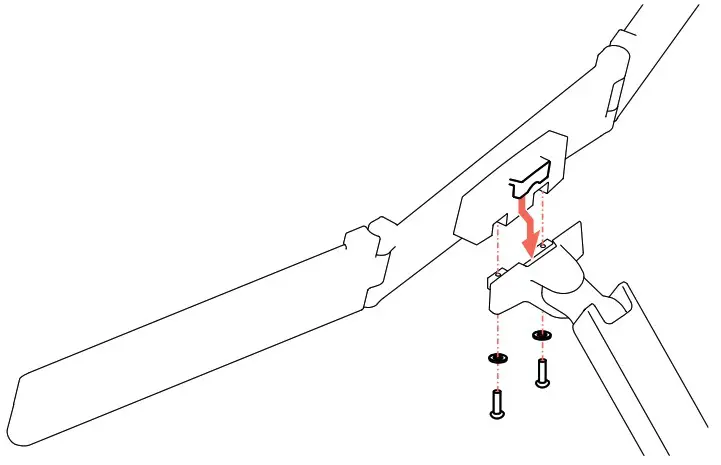

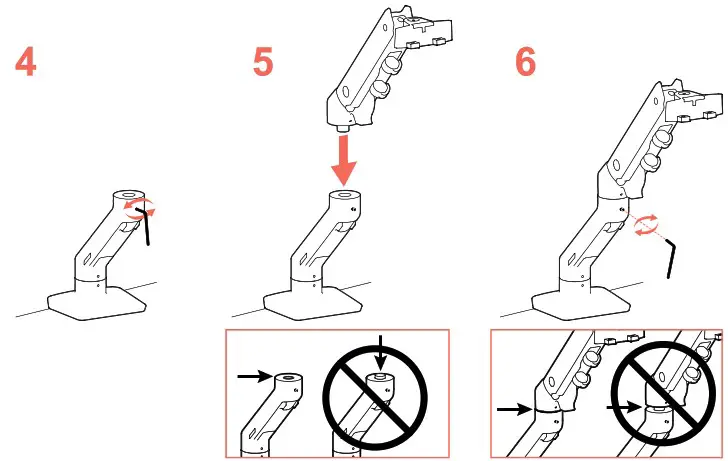

NOTE: Arm exstension should be at a 45 angle or less when attaching crossbar.

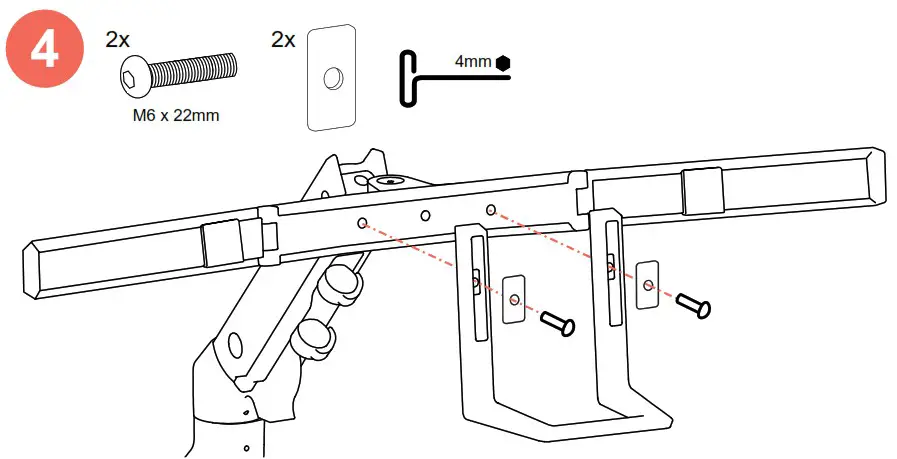

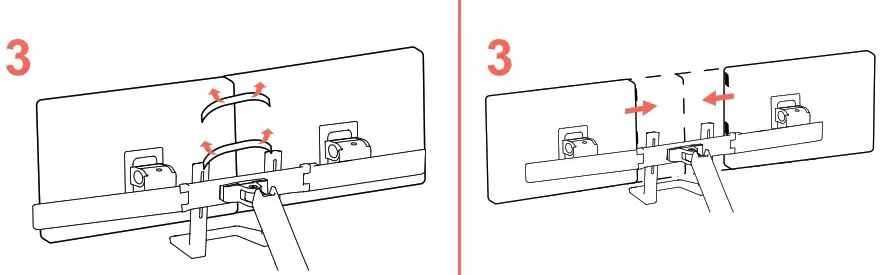

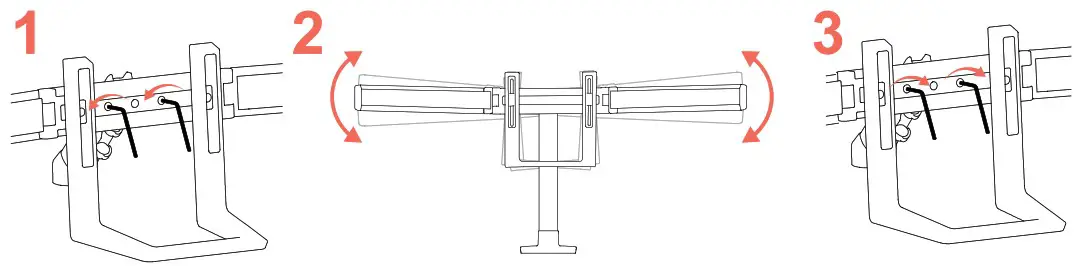

Level Crossbar
Level Crossbar

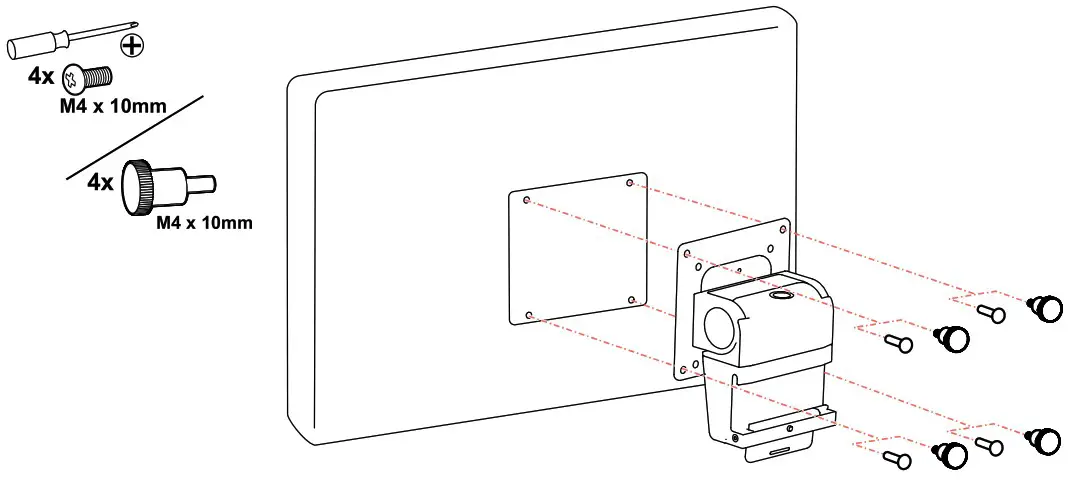

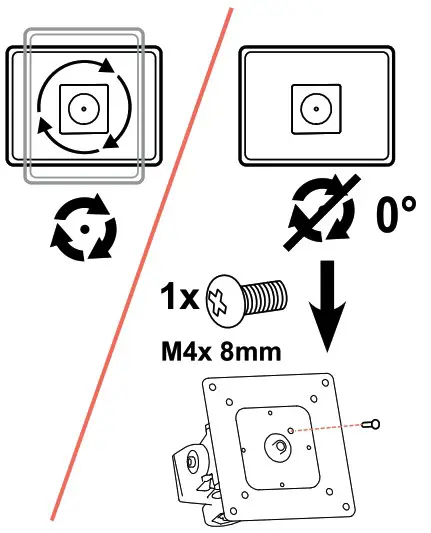

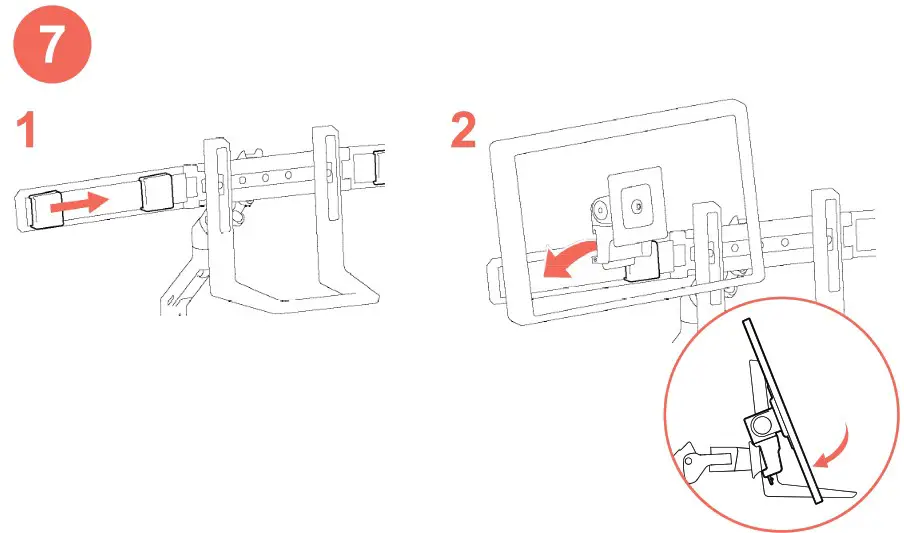

OPTIONAL: Insert stop screw to lock portrait/landscape monitor rotation.
CAUTION: Monitors are not stable unless fully secured to crossbar. Failure to tighten screws completely may result in damage to equipment.

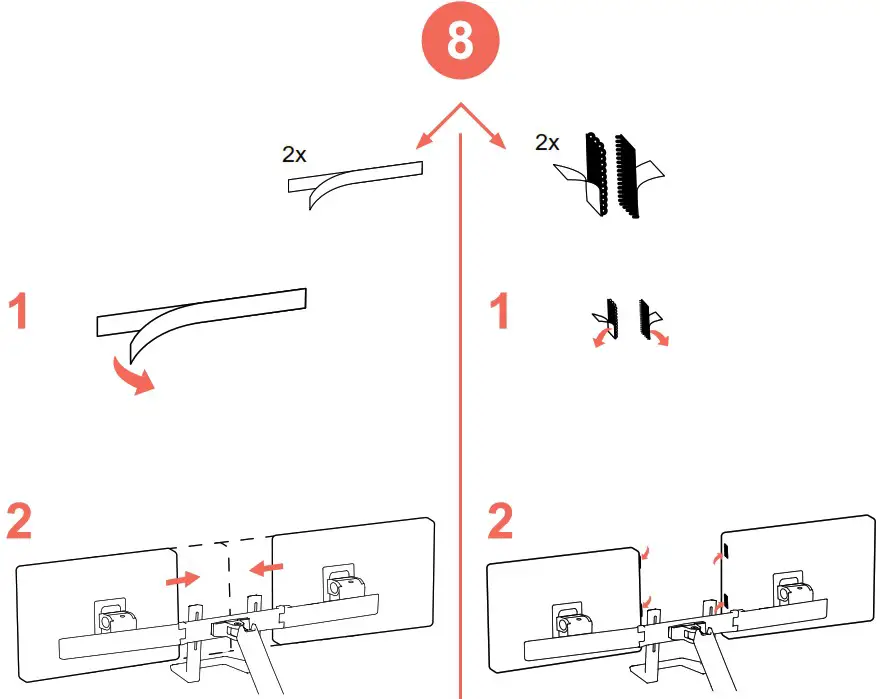

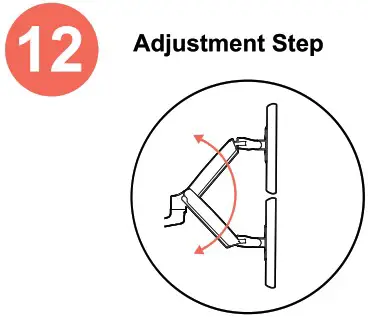

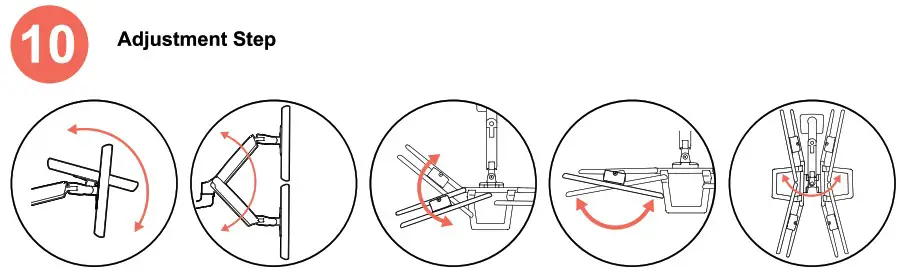

Important! You will need to adjust this product after installation is complete. Make sure all your equipment is properly installed on the product before attempting adjustments. This product should move smoothly and easily through the full range of motion and stay where you set it. If movements are too easy or diffi cult or if product does not stay in desired positions, follow the adjustment instructions to create smooth and easy movements. Depending on your product and the adjustment, it may take many turns to notice a diff erence. Any time equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation.

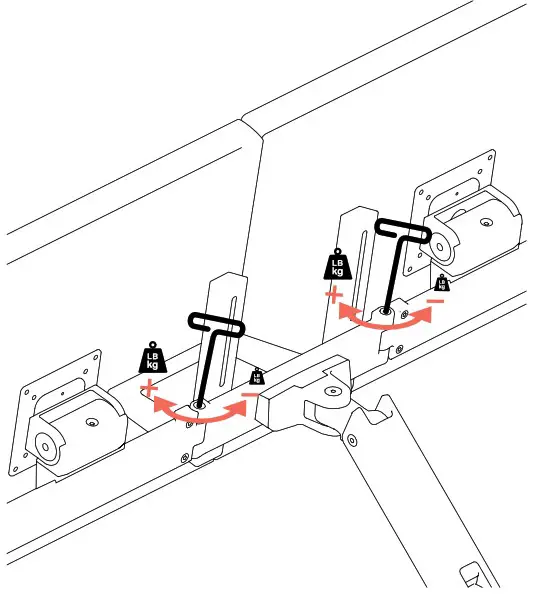

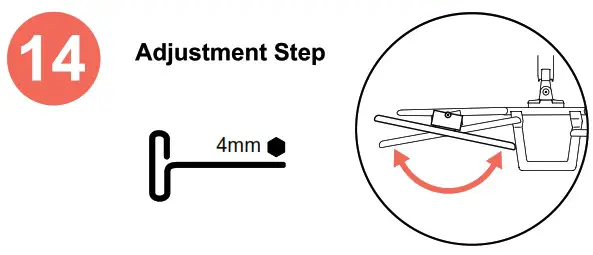

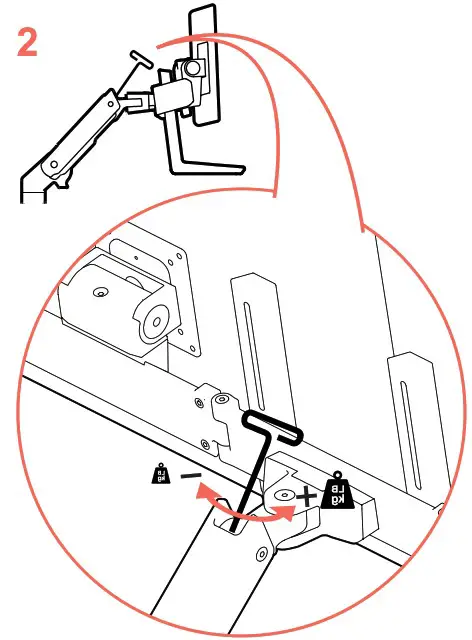

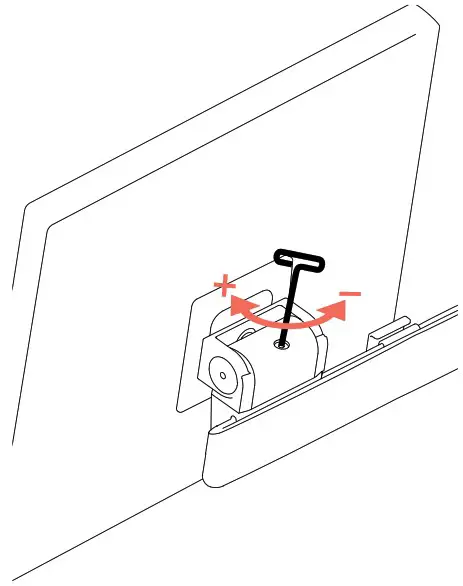

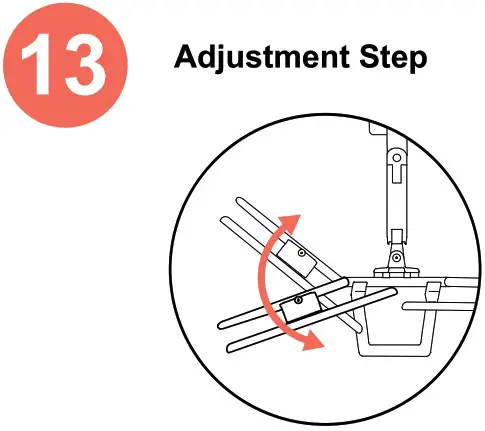

Tilt – Forward and Backward
 Increase Lift Strength If the mounted weight is too heavy or this product does not stay up when raised, then you’ll need to increase Lift Strength: |  Decrease Lift StrengthIf the mounted weight is too light or this product does not stay down when lowered, then you’ll need to decrease Lift Strength: |
Lift – Up and down
| Increase Lift Strength If the mounted weight is too heavyor this product does not stay up when raised, then you’ll need to increase Lift Strength: | Decrease Lift Strength If the mounted weight is too light or this product does not stay down when lowered, then you’ll need to decrease Lift Strength: |
Crossbar Hinge Adjustment
| Increase Friction If this product moves too easily, then you’ll need to increase friction: | Decrease Friction If this product is too diffi cult to move, then you’ll need to decrease friction: |

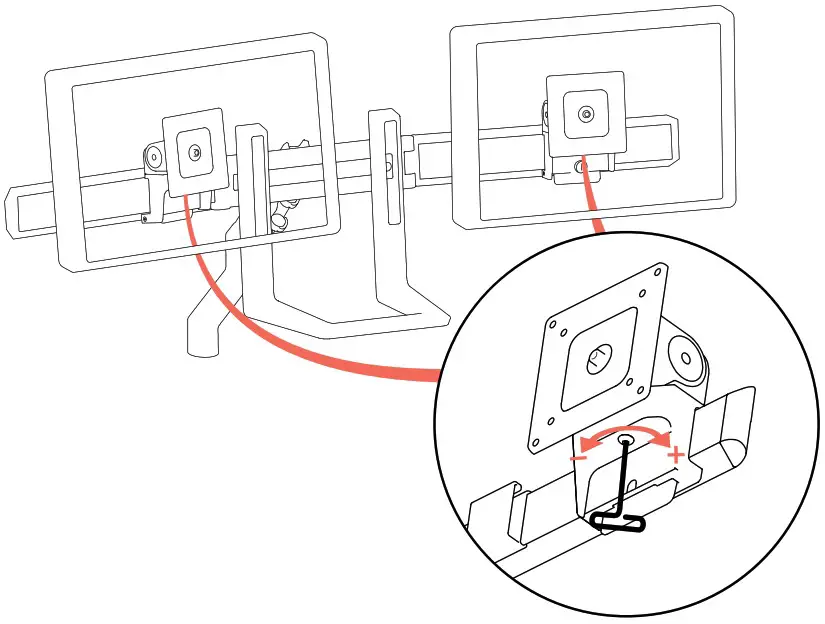

Monitor Pan Adjustment
| Increase Friction If this product moves too easily, then you’ll need to increase friction: | Decrease Friction If this product is too diffi cult to move, then you’ll need to decrease friction: |

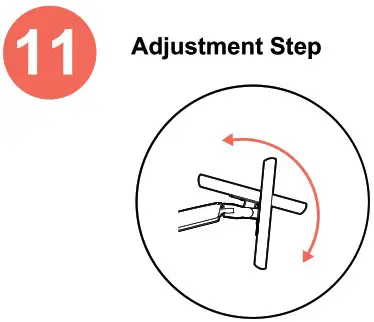

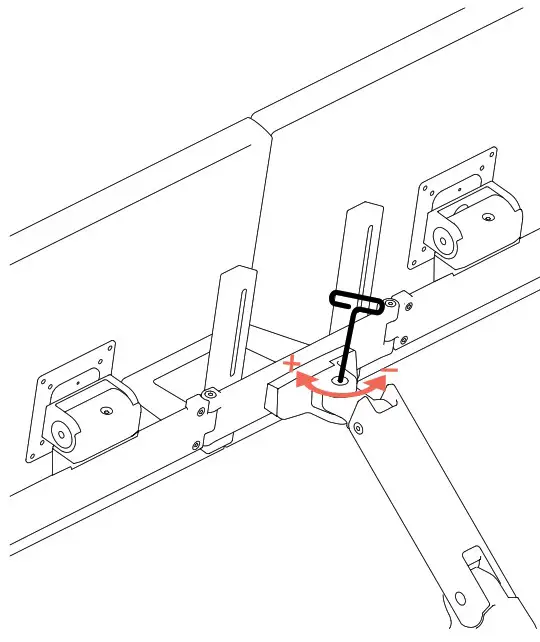

Crossbar Pan Adjustment
| ncrease Friction If this product moves too easily, then you’ll need to increase friction: | Decrease Friction If this product is too diffi cult to move, then you’ll need to decrease friction: |
Safety
Warning: Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment.
Caution: Leave enough slack in cable to allow full range of motion.

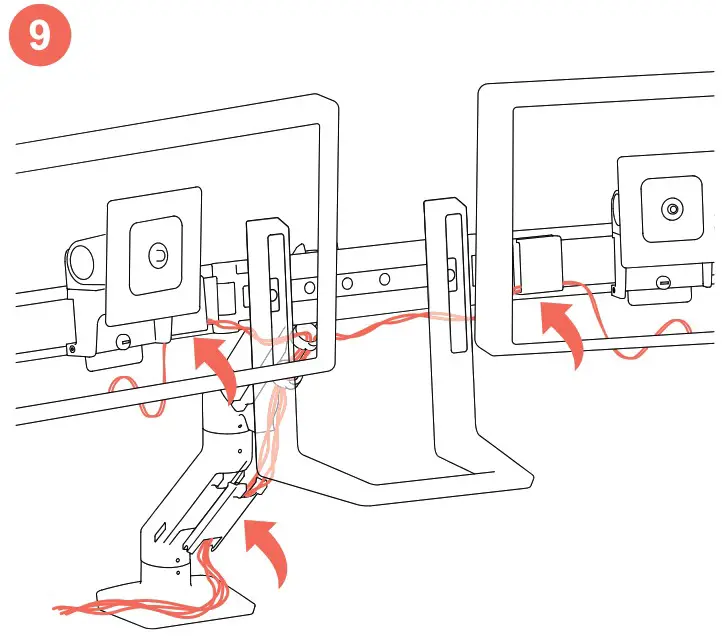

To avoid the potential to pinch cables it is important to follow the cable routing instructions in this manual. Failure to follow these instructions may result in equipment damage or personal injury.
Move Arm to highest position before removing equipment or serious personal injury and/or equipment damage may occur
WARNING! Stored Energy Hazard: The arm mechanism is under tension and will move up rapidly, on its own, as soon as attached equipment is removed. For this reason, DO NOT remove equipment unless the arm has been moved to the highest position! Failure to follow this instruction may result in serious personal injury and/or equipment damage!

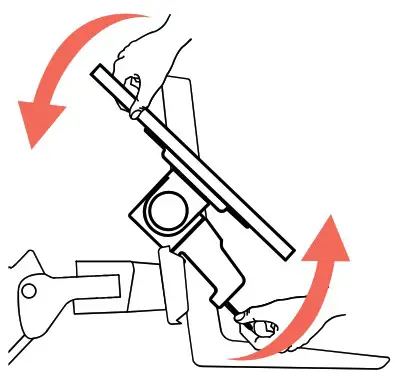

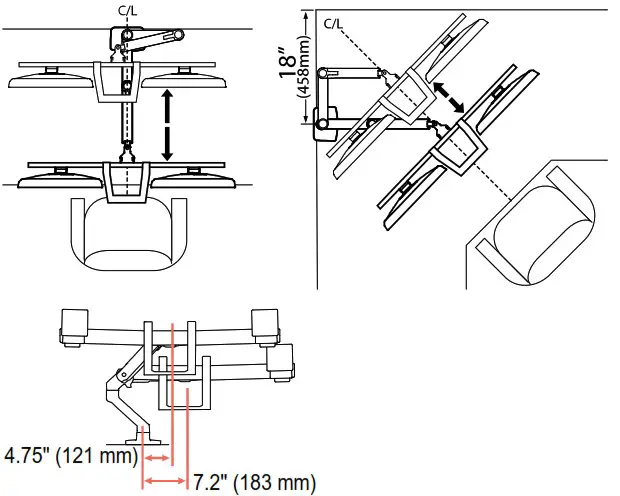

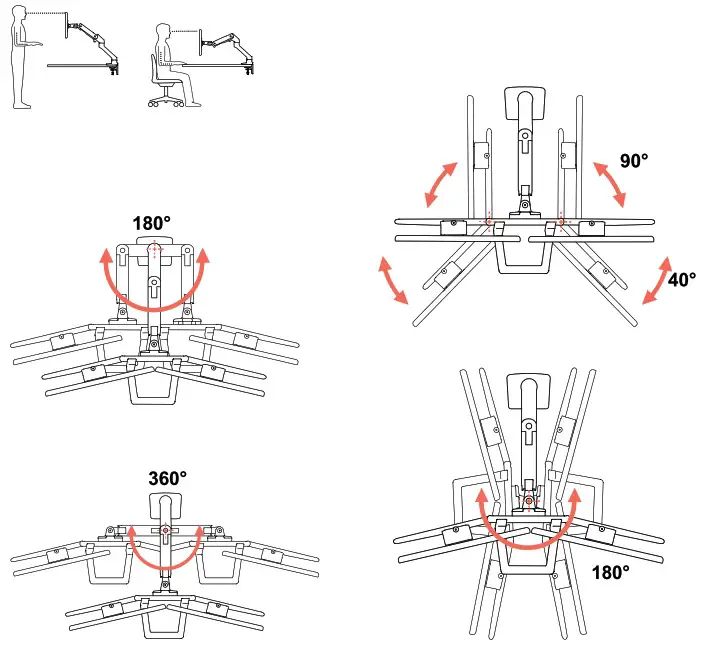

CAUTION: DO NOT rotate monitor past rear edge of desk. Doing so will create an unstable situation and may cause equipment damage or personal injury.

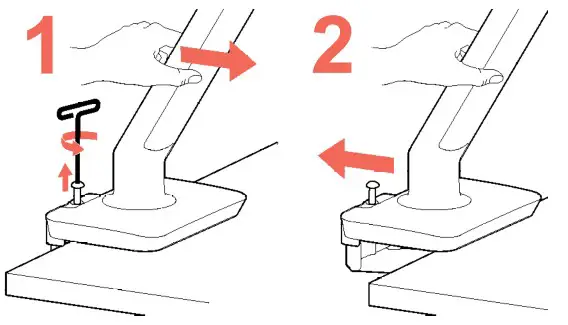

Removing from desk: Remove monitors then put pressure forward while loosening bolt.

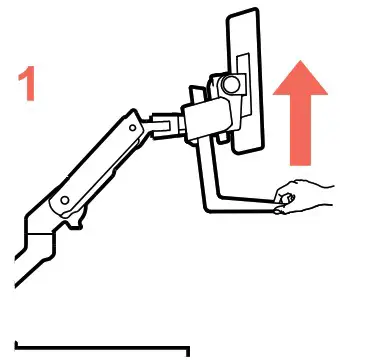

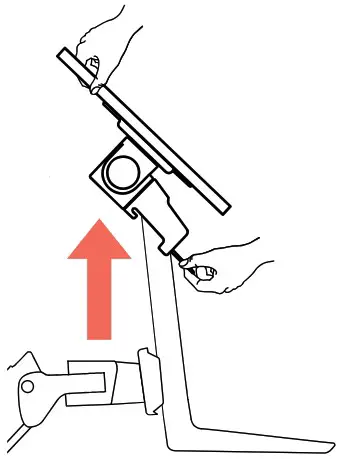

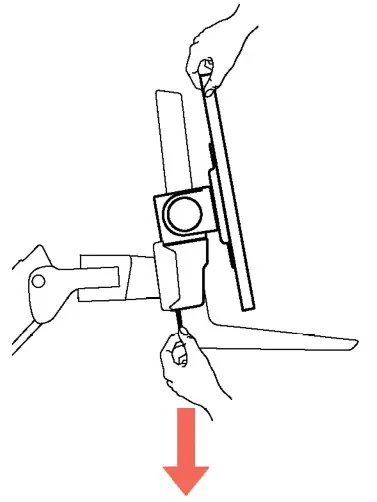

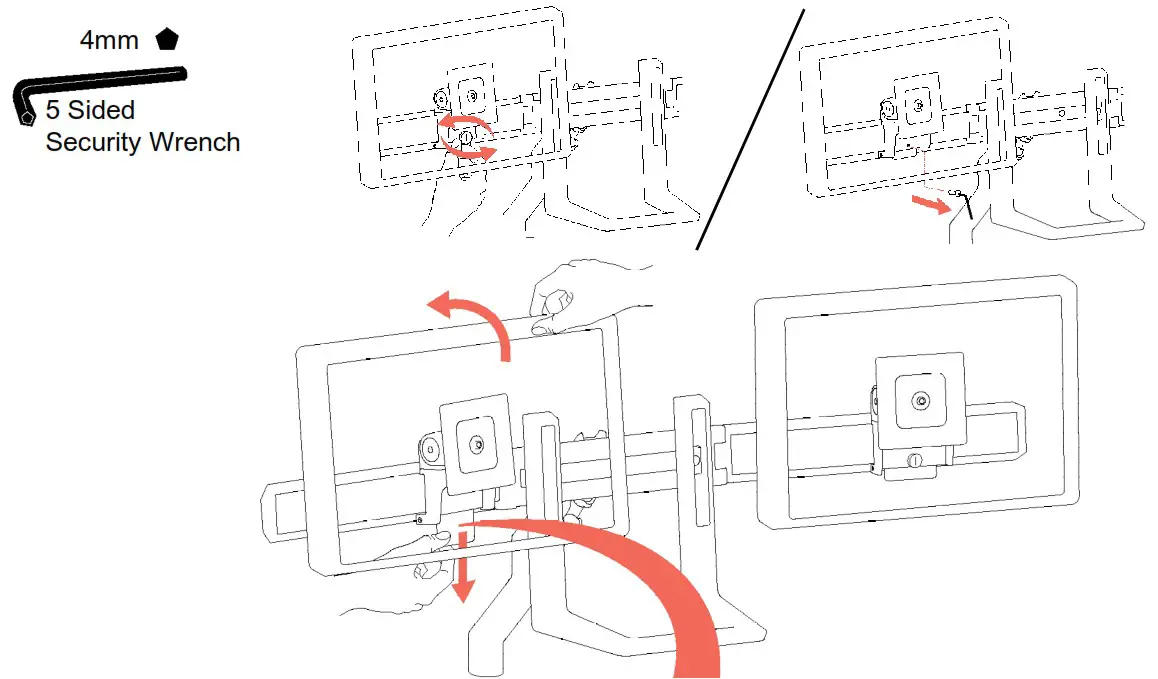

How to remove monitor from crossbar.
- pull down
- tilt
- pull off

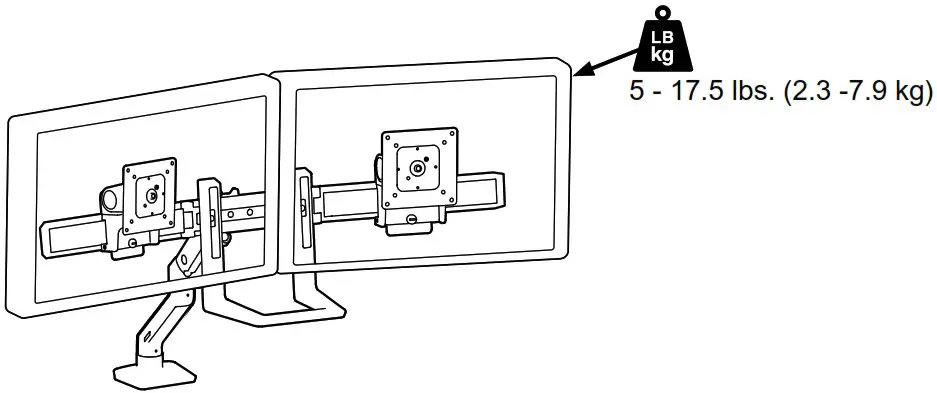

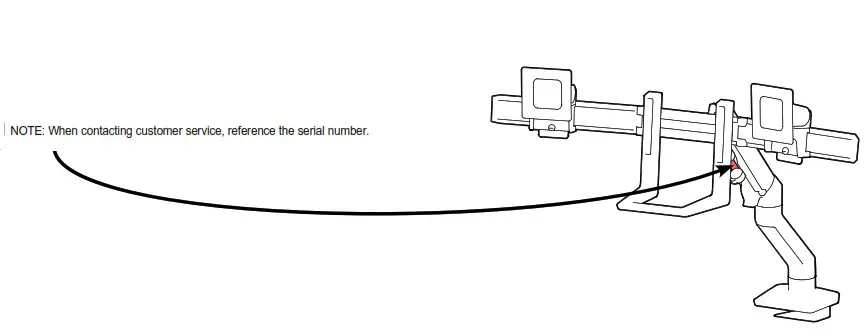

Weight Capacity:
CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!
For the latest User Installation Guide please visit: www.ergotron.com
For Warranty visit: www.ergotron.com/warranty
For Service visit: www.ergotron.com
For local customer care phone numbers visit: http://contact.ergotron.com
Learn more about ergonomic computer use at: www.ergotron.com/ergonomics
www.ergotron.com
USA: 1-800-888-8458
Europe: +31 (0)33-45 45 600
China: 400-120-3051
Japan: [email protected]
