45-509-224 LX Multi Monitor Arm Configurations
Instructions
Modular and flexible
Improve your workflow and productivity with Ergotron LX Desk Mount Monitor Arms. Sleek and flexible, LX Arms free up your work space. Patented Constant Force™ lift-and-pivot technology lets you position multiple monitors with just a light touch. Several models also are available as wall-mount solutions. Visit ergotron.com to learn more.

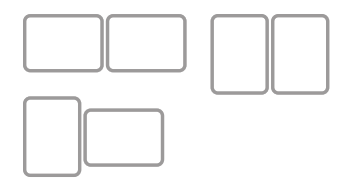

DUAL MONITORS (Side-by-Side)
 | |

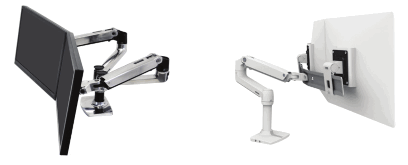

| LX Dual Side-by-Side Arm 45-245-026 (Polished Aluminum) 45-491-216 (White) 45-245-224 (Matte Black) | LX Desk Dual Direct Arm 45-489-026 (Polished Aluminum) 45-489-216 (White) 45-489-224 (Matte Black) |
USE AN LX ARM TO SUPPORT YOUR LAPTOP WITH A NOTEBOOK TRAY KIT 50-193-200

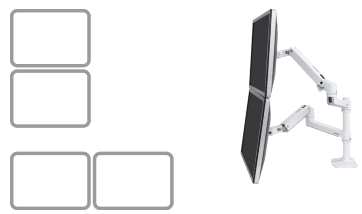

DUAL MONITORS (Stacking)

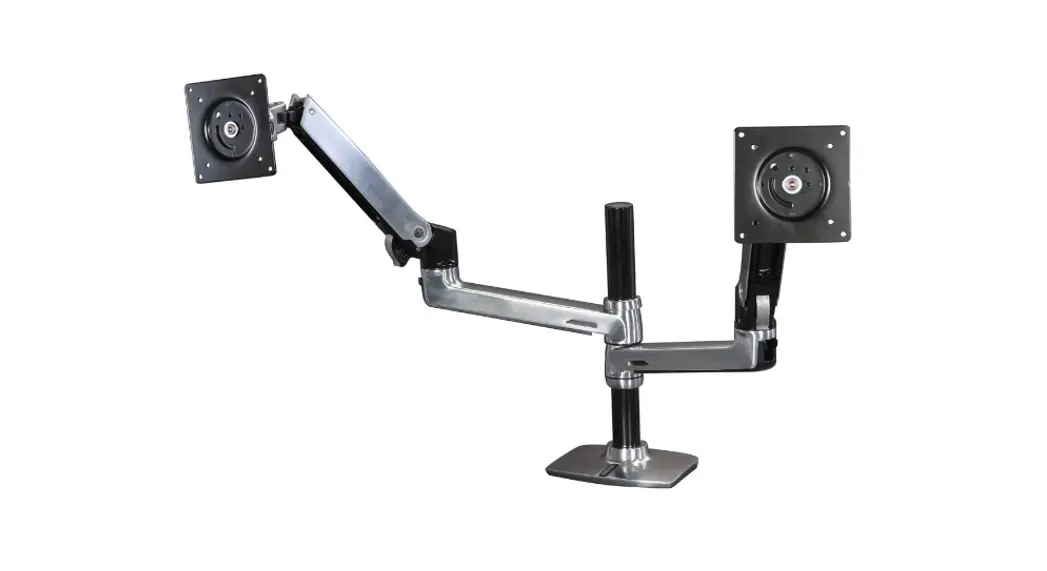

LX Dual Stacking Arm
45-248-026 (Polished Aluminum)
45-492-216 (White)
Americas, APAC: 45-492-224
(Matte Black)

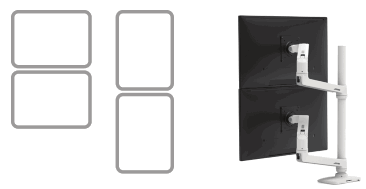

LX Dual Stacking Arm, Tall Pole
45-549-026 (Polished Aluminum)
45-509-216 (White)
45-509-224 (Matte Black) USE AN LX ARM TO SUPPORT YOUR LAPTOP WITH A NOTEBOOK TRAY KIT 50-193-200

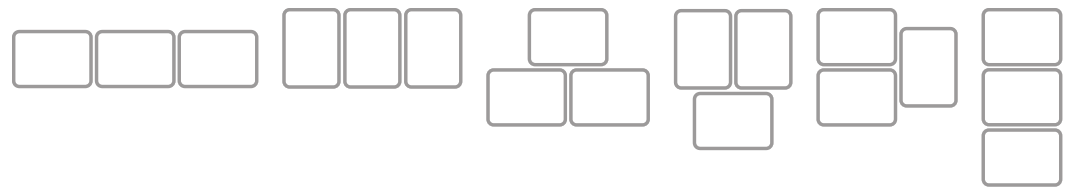

TRIPLE MONITORS*

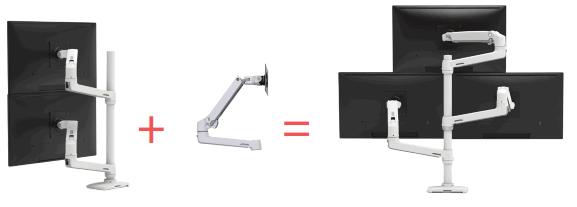

* LX ARM, EXTENSION AND COLLAR KIT
Required to add a 3rd monitor arm to the LX Dual Stacking Arm, Tall Pole
Refer to the product installation manuals at ergotron.com for monitor size and weight capacity information.
 | |
| LX Dual Stacking Arm, Tall Pole 45-549-026 (Polished Aluminum) 45-509-216 (White) 45-509-224 (Matte Black) | 97-940-026 (Polished Aluminum) 98-130-216 (White) 98-130-224 (Matte Black) |
USE AN LX ARM TO SUPPORT YOUR LAPTOP WITH A NOTEBOOK TRAY KIT 50-193-200

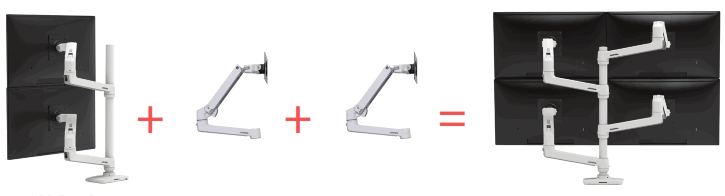

* LX ARM, EXTENSION AND COLLAR KIT
Required to add a 3rd or 4th monitor arm to the LX Dual Stacking Arm, Tall Pole
 | |
| LX Dual Stacking Arm, Tall Pole 45-549-026 (Polished Aluminum) 45-509-216 (White) 45-509-224 (Matte Black) | 97-940-026 (Polished Aluminum) 98-130-216 (White) 98-130-224 (Matte Black) |
USE AN LX ARM TO SUPPORT YOUR LAPTOP WITH A NOTEBOOK TRAY KIT 50-193-200
Download additional resources at ergotron.com.
For more information:
USA & Canada: 800.888.8458 / +1.651.681.7600 / [email protected]
EMEA: +31.33.45.45.600 / [email protected]
APAC: [email protected]
LATAM: +1.800.681.1820 / [email protected]
Custom: [email protected]
© Ergotron, Inc. 02.15.2022
Literature made in the U.S.A.
Content subject to change.
Ergotron devices are not intended to cure, treat, mitigate or prevent any diseasePatent information available at
www.ergotron.com/patents.
