45-248-026 LX Dual Stacking Arm
User Guide

Contents hide

1 45-248-026 LX Dual Stacking Arm

2 Tools Needed

3 Adjustment step

4 Safety

5 Optional Grommet Hole Mounting

6 Documents / Resources

6.1 References

7 Related Posts

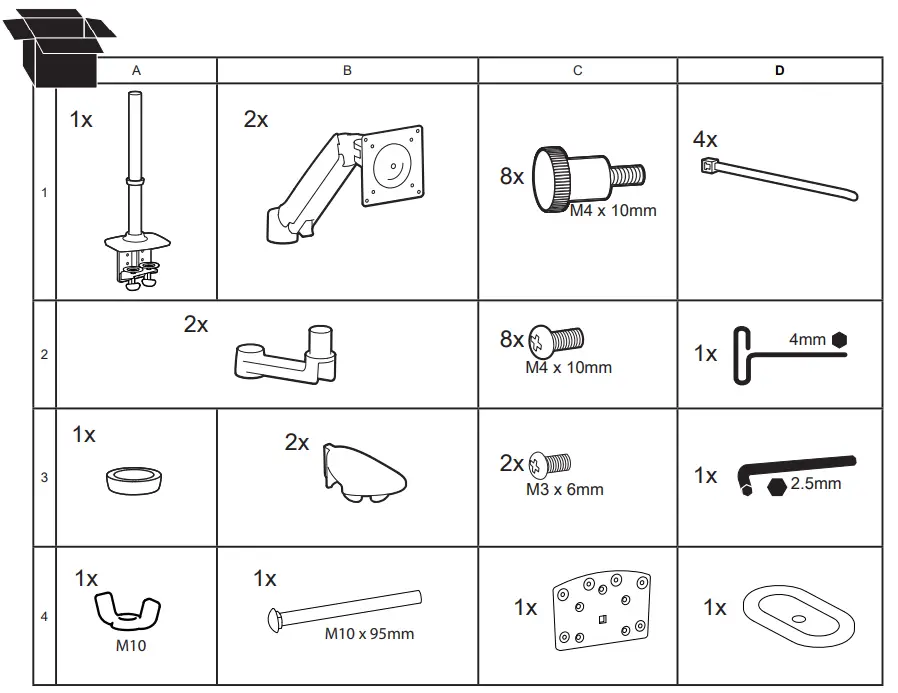

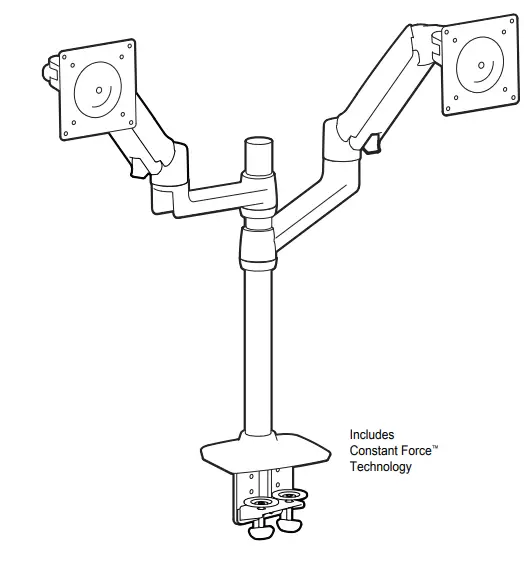

45-248-026 LX Dual Stacking Arm

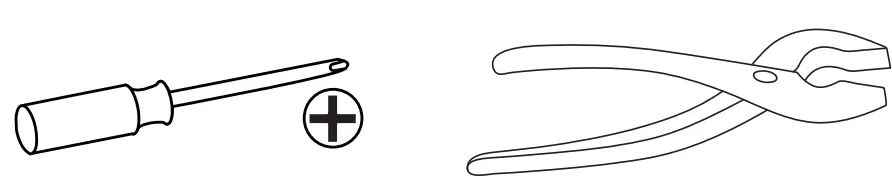

Tools Needed

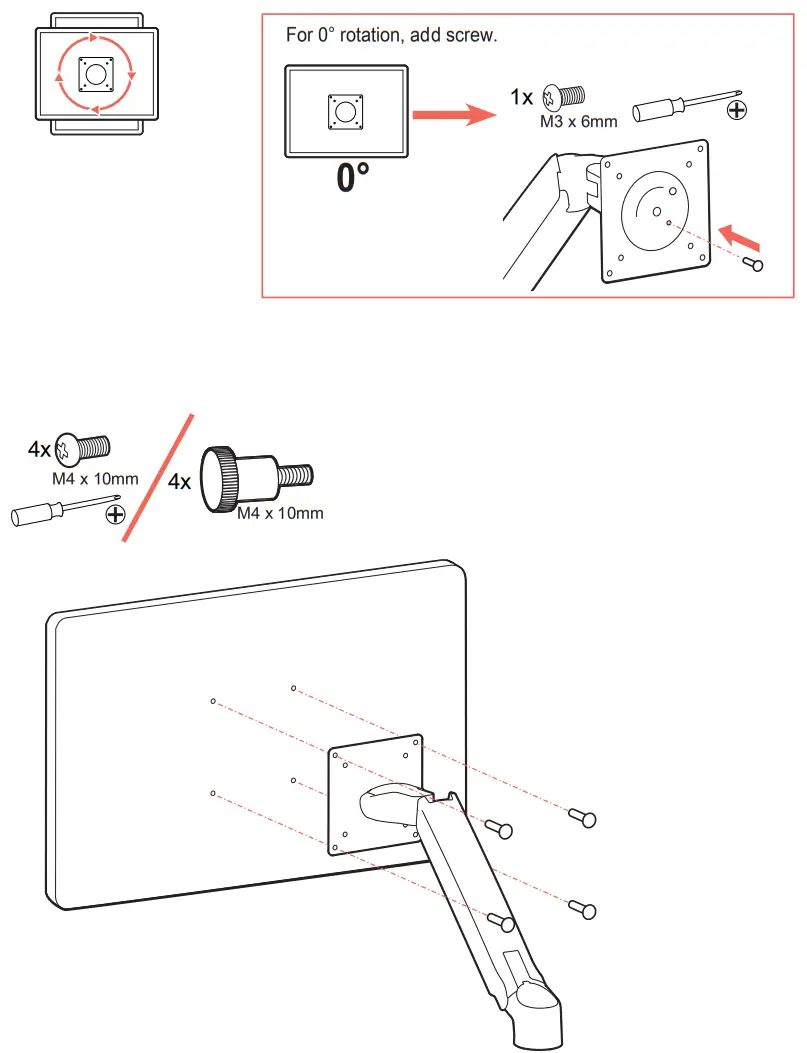

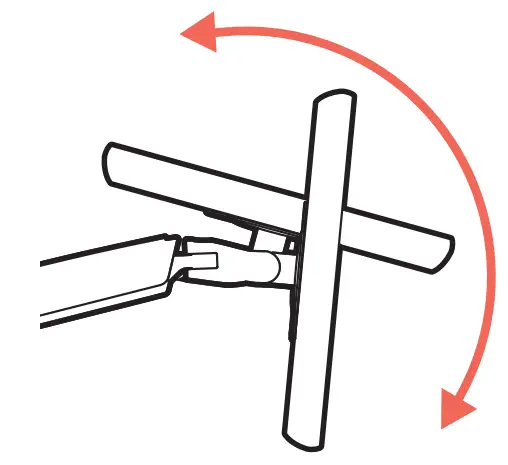

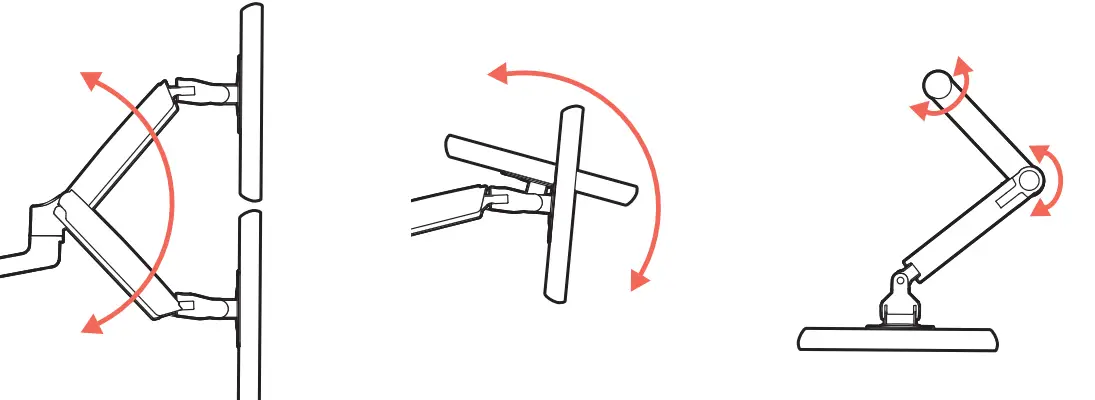

Rotate – portrait/landscape

Adjustment step

Important! You will need to adjust this product after installation is complete. Make sure all your equipment is properly installed on the product before attempting adjustments. This product should move smoothly and easily through the full range of motion and stay where you set it. If movements are too easy or difficult or if the product does not stay in desired positions, follow the adjustment instructions to create smooth and easy movements. Depending on your product and the adjustment, it may take many turns to notice a difference. Any time equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation.

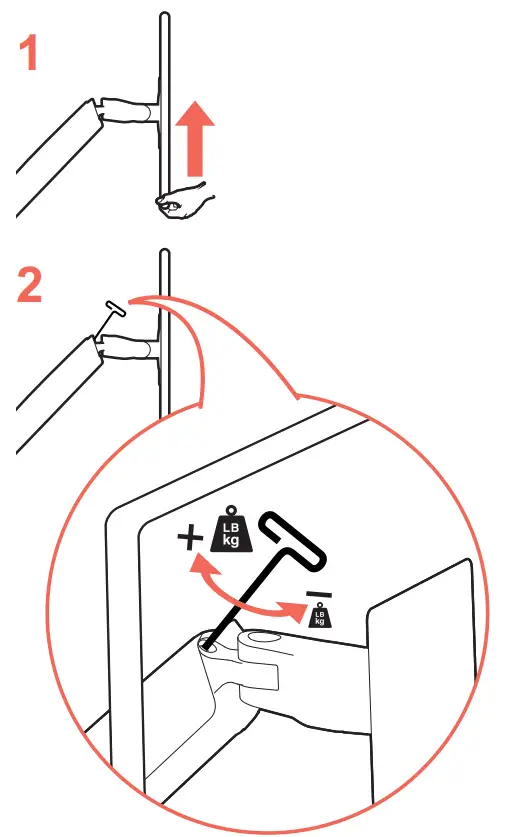

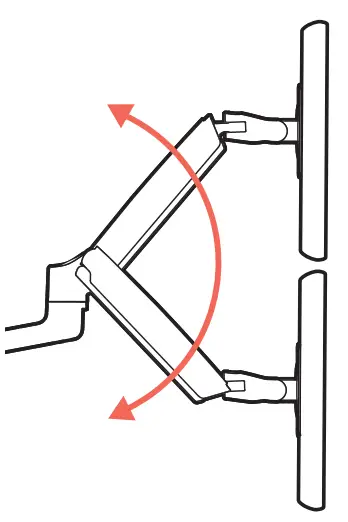

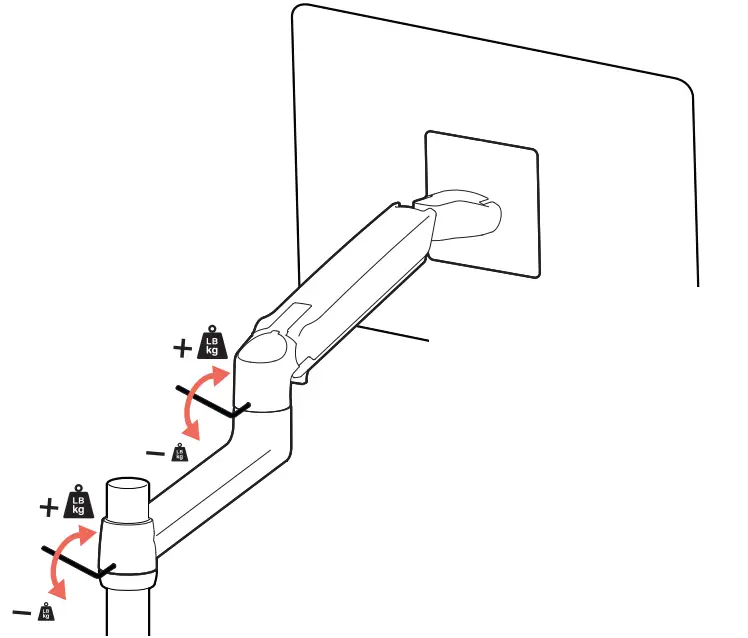

Adjustment stepLift- up and down

CAUTION: DO NOT overtighten fasteners. Overtightening may cause damage to your equipment.



Increase Lift Strength If the mounted weight is too heavy or this product does not stay up when raised, then you’ll need to increase Lift Strength:	Decrease Lift Strength If the mounted weight is too light or this product does not stay down when lowered, then you’ll need to decrease Lift Strength:

Adjustment step

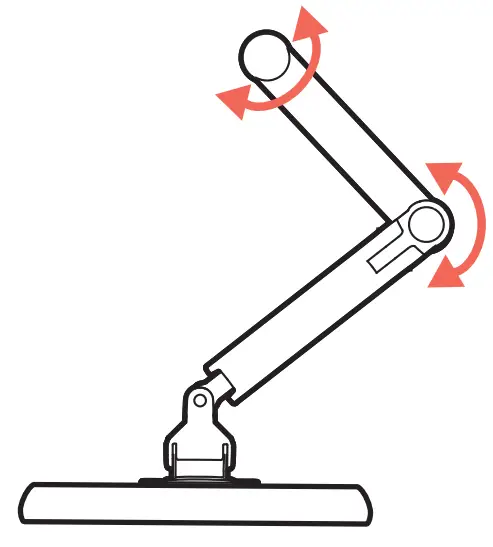

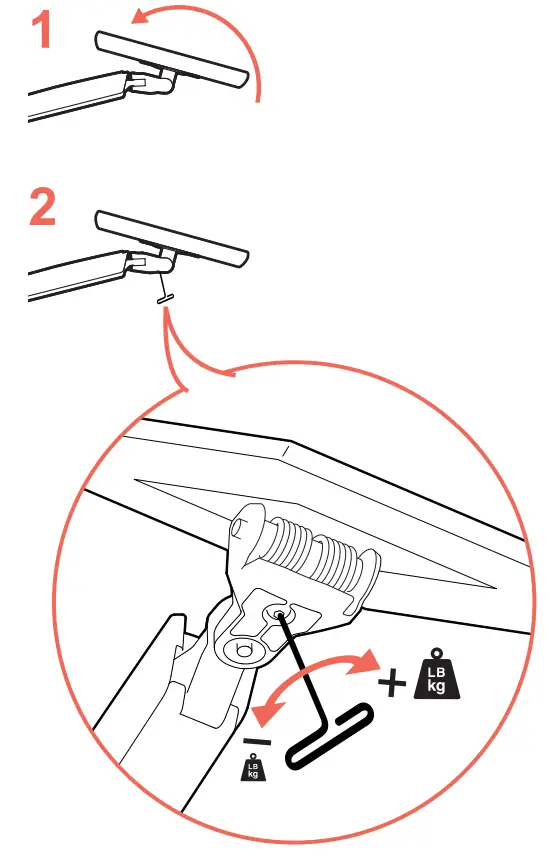

Tilt – Foward, and Backward CAUTION: DO NOT remove the screw. Removing screws may cause damage to equipment.



Increase Lift Strength If the mounted weight is too heavy or this product does not stay up when raised, then you’ll need to increase Lift Strength:	Decrease Lift Strength If the mounted weight is too light or this product does not stay down when lowered, then you’ll need to decrease Lift Strength:

Adjustment step

Arm – Side to side

CAUTION: DO NOT remove the screw. Removing screws may cause damage to equipment.



Increase Friction If this product moves too easily, then you’ll need to increase friction:	Decrease Friction If this product is too difficult to move, then you’ll need to decrease friction:

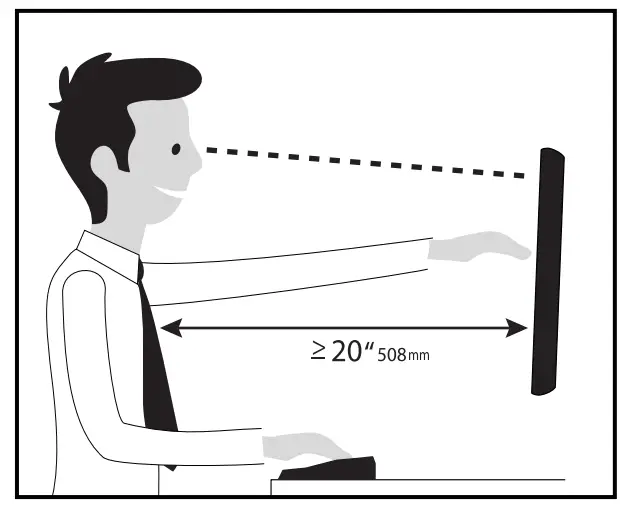

Yup, that’s it. Really. Now your LX Arm is ready for however you work best.Learn more about ergonomic computer use at: www.ergotron.comiergonomics
Important Information.

Safety

Warning: Because mounting surface materials can vary widely, it is imperative that you make sure the mounting surface is strong enough to handle mounted products and equipment.
Caution: Leave enough slack in the cable to allow a full range of motion. To avoid the potential to pinch cables it is important to follow the cable routing instructions in this manual. Failure to follow these instructions may result in equipment damage or personal injury.

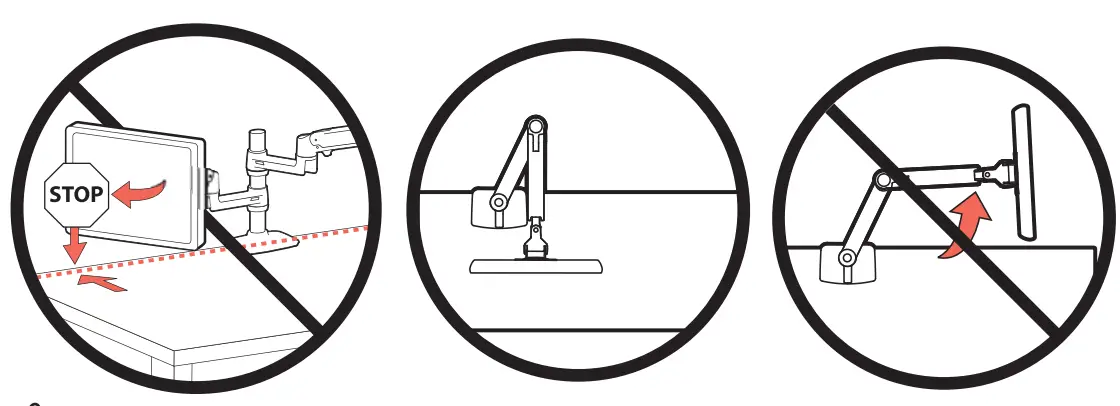

CAUTION: For Desk Clamp installations. Do Not rotate the display past the edge of the desk

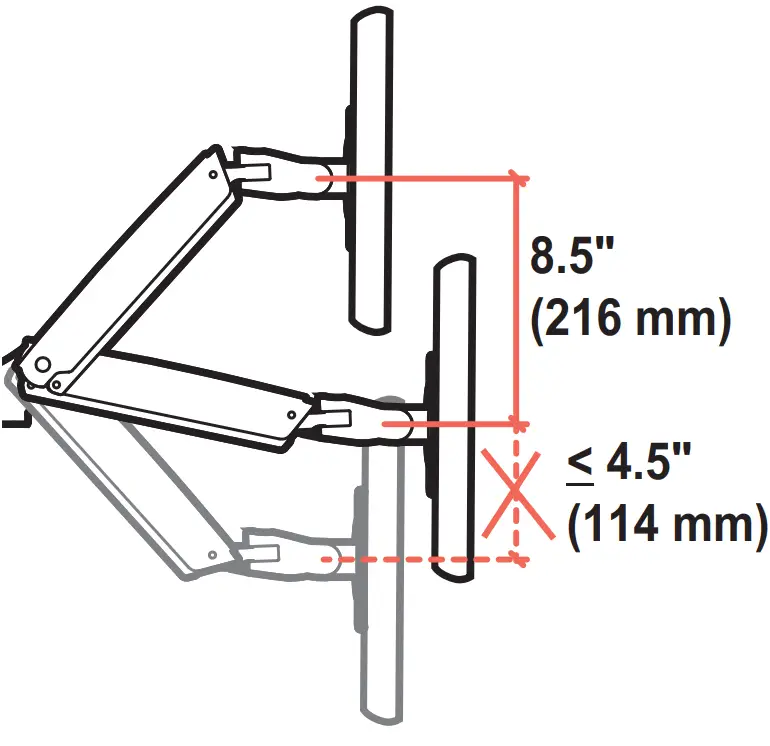

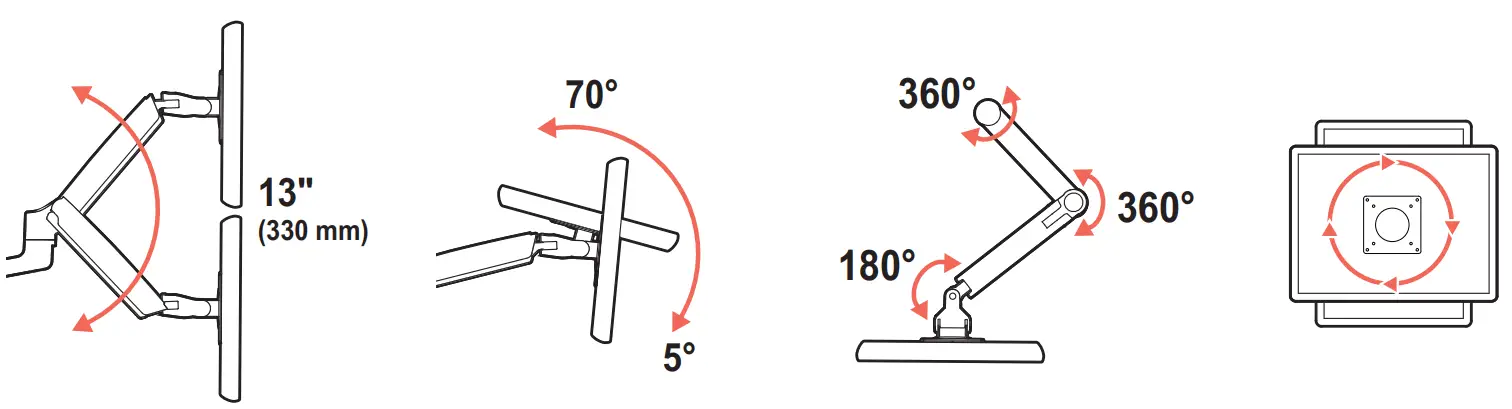

The lowermost range of motion for vertical lift is decreased up to 4.5″ (114 mm) when the arm is adjusted to hold over 20Ibs (9 kgs).

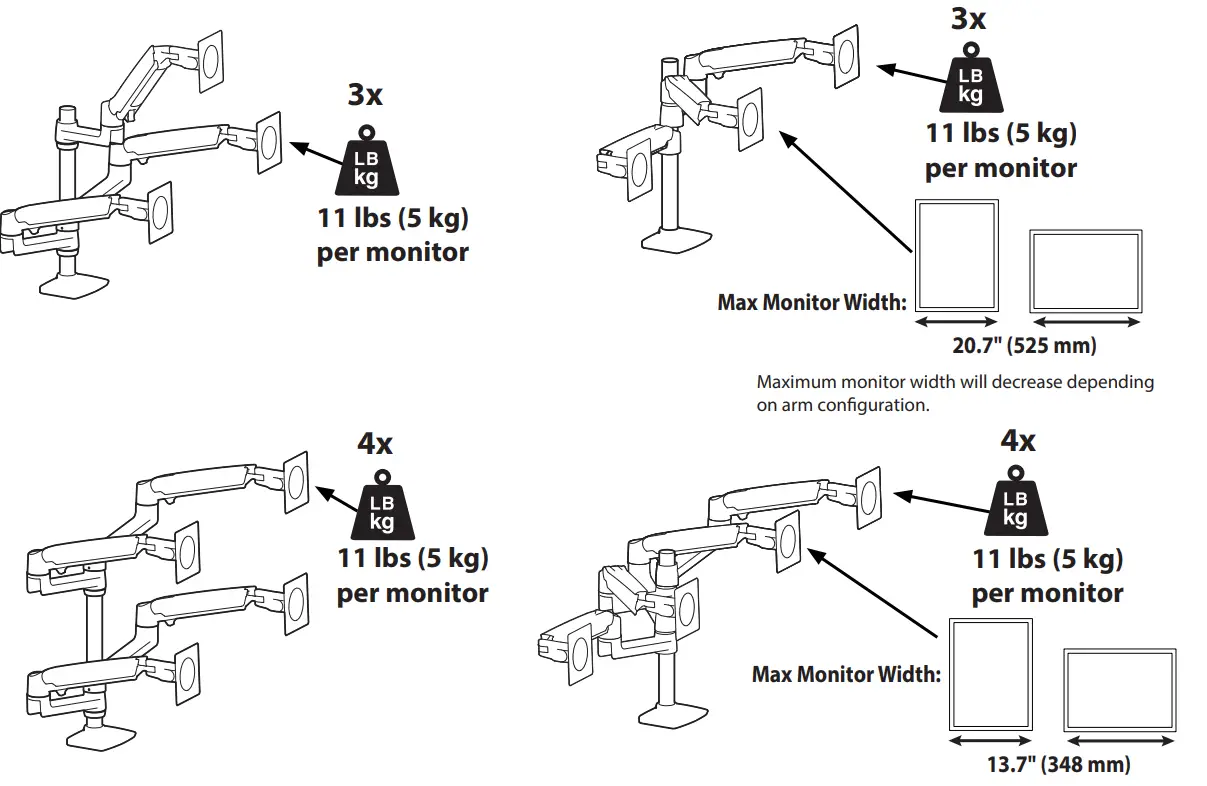

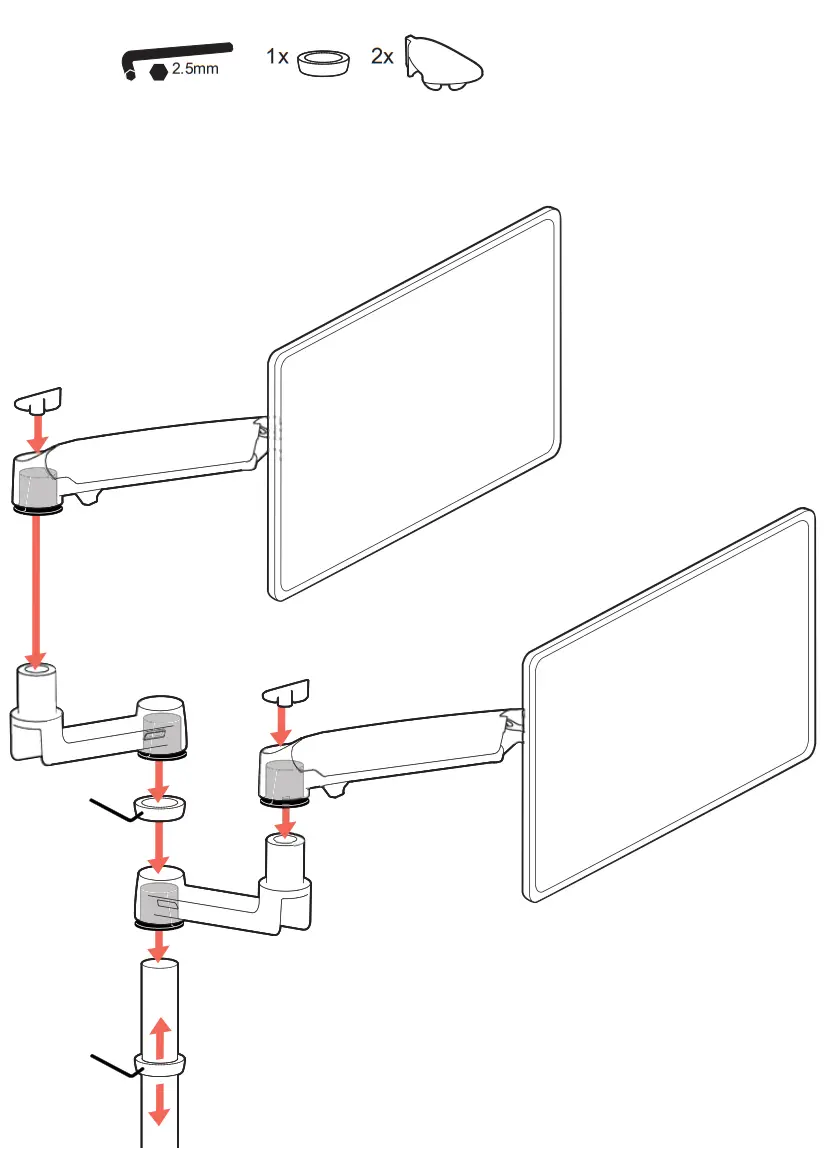

Can have up to 4 arms on pole.

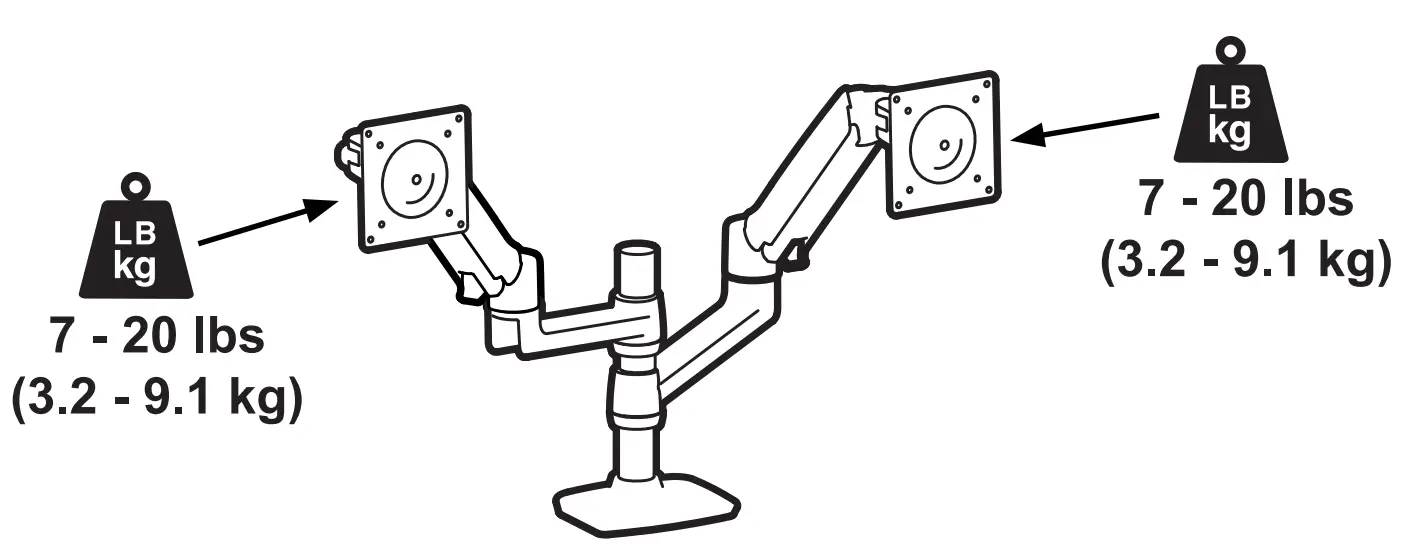

See updated maximum weight capacities:

Maximum monitor width will decrease depending on arm configuration.
CAUTION: DO NOT EXCEED THE MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

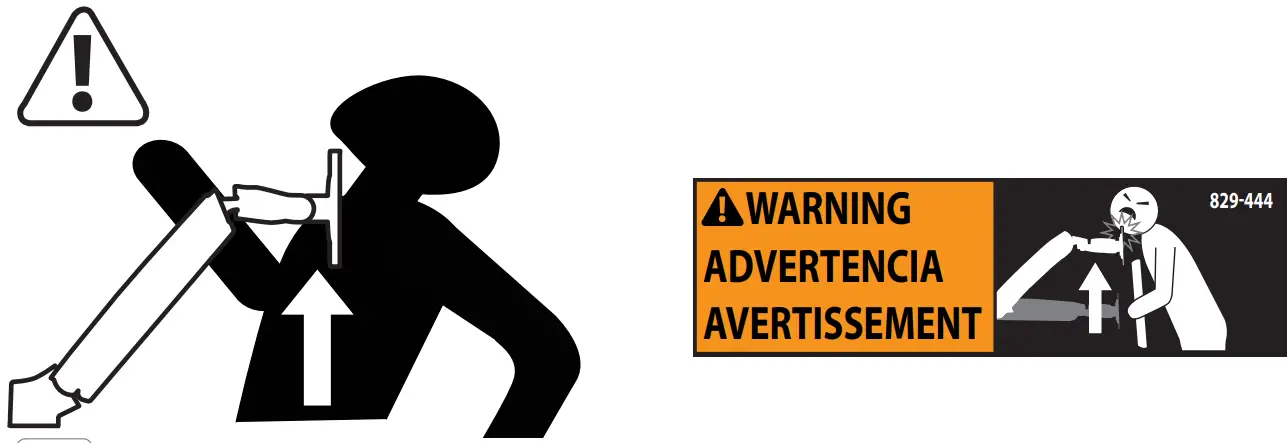

WARNING! Stored Energy Hazard: The arm mechanism is under tension and will move up rapidly, on its own, as soon as the attached equipment is removed. For this reason, DO NOT remove equipment unless the arm has been moved to the highest position! Failure to follow this instruction may result in serious personal injury and/or equipment damage!

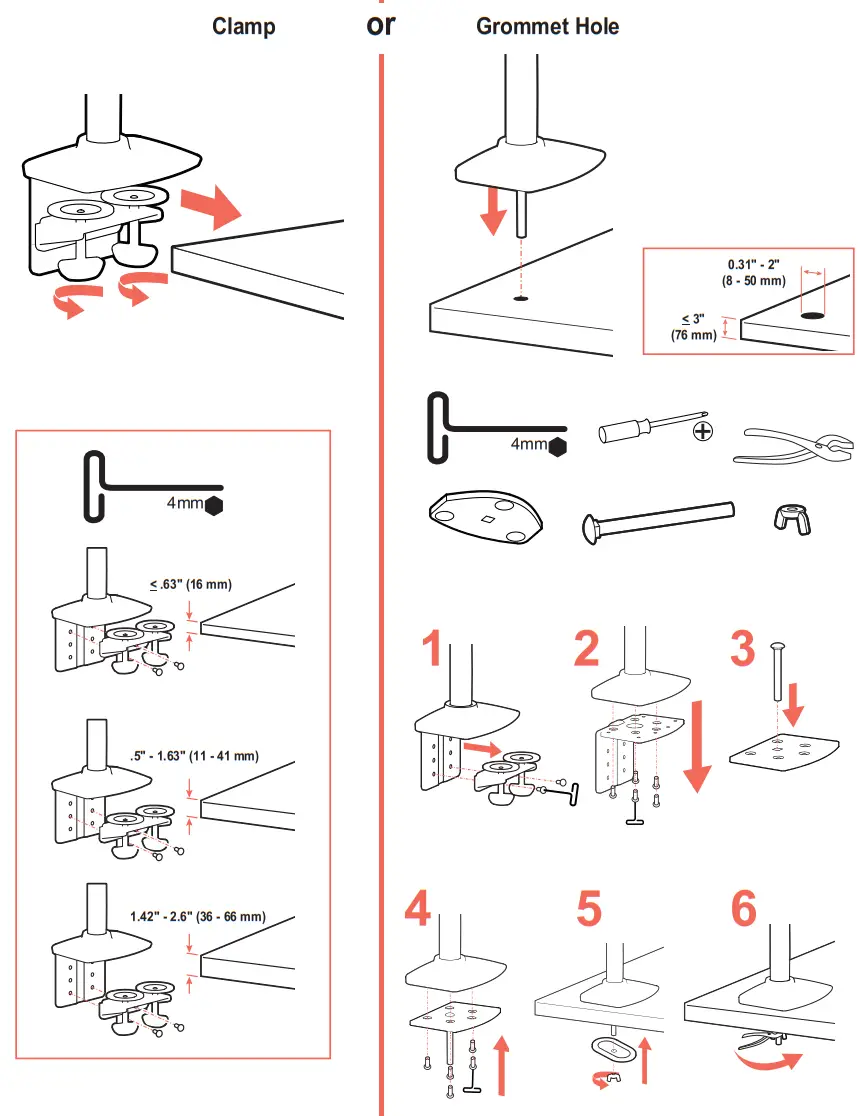

Optional Grommet Hole Mounting

CAUTION: Bolt must be centered in the hole. For secure arm attachment and to avoid equipment damage, the plate must make contact with the underside of the desk on both sides of the hole.
For the latest User Installation Guide please visit: www.ergotron.com
For Warranty visit: www.ergotron.com/warranty
For Service visit: www.ergotron.com
For local customer care phone numbers visit: http://contactergotron.com

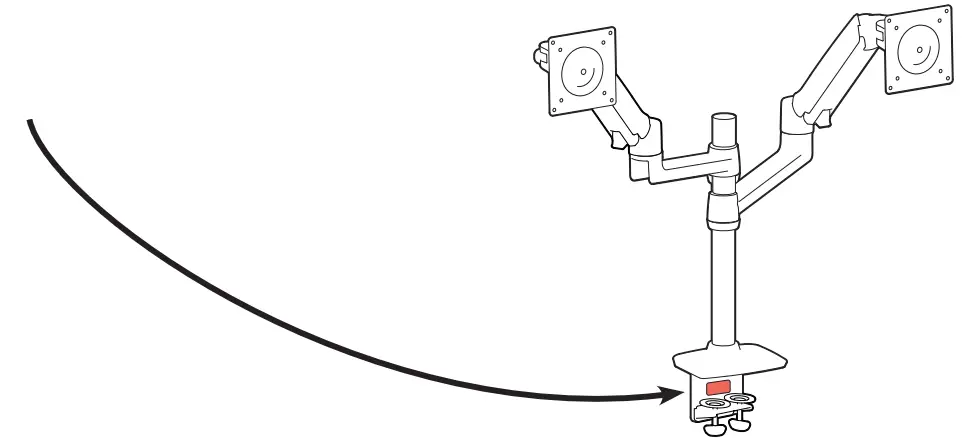

NOTE: When contacting customer service, reference the serial number.
