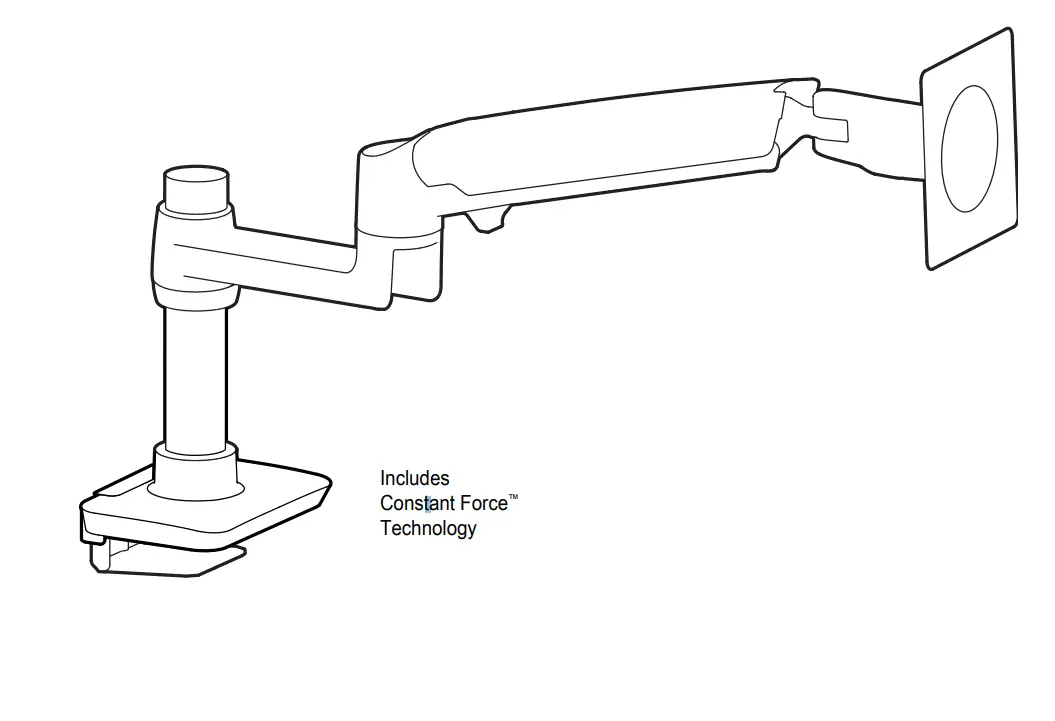

ergotron 67C32071 LX Desk Monitor Arm

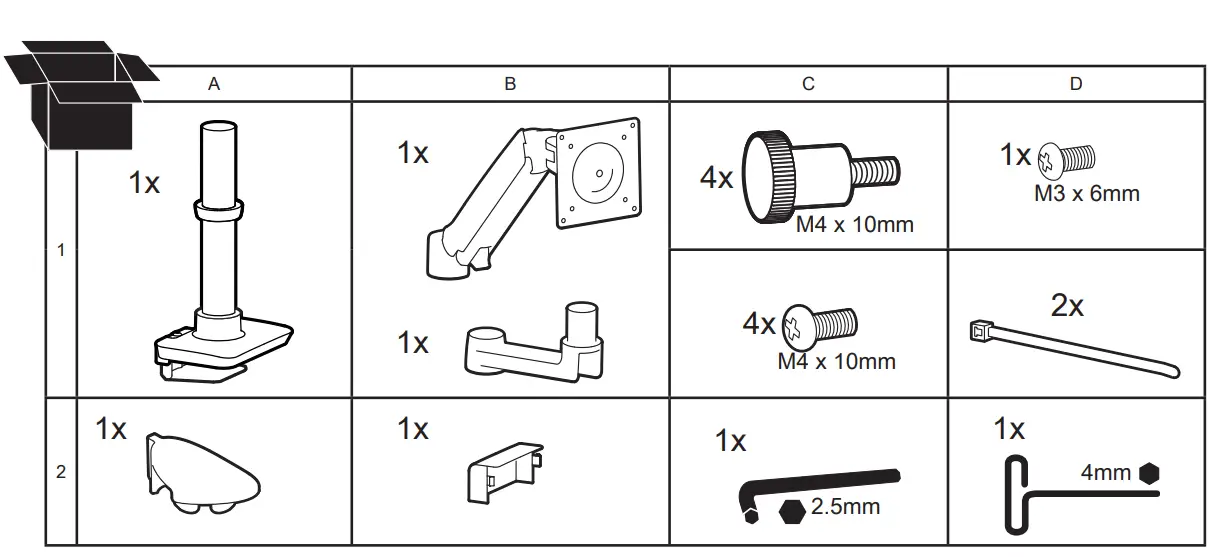

Package Content

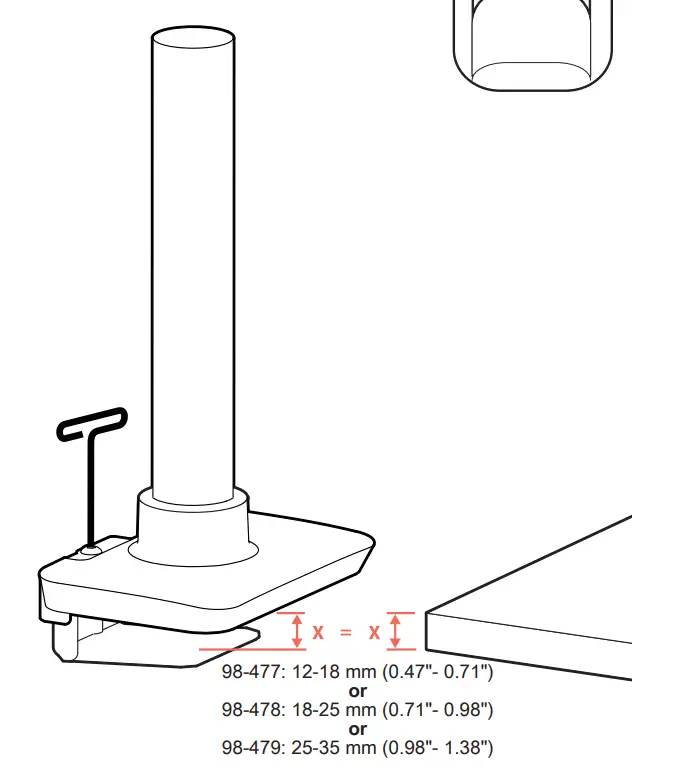

Part Number Desk Thickness
98-477: 12-18 mm (0.47”- 0.71″)
98-478: 18-25 mm (0. 71 “- 0.98″)
98-479: 25-35 mm (0.98″- 1.38”)
Your product comes with only one of these clamp dimensions. The other size clamps are sold separately.
NOTE: Product movements and spring adjustments may not work until mounted and all equipment has been attached.

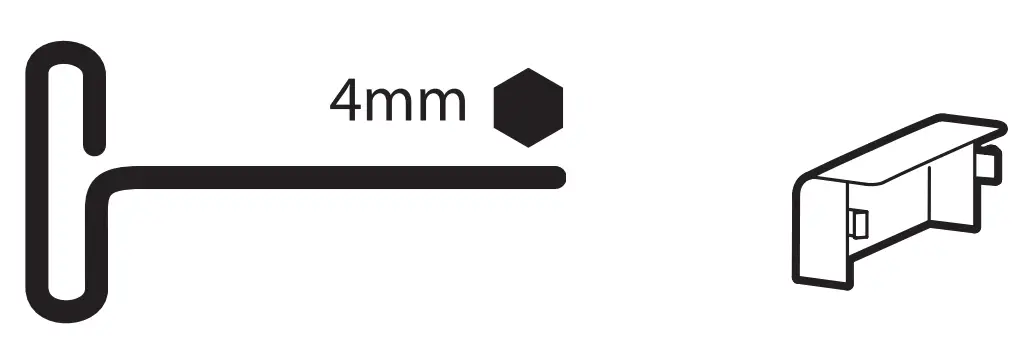

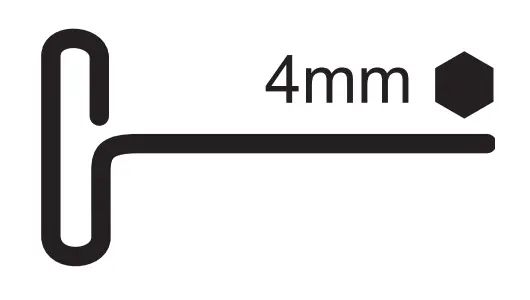

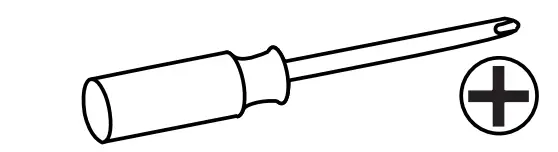

Tools Needed
Tools Needed

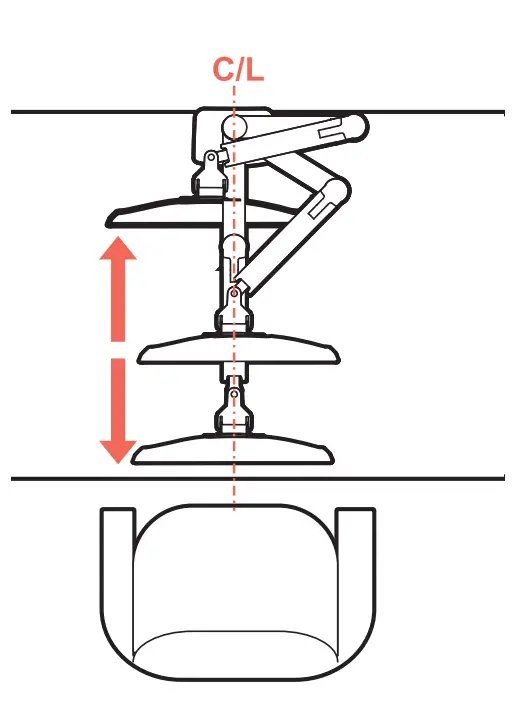

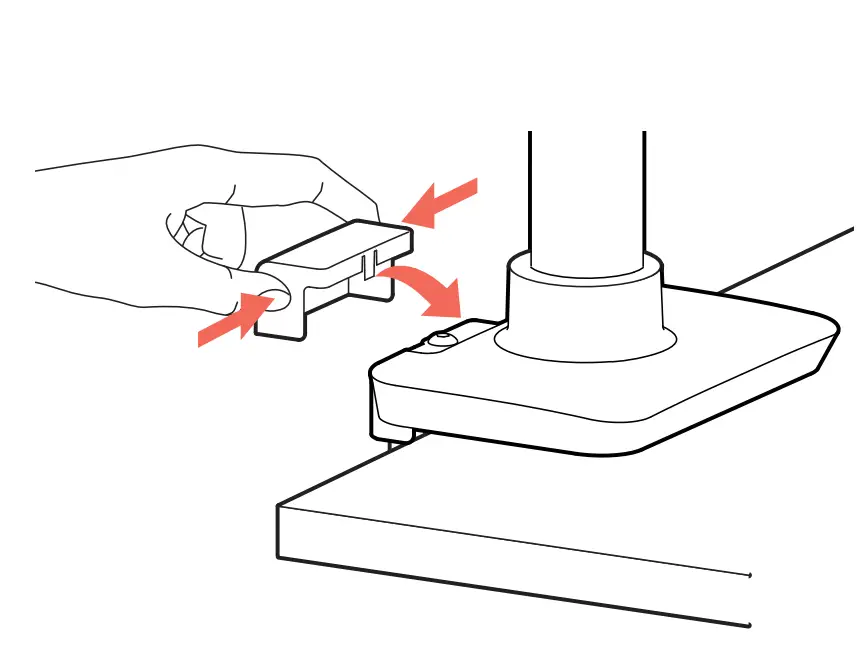

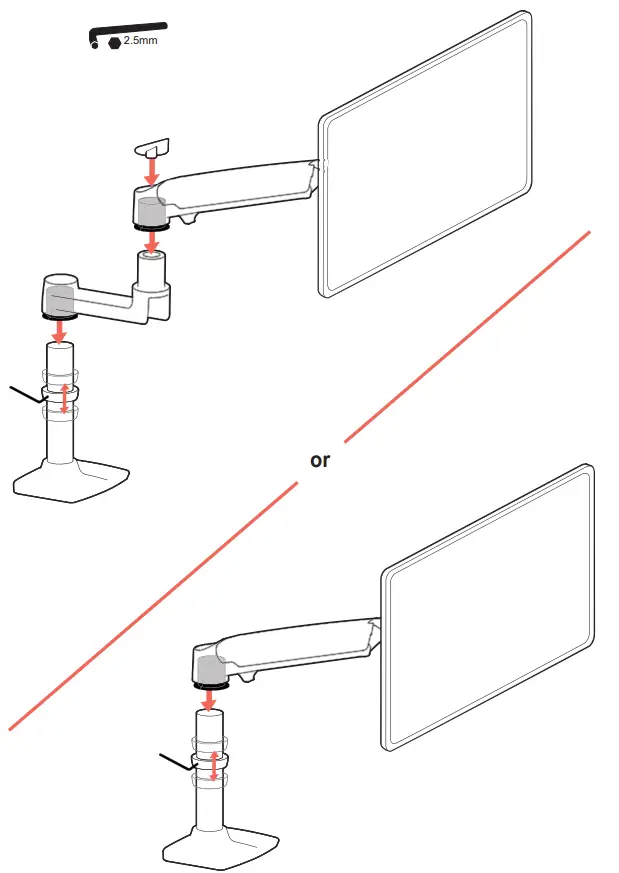

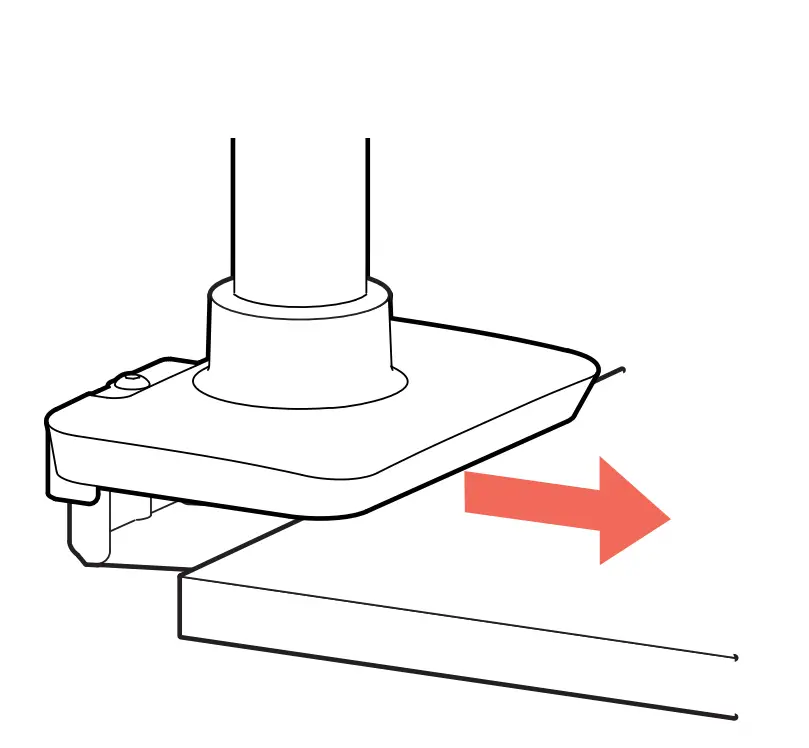

Desk Placement Options
Your product comes with only one of these clamp dimensions. The other size clamps are sold separately.

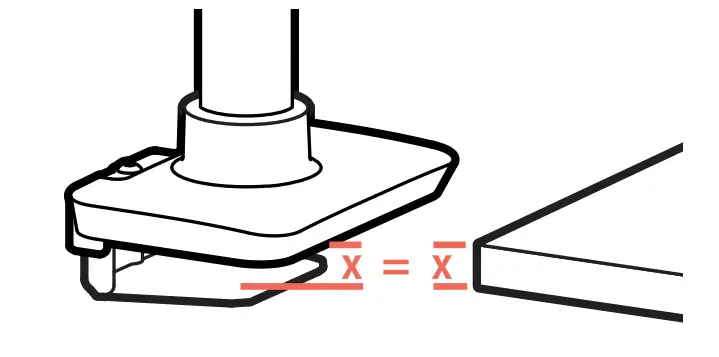

Warning: Failure to match your desk thickness with your clamp specifications will cause an unstable condition and may result in equipment damage and or personal injury.

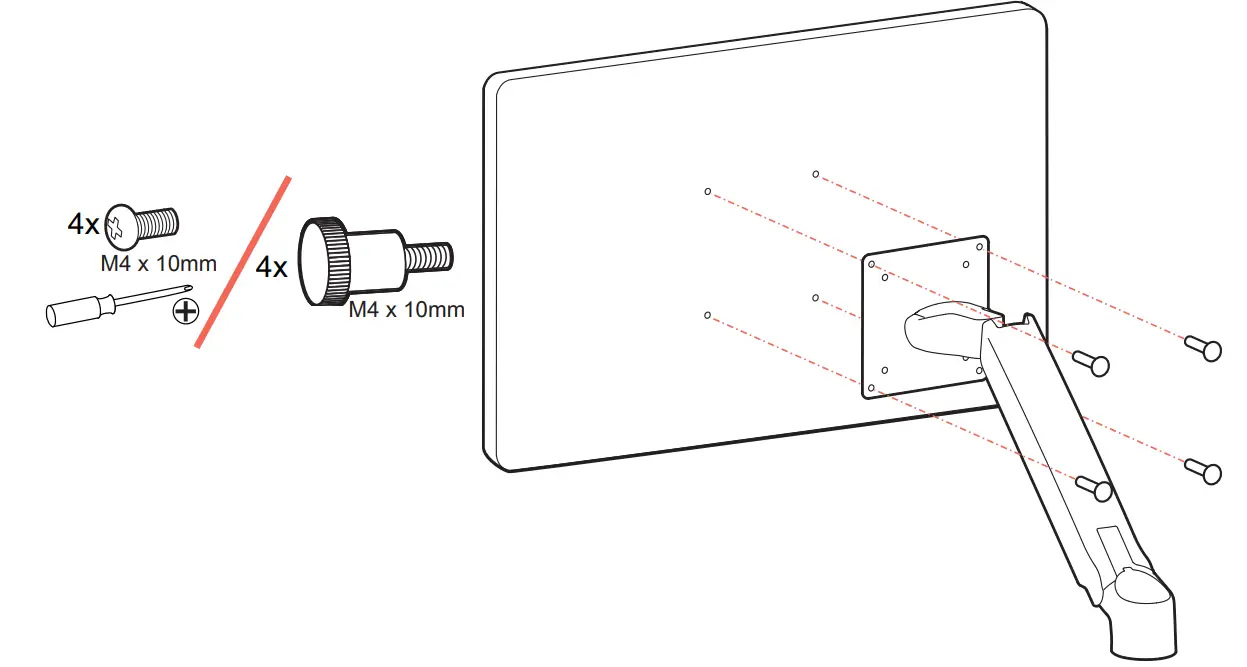

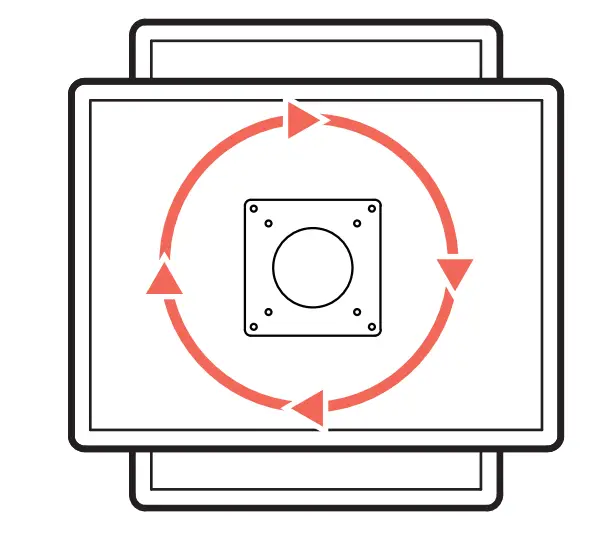

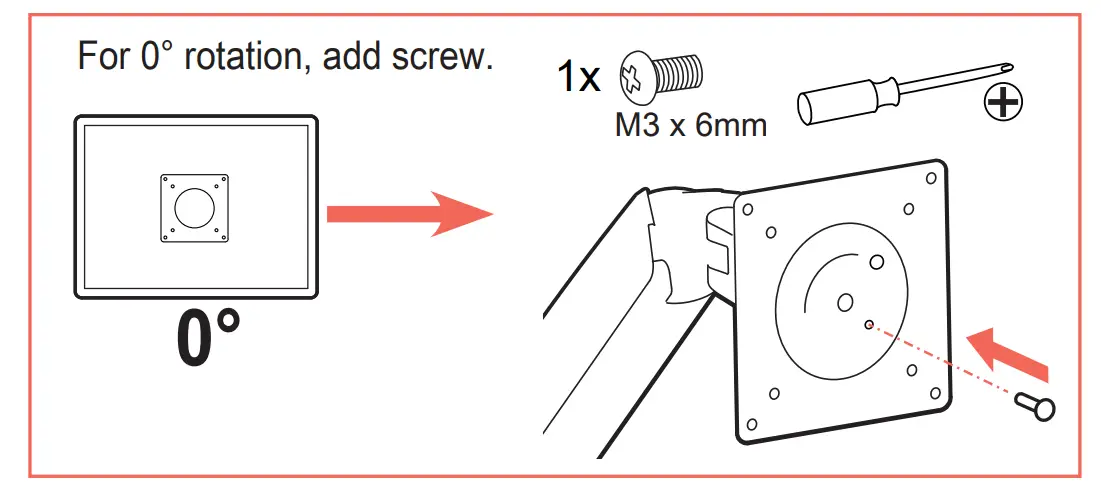

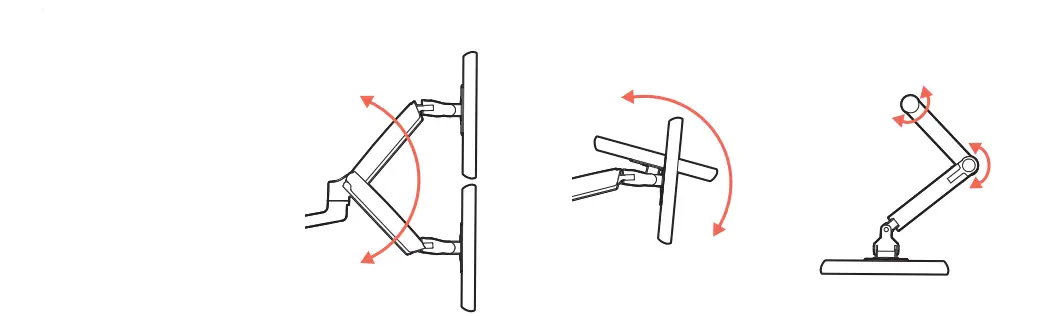

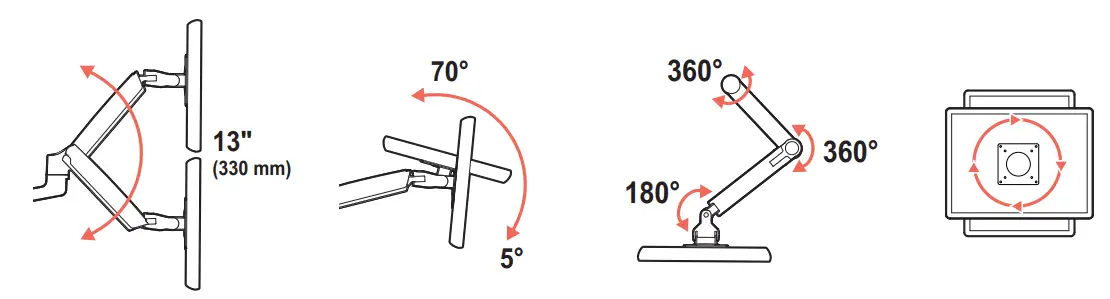

Rotate – Portrait/Landscape

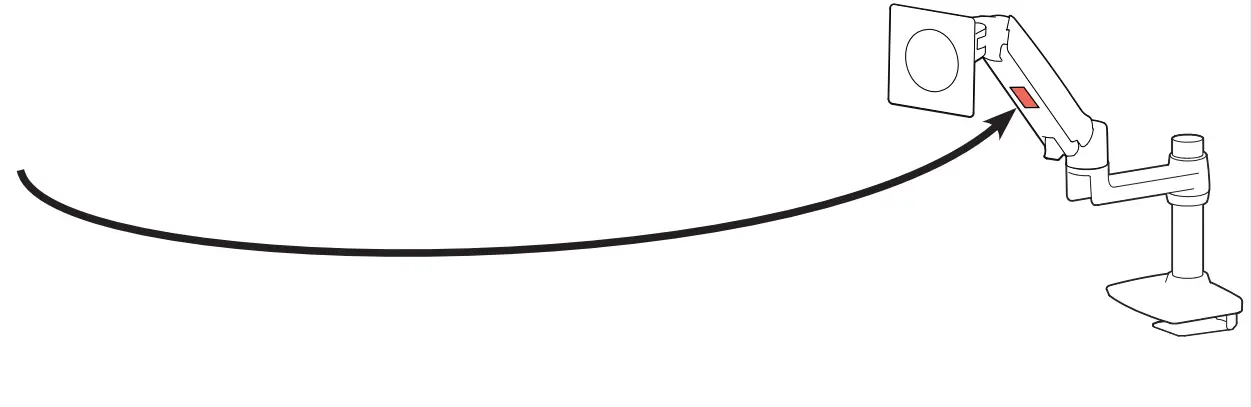

Adjustment Step
Important! You will need to adjust this product after installation is complete. Make sure all your equipment is properly installed on the product before attempting adjustments. This product should move smoothly and easily through the full range of motion and stay where you set it. If movements are too easy or difficult or if product does not stay in desired positions, follow the adjustment instructions to create smooth and easy movements. Depending on your product and the adjustment, it may take many turns to notice a difference. Any time equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation.

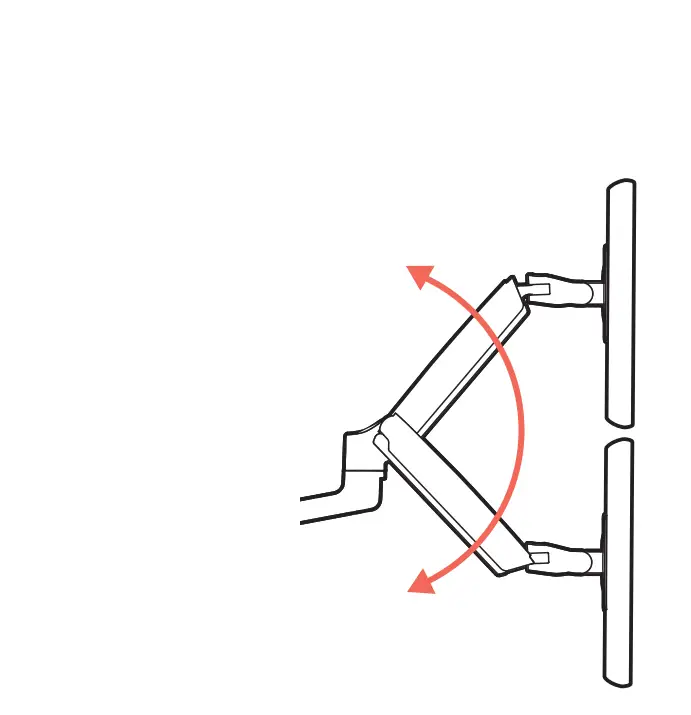

Lift – Up and down

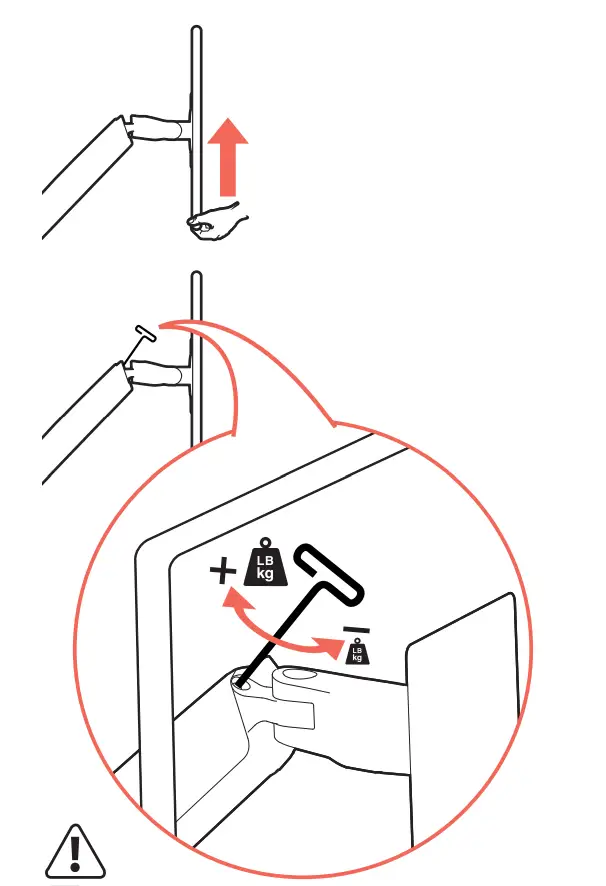

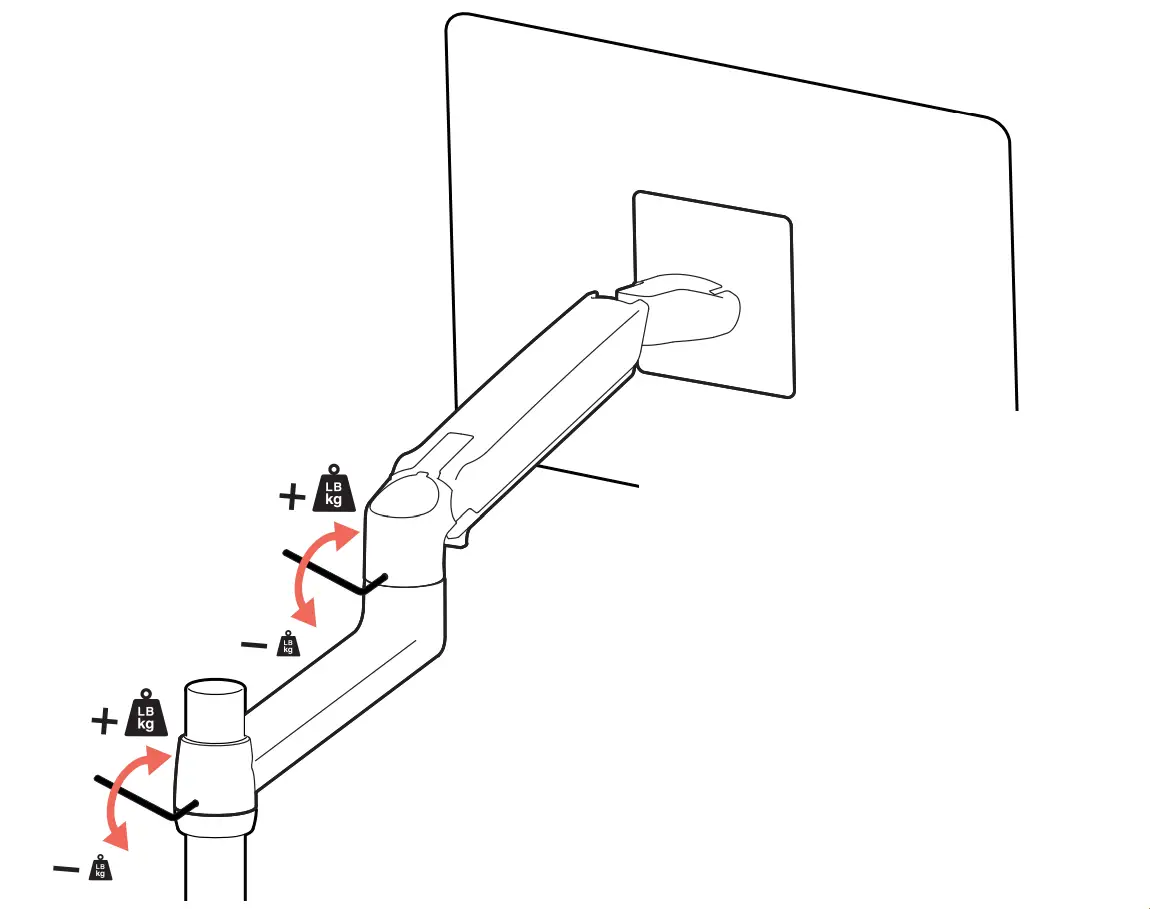

 Increase Lift StrengthIf the mounted weight is too heavy or this product does not stay up when raised, then you’ll need to increase Lift Strength: | Decrease Lift Strength If the mounted weight is too light or this product does not stay down when lowered, then you’ll need to decrease Lift Strength: |
Tilt – Forward and Backward
| Increase Friction If this product moves too easily, then you’ll need to increase friction: | Decrease Friction If this product is too difficult to move, then you’ll need to decrease friction: |
CAUTION: DO NOT remove screw. Removing screw may cause damage to equipment.

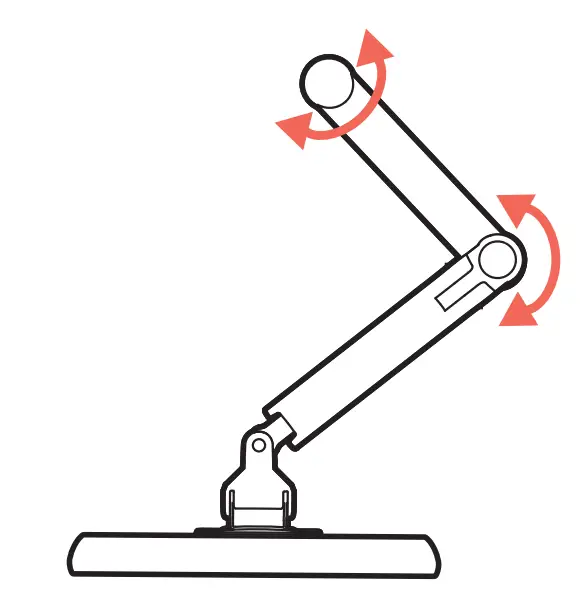

Arm Swing – Side-to-side
| Increase Friction If this product moves too easily, then you’ll need to increase friction: | Decrease Friction If this product is too difficult to move, then you’ll need to decrease friction: |
Safety
Warning: Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted
product and equipment.
Caution: Leave enough slack in cable to allow full range of motion.

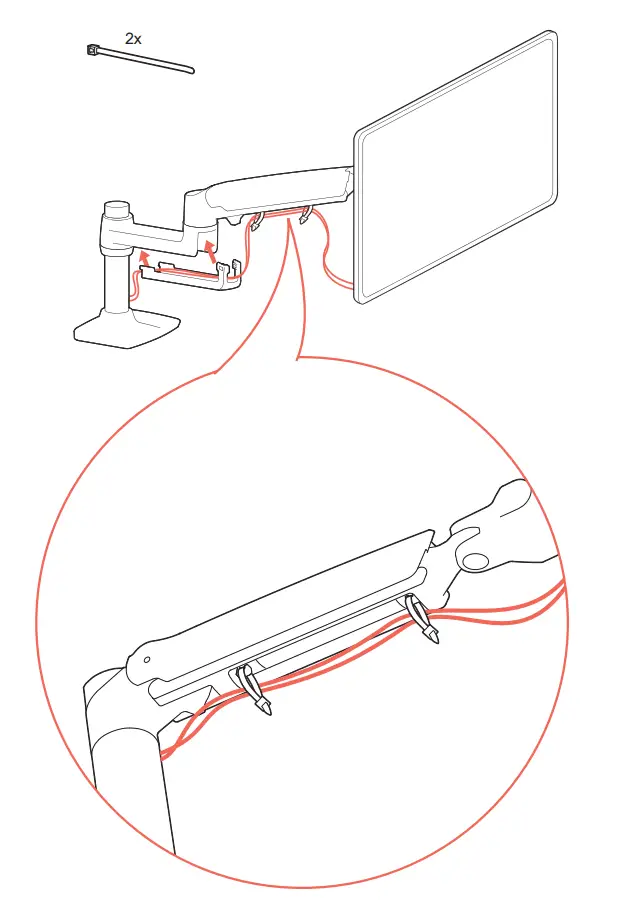

To avoid the potential to pinch cables it is important to follow the cable routing instructions in this manual. Failure to follow these instructions may result in equipment damage or personal injury
 | ⚠ WARNING |
| Move Arm to highest position before removing equipment or serious personal injury and/or damage may occur |

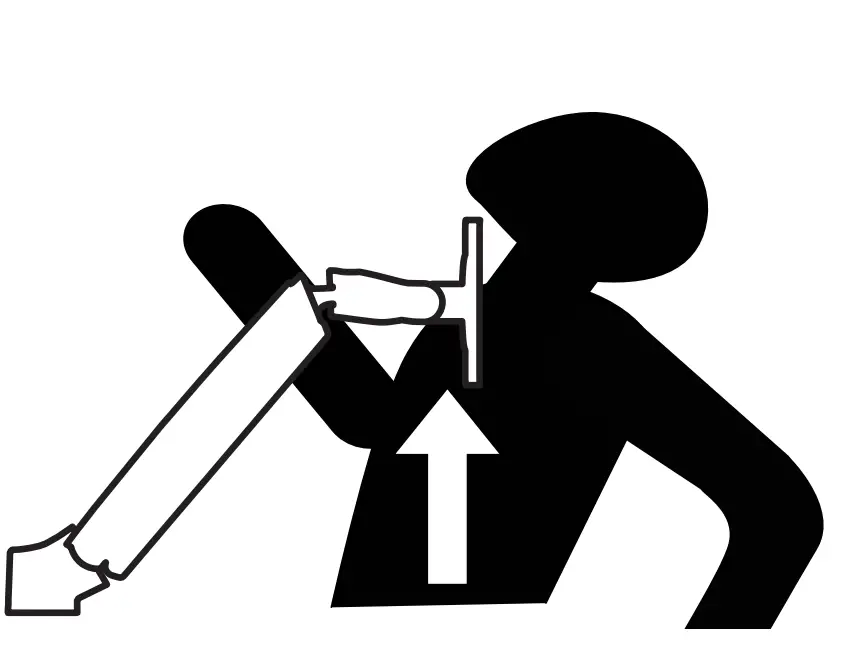

WARNING! Stored Energy Hazard: The arm mechanism is under tension and will move up rapidly, on its own, as soon as attached equipment is removed. For this reason, DO NOT remove equipment unless the arm has been moved to the highest position! Failure to follow this instruction may result in serious personal injury and/or equipment damage!

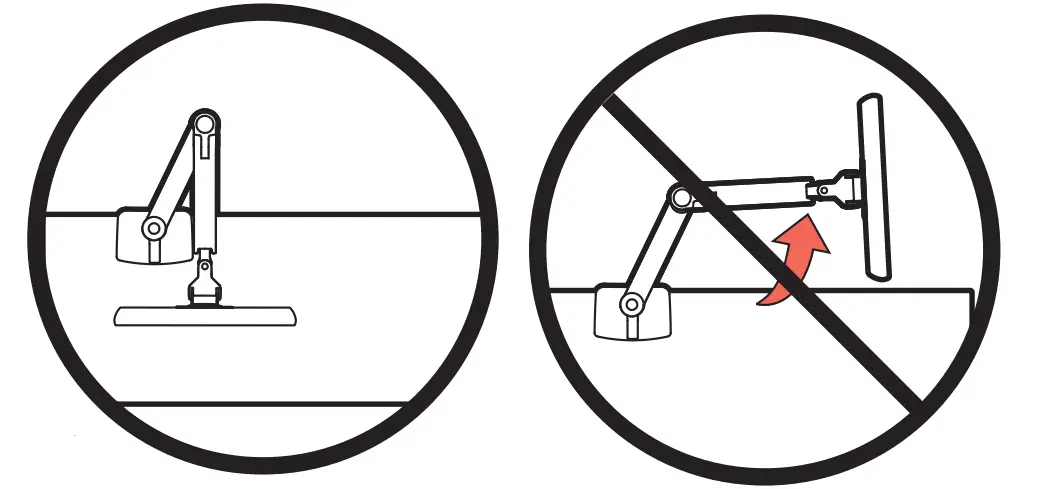

CAUTION: For Desk Clamp installations: Do Not rotate display past edge of desk

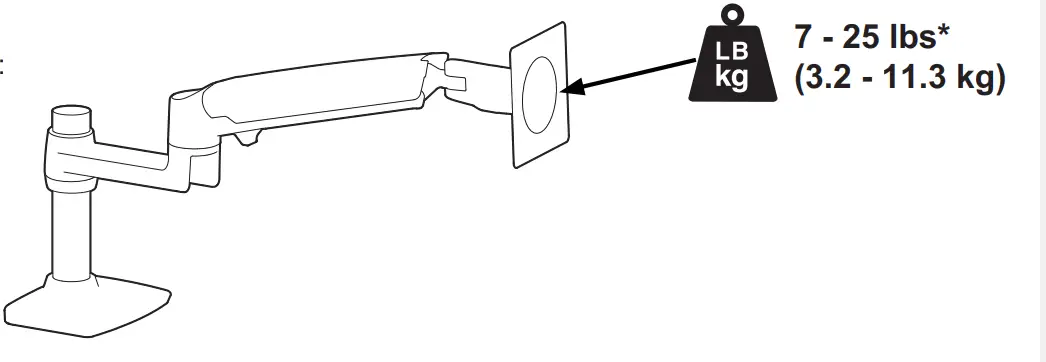

Weight Capacity
CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!
The lower most range of motion for vertical lift is decreased up to 4.5″ (114 mm) when arm is adjusted to hold over 20Ibs (9 kgs).

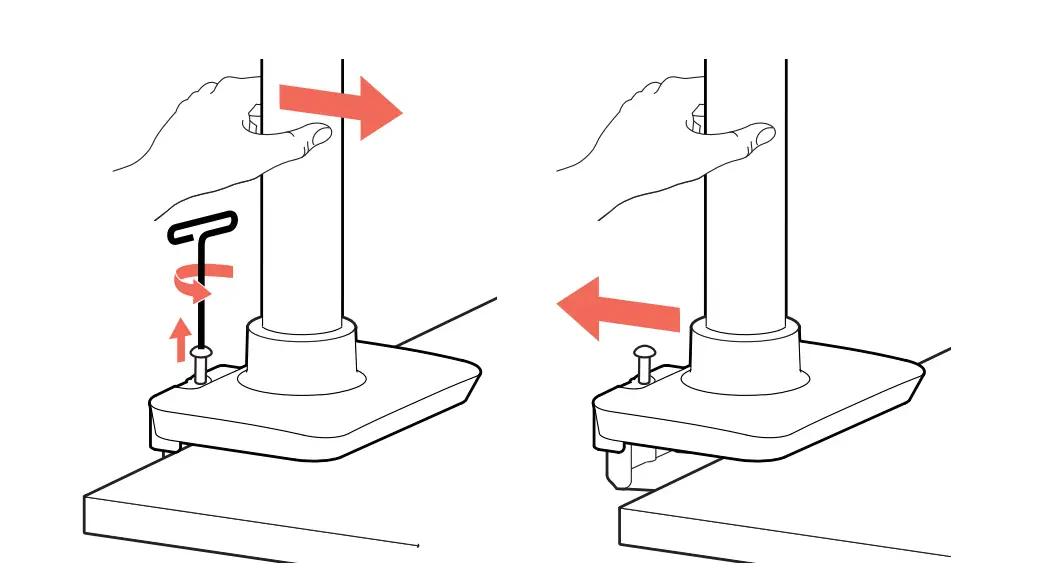

Removing from desk: Remove monitors then put pressure forward while loosening boll.

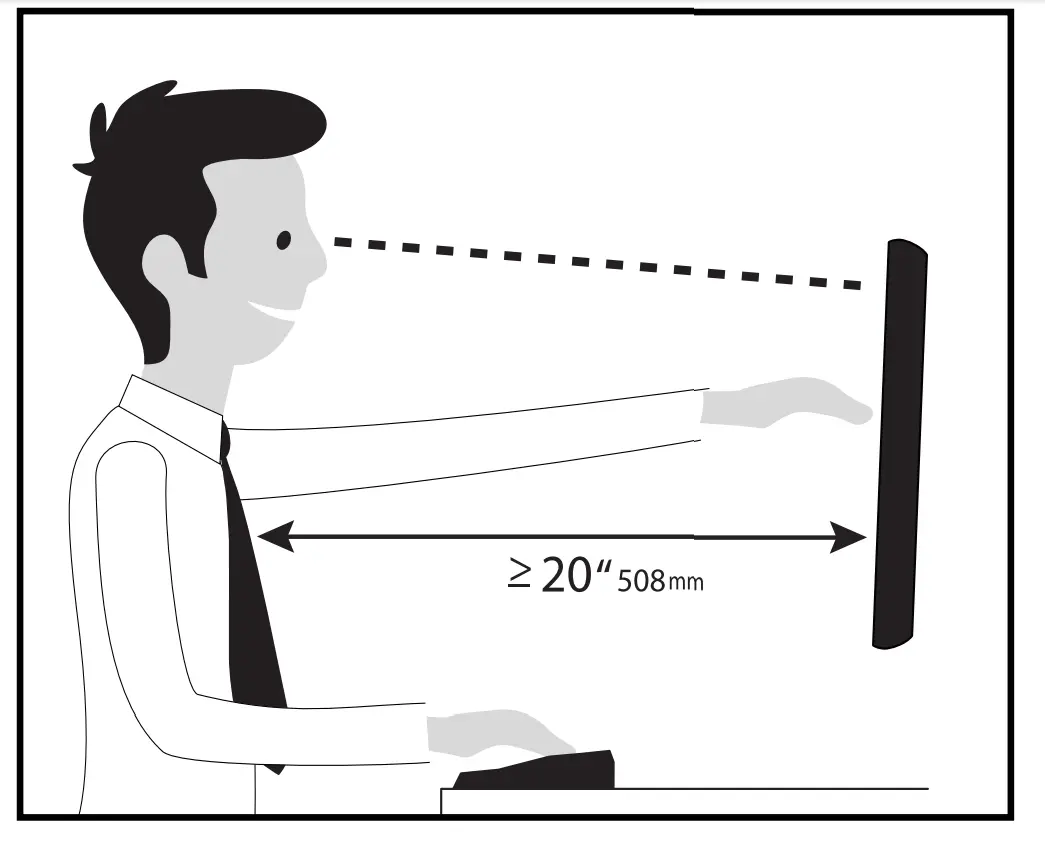

Learn more about ergonomic computer use at: www.ergotron.com/ergonomics
www.ergotron.com
USA: 1-800-888-8458
Europe: +31 (0)33-45 45 600
China: 400-1 20-3051
Japan: [email protected]
NOTE: When contacting customer service, reference the serial number.
