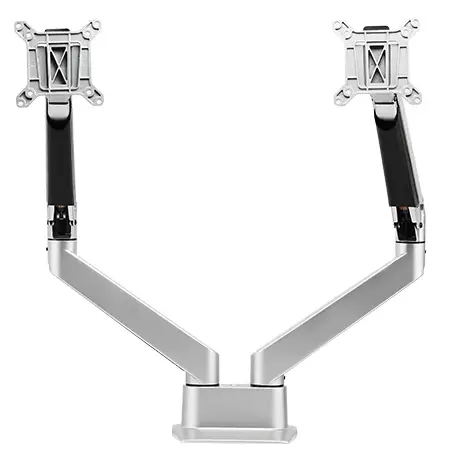

DESKY 0769807322905 Dual Monitor Arm

DESKY-0769807322905-Dual-Monitor-Arm-product

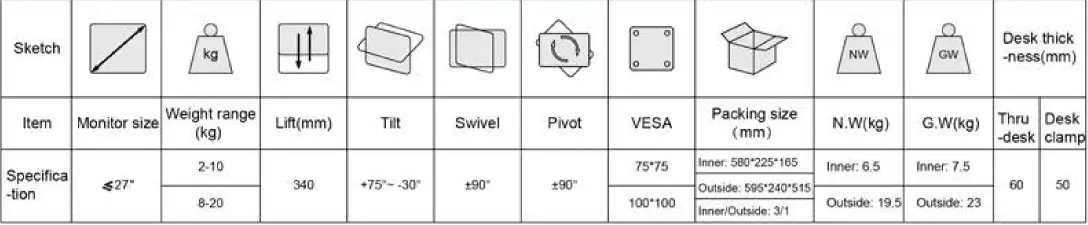

Product Specification

DESKY-0769807322905-Dual-Monitor-Arm-fig-1

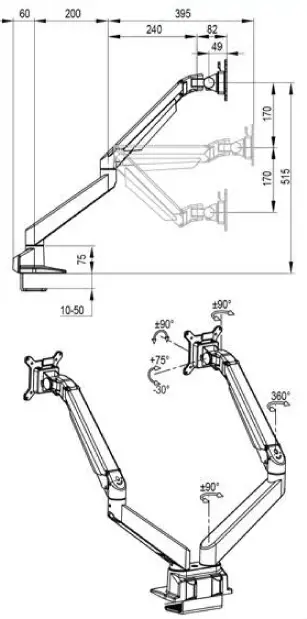

Product Size

DESKY-0769807322905-Dual-Monitor-Arm-fig-2

Installation- Desk Clamp

DESKY-0769807322905-Dual-Monitor-Arm-fig-3

Installation -Thru-desk

DESKY-0769807322905-Dual-Monitor-Arm-fig-4

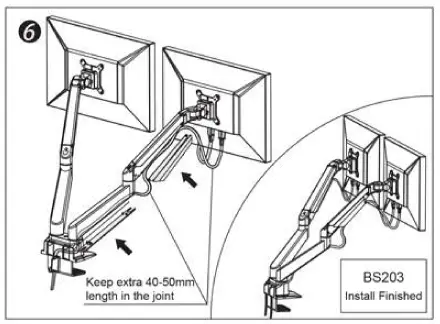

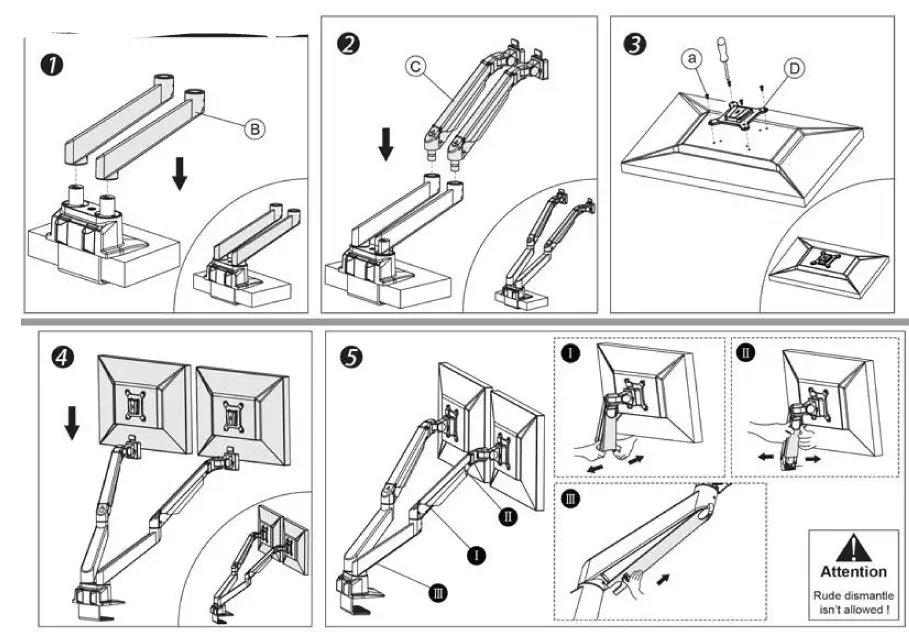

Install Procedure

DESKY-0769807322905-Dual-Monitor-Arm-fig-5DESKY-0769807322905-Dual-Monitor-Arm-fig-6

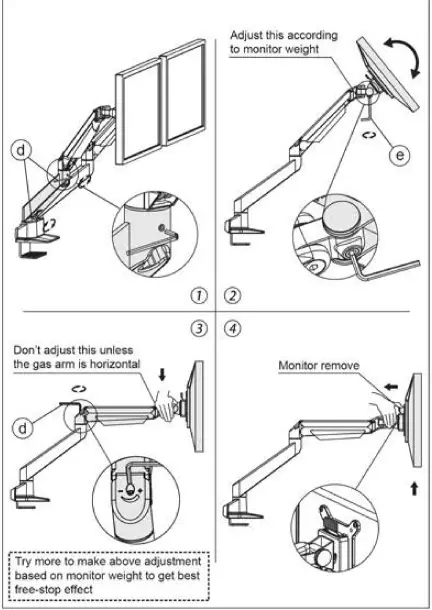

Adjust Procedure

DESKY-0769807322905-Dual-Monitor-Arm-fig-7

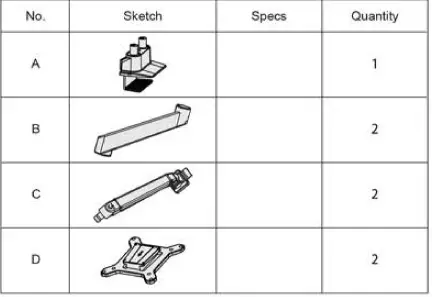

Module List

DESKY-0769807322905-Dual-Monitor-Arm-fig-8

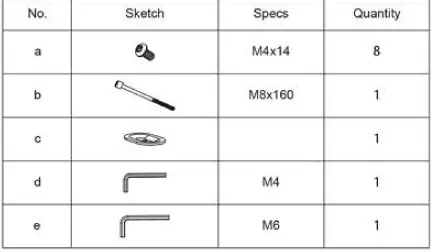

Part List

DESKY-0769807322905-Dual-Monitor-Arm-fig-9
