Vonhaus 3005117 Dual Monitor Mount With Desk Stand Instruction Manual

Vonhaus 3005117 Dual Monitor Mount With Desk Stand Instruction Manual

VonHaus logo3005117 Dual Monitor Mount With Desk Stand
Instruction ManualVonHaus 3005117 Dual Monitor Mount With Desk Stand

3005117 Dual Monitor Mount With Desk Stand

iconPlease read all instructions carefully before use and retain for future reference.
VonHaus 3000251 Table Top TV Stand and Bracket icon 38kg/17lb Maximum
VonHaus 3000251 Table Top TV Stand and Bracket icon30min Estimated assembly time
VonHaus 3005117 Dual Monitor Mount With Desk Stand iconMax screen size.
VonHaus 3000251 Table Top TV Stand and Bracket icon 2Do not use power tools to assemble
VonHaus 3000251 Table Top TV Stand and Bracket icon 2Do not climb on
VonHaus 3000251 Table Top TV Stand and Bracket icon 1Re-tighten fixings every 6 months

INTENDED USE

This product is not intended for outdoor use. This product is not intended as a climbing structure and it is not a toy. Children should be supervised to ensure that they do not play with the product. Follow each step of the assembly as outlined by the steps in this Instruction Manual. Assemble close to the product’s intended position. Locate the product in a suitable area where it will not create an obstruction.

GENERAL SAFETY

The assembly pack may contain small parts which can pose a choking hazard to children and pets. Place on solid and even ground. Only use in an upright stable position. Do not overload the product as this may result in damage to the product or personal injury.

CLEANING & MAINTENANCE

Do not clean the product with any abrasive cloth or chemicals. Solvents or detergents can cause damage to the surface. Periodically check and re-tighten fittings where applicable. Re-tighten all fittings after the first week following assembly. To clean, sponge down with warm water, a soft cloth, and mild detergent. Ensure you have all the pieces listed. If you are missing any components, contact our customer services department at [email protected] Do not proceed with assembly if any components are missing.

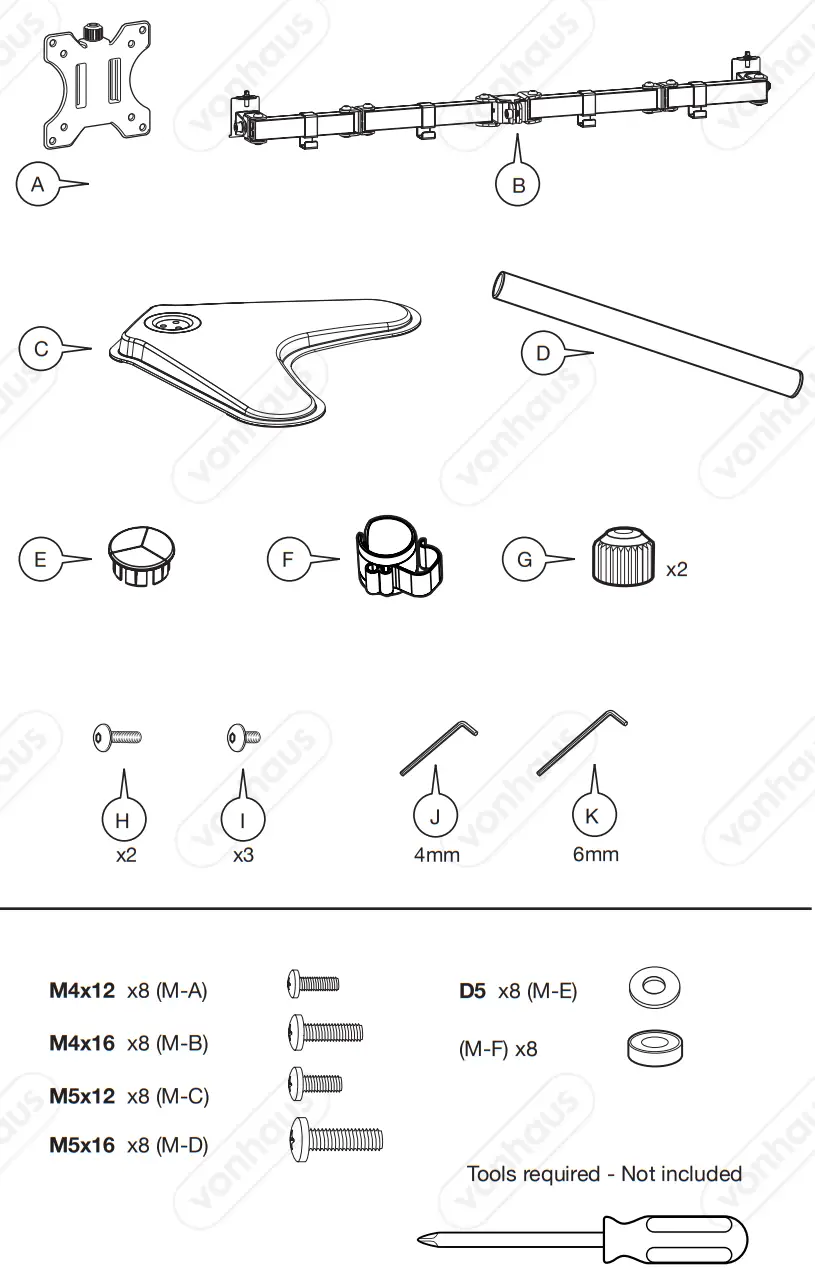

COMPONENTS

VonHaus 3005117 Dual Monitor Mount With Desk Stand fig

ASSEMBLY

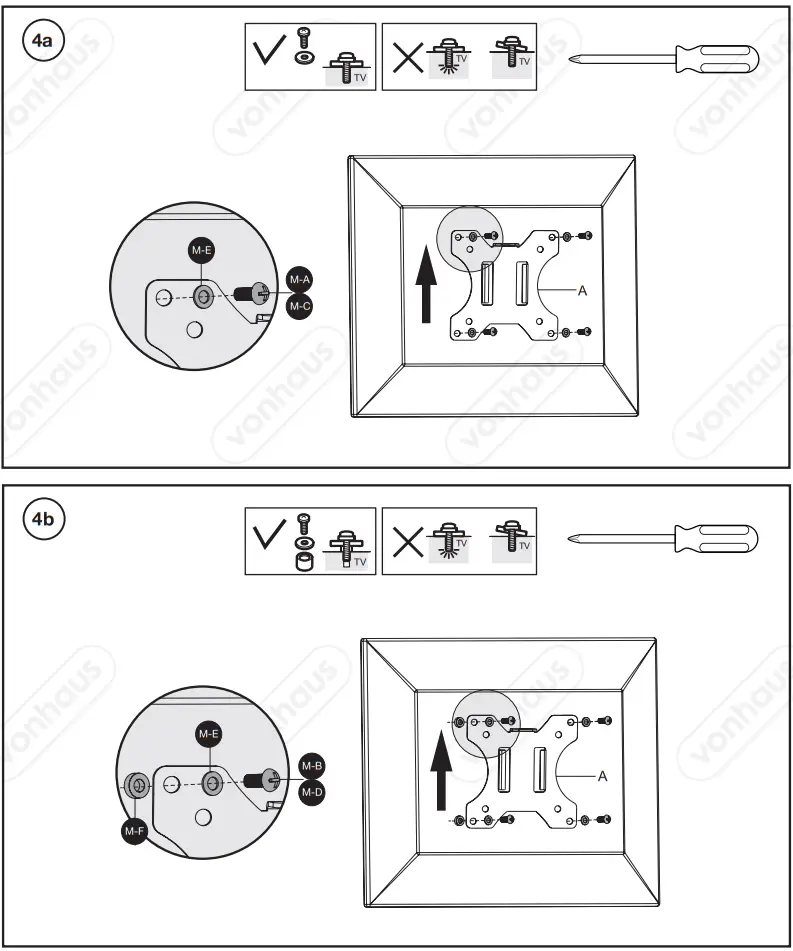

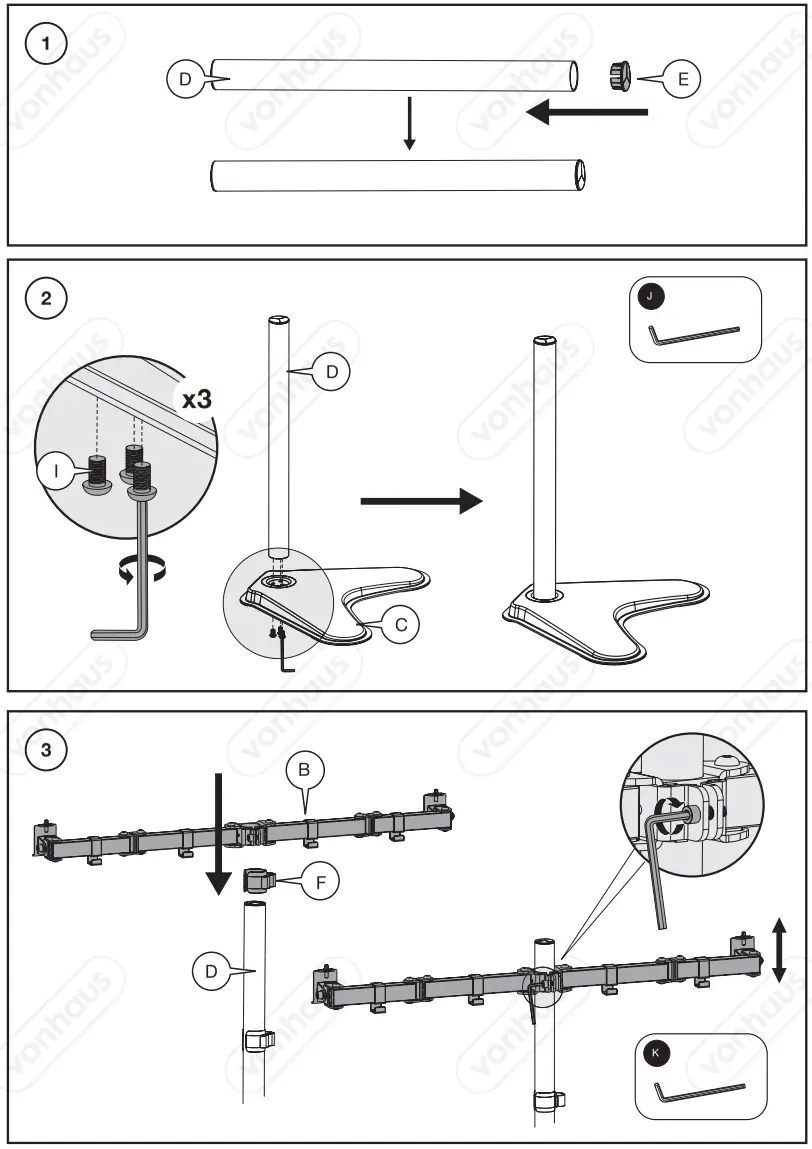

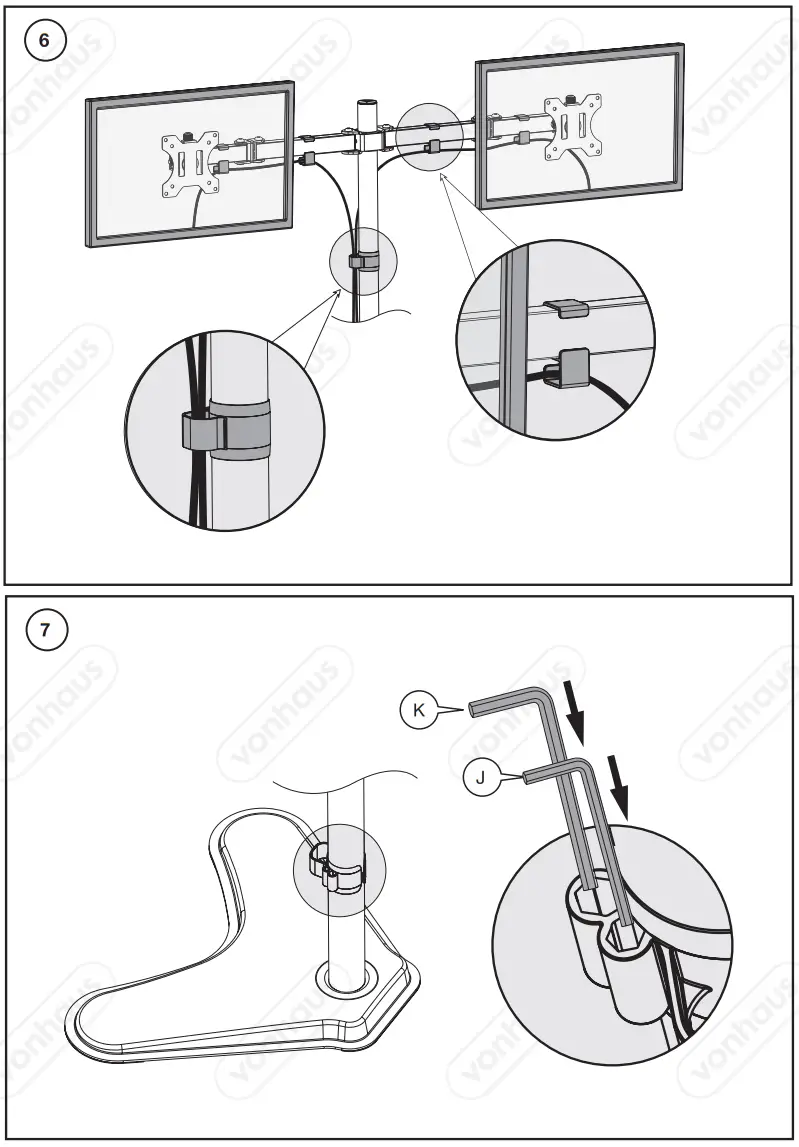

VonHaus 3005117 Dual Monitor Mount With Desk Stand fig 1VonHaus 3005117 Dual Monitor Mount With Desk Stand fig 2VonHaus 3005117 Dual Monitor Mount With Desk Stand fig 3VonHaus 3005117 Dual Monitor Mount With Desk Stand fig 4

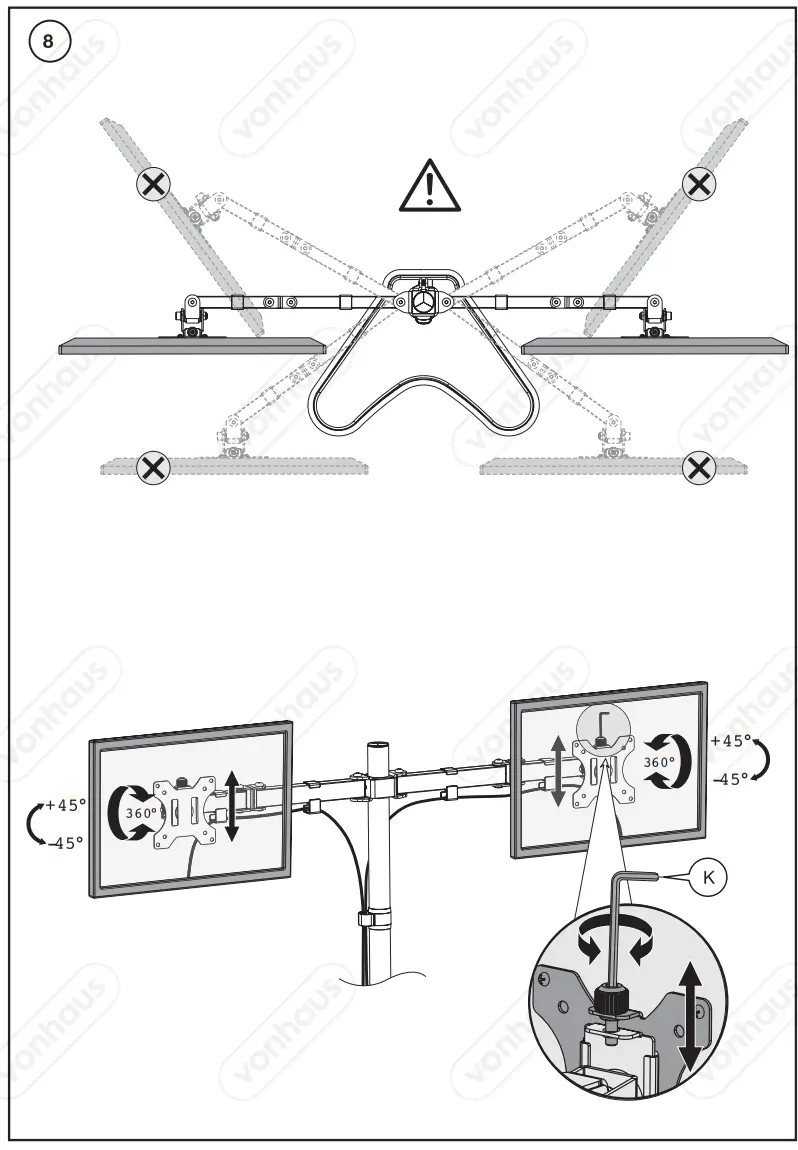

WORKING POSITION

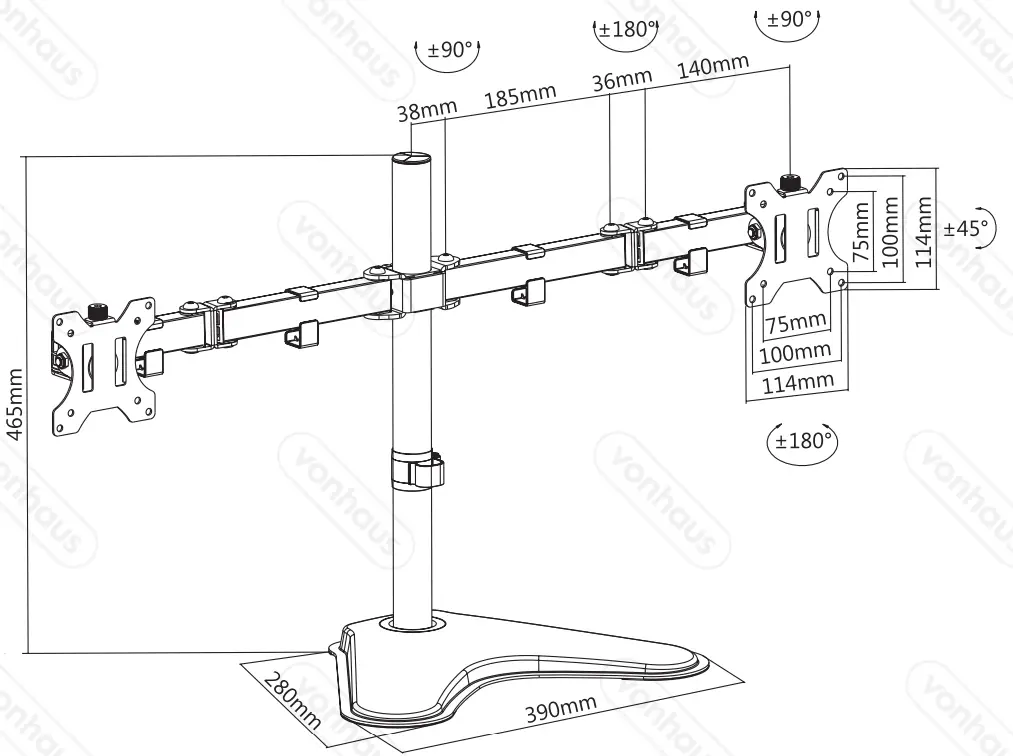

VonHaus 3005117 Dual Monitor Mount With Desk Stand fig 5VonHaus 3005117 Dual Monitor Mount With Desk Stand fig 6VonHaus logoTHANK YOU
Thank you for purchasing your product/appliance.
Should you require further assistance with your purchase, you can contact us at [email protected]
VonHaus is a registered trademark of DOMU Brands Ltd.
Made in China for DOMU Brands. M24 2RW.
