Schneider Electric LC1 D1156 Reversing Contactors
Contactors/Reversing contactors
For motor starting use Schneider Electric TeSys Protect – Deca overload relays
WARNING
- RISK OF FIRE OR ELECTRIC SHOCK (FOR CONTACTOR WITH UL HI-FAULT SHORT CIRCUIT CURRENT RATINGS ONLY)
- The opening of the branch-circuit protective device may be an indication that a fault current has been interrupted.
- To reduce the risk of fire or electric shock, current-carrying parts and the other components of the controller should be examined and replaced if damaged.
- Failure to follow these instructions can result in death, serious injury, or equipment damage

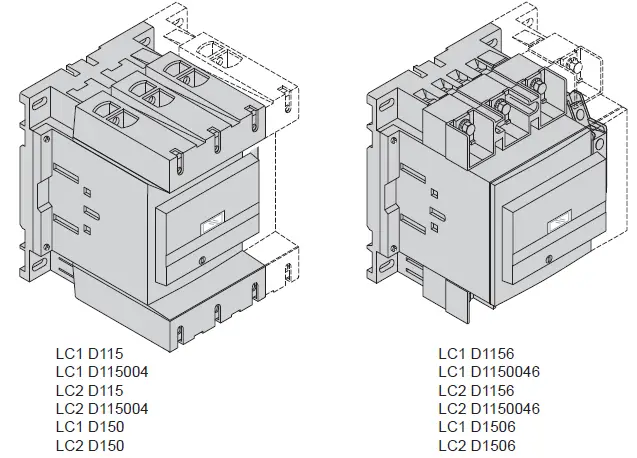

OVERVIEW

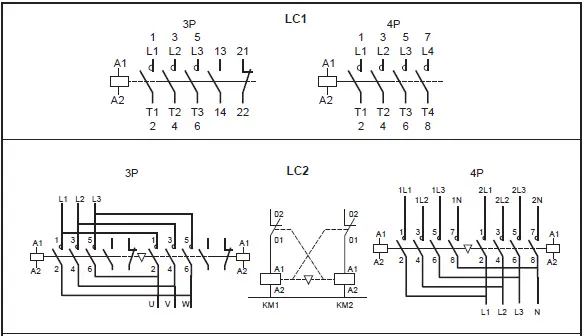

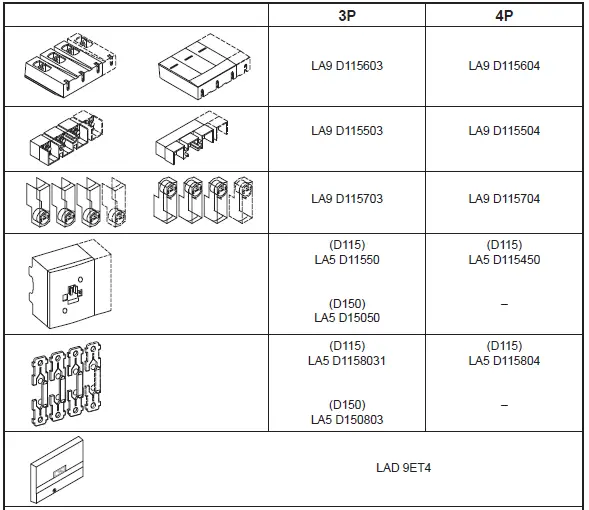

WIRING DIAGRAM

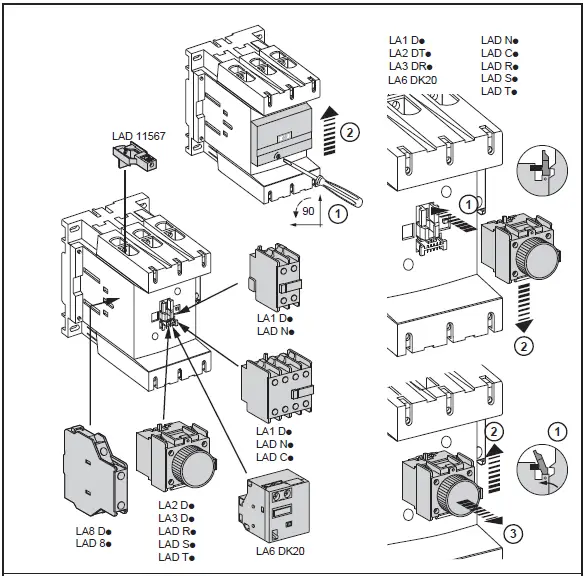

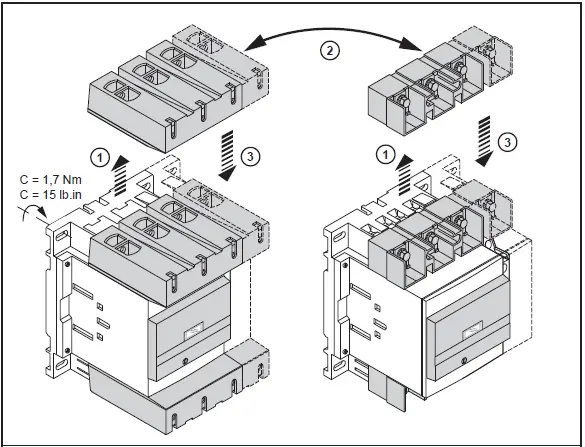

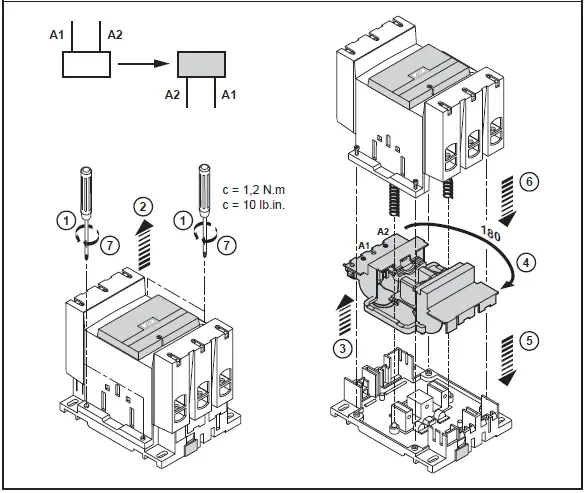

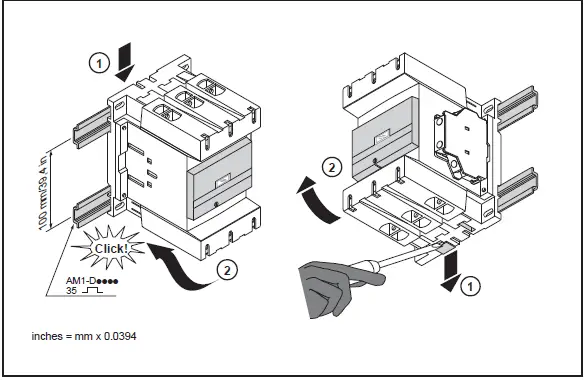

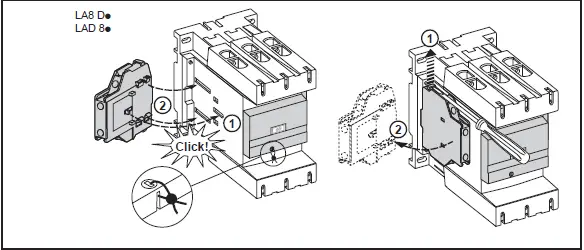

INSTALLATION

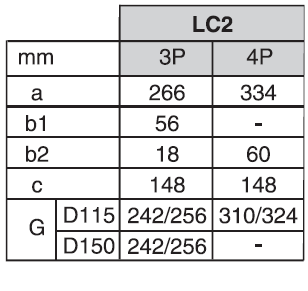

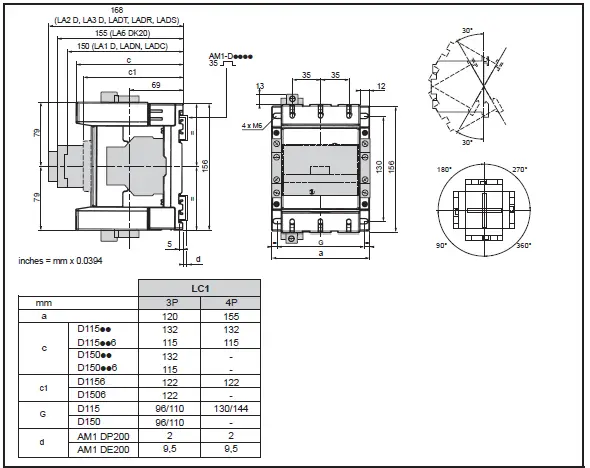

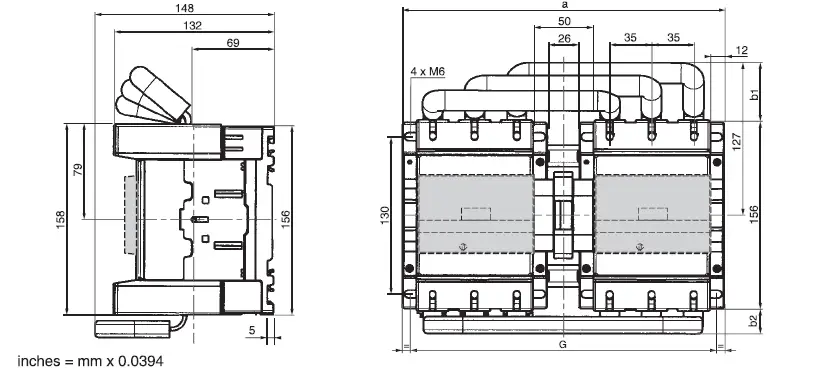

DIMENSION
DANGER
- HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
- Disconnect all power before servicing equipment.
- Failure to follow these instructions will result in death or serious injury.
WARNING
- UNEXPECTED EQUIPMENT OPERATION
- Use a torque wrench to apply the right tightening torques. Failure to follow these instructions can result in death, serious injury, or equipment damage.

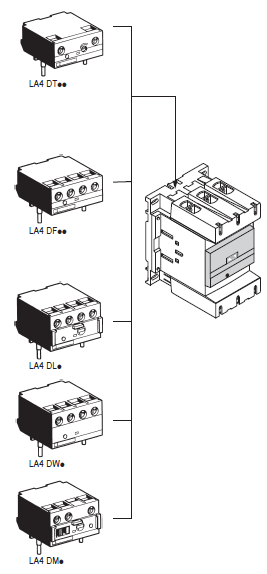

- Serial timer : on-delay
- Relay interface
- Auto – 1
- Solid state interface
- Auto – 0 – 1
| Contents of Toxic or Hazardous Substances or Elements | ||||||
| Toxic or hazardous Substances and Elements | ||||||
| Part Name | (Pb) | (Hg) | (Cd) | (Cr6+ ) | (PBB) | (PBDE) |
| Electronics Board | X | O | O | O | O | O |
| Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363-2006. | ||||||
| Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in SJ/T11363-2006 | ||||||
| Note: The products on sale may or may not contain all the parts/components listed here. | ||||||
| 3P AC TeSys Deca contactors (LC1D115 -> LC1D150) are grade 2 according to GB 21518. Maximum power consumption lower than 36.6 VA. | ||||||
The product’s manufacture date is coded PPYYWWD, where:
- PP: plant code
- YY: year of manufacture
- WW: week of manufacture p (D: weekday of manufacture (Monday = 1))

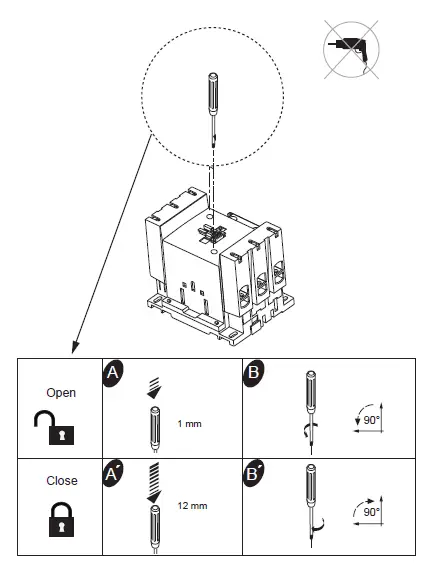

LOCK/UNLOCK
Schneider Electric Industries SAS 35, rue Joseph Monier CS30323 F – 92500 Rueil-Malmaison
www.se.com
UK Importer: Schneider Electric Limited Stafford Park 5 Telford, TF3 3BL United Kingdom
www.se.com/uk
© 2022 Schneider Electric – All rights reserved.
Schneider Electric Global | Global Specialist in Energy Management and Automation
