Electric LC2D A Series TeSys Deca Reversing Contactor
Instruction Manual

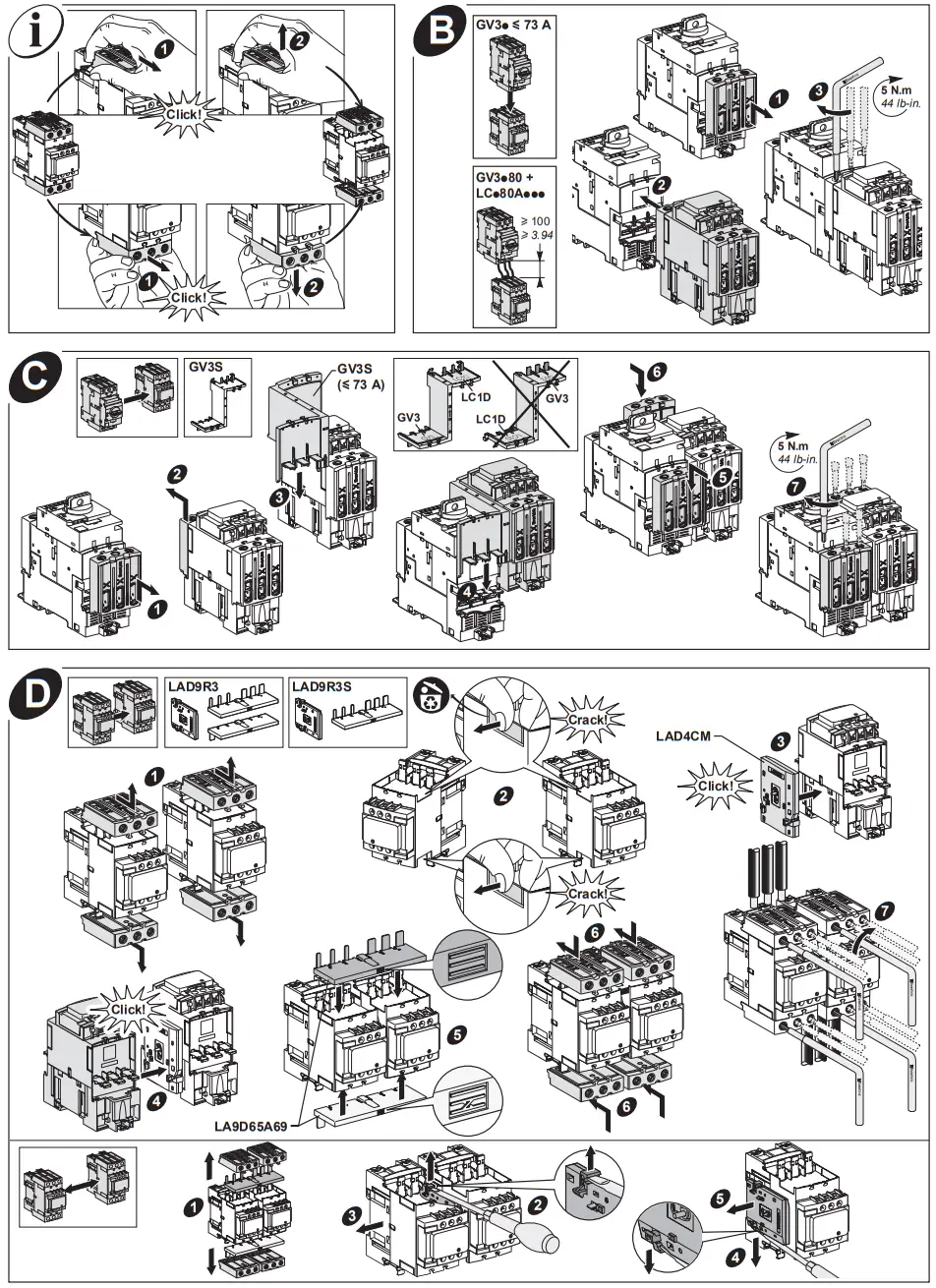

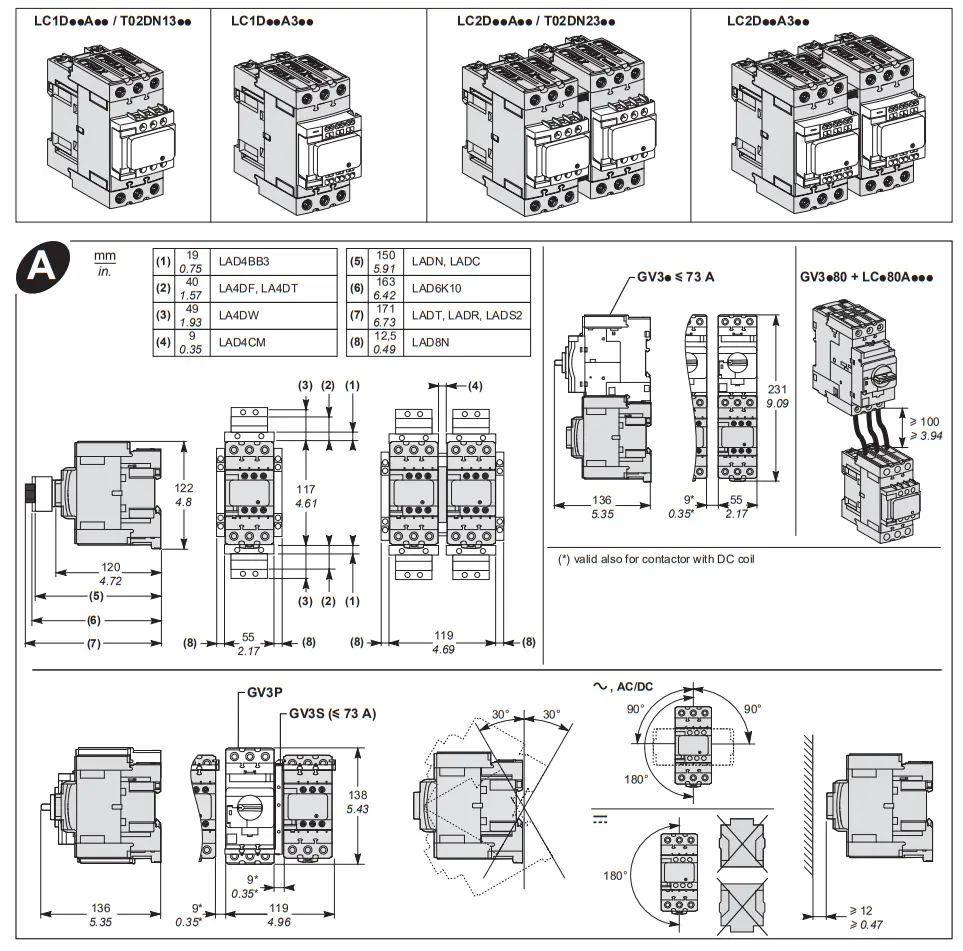

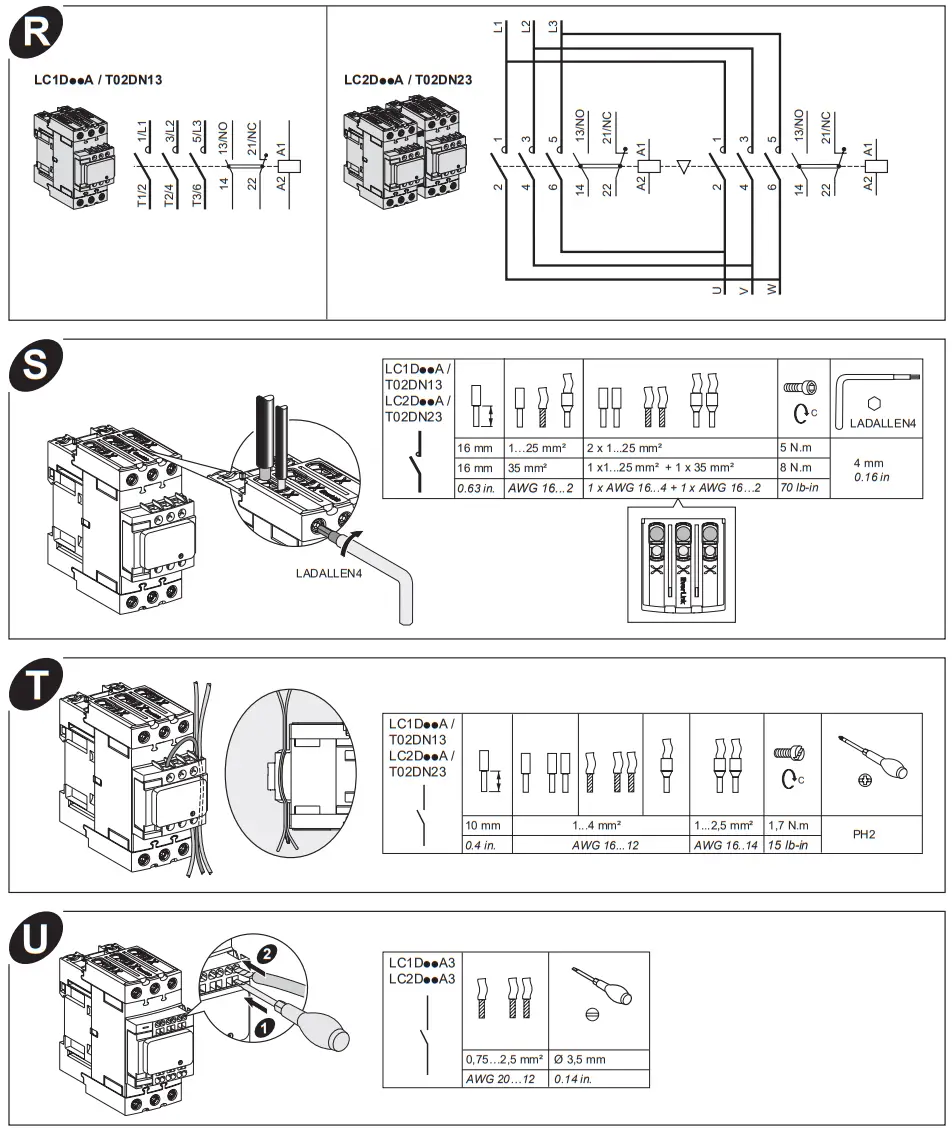

LC1DppApp / LC1DppA3pp / T02DN13pp
LC2DppApp / LC2DppA3pp / T02DN23pp
LC2D A Series TeSys Deca Reversing Contactor
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
Disconnect all power before servicing equipment.
Failure to follow these instructions will result in death or serious injury.
WARNING
HAZARD OF FIRE OR ELECTRIC SHOCK
On contactors connected to a feeder circuit, it is mandatory to install large spacing adapters GV3G66 on top and bottom connections of the contactor to respect UL and CSA requirements in North America.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
AC/DC:
- use of this product in EMC environment B may require mitigation measures to avoid unwanted disturbance.
- full open AC at 10%Us.
WARNING
HAZARD OF FIRE OR ELECTRIC SHOCK (FOR CONTACTOR WITH UL HI-FAULT SHORT CIRCUIT CURRENT RATINGS ONLY)
- The opening of the branch-circuit protective device may be an indication that a fault current has been interrupted.
- To reduce the hazard of fire or electric shock, current-carrying parts and the other components of the controller should be examined and replaced if damaged.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
| Additional ratings | Lighting Tungsten | Lighting Ballast | DefLill e Purpose ratings, 3Phase, Load wiring: breaking all lines | Elevator Duty HP ratings (except .D and .W DC coil) | High-Fault SCCR Class J Fuse | High-Fault SCCR with CB | |||||||||
| Device | 600 V | 600 V | FLA | LRA | 1Ph 120 V | 1Ph 240 V | 3Ph 200 V | 3Ph 230 V | 3Ph 480 V | 3Ph 600 V | 600 V | 480 V | 600 V | ||
| 240 V | 480 V | 600 V | |||||||||||||
| LC1D40A | 60 A | 60 A | 40 A | 240 A | 200 A | 160 A | – | 5hp | 10hp | 10hp | – | – | 100 kA | 100 kA | 50 kA |
| LC1D50A | 70 A | 70 A | 50 A | 300 A | 250 A | 200 A | 3hp’ | 7.5hp | 15hp | 15hp | 25hp* | 30hp* | 100 kA | 100 kA | 50 kA |
| LC1D5OANR, | – | – | – | – | – | – | – | – | – | – | – | – | 100 kA | 100 kA | 50 kA |
| LC1D65A/80A | 70 A | 80 A | 390 A | 325 A | 208 A | 3hr | 10hp* | 15hp* | 20hp’ | 25hp* | 30hp* | 100 kA | 100 1(A | 50 kA | |
Refer to information on device label when ordering replacement parts.
The product’s manufacture date is coded PPYYWWD, where:
- PP: plant code
- YY: year of manufacture
- WW: week of manufacture
- (D: weekday of manufacture (Monday = 1))

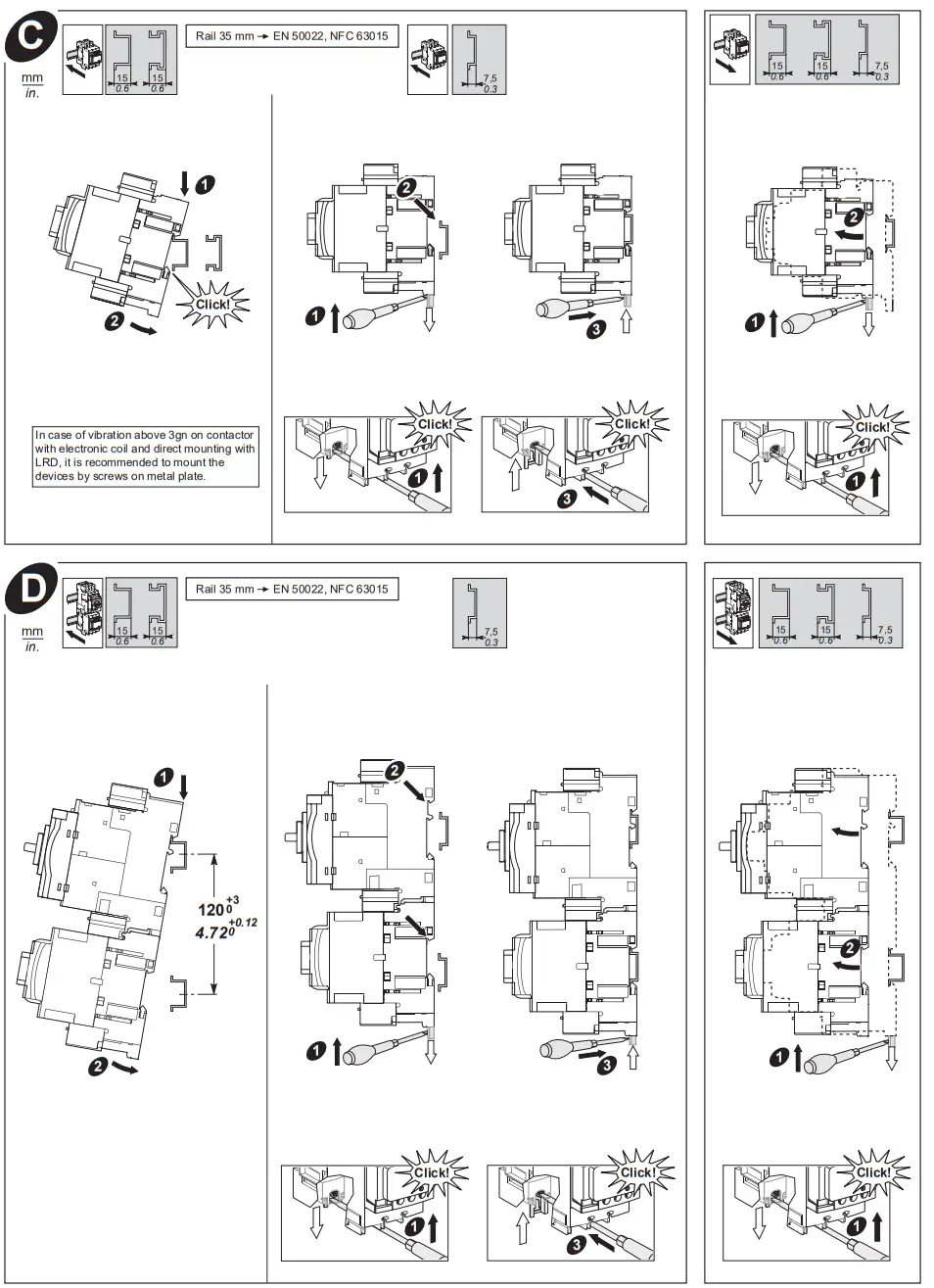

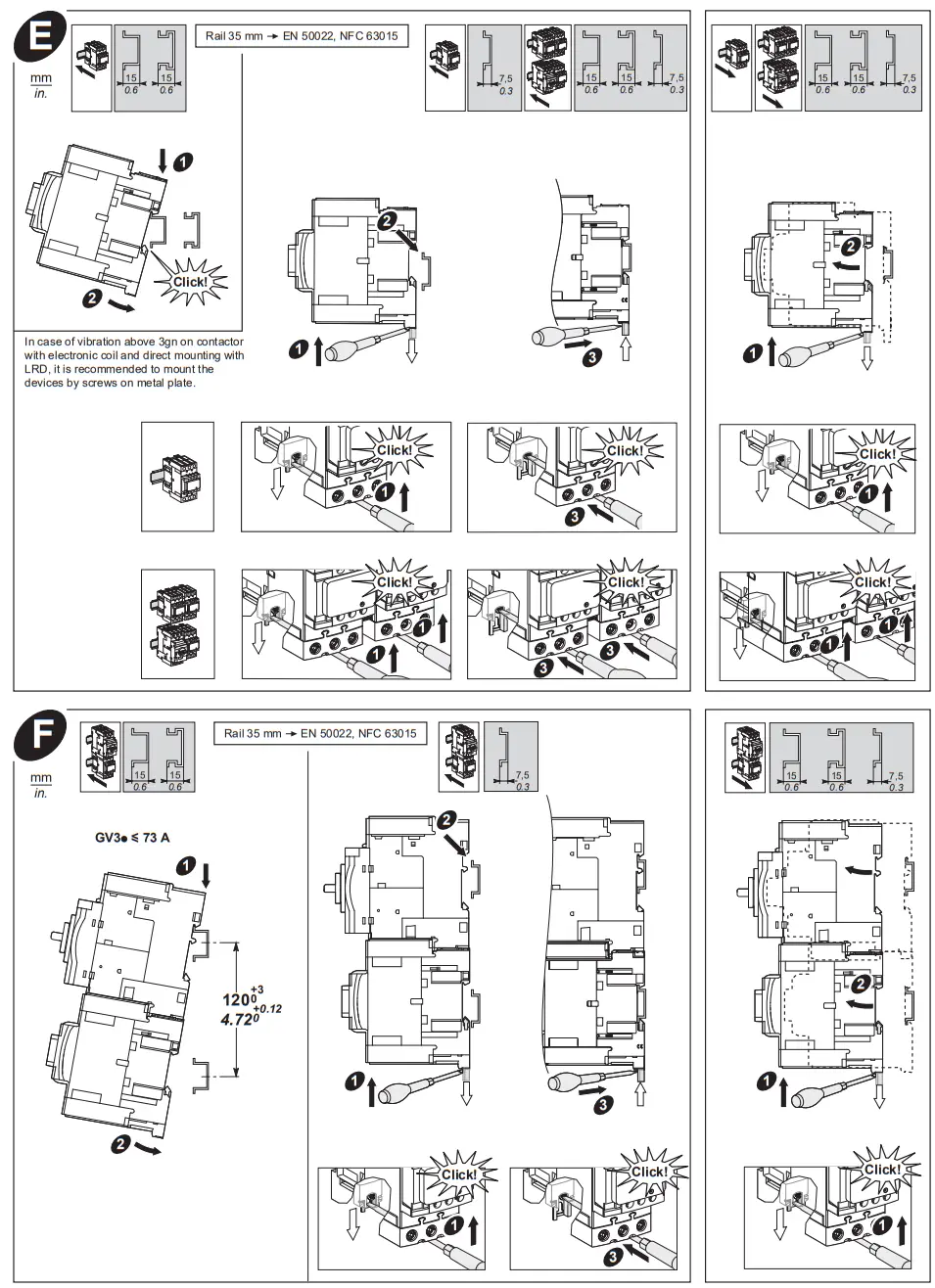

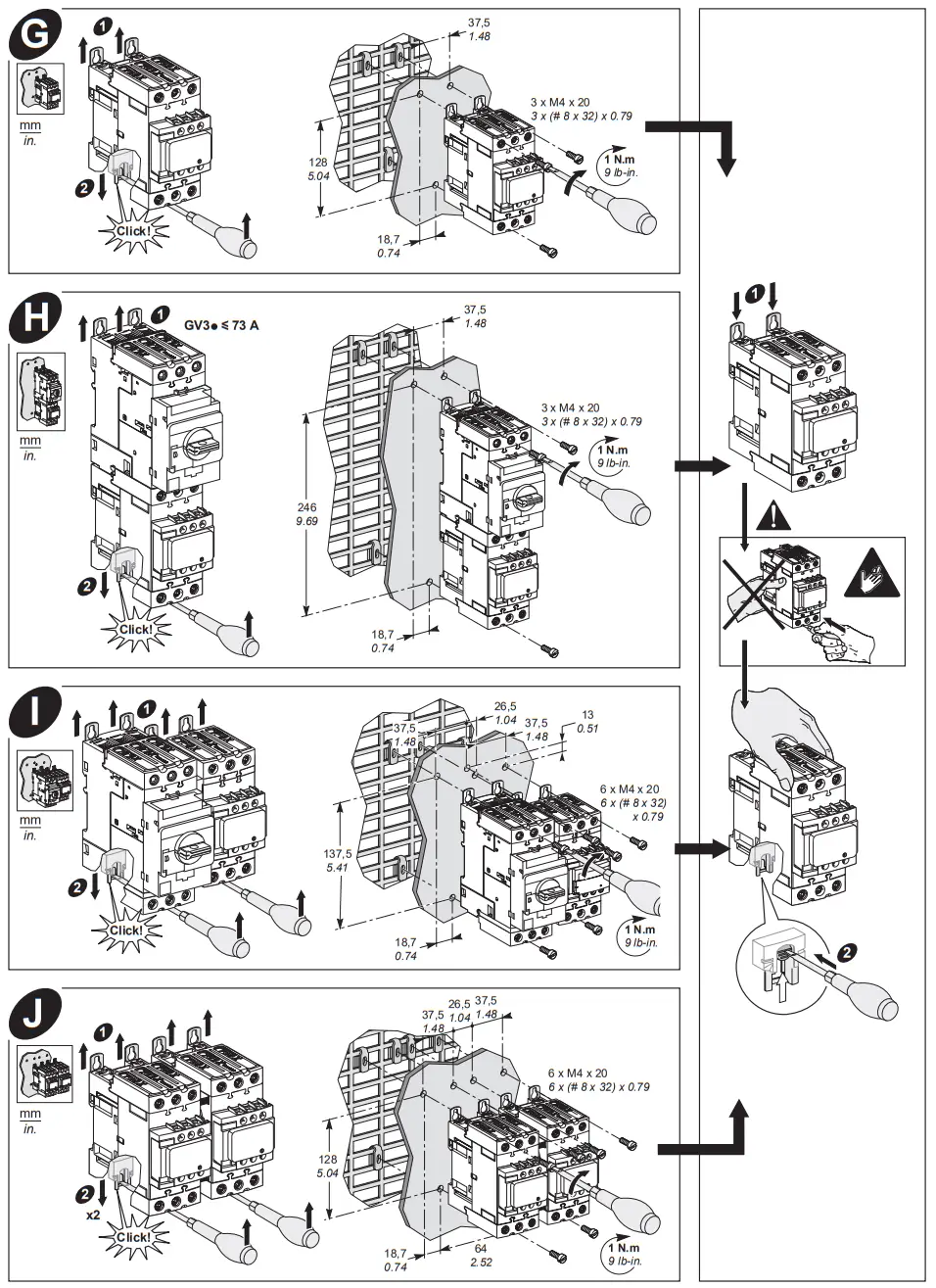

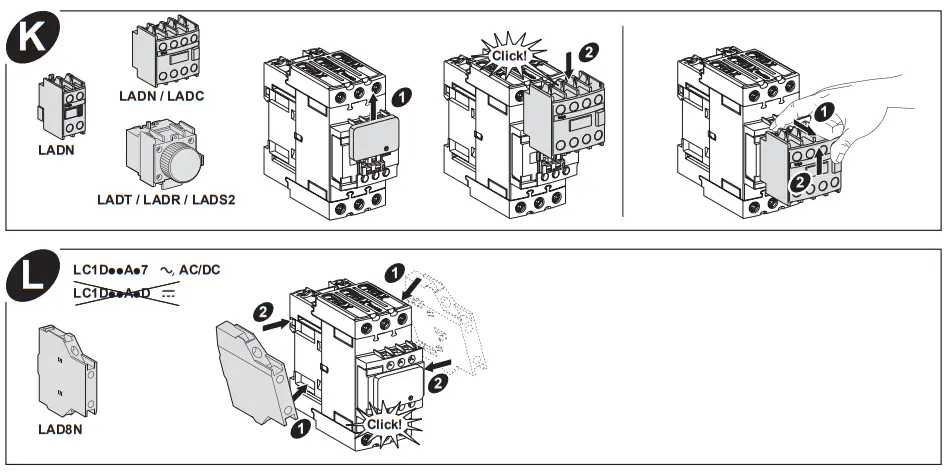

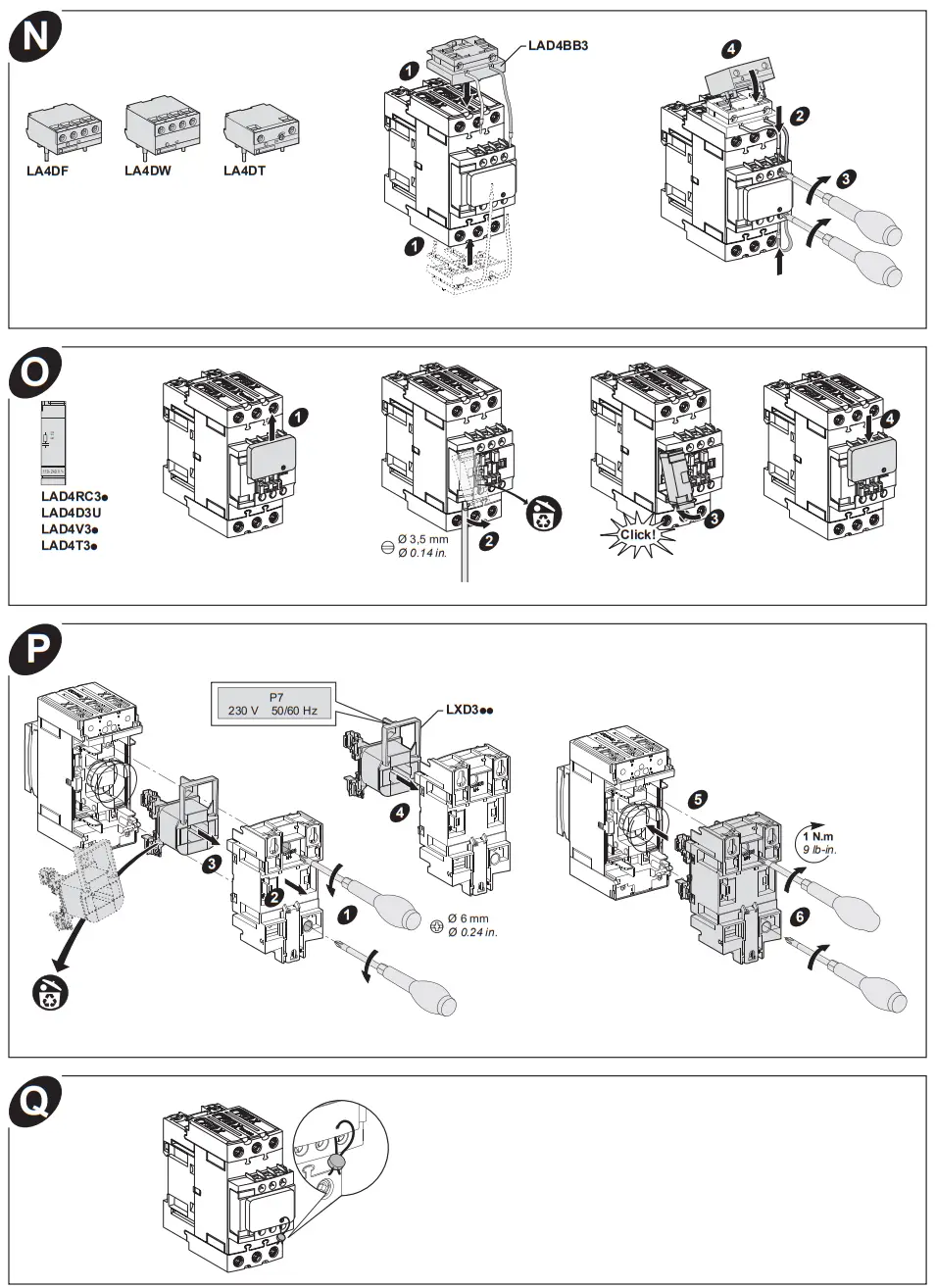

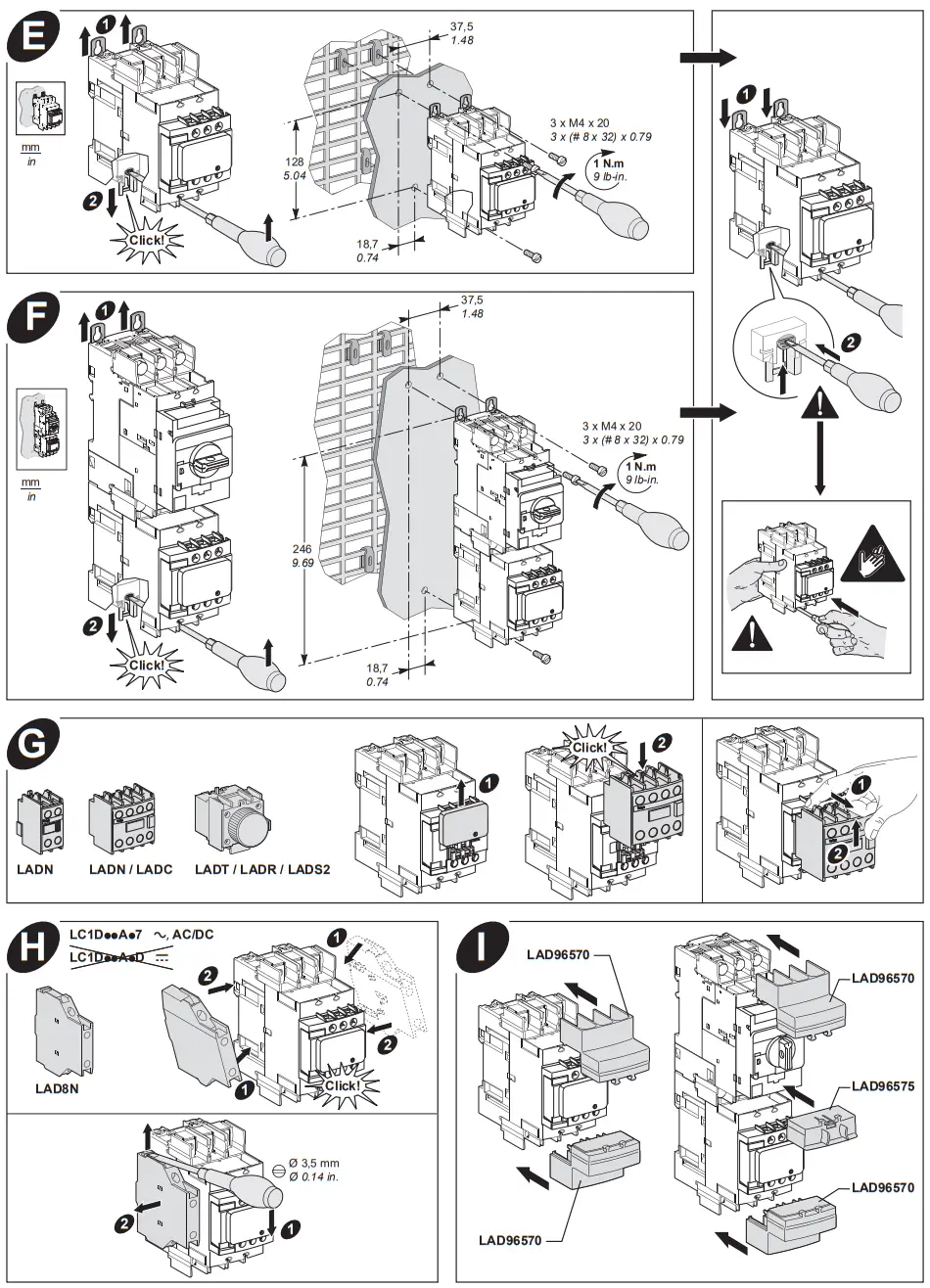

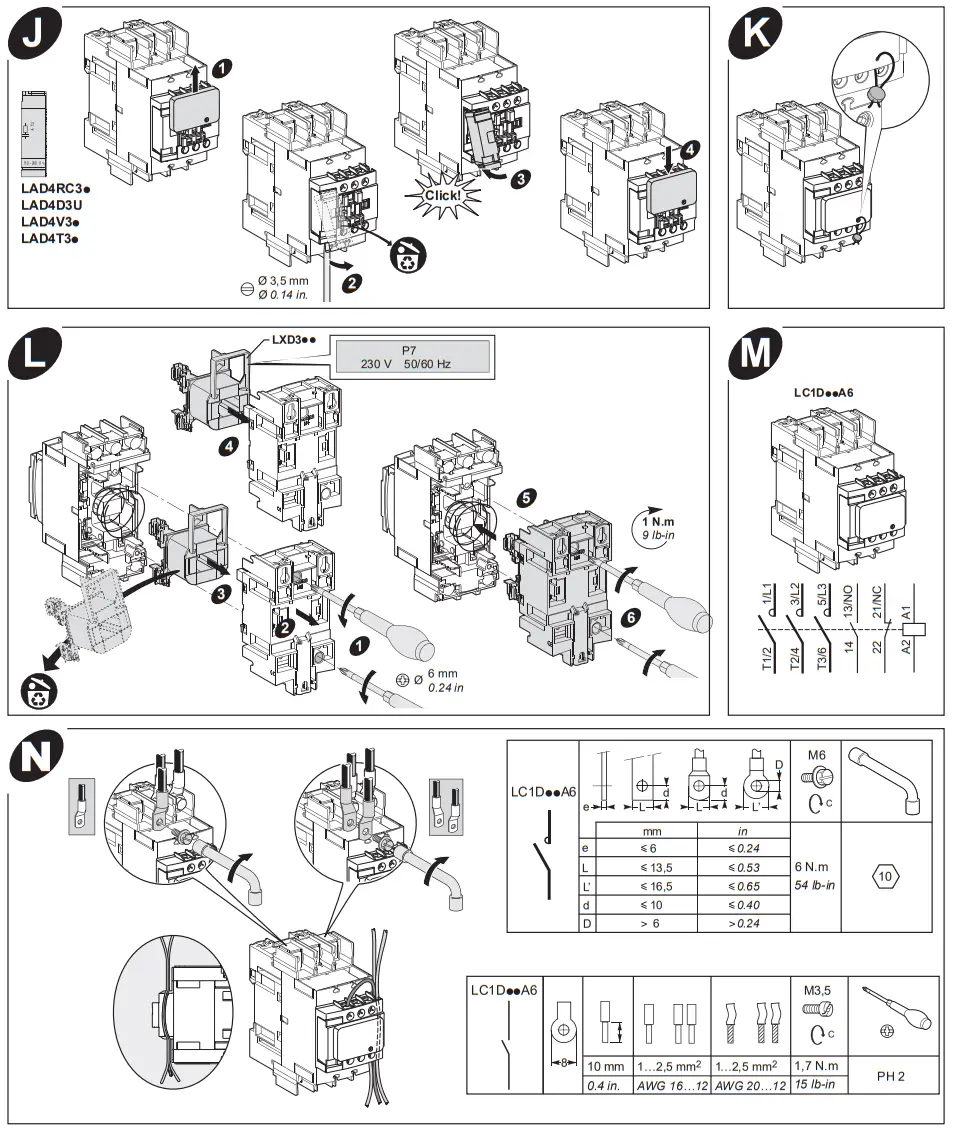

LC1D A6
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
Disconnect all power before servicing equipment.
Failure to follow these instructions will result in death or serious injury.
