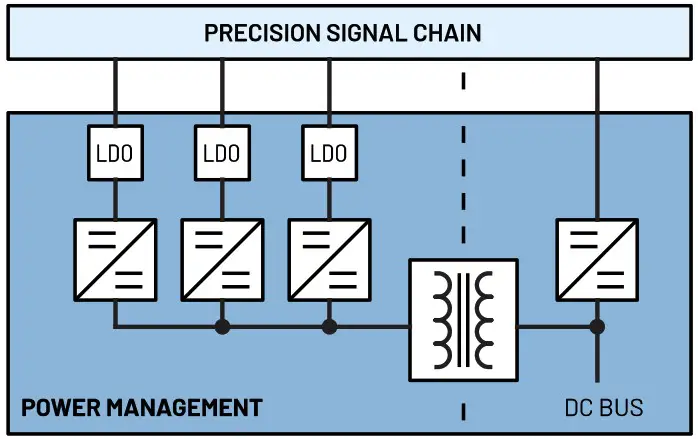

POWER SOLUTIONS FOR PRECISION TECHNOLOGY SIGNAL CHAINS
PRECISION NARROW BANDWIDTH
Fully Integrated Voltage and Current Measurement
Density and Latency Optimized Sensor Ready
Rev. 0 | Jan. 2022
This document is interactive. You can click on any underlined text to navigate through the document.
APPENDIX

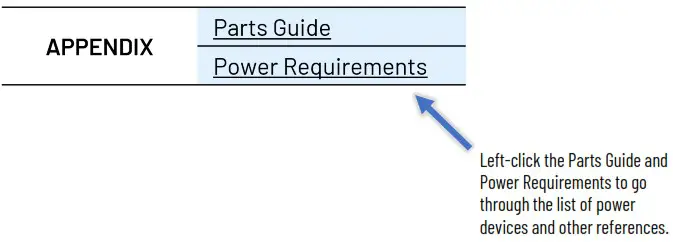

For the resources:

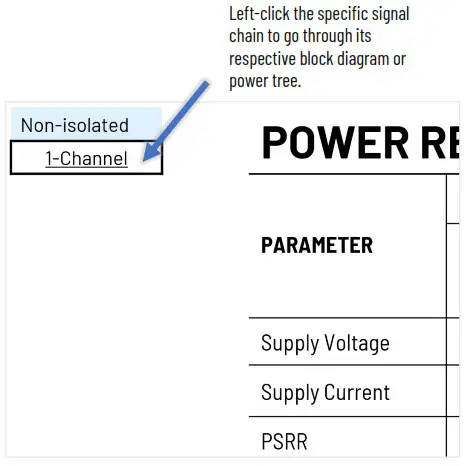

For the individual pages:

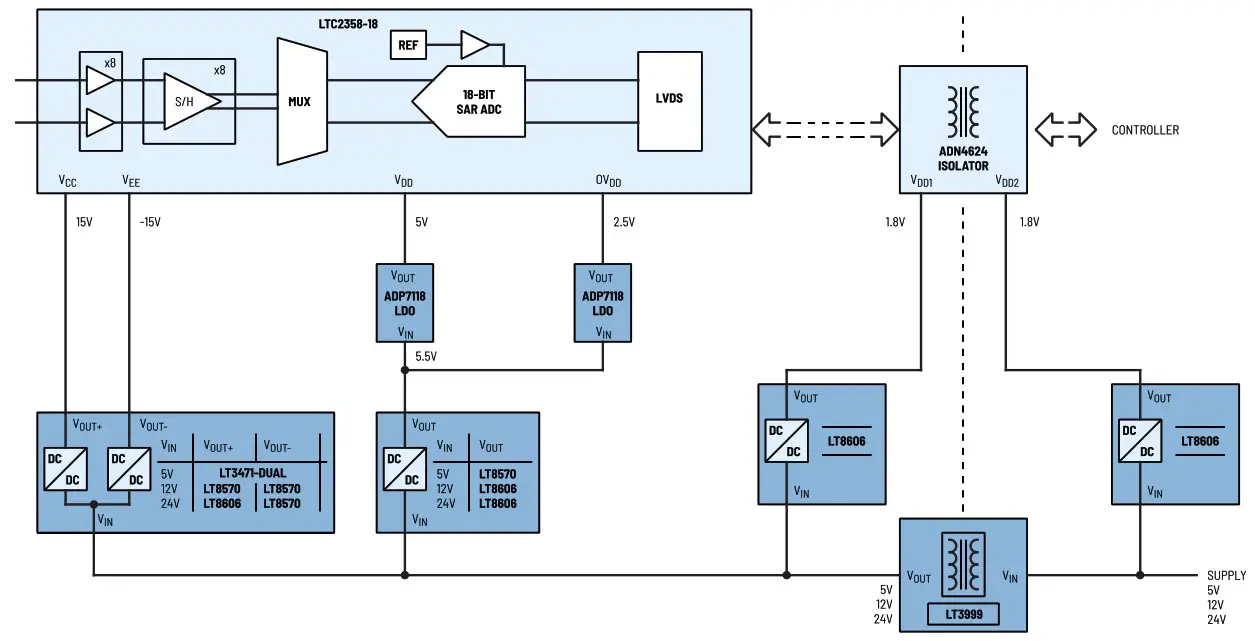

Isolated Multichannel

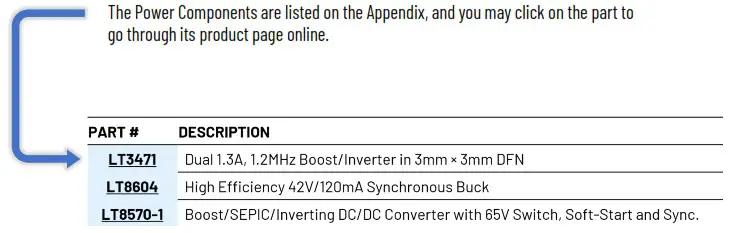

| PART # | DESCRIPTION |
| LT3471 | Dual 1.3A, 1.2MHz Boost/Inverter in 3mm ×3mm DFN |
| LT8606 | 42V, 350mA Synchronous Step-Down Regulator with 2.5μA Quiescent Current |
| LT8570 | Boost/SEPIC/Inverting DC/DC Converter with 65V Switch, Soft-Start, and Sync. |
| LT3999 | Low Noise, 1A, 1MHz Push-Pull DC/DC Driver with Duty Cycle Control |
| ADP7118 | 20V, 200mA, Low Noise, CMOS LDO Linear Regulator |
POWER REQUIREMENTS
| PARAMETER | ADC | Isolation | ||||
| LTC2358-18 | A0114624 | |||||
| VCC | VEE | VDD | OVDD | VDD1 | VDD2 | |
| Supply Voltage | 15 | -15 | 5 | 3. | 2. | 2. |
| Supply Current | 10. | -10. | 18 | 3. | 175 | 175 |
| PSRR (100kHz) | 110 | 90 | 70 | 130 | – | |
Note 1: The supply currents indicated are the maximum quiescent current of the supply rails. For overall full load or short circuit current specifications, refer to the datasheets of the signal chain components.
Note 2: The supply voltages indicated are the values for typical applications.
Note 3: Consult the corresponding datasheets for details on power dissipation if needed.
Note 4: The actual supply current requirement shall be multiplied depending on the number of channels on the signal chain.
