ANALOG DEVICES Generic Signal Chains for Current Measurement Shunt
PRECISION CURRENT SENSING
Generic Signal Chains for Current Measurement Shunt: Common-Mode Voltage Level Up to 18V
USER GUIDE

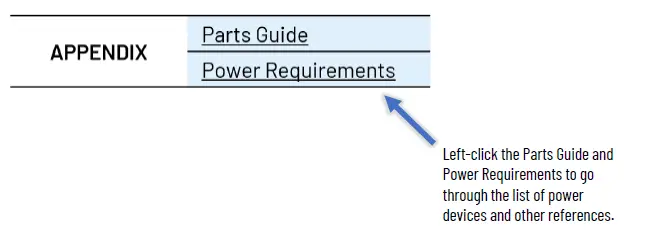

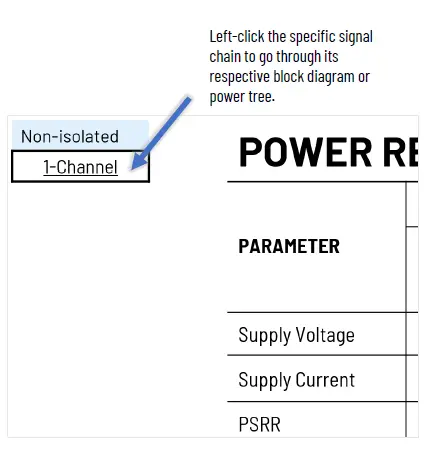

This document is interactive. You can click on any underlined text to navigate through the document

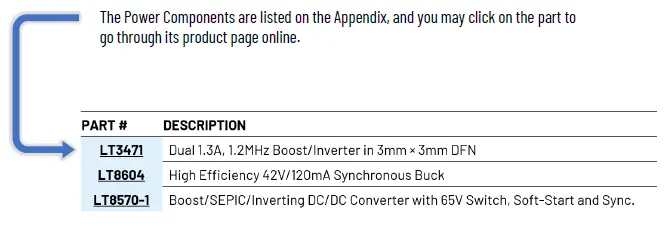

For the resources:
For the individual pages:

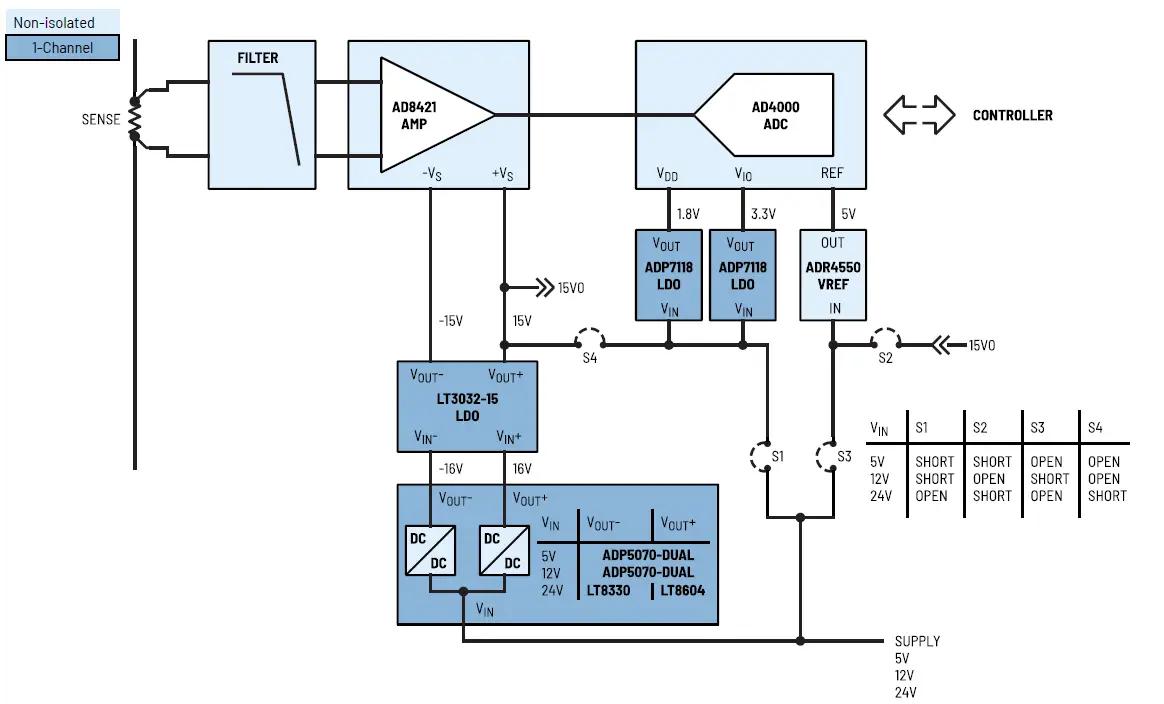

Precision Current Sensing
Generic Signal Chain for Current Measurement
Shunt: Common Mode Voltage Up to 18V
Non-isolated
- 1-Channel
| PART # | DESCRIPTION |
| ADP7118 | 20 V, 200 mA, Low Noise, CMOS LDO Linear Regulator |
| LT3032-15 | Dual 150mA Positive/Negative Low Noise Low Dropout Linear Regulator |
| ADP5070 | 1 A/0.6 A, DC-to-DC Switching Regulator with Independent Positive and Negative Outputs |
| LT8330 | Low IQ Boost/SEPIC/Inverting Converter with 1A, 60V Switch |
| LT8604 | High Efficiency 42V/120mA Synchronous Buck |

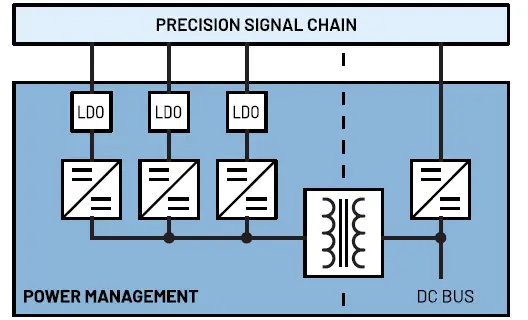

POWER REQUIREMENTS
| PARAMETER | STAGES | Instrumentation Amp | Filter | ADC | Reference | ||
| Part # | AD8421 | – | AD4000 | ADR4550 | |||
| Pin | +VS | -VS | VDD | VIO | IN | ||
| Supply Voltage | V | 15 | -15 | – | 1.8 | 3.3 | 5.1 to 15 |
| Supply Current | mA | 2.6 | 2.6 | – | 5.4 | 0.15 | 0.95 |
| PSRR | dB | 20 (500kHz, G=1) | 50 (500kHz, G=1) | – | 65 (700kHz) | 60 (1MHz) | |
- Note 1:
The supply currents indicated are the maximum quiescent current of the supply rails. For overall full load or short circuit current specifications, refer to the datasheets of the signal chain components. - Note 2:
The supply voltages indicated are the values for typical applications. - Note 3:
Consult the corresponding datasheets for details on: (1) power supply rejection ratio (PSRR) and (2) power dissipation. - Note 4:
The actual supply current requirement shall be multiplied depending on the number of channels on the signal chain.
