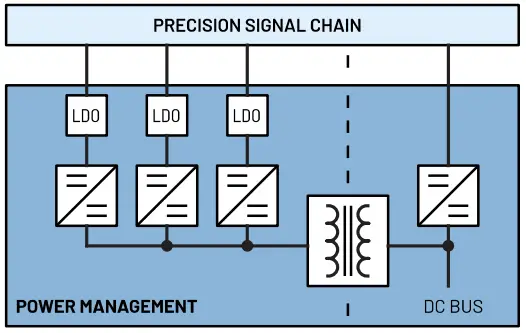

POWER SOLUTIONS FOR PRECISION TECHNOLOGY SIGNAL CHAINS

PRECISION CURRENT SENSING

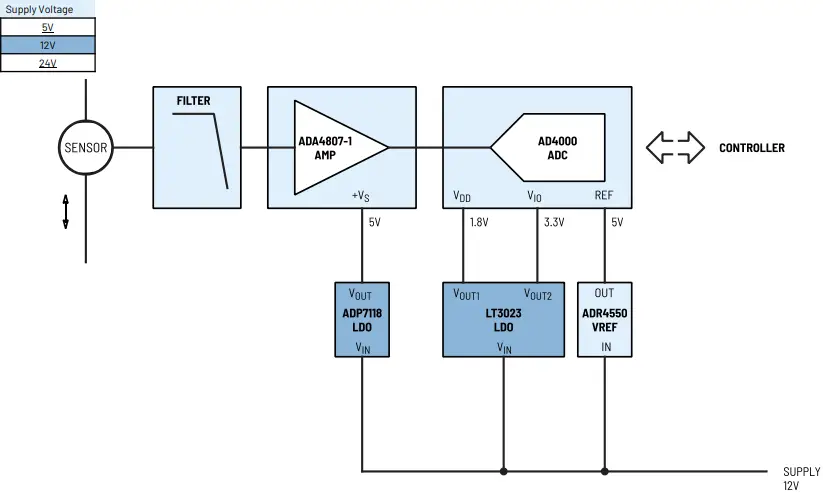

Generic Signal Chains for Current Measurement Contactless Sensing – Hall 5V Output

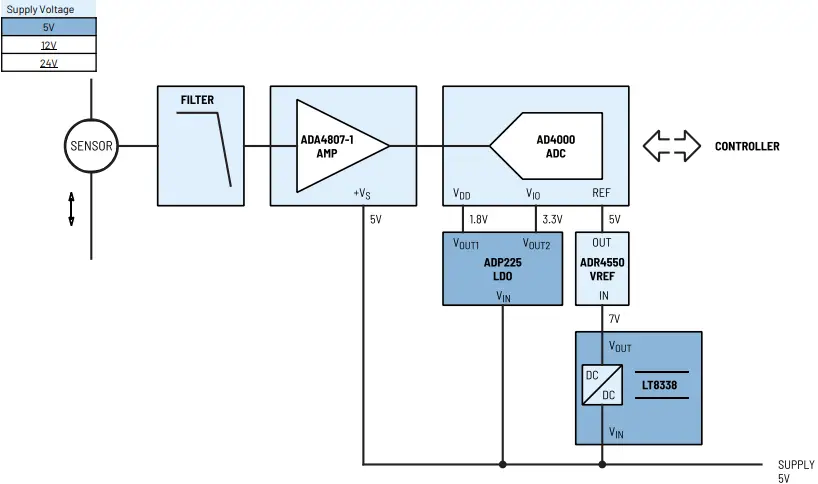

GENERIC SIGNAL CHAINS FOR CURRENT MEASUREMENT	Input Voltage	5V
		12V

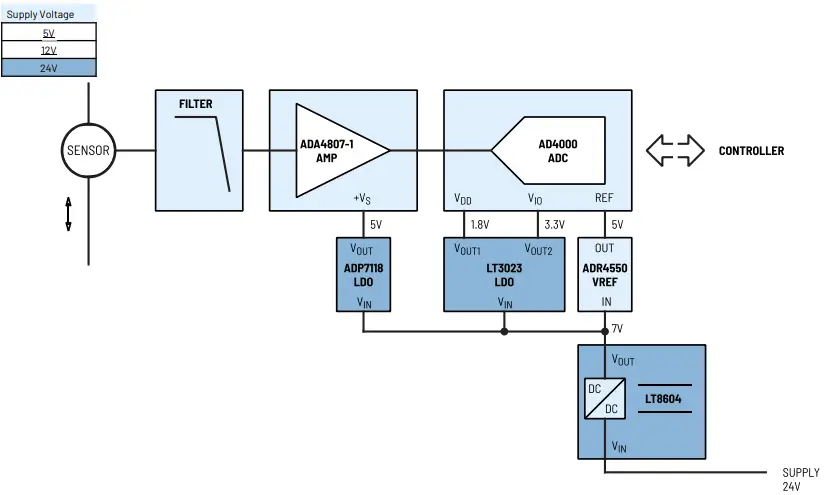

		24V

APPENDIX	Parts Guide
	Power Requirements

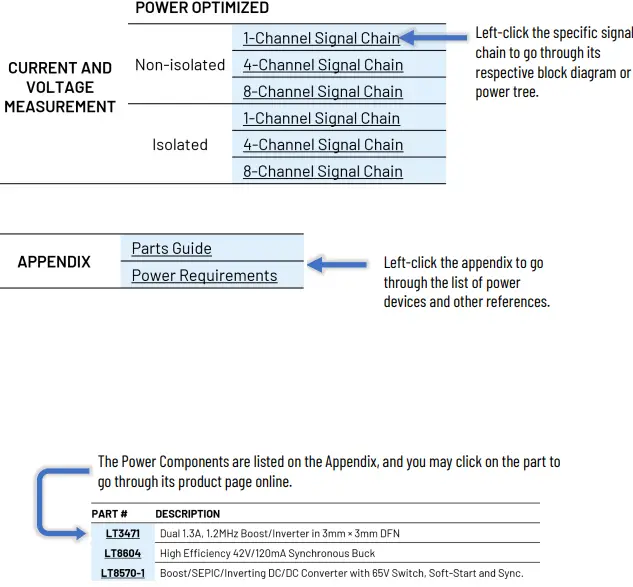

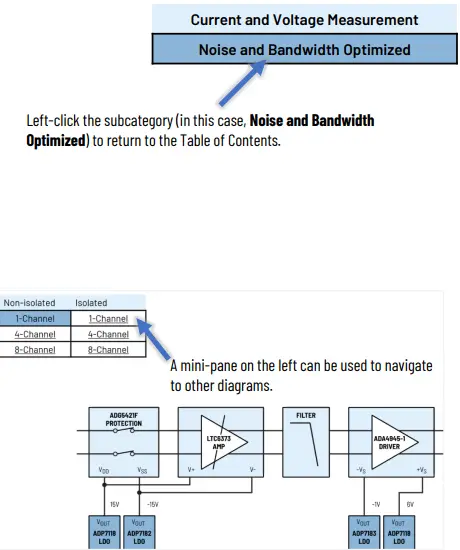

This document is interactive. You can click on any underlined text to navigate through the document.

For the table of contents and resources

For the individual pages

PART #	DESCRIPTION
ADP7118	20 V, 200 mA, Low Noise, CMOS LDO Linear Regulator
ADP225	Dual, 300 mA Output, Low Noise, High PSRR Voltage Regulators, Adj. Output: 0.5 V to 5 V
LT3023	Dual 100mA, Low Dropout, Low Noise, Micropower Regulator
LT8338	40V, 1.2A Micropower Synchronous Boost Converter with Pass-Thru
LT8604	High Efficiency 42V/120mA Synchronous Buck

Note 1: The supply currents indicated are the maximum quiescent current of the supply rails. For overall full load or short circuit current specifications, refer to the datasheets of the signal chain components.
Note 2: The supply voltages indicated are the values for typical applications.
Note 3: Consult the corresponding datasheets for details on: (1) power supply rejection ratio (PSRR) and (2) power dissipation.
Note 4: The actual supply current requirement shall be multiplied depending on the number of channels on the signal chain.
