Evaluating the ADCA5190 5 MHz to 1800 MHz Broadband CATV Amplifier

FEATURES

• 2-layer evaluation board with heat sink
• 75 Ω N-type RF male connectors

EVALUATION KIT CONTENTS

• ADCA5190-EVALZ evaluation board

EQUIPMENT NEEDED

• RF signal generator
• RF spectrum analyzer
• DOCSIS signal generator
• DOCSIS signal analyzer
• RF network analyzer
• 8 V, 500 mA power supply

GENERAL DESCRIPTION

The ADCA5190-EVALZ evaluation board consists of a 2-layer printed circuit board (PCB) fabricated from a 62 mil laminate mounted to an aluminum heat sink. The heat sink assists in providing thermal relief to the device as well as mechanical support to the PCB. Mounting holes on the heat sink allow attachment to larger heat sinks for improved thermal management.

The ADCA5190-EVALZ is populated with components to interface the IC to a typical cable TV (CATV) application. J1 (RF_IN) and J2 (RF_OUT) are 75 Ω, N-type, male coaxial connectors. The respective RF traces of the ports have a 75 Ω characteristic impedance. The ADCA5190-EVALZ is populated with components suitable for use over the −40°C to +100°C operating temperature range of the ADCA5190.
Access to the supply voltage (VDD) and GND is through a 3-pin header (P1) on the ADCA5190-EVALZ.
RF traces are 75 Ω microstrip at the input and output RF connectors. The package ground leads and the exposed paddle connect directly to the ground plane. Multiple vias connect the lead frame chip scale package (LFCSP) ground paddle to the bottom ground plane to provide adequate electrical conduction and thermal con-duction to the heat sink. The transfer of heat from the ADCA5190-EVALZ ground to the heat sink is further facilitated by the insertion of a piece of indium approximately the footprint of the LFCSP between the ADCA5190-EVALZ bottom and the heat sink. There are no components on the bottom side of the PCB.
Consult the ADCA5190 data sheet in conjunction with this user guide when using the ADCA5190-EVALZ evaluation board.

ADCA5190-EVALZ PHOTOGRAPH (TOP SIDE)

Figure 1. ADCA5190-EVALZ Photograph (Top Side)

OPERATING THE ADCA5190-EVALZ
An 8 V, 500 mA power supply is required to provide the bias to the ADCA5190 on the ADCA5190-EVALZ. Connect the positive terminal of the 8 V power supply to the VDD pin on P1 and the ground terminal to the GND pin.

The bias current (IDD) of the ADCA5190 can be controlled by adjusting the voltage of the VADJ pin on connector P1. Figure 2 shows the typical IDD vs. VADJ voltage. Setting VADJ is optional, and the pin can be left floating. If VADJ is left floating, see the ADCA5190 data sheet for the typical dc supply current to expect
when powering up the VDD supply.

Figure 2. IDD vs. VADJ

RECOMMENDED BIAS SEQUENCES

During Power-Up

The recommended bias sequence during power-up follows:

1. Set VADJ to ≤0 V to limit IDD at power-up. Note that VADJ is optional and can be left floating to have the typical IDD.
2. Set VDD to 8.0 V.
3. Increase the VADJ setting as needed to adjust IDD to the desired level. See Figure 2.
4. Apply the RF signal.

During Power-Down
The recommended bias sequence during power-down follows:

1. Turn off the RF signal.
2. Set VADJ to 0 V.
3. Set VDD to 0 V.

Table 1. Header Connections

RF Measurements
To evaluate the ADCA5190, connect a 75 Ω RF signal source to the N-type, male connector (J1), which can be a single-tone or multitone source for distortion measurements, or a wideband data over cable service interface specification (DOCSIS) signal source for analyzing modulation error ratio (MER) or bit error rate (BER) measurements. The input power must be <51 dBmV to produce an output power of <70 dBmV to support DOCSIS 3.0, DOCSIS 3.1, and DOCSIS 4.0 applications. The 75 Ω RF output signal is available on the N-type, male connector (J2) and can be interfaced directly to instruments (such as a spectrum analyzer or vector network analyzer) with a 75 Ω input impedance.

EVALUATION BOARD SCHEMATIC AND ASSEMBLY DRAWINGS

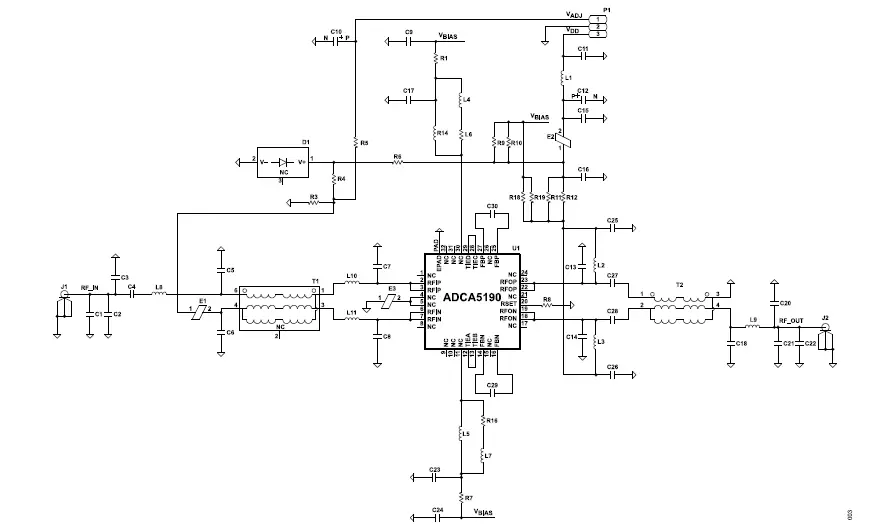

Figure 3. ADCA5190-EVALZ Evaluation Board Schematic Figure 4. ADCA5190-EVALZ Assembly Drawing (Top Side)

EVALUATION BOARD SCHEMATIC AND ASSEMBLY DRAWINGS

Figure 5. ADCA5190-EVALZ Assembly Drawing (Bottom Side, No Components)

EVALUATION BOARD SCHEMATIC AND ASSEMBLY DRAWINGS

ADCA5190-EVALZ ASSEMBLY INFORMATION
The PCB for the ADCA5190-EVALZ is assembled using normal manufacturing practices, excluding the J1 and J2 connectors, and the custom external aluminum heat sink. Once the PCB is assembled, it is mounted with 10 screws to the external heat sink as shown in Figure 6. The transfer of heat from the ADCA5190-EVALZ ground to the heat sink is enhanced by the insertion of a thin sheet of indium cut to approximately the footprint of the ADCA5190 and located between the via array on the bottom of the PCB (underneath the ADCA5190) and the heat sink. The J1 and J2 connectors are then mounted to the heat sink using two screws for each (see Figure 7). Then, the center conductor for the RF connectors is soldered to the PCB. Once complete, the ADCA5190-EVALZ is ready for testing.

Figure 6. ADCA5190-EVALZ Top Side, Fully Assembled

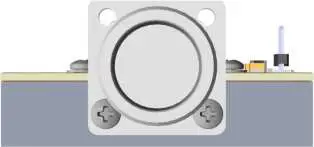

Figure 7. ADCA5190-EVALZ Side View

ORDERING INFORMATION

BILL OF MATERIALS

Table 2. Bill of Materials1

Reference Designator  Value    Tolerance   Minimum Rating   Footprint   Suggested Vendor   Suggested Part Number

1 N/A means not applicable.
