PDR 922/522 EL
Elektrobeheizt
Installation notes
Installation requirements
The tumble dryer must only be installed and commissioned by Miele Customer Service Department or an authorized dealer.
The tumble dryer must be installed in accordance with all relevant regulations and standards.The dryer must only be operated in a room that has sufficient ventilation and which is frost-free.
Electrical connection
The electrical connection must be established by a qualified electrician. The electrical connection may only be made to an electrical system provided in accordance with all appropriate local and national legislation, regulations, and guidelines. Please also observe the regulations set out by your insurance provider and energy supplier, accident prevention regulations, as well as recognized codes of practice.Reliable and safe operation of this tumble dryer is only ensured if it has been connected to the mains electricity supply.
The required supply voltage, power rating, and fuse rating can be found on the data plate on the tumble dryer. Ensure that the supply voltage matches the voltage quoted on the
data plate before establishing the electrical connection to the tumble dryer.
Connection to a supply voltage other than the one quoted on the data plate can damage the tumble dryer if the voltage is too high.
If more than one voltage is specified on the data plate, the tumble dryer can be converted for connection to the relevant input voltage. This conversion must be performed by the Miele Customer Service Department or by an authorized dealer. During the conversion, the wiring instructions given on the wiring diagram must be followed.
The tumble dryer can either be hard-wired or connected using a plug-and-socket connection in accordance with IEC 60309-1. For a hard-wired connection, an all-pole isolation device must be available at the installation site.
An isolation device is a switch that ensures a contact opening of more than 3 mm. These include circuit breakers, fuses, and contactors (IEC/EN 60947).
If the mains supply cannot be permanently disconnected, the isolation device (including plug and socket) must be safeguarded against being switched on either unintentionally or without authorization.
Tip: We recommend connecting the tumble dryer to the power supply via a plug and socket so that it is easier to conduct electrical safety checks (e.g. during maintenance or
repair work). The tumble dryer must not be connected to devices such as timers which would switch it off automatically.
If local regulations require that a residual current device (RCD) is installed, a type B residual current device (sensitive to universal current) must be used.
If local and national installation specifications require equipotential bonding, good galvanic contact must be guaranteed. Equipotential bonding must have an earth current rating > 10 mA.
Air intake/exhaust air
The tumble dryer may only be operated when the ducting has been connected properly and the room is sufficiently ventilated.Accessory parts may only be fitted when expressly approved by Miele. If other parts are used, warranty, performance, and product liability claims will be invalidated.
PDR 922/522, electrically heated
Dimensions
Dimensions quoted in millimeters

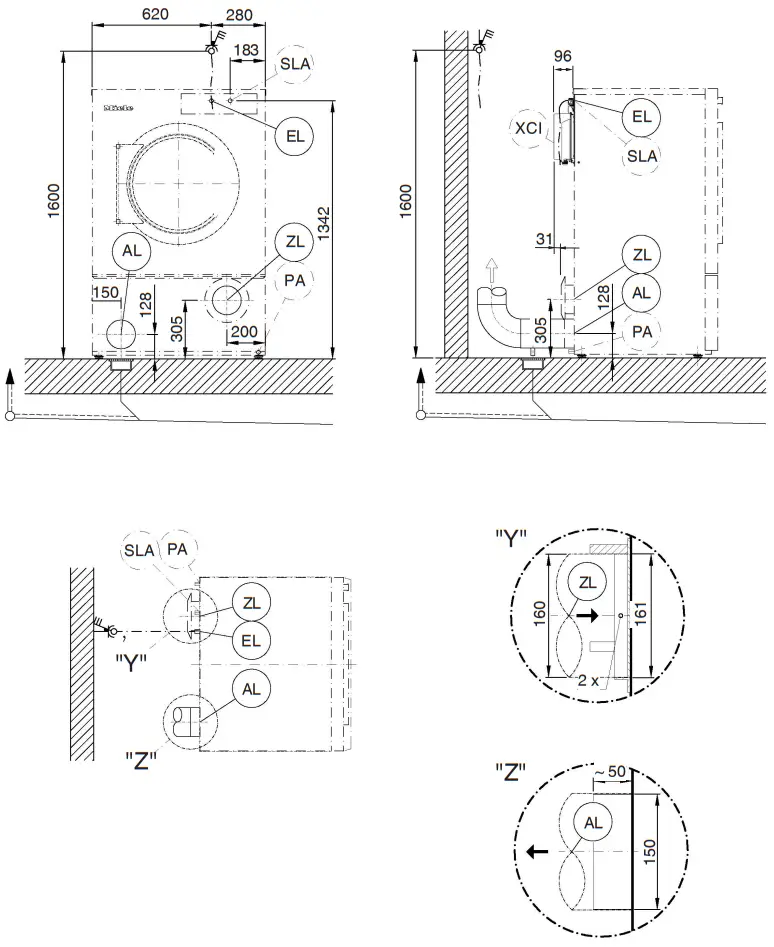

Installation
Measurements in millimeters
EL Electrical connection
AL Exhaust duct
ZL Air intake
PA Connection for equipotential bonding (optional)
SLA Peak-load connection (optional)
XCI XCI Box/Connector Box (optional)

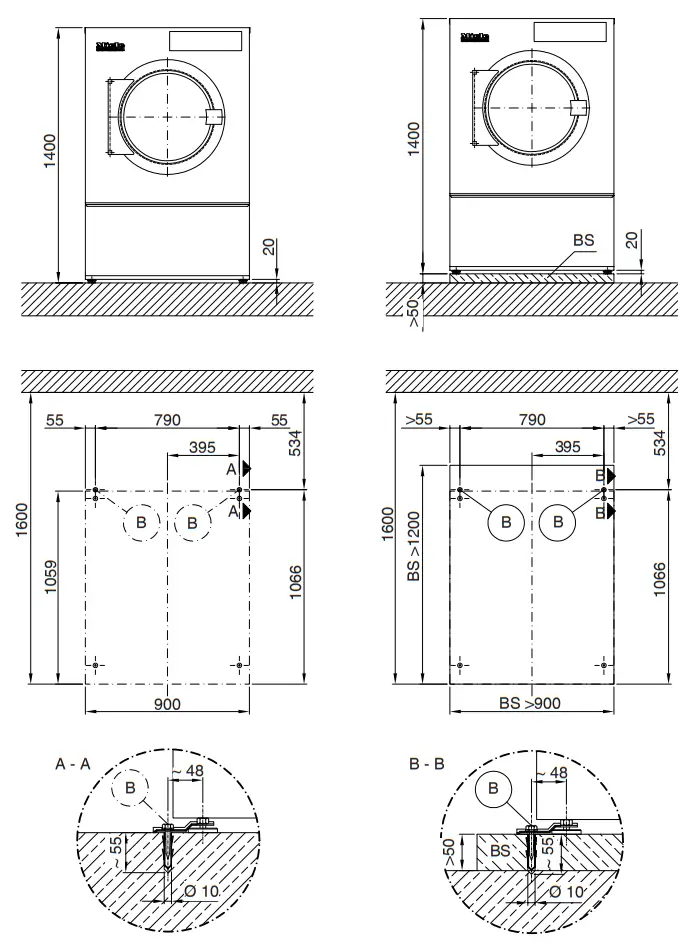

Installation (standard/on concrete plinth)
Dimensions quoted in millimeters
B Drill hole/anchor point
BS Concrete plinth

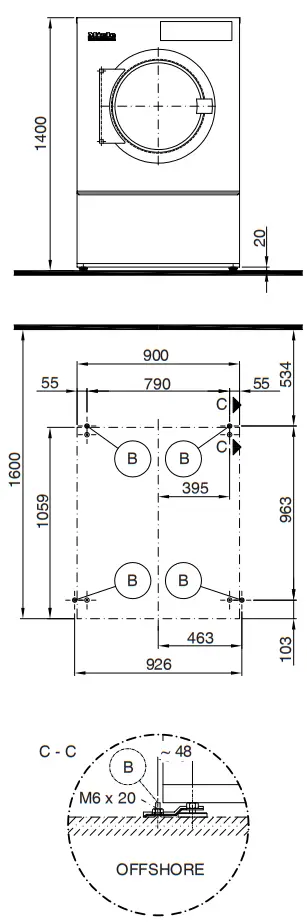

Installation (offshore)
Dimensions quoted in millimeters
B Drill hole/anchor point
Technical data
Voltage variants/electrical data
Voltage variant 1
| Standard connection | |
| Supply voltage | 3N AC 400 V |
| Frequency | 50/60 Hz |
| Power rating | 23.5 kW |
| Fuse rating (on-site) | 3×50 A |
| The minimum cross-section for the connection cable | 5×10 mm² |
| Cable gland | M40 |
Voltage variant 2
| Standard connection | |
| Supply voltage | 3 AC 230 V |
| Frequency | 50/60 Hz |
| Power rating | 23.5 kW |
| Fuse rating (on-site) | 3×63 A |
| The minimum cross-section for the connection cable | 4×16 mm² |
| Cable gland | M40 |
Exhaust air
| The maximum nominal volume flow rate in extraction mode (PDR 9xx only) | 960 m³/h |
| Maximum nominal volume flow rate (PDR 5xx only) | 740 m³/h |
| The maximum permitted pressure loss | 350 Pa |
| Connector on machine side (external diameter) | 150 mm |
| Connection pipe provided on-site (internal diameter) | 150 mm |
| Maximum exhaust air temperature | 80 °C |
| As relative humidity inside the exhaust ducting can be as high as 100 %, suitable measures must be taken to prevent a backflow of condensate into the machine. | |
Air intake
| Standard connection: air intake from the installation site Recommended free air intake cross-section into the room: (equivalent to 3 times the exhaust air cross-section of a machine). There must be sufficient air intake to the installation site to match the air outlet volume. | 531 cm² |
| Alternative connection: air intake connection directly from outdoors Connection sleeve on machine side (internal diameter) Connection pipe provided on-site (external diameter) | 161 mm 160 mm |
| Removing the protective cover exposes live parts. For safety reasons, a pipe must be installed from the tumble dryer’s central fresh air intake (over a minimum length of 900 mm) and secured with 2 screws. |
Equipotential bonding (optional)
| Connection with male thread | 10×35 mm |
| Washers and nuts | M10 |
| Accessories for equipotential bonding are not supplied and need to be ordered separately. | |
Peak-load negotiation (optional)
| Supply voltage for control contacts | AC 230 V |
| The minimum cross-section for the connection cable | 5×1.5 mm² |
| Miele recommends using a flexible connection cable with an additional isolation option to establish the connection. The isolator should remain visible once the tumble dryer has been installed and must be freely accessible. | |
Machine data
| Machine width, total | 906 mm |
| Machine height, total | 1400 mm |
| Machine depth, total | 1162 mm |
| Niche width | 1250 mm |
| Recommended wall spacing (up to the front edge of the machine) | 1600 mm |
| Minimum wall spacing (up to the back edge of the lid) | 500 mm |
| Packaging width | 1090 mm |
| Packaging height | 1526 mm |
| Packaging depth | 1254 mm |
| Maximum gross volume | 2085.8 l |
| Maximum gross weight | 213.4 kg |
| Maximum net weight | 198.9 kg |
| Max. floor load in operation | 2275 N |
| Diameter of the exhaust duct | 150 mm |
| Drum diameter | 850 mm |
| Diameter of drum opening | 520 mm |
| Drum depth | 742 mm |
| Drum volume | 400 l |
| Diameter of the door opening | 520 mm |
| Maximum door opening angle | 180° |
| Emission sound pressure level | 62 dB(A) re 20 µPa |
| Sound power level | 70 |
| Average heat dissipation rate into the room | 2.6 MJ/h |
| Permissible ambient temperature range | 2–40 °C |
Fixing options
Fixing without plinth
| Quantity | Screw size | |
| Tensioning strips | 2 | |
| Wood screws DIN 571 (Ø × length) | 2 | 6×40 mm |
| Plugs (Ø × length) | 2 | 10×50 mm |
| If the tumble dryer is being installed without a plinth, fixing it in place is recommended. Fastenings for floating screed must be supplied by the customer on-site. | ||
Fixing to a concrete plinth
Quantity | Screw size | |
| Tensioning strips | 2 | |
| Wood screws DIN 571 (Ø × length) | 2 | 6×40 mm |
| Plugs (Ø × length) | 2 | 10×50 mm |
| If the tumble dryer is being fixed to a concrete plinth on-site, fixing in place is absolutely essential. Fastenings for floating screed must be supplied by the customer on-site. | ||
Options/Accessories
Concrete base (on-site)
| Minimum width | 900 mm |
| Recommended height | 100 mm |
| Minimum height | 50 mm |
| Minimum depth | 1200 mm |
| The quality of the concrete and its strength must be assessed according to the machine load. The on-site concrete plinth must be fixed adequately to the floor. | |
