Miele logo

Installation Plan
PDR 908 HP

Heat-Pump Dryer

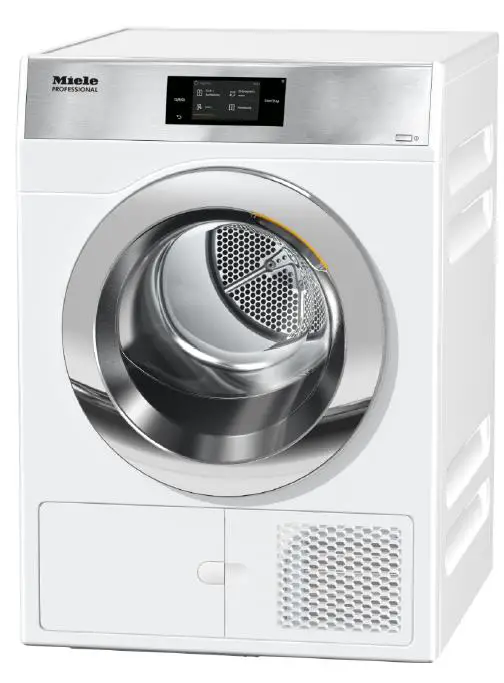

Miele PDR 908 HP Heat-Pump Dryer

Always read the operating and installation instructions before setting up, installing, and commissioning the machine.
This prevents both personal injury and damage to the machine.

Legend:

Connection requiredConnection requiredConnection optionalConnection optional or required,
depending on model
ALVentedKLZCooling air intake
ASKCondensate drain hosePAEquipotential bonding and grounding
BMachine anchoringSLAPeak-load connection
ELElectrical connectionAPCL SSTClosed plinth
FMachine feet, adjustableAPCL OBOpen plinth
KGPayment systemAPCL 001Washer-dryer stacking kit
KGAPayment system connectionXKMCommunication module
KLACooling air ventZLAir intake

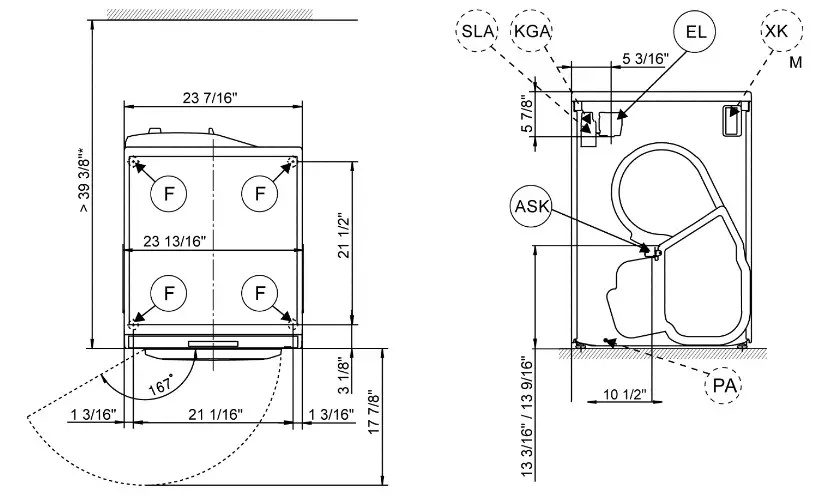

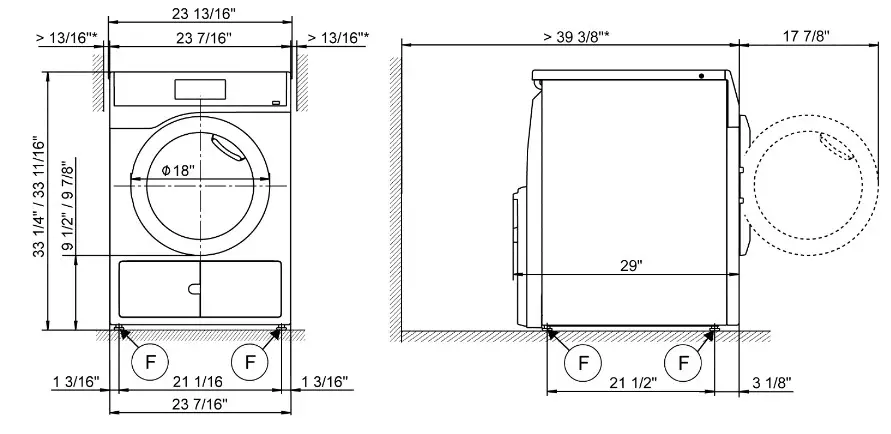

Machine dimensions – measurements in inches-

* The distances between the machine and the wall are recommendations to help make it easier to carry out service work. If installation space is limited, the machine can also be pushed up against the wall.Miele PDR 908 HP Heat-Pump Dryer - Machine dimensionsMiele PDR 908 HP Heat-Pump Dryer - Machine dimensions 2

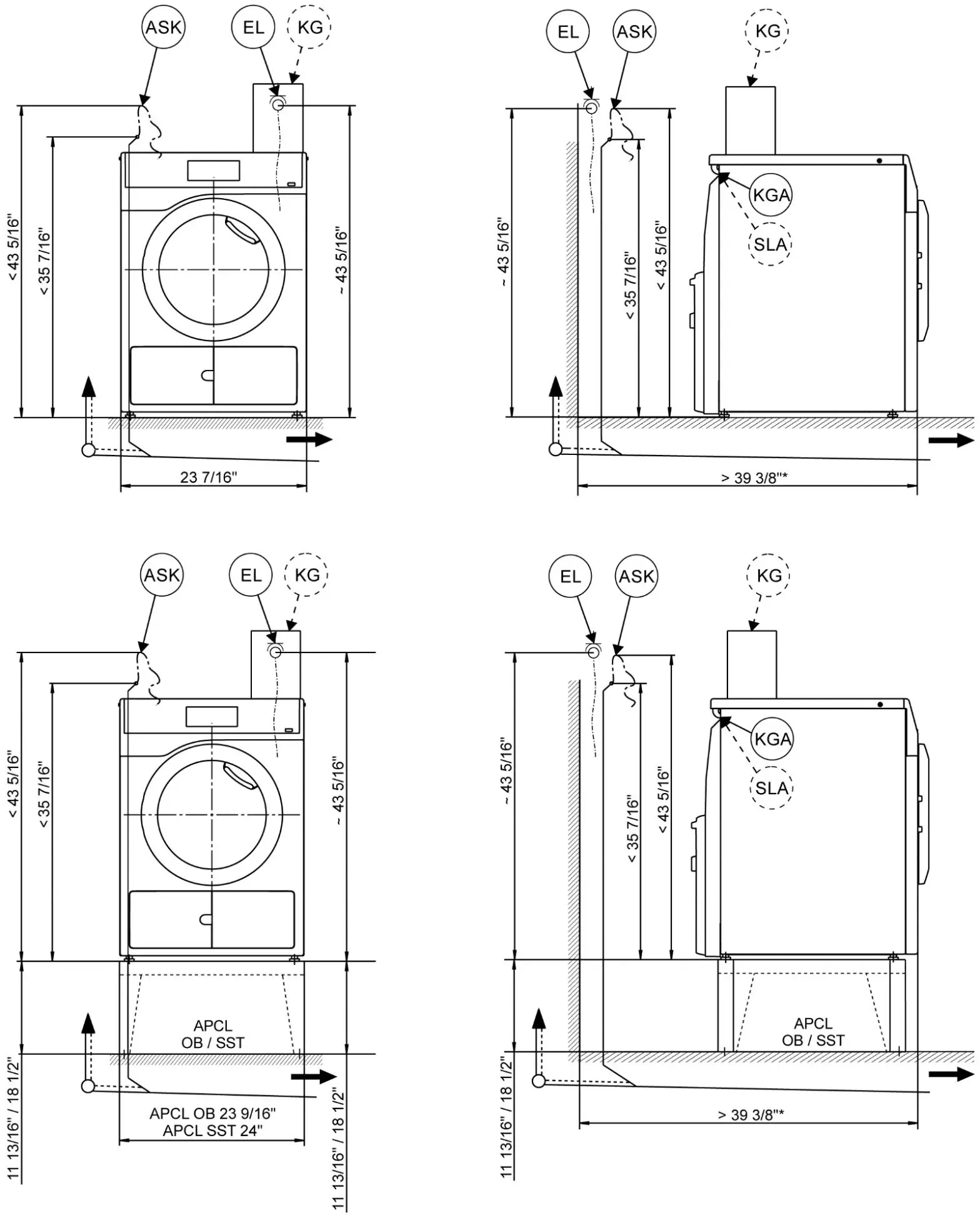

Installation -measurements in inches-

* The distances between the machine and the wall are recommendations to help make it easier to carry out service work. If installation space is limited, the machine can also be pushed up against the wall.Miele PDR 908 HP Heat-Pump Dryer - Installation

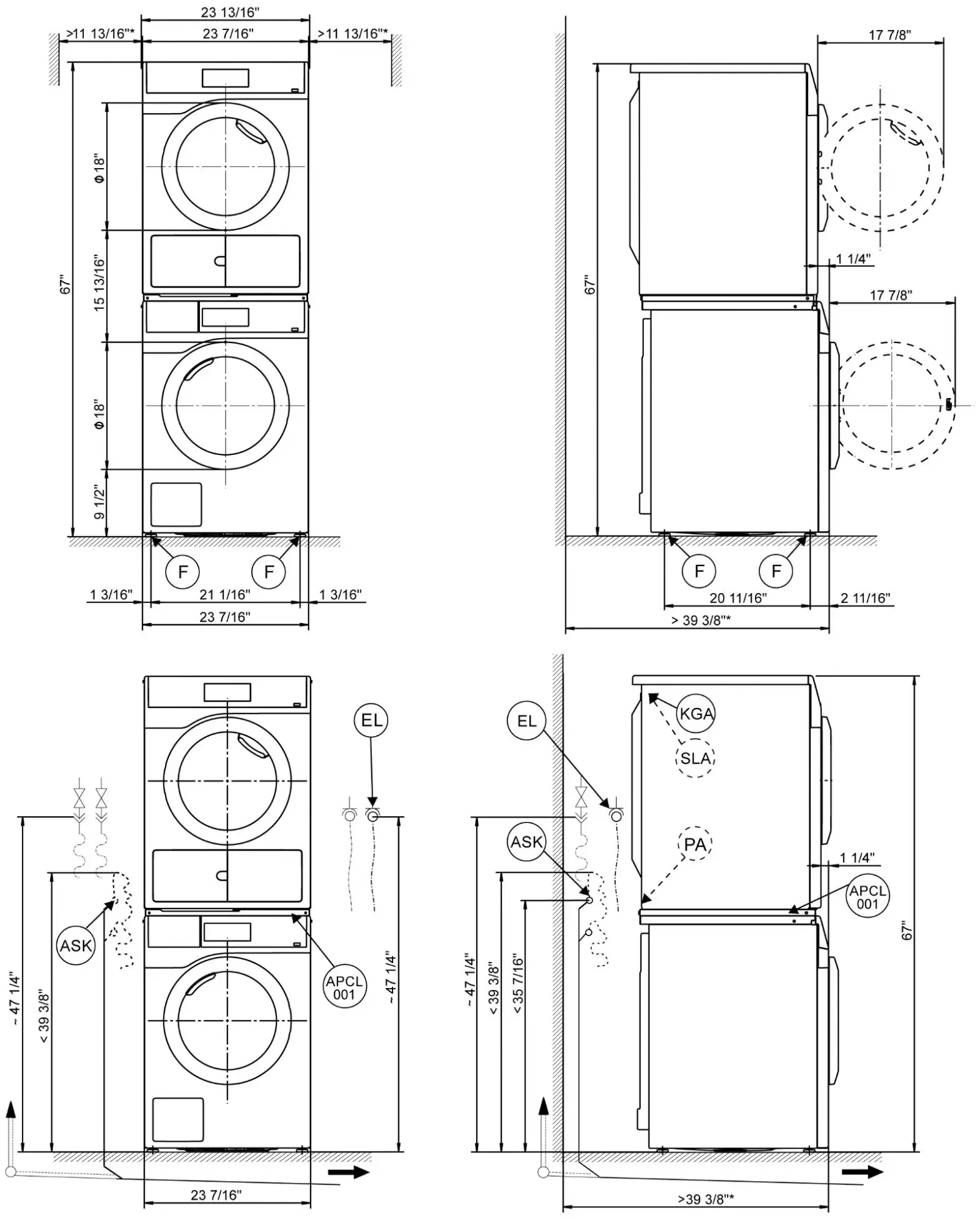

Washer-dryer stack -measurements in inches-

* The distances between the machine and the wall are recommendations to help make it easier to carry out service work. If installation space is limited, the machine can also be pushed up against the wall.Miele PDR 908 HP Heat-Pump Dryer - Washer-dryer stack

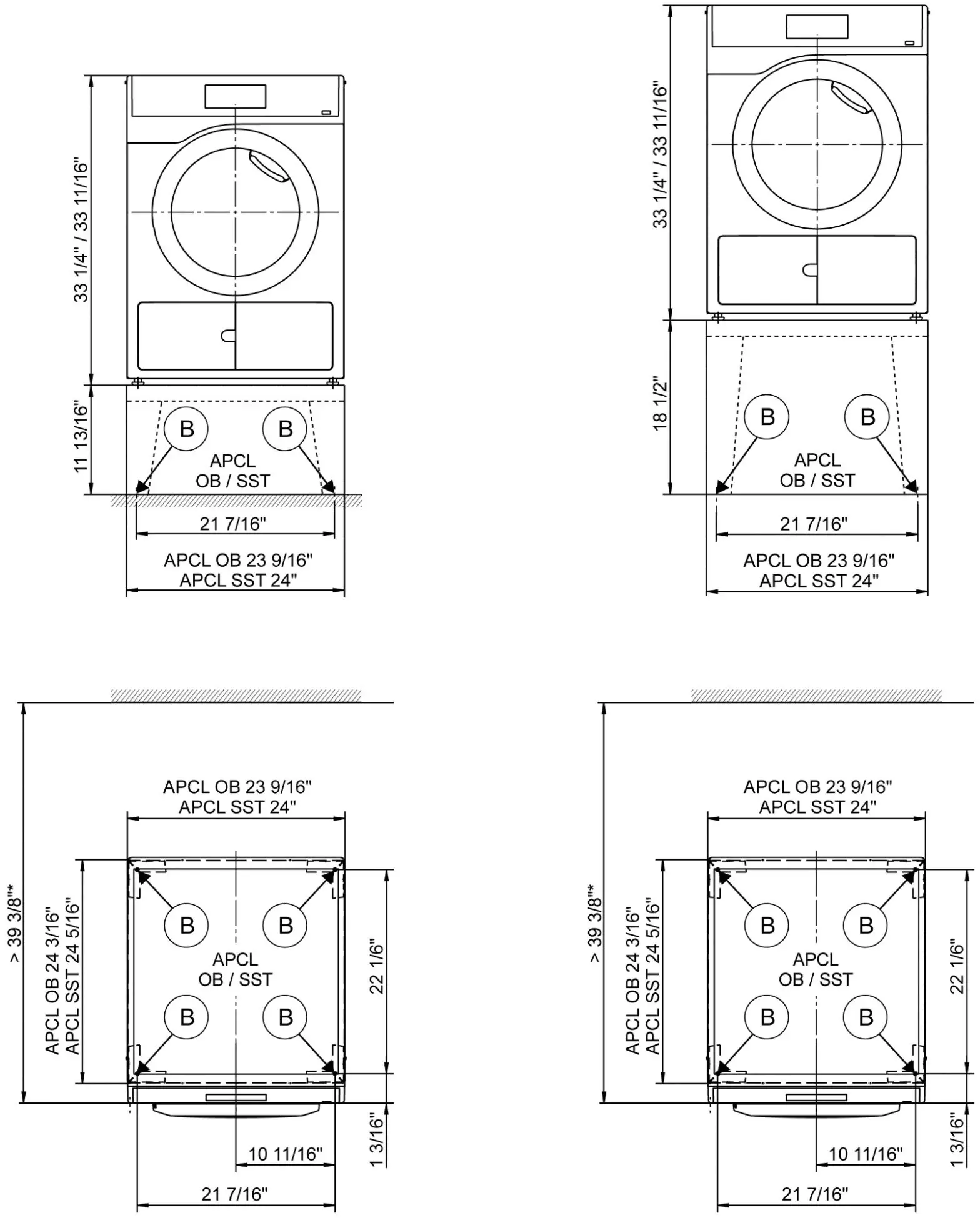

Installation -measurements in inches-
* The distances between the machine and the wall are recommendations to help make it easier to carry out service work. If installation space is limited, the machine can also be pushed up against the wall.Miele PDR 908 HP Heat-Pump Dryer - Installation 2

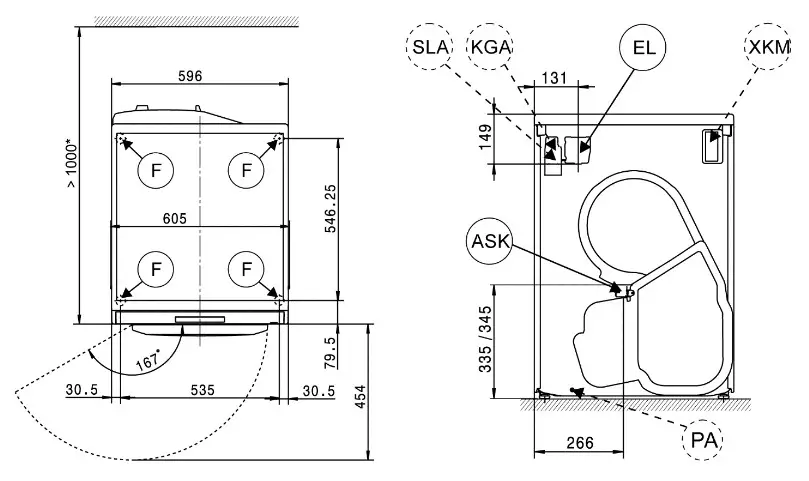

Machine dimensions – measurements in millimeters-

* The distances between the machine and the wall are recommendations to help make it easier to carry out service work. If installation space is limited, the machine can also be pushed up against the wall.Miele PDR 908 HP Heat-Pump Dryer - Machine dimensions 3Miele PDR 908 HP Heat-Pump Dryer - Machine dimensions 4

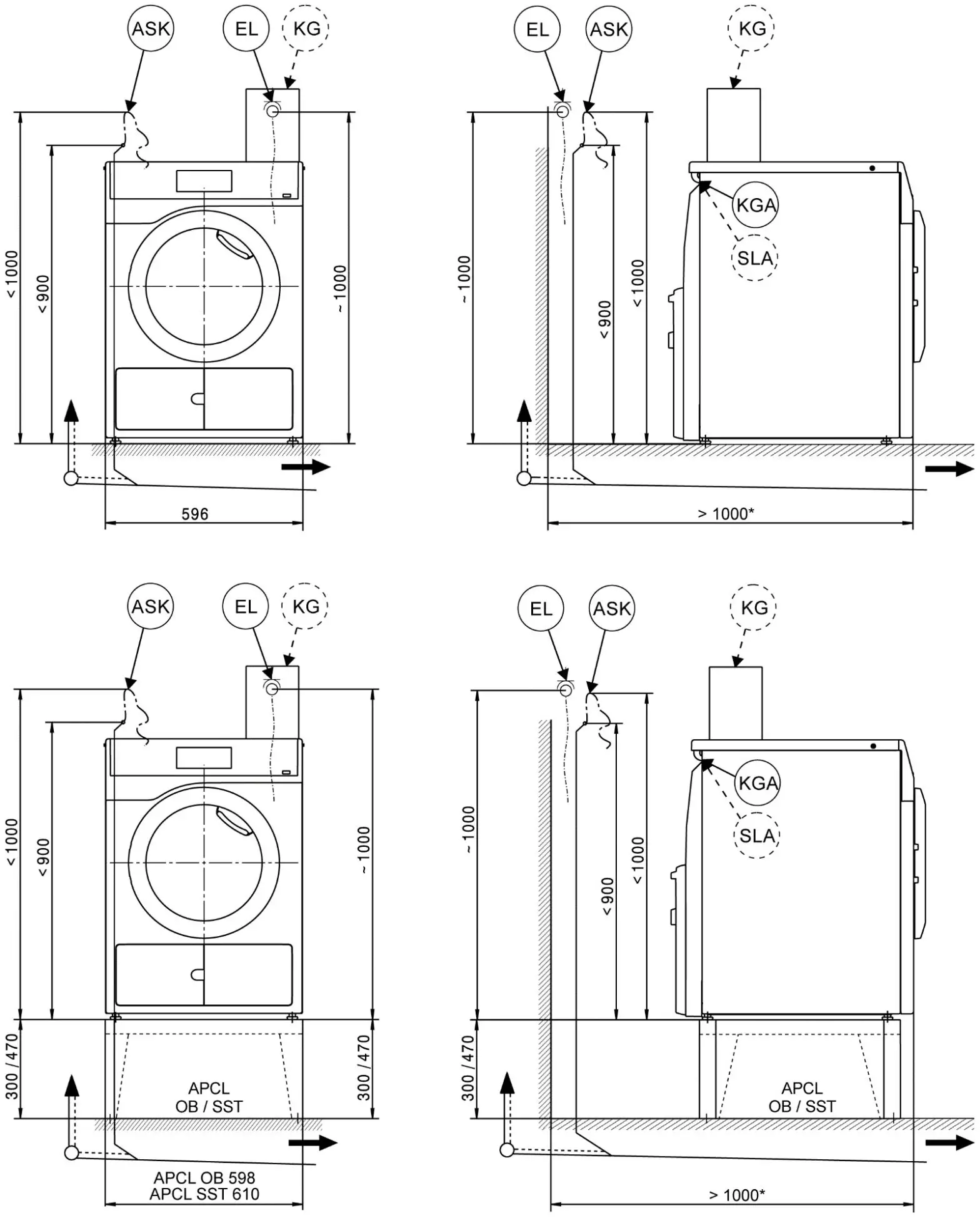

Installation -measurements in millimeters-

* The distances between the machine and the wall are recommendations to help make it easier to carry out service work. If installation space is limited, the machine can also be pushed up against the wall.Miele PDR 908 HP Heat-Pump Dryer - Installation 3

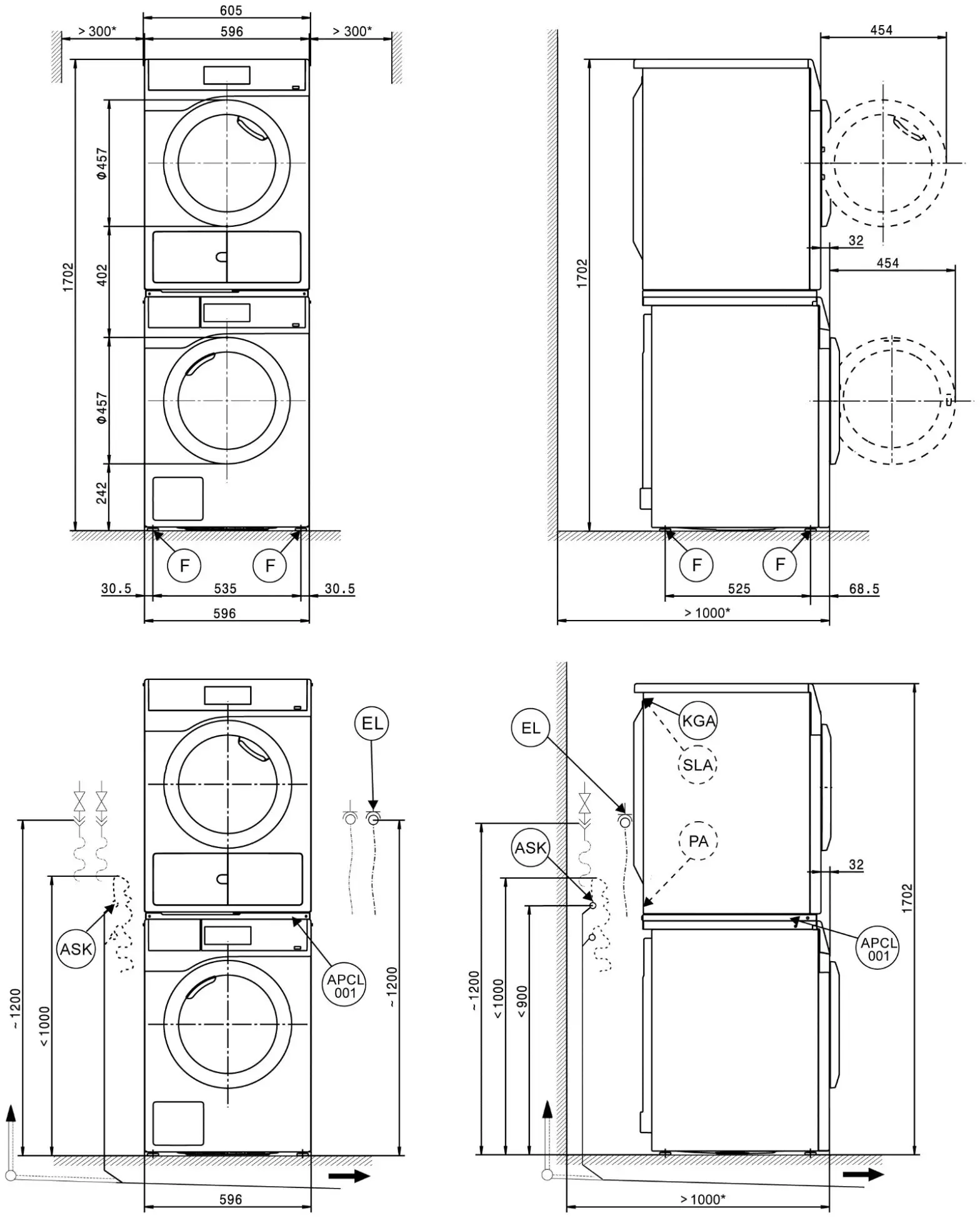

Washer-dryer stack -measurements in millimeters-

* The distances between the machine and the wall are recommendations to help make it easier to carry out service work. If installation space is limited, the machine can also be pushed up against the wall.Miele PDR 908 HP Heat-Pump Dryer - Washer-dryer stack 2

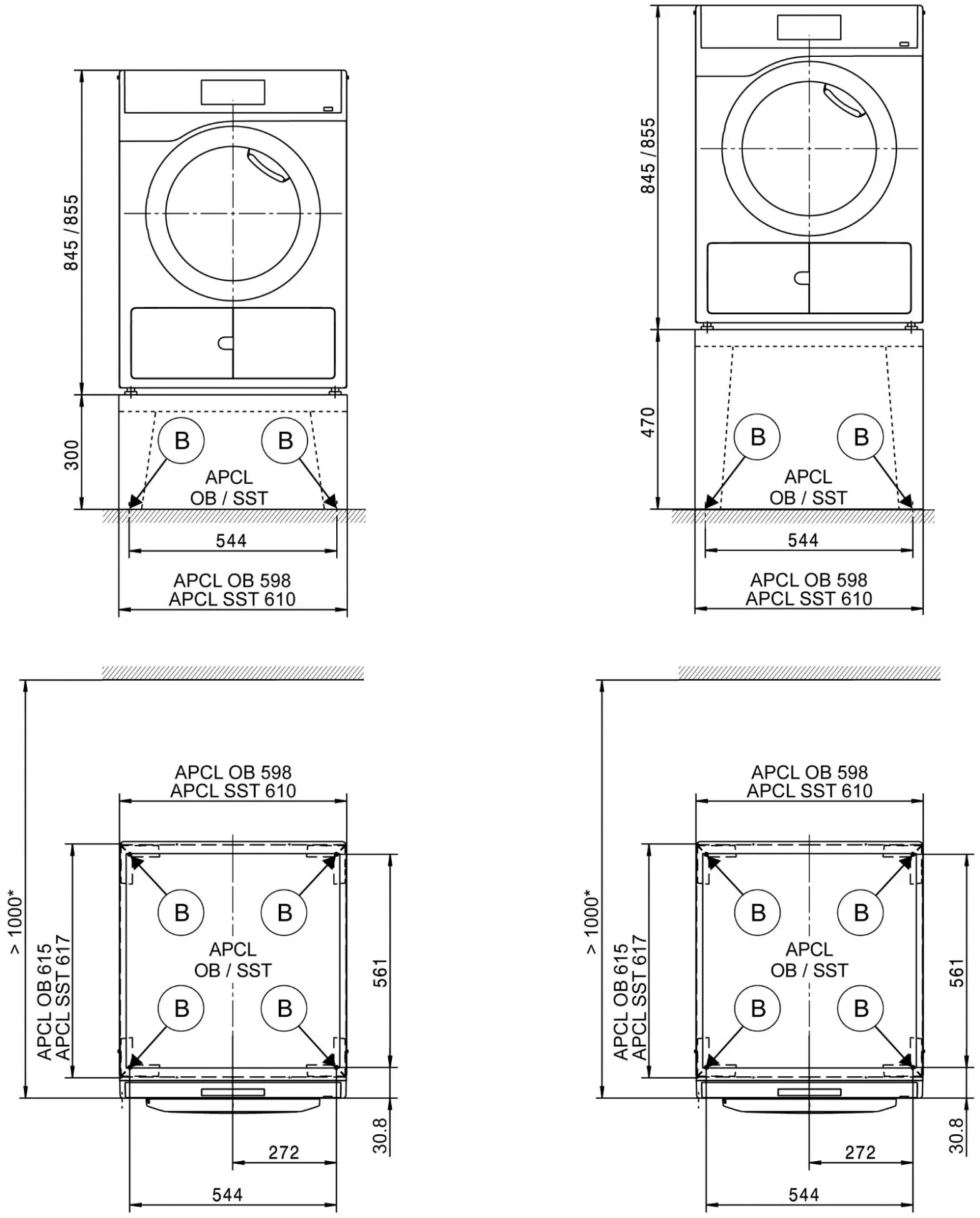

Installation -measurements in millimeters-

* The distances between the machine and the wall are recommendations to help make it easier to carry out service work. If installation space is limited, the machine can also be pushed up against the wall.Miele PDR 908 HP Heat-Pump Dryer - Installation 4

Technical data

PDR 908 HP  PDR 908 HP
Drying systemHeat pumpHeat pump
Drum volume34.3 gal130 l
Capacity17.6 lb8.0 kg
Door opening diameter14 9/16″370 mm

Electrical connection (EL )

Standard voltage CND & USA2 AC 208-240 V0
Frequency60 Hz60 Hz
Total rated load1.2 kW1.2 kW
Fuse rating2 x 30 A2 x 30 A
Wire min. cross-section3 x AWG103 x AWG10
Wire with plug NEMA L6-30slide barslide bar
Wire length82 3/4″2,100 mm



Non-standard voltage MAR 208-240 (Marine)2 AC 208-240 V2 AC 208-240 V
Frequency60 Hz60 Hz
Total rated load1.2 kW1.2 kW
Fuse rating2 x 30 A2 x 30 A
Wire min. cross-section3 x AWG103 x AWG10
Wire with plug NEMA L6-30slide barslide bar
Wire length82 3/4″2,100 mm

Condensate drain hose (ASK )

Max. drainage temperature158 °F70 °C
Max. transient flow rate0.95 gal/min3.6 l/min
On-site hose sleeve for drain hose10 x 30 mm10 x 30 mm
Drain hose (internal diameter)3/8″10 /DN 10 mm
Length of drain hose59 1/16″1,500 mm
Max. delivery head (from lower edge of machine)39 3/8″1,000 mm

Potential equalization (PA)

Machine connection (separate kit required)slide barslide bar
XCI box / XCI AD interfaceOO



Payment system connection (K GA)
Connection of payment systems (with XCI box / XCI AD)OO



Communication module (XK M)slide barslide bar
Communication module XKM 3200 WL PLTOO

Installation on machine feet (F )

No. of machine feet4 No.4 No.
Machine foot, height-adjustable with thread± 3/16″± 5 mm
Machine foot diameter1 1/4″31.7 mm

Anchoring g (B )

Anchoring of Miele Plinths
Miele Plinth installation (fasteners included)oo
Required anchor points4 No.4 No.
Wood screws according to DIN 5718 x 65 mm8 x 65 mm
Rawl plugs (diameter x length)12 x 60 mm12 x 60 mm
Plinth floor anchoring (to be provided on site)
Machine installation on on-site plinth (concrete or masonry)oo
Min. plinth installation footprint (W/D)23 5/8″ / 25 9/16″600/650 mm
Wood screws according to DIN 5716 x 50 mm6 x 50 mm
Rawl plugs (diameter x length)8 x 40 mm8 x 40 mm



PDR 908 HPPDR 908 HP
Machine data
Overall machine dimensions (H/W/D)33 7/16″ / 23 13/16″ / 30 9/16″850/605/777 mm
Casing dimensions (H/W/D)33 7/16″ / 23 7/16″ / 29″850/596/737 mm
Site-access dimensions (H/W)
Min. site-access opening (excl. packaging)35 7/16″ / 23 13/16″900/605 mm
Installation dimensions
Side gap13/16″20 mm
Recommended side gap – washer-dryer stack11 13/16″300 mm
Recommended distance to the opposite wall from the front of the machine39 8/8″1,000 mm
Weights and floor loads
Machine weight (net weight)161 lb73 kg
Max. floor load in operation925 N925 N
Emissions
Sound pressure level (in accordance with EN ISO 11204/11203)< 70 dB(A)< 70 dB(A)
Heat dissipation rate to installation site950 W950 W

Installation and planning notes

Installation requirements
The tumble dryer should only be connected to a power supply provided in accordance with all appropriate local and national legislation and regulations.
In addition, all regulations issued by the appropriate utilities as well as standards relating to occupational safety and all applicable valid regulations and technical standards must be observed.
General operating conditions
Ambient temperature in installation room: +35°F to +95 (+2°C to +35°C).
Air drawn in for use in the drying process will be warm when it is expelled back into the room. You must therefore ensure that the room is sufficiently ventilated, particularly if the dryer is located in a small room.
Make sure that the room temperature is not too high. If there are other heat-producing appliances in the room in which the dryer is located, make sure the room is well ventilated and switch the other appliances off, if possible.
Otherwise, running times and energy consumption could be increased.
Electrical connection
This tumble dryer is supplied with a power cord and plug ready for connection.
The machine may only be connected to an electrical system that conforms to national and local codes and regulations.
The tumble dryer should never be connected by an extension cable, e.g., power strips, to avoid the risk of fire.
The data tag indicates the nominal power consumption and the appropriate fuse rating. Compare the specifications on the data tag with those of the electrical power supply.
If the machine is hard-wired, a dual circuit breaker must be provided on-site. When switched off, there must be an all-pole contact gap of at least 3 mm in the isolator switch (including circuit breakers, breakers, and relays according to IEC/EN 60947).
The plug connector or isolator switch should be easily accessible at all times. If the machine is disconnected from the electricity supply, the isolator must be lockable or the point of disconnection must be monitored at all times.
New connections, modifications to the system, or servicing of the ground conductor, including determining the correct fuse rating, must be carried out by a qualified electrician, as they are familiar with the pertinent regulations and the specific requirements of the electric utility company.
References to cable cross-sections in the technical data refer only to the required power cord. Please consult relevant local and national regulations when calculating any other wire gauges.
Condensate drain hose
The condensed water is pumped away through the drain hose which is located at the back of the dryer.
The condensate is drained via a drain pump with a 3′ 3 3/8″ (1 m) delivery head. For the water to drain freely, the hose must be installed free of kinks. The swivel elbow at the end of the hose can be turned in either direction or removed as needed.
In certain situations, this tumble dryer must be equipped with a non-return valve (optional accessory). Without a non-return valve, water  could flow back into the tumble dryer or be drawn back and leak out. This can cause damage.

Drainage options:

  1. Direct connection to a plastic drain pipe with a rubber sleeve.
    Use a non-return valve if the end of the hose could possibly become submerged in water.
  2. Connected securely to a sink with a plastic nipple.
    Always use a non-return valve.
  3. Connected securely to a floor drain (gully).
    Always use a non-return valve.
  4. Directed into a sink or basin.
    Secure the drain hose carefully (e.g., by tying it) to make sure it cannot slip. Otherwise, water may escape and cause damage.
    Use a non-return valve if the end of the hose could possibly become submerged in water.

Equipotential bonding and grounding
If necessary, an equipotential bond with a good contact connection must be provided in accordance with all appropriate national and local regulations.
Connection material for equipotential bonding and grounding must be provided on-site or using a kit available from Miele Technical Service.
Peak load/Energy management
The tumble dryer can be connected to a peak-load or energy-management system using an optional kit.
When the peak-load function is activated, the heating is deactivated.
A message appears in the display to inform you of this.
Payment system
The tumble dryer can be equipped with a single-machine payment system as an optional accessory using an optional kit (XCI box / XCI AD).
The programming required for connecting a payment system can be carried out during the initial commissioning process. After initial commissioning, changes may only be carried out by your Miele dealer or Miele Technical Service.
Interface
The tumble dryer can be installed with an XKM 3200 WL PLT communication module.
This module can be used as a WiFi or LAN interface.
The LAN interface provided via the module complies with SELV (Safety Extra Low Voltage) in accordance with EN 60950. Connected appliances must also comply with SELV. The LAN connection uses an RJ45 connector in accordance with EIA/TIA 568-B.
Installation and anchoring
The machine must be installed on a perfectly smooth, level, and firm surface which is able to withstand the quoted loads.
The floor load created by the machine is concentrated and transferred to the installation footprint via the machine’s feet.
The tumble dryer should be leveled in both directions with the aid of the adjustable feet.
Plinth installation
The tumble dryer can be installed on a machine plinth (open or box plinth, available as an optional Miele accessory) or on a concrete plinth to be provided on-site.
The quality of the concrete and its strength must be assessed according to the machine load. Ensure that any raised concrete plinth is adequately bonded to the floor below.
Washer-dryer stack
The tumble dryer can be installed as a washer-dryer stack together with a Miele Washing Machine. A stacking kit (optional accessory) is required for this.
Installation of the stacking kit should be performed by Miele Technical Service or an authorized Miele service technician.

Please have the model and a serial number of your machine available when contacting Technical Service.
U.S.A.
Miele, Inc.
National Headquarters

9 Independence Way
Princeton, NJ 08540
Phone: 800-991-9380
Fax: 609-419-4241
www.mieleusa.com/professional
[email protected]

Technical Service & Support
Phone: 800-991-9380
Fax: 800-220-1348
[email protected]
EspenstrasseMiele & Cie. KG
Carl-Miele-Straße 29, 33332 Gütersloh, Germany
