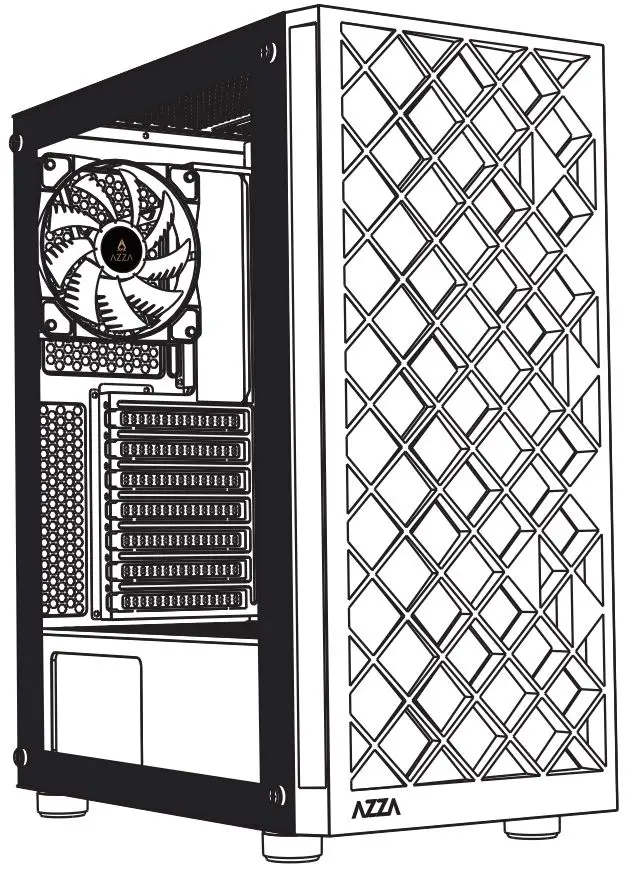

AZZA CSAZ-280W Spectra ATX Glass Chassis
Specifications
Specifications| Model | |
| Model Name: | Spectra |
| Model Number: | CSAZ-280B/CSAZ-280W |
| Specifications | |
| Type: | ATX Mid Tower |
| Color: | Black/Black(interior), White/White(interior) |
| Side Panel Window: | Le� side panel: Tempered glass with rubber mounts |
| Max CPU Cooler Height: | UP to 170mm |
| Max Video Card Length: | Up to 290mm long video card |
| Power Supply: | Not included |
| Motherboard Compa�bility: | ATX、Micro ATX、ITX |
| Expansion | |
| External 5.25″ Drive Bays: | 0 |
| Internal 2.5″ Drive Bays: | Up to 1 |
| Internal 3.5″ Drive Bays: | Up to 2 |
| Expansion Slots: | 7 |
| Top Ports: | Power bu�on, LED bu�on, HD Audio, USB 3.0 x 1, USB2.0x2 |
| Physical Specifications | |
| Case Dimension (HxWxD) | 458*200*365mm/18*7.9*14.4 inches |
| Weight: | 4.4kg /9.7lbs |
| Features | |
| Tempered Glass Sides Window: | High-quality tempered glass side window allows for clear visuals to inner components |
| Addressable RGB Light Effects: | Allowing the LED bu�on to cycle through different ARGB ligh�ng modes. |
|
Available Fan Ports: | 3x120mm or 2x140mm fan ports in the front 2x120mm fan ports on the top 2x120mm fan ports on the top of PSU shroud 1x120mm fan port in the rear (1x120mm LFO-3612D ARGB fan included) |
| Water Cooling: | Supports radiators up to 240mm in the front |
| Dust Filters: | Removable (magne�c) dustproof net on the top and Front , removable dust filter on bo�om of chassis. |
| Power Supply Support: | Bo�om mounted ATX power supply |

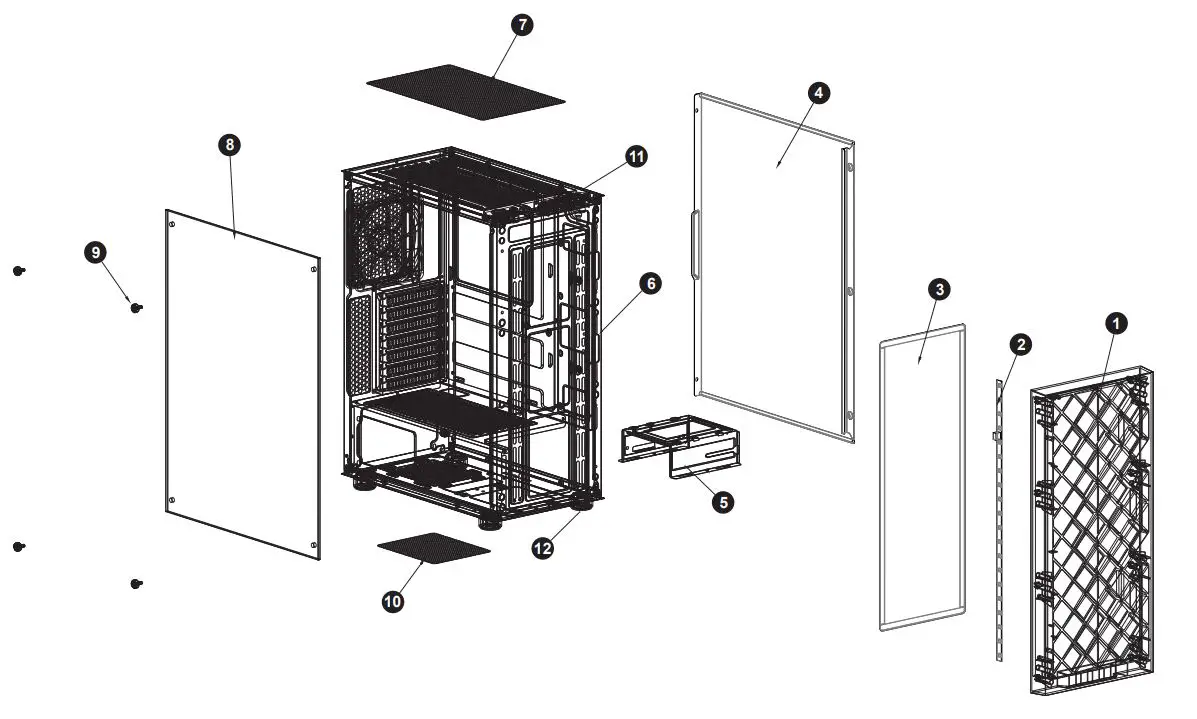

Chassis Parts
- Front panel
- Addressable RGB strip
- Removable magnetic mesh
- Metal side panel
- Hard disk cage
- Chassis
- Removable magnetic mesh
- Tempered glass panel
- Glass panel screws
- Removable dust filter
- Top I/O & buttons
- Shock-proof stand

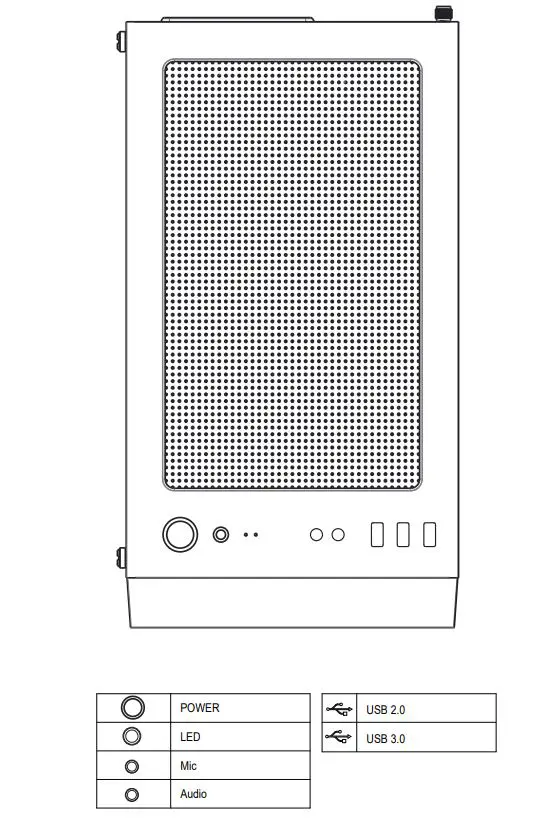

Control Panel Functions
- POWER
- LED
- MIC
- AUDIO
- USB 2.0
- USB 3.0

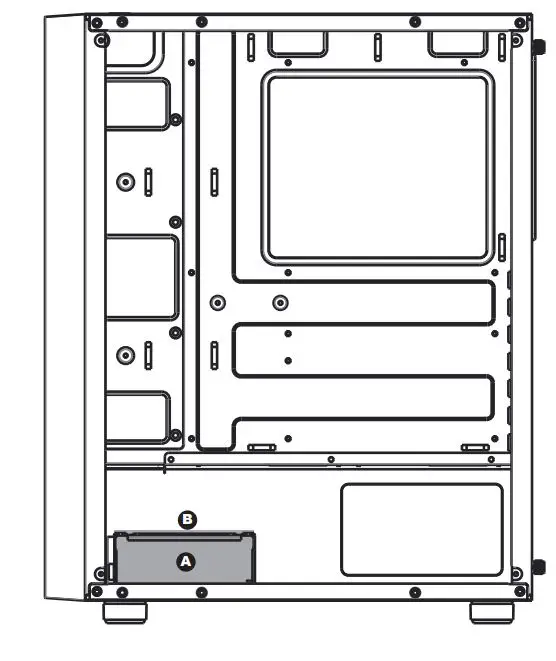

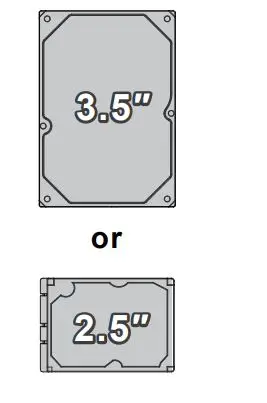

3.5 ˝/ 2.5˝ HDD/SSD Installation

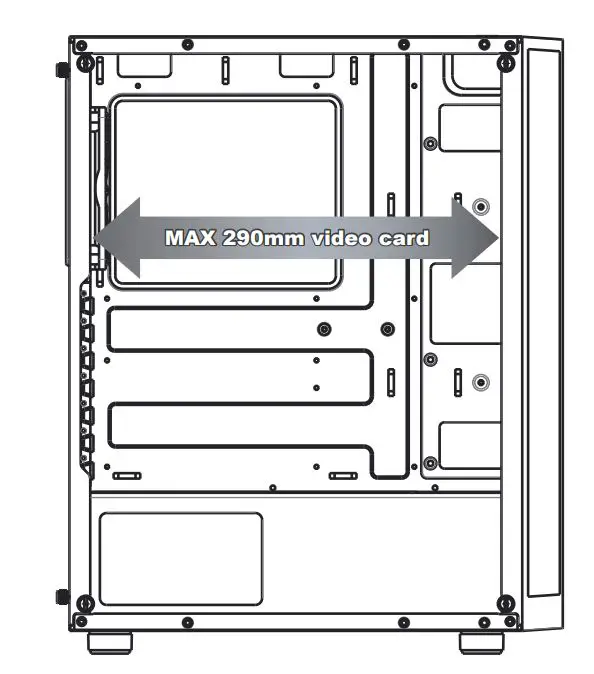

- Supports up to 290mm long video cards.
- Multifunctional hard disk bracket support 3.5” HDD x 1 ( )A
Multifunctional hard disk cage support 3.5” HDD or 2.5” SSD x 1( )B

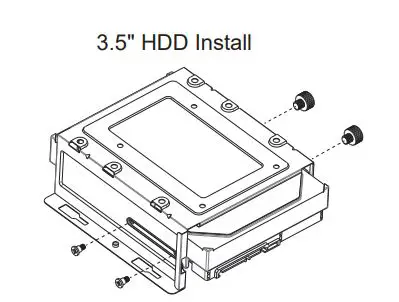

3.5″ HDD Install
Cooling System Installation

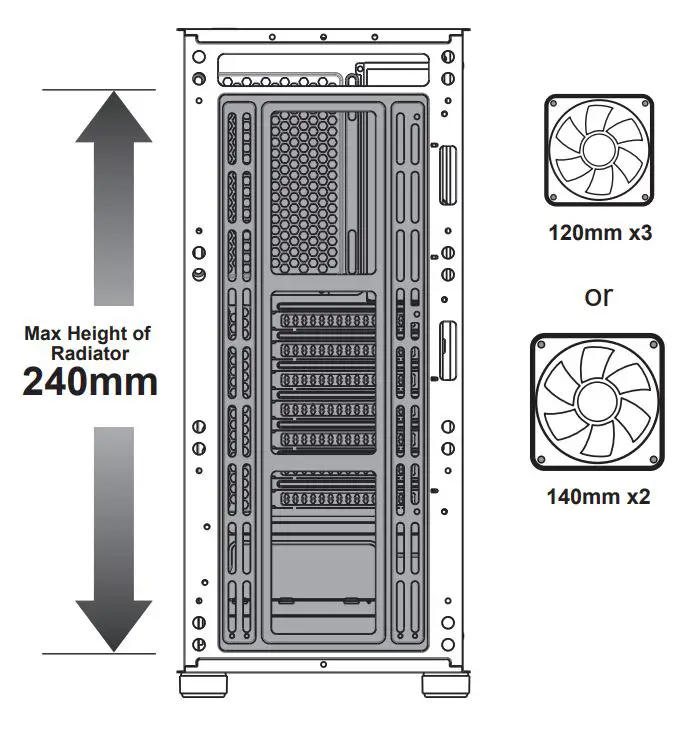

Front

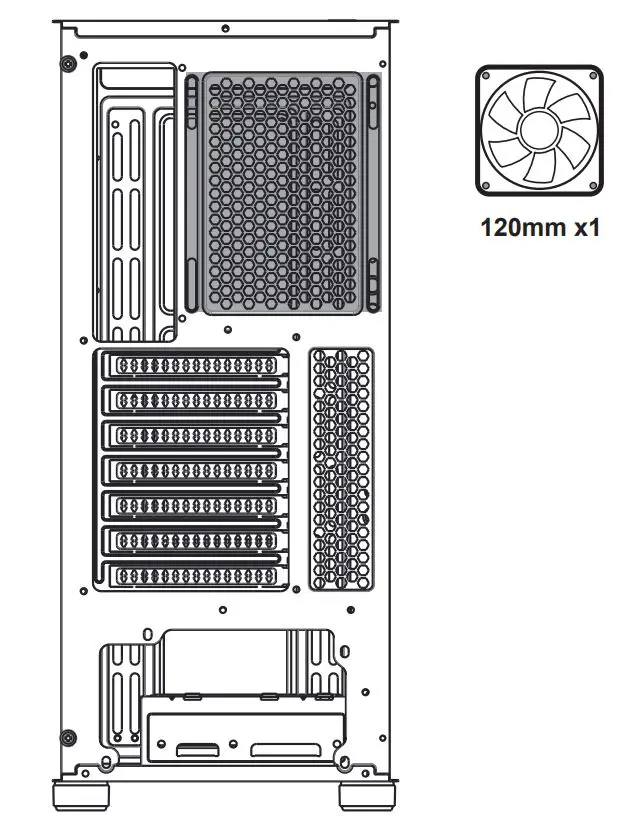

Rear

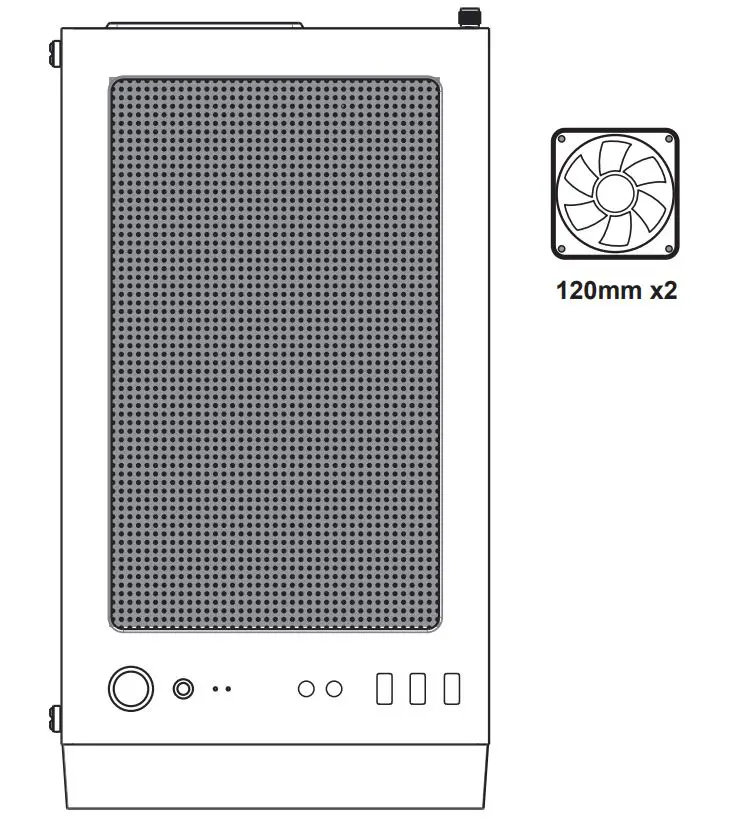

Top

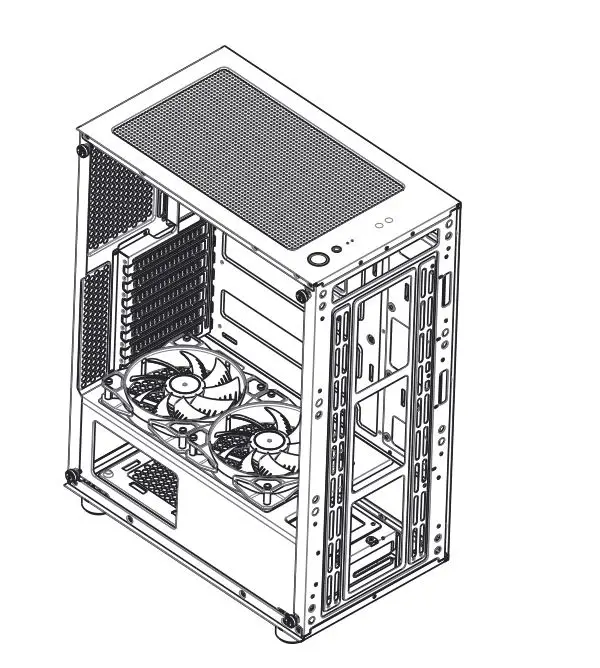

2x120mm fan ports on the top of the PSU shroud

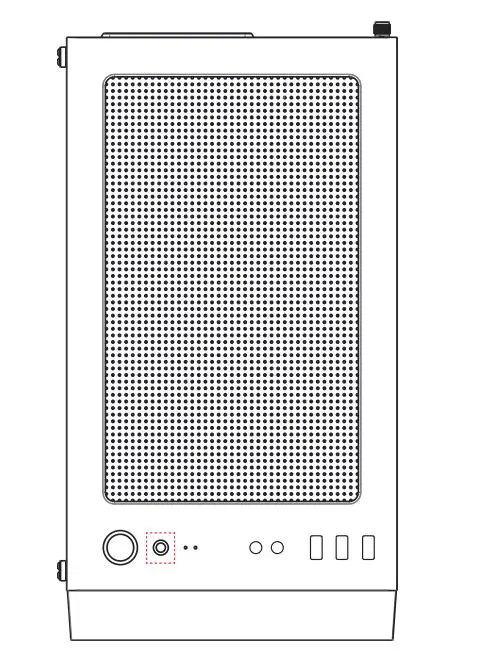

ARGB Control Modes Switching
Press the LED button to cycle through different ARGB 13 lighting modes.
