HPD300 REVERSE POWER PROTECTION RELAY
MULTIFUNCTIONAL PROTECTION MODULE
User Manual

Chinese trademark
English trademark
Smarten — make your generator smart
Smarten Technology Co., Ltd
No.28 Jinsuo Road, Zhengzhou, Henan Province, China
Tel: +86-371-67988888/67981888/67992951
+86-371-67981000(overseas)
Fax: +86-371-67992952
Email: [email protected]
Web: www.smartgen.com.cn
www.smartgen.cn

All rights reserved. No part of this publication may be reproduced in any material form (including photocopying or storing in any medium by electronic means or other) without the written permission of the copyright holder.
Smarten Technology reserves the right to change the contents of this document without prior notice.

Table 1- Version History

Table 2 – Symbol Instruction

Symbol	Instruction
NOTE	Highlights an essential element of a procedure to ensure correctness.
CAUTION	Indicates a procedure or practice, that, if not strictly observed, could result in damage or destruction of equipment.

OVERVIEW

HPD300 reverse power protection relay is widely used in marine Genset fields and land Genset fields.
The power direction, instead of flowing predominantly from the generator to the Bus, as usual, flows back to the generator from the current system when the generator lost excitation or another failure occurs. That is to say, the generator works as an electromotor. HPD300 reverse power protection relay is in order to avoid the above situation and provide protection when an overpowering situation occurs.

PERFORMANCE AND CHARACTERISTICS

• Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with frequency 50/60/400Hz;
• Collects 3-phase voltage, 3-phase current, frequency, and power parameters.


  GEN	LOAD
  Line voltage (Uab, Ubc, and Uca)	Current IA, IB, IC
  Frequency (Hz)	Active Power kW

• An adjustable potentiometer allows for set value adjusting and delay value setting.
• 2 relay output;
• One test button, test reverse power, over current, and indicator.
• Widely power supply range DC(8~35)V, suitable to different starting battery voltage environments;
• 35mm guide rail mounting;
• Modular design, pluggable terminal, compact structure with easy installation.

TECHNICAL PARAMETERS

Table 3 – Technical Parameters

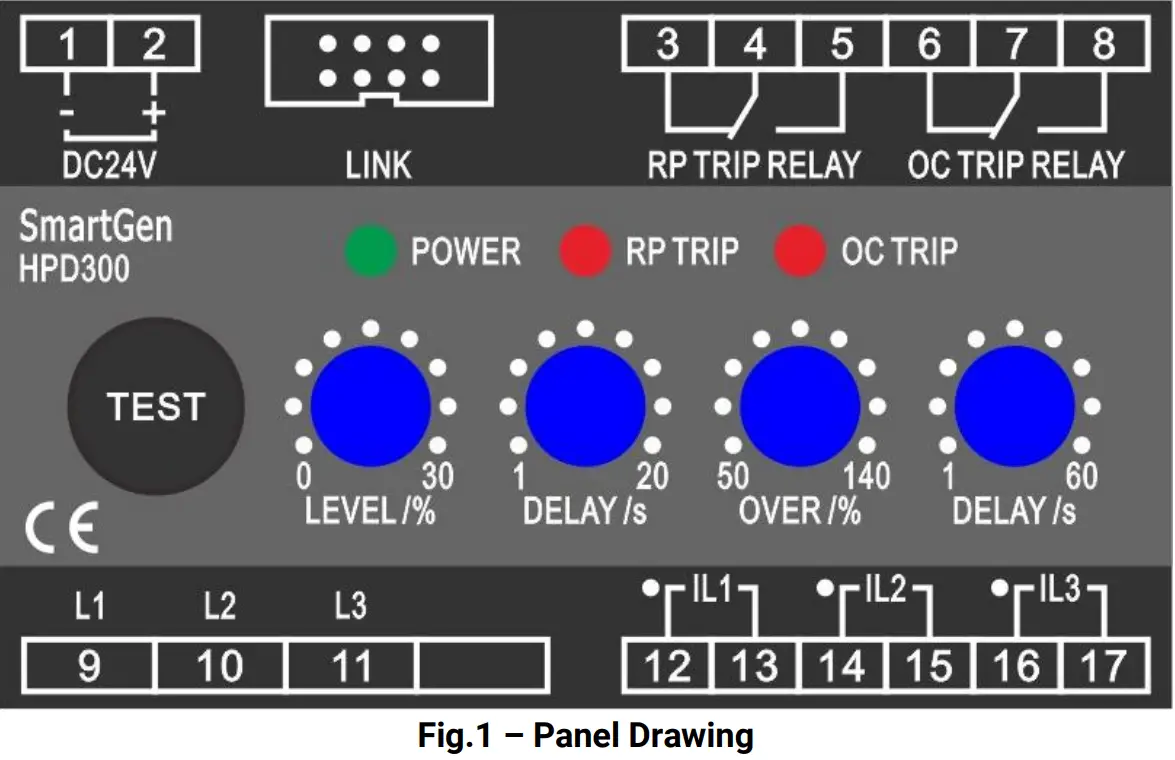

PANEL BUTTON DESCRIPTION

Table 4 – Description of Terminal Connection

FUNCTION DESCRIPTION

Table 5 – Function Description

SCOPES AND DEFINITIONS OF PROGRAMMABLE PARAMETERS

Table 6 – Programmable Parameters

PC Program:

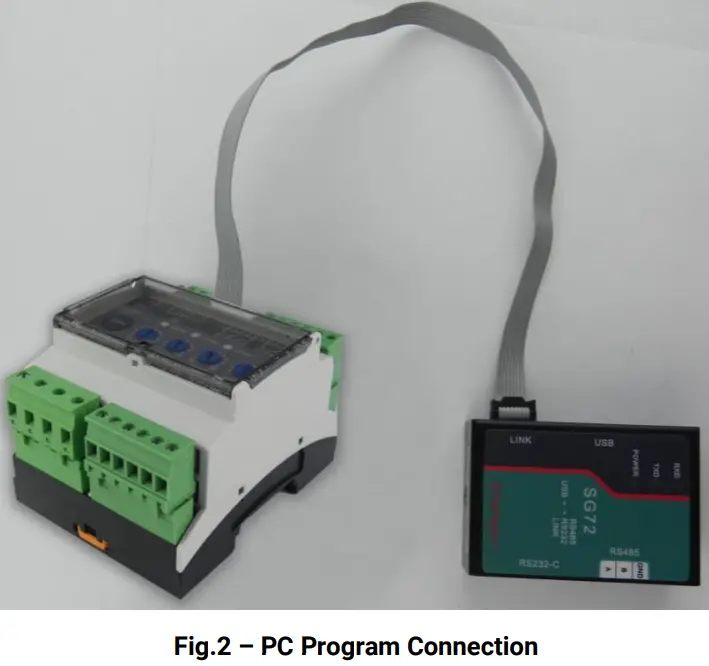

Parameters setting and real-time monitoring can be implemented via LINK port by using PC software and an SG72 adapter produced by our company. As follows:

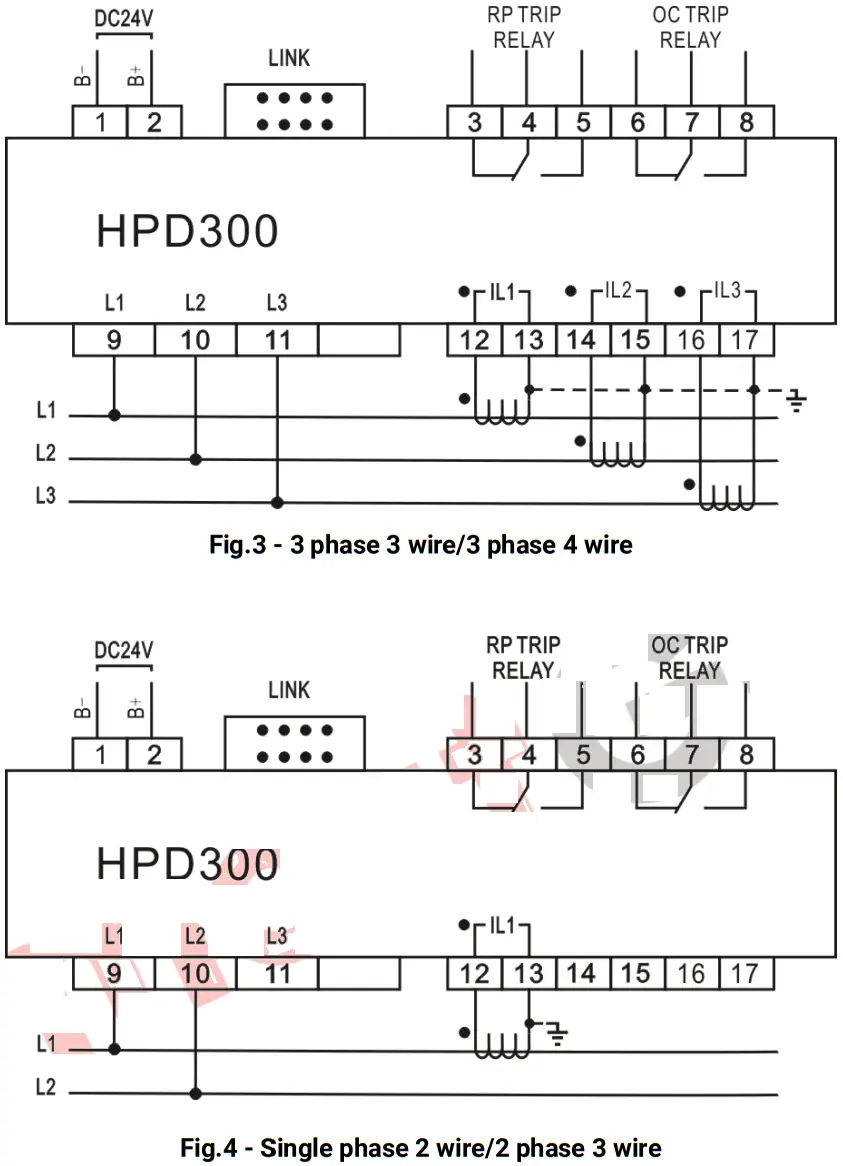

TYPICAL DIAGRAM

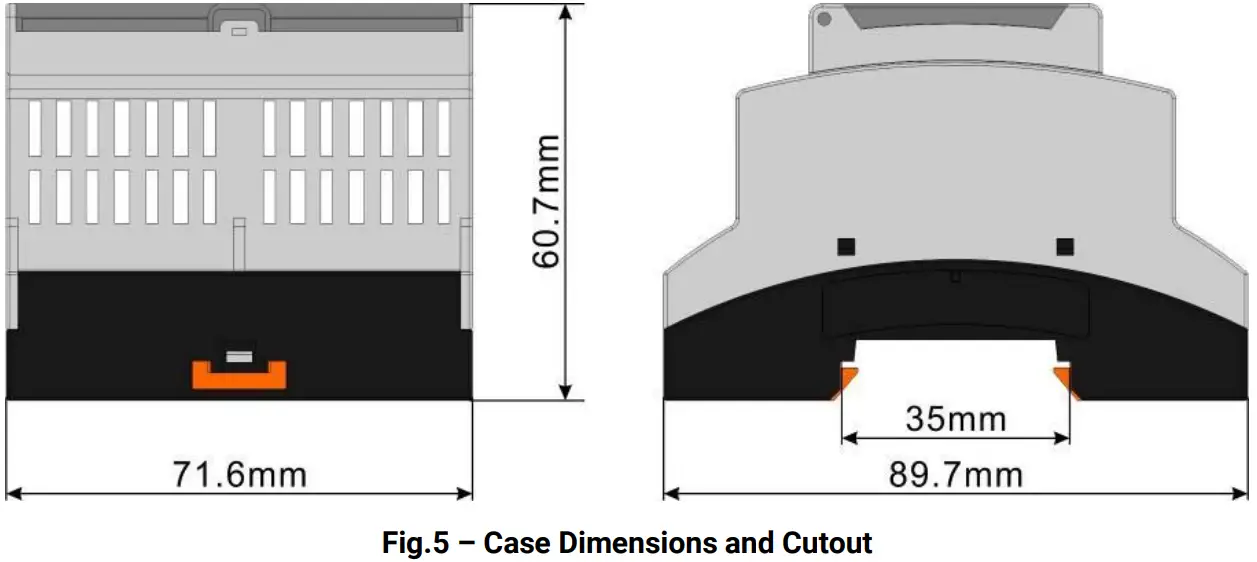

INSTALLATION DIMENSIONS

1. Output And Expand Relays
   All outputs are relay contact output types. If need to expand the relays, please add a freewheel diode to both ends expand the relay’s coils (when coils of the relay have DC current), or, add a resistance-capacitance return circuit (when coils of the relay have AC current), in order to prevent disturbance to the controller or others equipment
2. AC Input
   Current input must be connected to the outside current transformer. And the current transformer’s secondary side current must be 5A. At the same time, the phases of the current transformer and input voltage must be correct. Otherwise, the current of collecting and active power maybe not be correct.
   Note: When there is load current, the transformer’s secondary side prohibits open circuits.
3. Withstand Voltage Test
   CAUTION! When the relay had been installed in the control panel, if need the high voltage test, please disconnect the relay’s all terminal connections, in order to prevent high voltage into the relay and damaging it.
