DV-HDA4K-12AUD 1×2 HDMI 2.0 Splitter with Scaler Audio Extract
Product Information
The DV-HDA4K-12AUD is a 1×2 HDMI 2.0 Splitter with Scaler/Audio Extract. It is designed to simultaneously route one HDMI source to two HDMI displays. The product supports resolutions up to 4K2K@60Hz (4:4:4) and HDCP 2.2. It also supports audio extraction from an HDMI source as optical and analog audio, with output supporting bypass and downscaling (4K->1080P).
The product is compliant with HDMI 2.0b and HDCP2.2/HDCP1.4 standards and supports HDMI audio formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD. The package includes the product itself, a power supply, and a user manual.
Product Usage Instructions
- Read the user manual carefully before connecting, operating, or adjusting the product.
- Connect one HDMI source to the input port of the splitter.
- Connect two HDMI displays to the output ports of the splitter.
- If necessary, use dip switches on the device to select output bypass and 4K->1080P downscaling.
- Select EDID, COPY and AUTO modes via dip switch. COPY mode copies OUT 1 port EDID setting to all output ports while AUTO mode compares OUT 1 and OUT 2 EDID setting and output the best resolution to all outputs.
- Use surge protection systems to protect and extend the life of your equipment.
- Ensure that the product is not exposed to electrical spikes, surges, electric shock, lightning strikes, etc.
- Use the power supply provided with the product to power it on.
- Refer to the front panel of the product for operation controls and functions.
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended to protect and extend the life of your equipment.
Introduction
The 1×2 HDMI 2.0 Splitter simultaneously routes one HDMI source to two HDMI displays. It supports resolutions up to 4K2K@60Hz (4:4:4) and HDCP 2.2. This product supports audio extraction from an HDMI source as optical and analog audio. Output supports bypass and downscaling(4K->1080P).
Features
- HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.
- Supports HDMI resolution the maximum up to 4K2K@50/60Hz (4:4:4)
- Supports digital and analog audio extraction from an HDMI source.
- Supports output bypass and 4K->1080P downscaling via dip switches on device.
- User selectable EDID, COPY and AUTO modes via dip switch.
( COPY: Copies OUT 1 port EDID setting to all output ports;
AUTO: Compare OUT 1 and OUT 2 EDID setting and output the best resolution to all outputs). - Supports HDMI audio format LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Package Contents
- 1× 1×2 HDMI 2.0 Splitter
- 1× 5V/1A Power Adapter
- 1× User Manual
Specifications
| Technical | ||
| HDMI Compliance | HDMI 2.0b | |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 | |
| Video Bandwidth | 18Gbps | |
| Video Resolutions | 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4) | |
| Color Depth | 4K60Hz 8-bit, 1080P 12-bit | |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| L/R Audio Formats | PCM 2.0 |
| Optical Audio Formats | LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1 |
| ESD Protection | Human-body Model： ± 8kV (Air-gap discharge) , ± 4kV (Contact discharge) |
| Connections | |
| Input ports | 1×HDMI Type A [19-pin female] |
| Output ports | 2×HDMI Type A [19-pin female] 1×L/R Audio out [3.5mm Stereo Mini-jack] 1×Optical out [S/PDIF] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 4.75” (120mm) ×2.46” (62.5mm) ×.55” (14mm) |
| Weight | 166g |
| Power Supply | Input: AC100~240V 50/60Hz, Output: DC5V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 2.8W (max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
Operation Controls and Functions

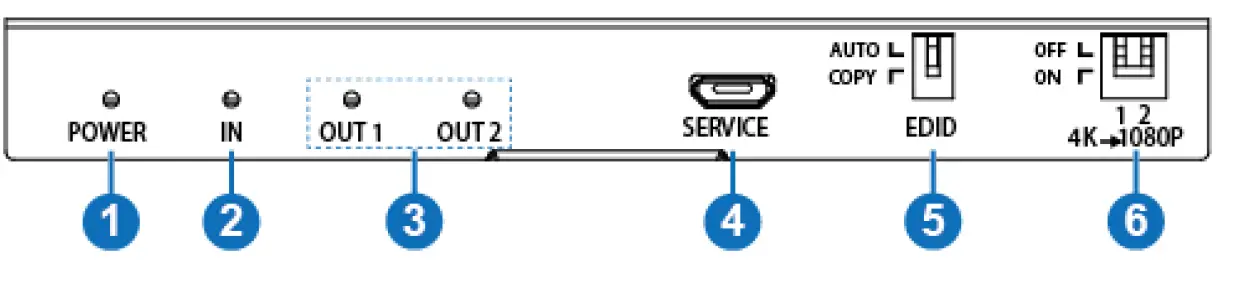

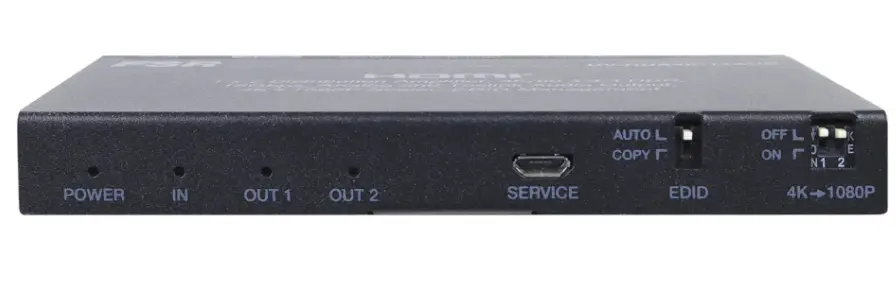

Front Panel
| Number | Name | Function description |
| 1 | POWER LED | This blue LED will illuminate when the unit is powered. |
| 2 | HDMI INPUT LED | This blue LED will illuminate when the HDMI IN is connected to an active HDMI source device with a HDMI cable. |
| 3 | HDMI OUTPUT LED | These blue LEDs will illuminate when the HDMI OUT port has been connected to an active display device with a HDMI cable. |
| 4 | SERVICE port | Firmware update port. (Manufacturer use only.) |
| 5 | EDID | AUTO: Compare OUT 1 and OUT 2 displays’ EDID settings, then instruct the source to display the best resolution. Both outputs will have the same resolution. COPY: Copy the HDMI OUT 1 ports’ EDID setting to the source device. Both outputs will have the same resolution as OUT 1. |
| 6 | Dial switch (4K→ 1080P) | OFF: When the dip switch is in the OFF position, signal input and output is in bypass mode. ON: When the dip switch is in the ON position, signal input will downscaled (4k->1080P ) on that output. |

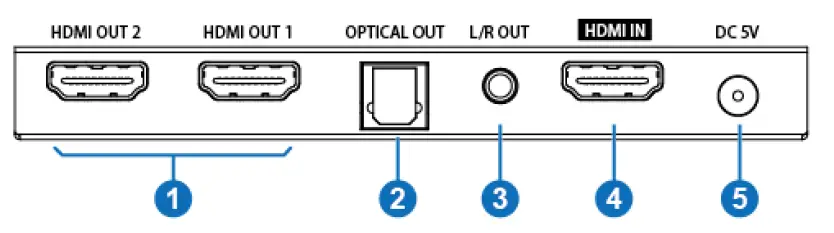

Rear Panel
| Number | Name | Function description |
| 1 | HDMI OUTPUT | Connect to HDMI display device such as TV or monitor. |
| 2 | OPTICAL OUT | Optical audio output. |
| 3 | L/R OUT | Analog audio output. |
| 4 | HDMI IN | Connect to HDMI source device such as DVD player or PC… |
| 5 | DC 5V | Plug the 5V/1A DC power supply into the unit and connect the adapter to an AC outlet. |

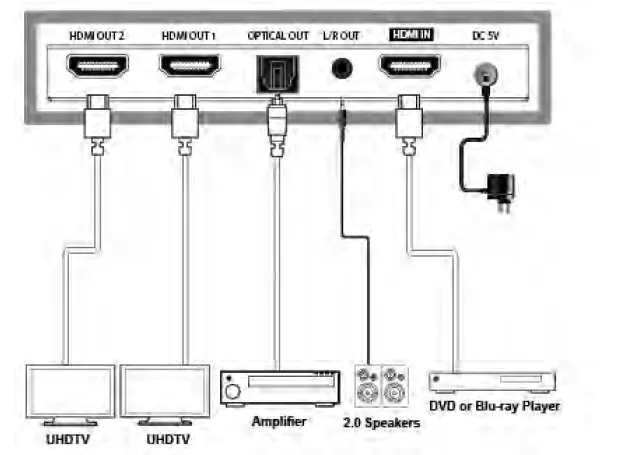

Application Example
