HDTV SUPPLY HDTV4K601x2HDMI 4K 60 Hz 1×2 HDMI Splitter with EDID Scaling and Audio
Product Information

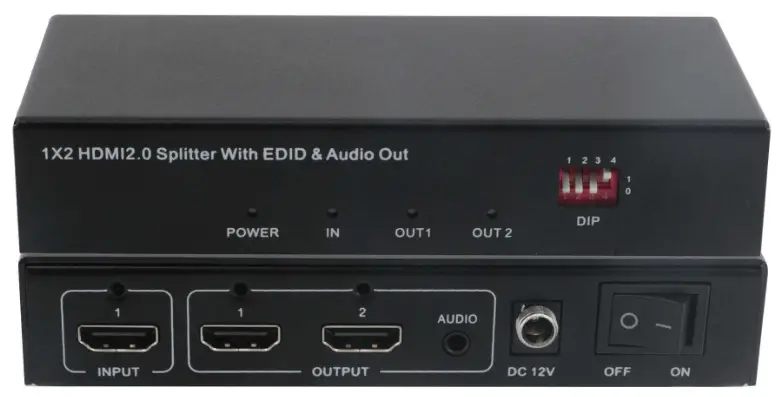

The 4K 60 Hz 1×2 HDMI Splitter With EDID Scaling & Audio HDTV4K601x2HDMI is a high-performance device that allows you to split one HDMI input to two HDMI outputs simultaneously. It supports video bandwidth up to 18 Gbps and resolutions up to 4K60Hz. The device is HDCP2.2 compliant, supports 3D, HDR, and Dolby Vision function, and has EDID management by the DIP switch settings. The splitter also has an output resolution auto-scaling feature and supports 3.5mm audio de-embedded. The device has an ON/OFF power switch for user convenience.
Product Usage Instructions
- Connect one HDMI source to the INPUT port of the splitter using an HDMI cable.
- Connect up to two HDMI displays to the OUT 1/2 ports of the splitter using HDMI cables.
- Connect the DC 12V 1A power supply to the DC 12V port of the splitter.
- Turn on the power switch located on the back panel of the splitter.
- The power indicator on the front panel will light up, indicating that the device is powered on.
- The input indicator will light up, indicating that the HDMI source is detected.
- The output indicators will light up, indicating that the splitter is outputting signals to the connected displays.
- If necessary, use the DIP switch settings located on the front panel to manage EDID and auto scaling function.
Note: The device is plug-and-play and does not require any driver installation. The maximum cable length for 4K60 (YCbCr 4:2:0) is 32ft/10m, and for 1080P is 40ft/15m.
Introduction
This high performance 18Gbps 1×2 HDMI2.0 Splitter, it can support 1 HDMI input to 2/4 HDMI outputs simultaneously. The resolution is up to 4K60Hz. It supports EDID management, auto scaling function to fix different display resolutions, also with one 3.5mm audio de-embedded function. The ON/OFF power switch provides conveniences for users to turn it ON/OFF without the power cable plugging and unplugging.
Features
- HDCP2.2 compliant
- Support video bandwidth 18 Gbps
- Video resolution is up to 4K2K@50/60Hz
- Support 3D, HDR, Dolby Vision function
- EDID management by the DIP switch settings
- Output resolution auto scaling
- Supports 3.5mm audio de-embedded
- No need to install the driver, plug and play
Specification
| Technical | |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
|
Resolution | 4K2K 50/60Hz 4:4:4, 4K2K 30Hz 4:4:4, 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200 |
| 3D Support | Yes |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit |
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| HDR Formats | HDR10, HDR10+, Dolby Vision |
| ESD Protection | Human-body Model: |
| Connection | |
| Input Ports | 1*HDMI Type A [19-pin female] |
| Output Ports | 2/4*HDMI Type A [19-pin female], 1*3.5mm audio |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 140X61X27MM(Packing: 185X184X55MM) for 1×2 |
| Weight | 60g |
| Power Supply | Input: AC 100~240V 50/60Hz |
| Power Consumption | 1W (max) |
| Operating | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Cable Length | For 4K60 (YCbCr 4:2:0)- –32ft / 10M; For 1080P—40ft/ 15m |
Packing
| Splitter | 1 | Pcs |
| Power adapter | 1 | Pcs |
Panels

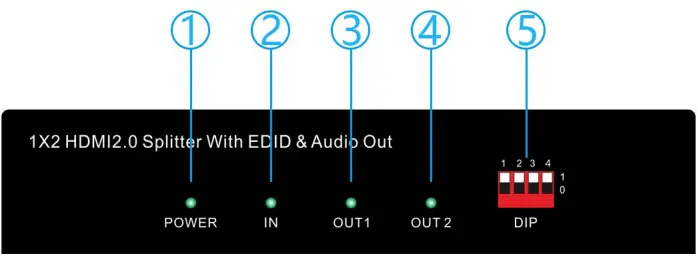

Front Panel(*here only takes 1×2 as example, the 1×4 will be the same functions but different indicators)
- 1. Power: Power indicator
- 2. IN: HDMI input indicator
- 3/4.OUT 1/2 HDMI outputs indicators

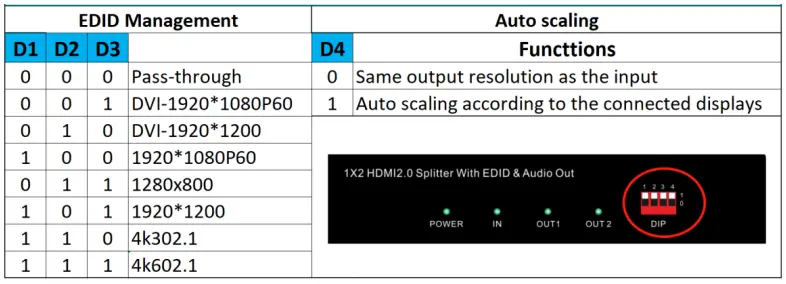

- 5. DIP: For the EDID management and auto scaling function

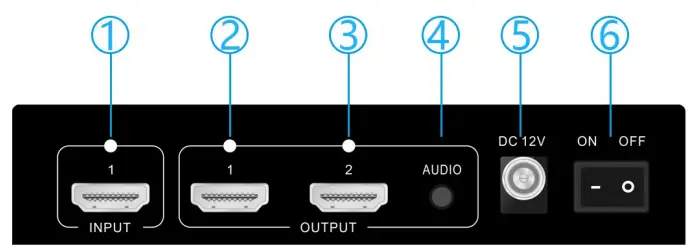

Back Panel(*here only takes 1×2 as example, the 1×4 will be the same functions but different port numbers)
- 1. INPUT: HDMI input port
- 2/3.OUT 1/2: Two HDMI output ports
- 4. AUDIO: One 3.5MM audio de-embedded
- 5. DC 12V: DC 12V 1A power supply
- 6.ON/OFF: Power switch ON/OFF

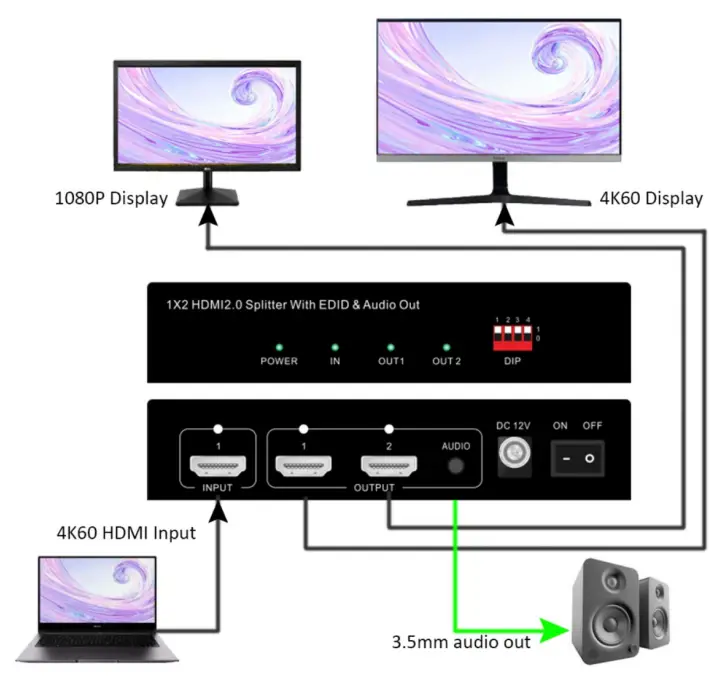

Operation diagram
(*here only takes 1×2 as example)
Warranty Information
The Company warrants that the process and materials of the product are not defective under normal use and service for 2 (2) years following the date of purchase from the Company or its authorized distributors.
If the product does not work within the guaranteed warranty period, the company will choose and pay for the repair of the defective product or component, the delivery of the equivalent product or component to the user for replacement of the defective item, or refund the payment which users have made.
The replaced product will become the property of the Company.
The replacement product could be new or repaired.
Whichever is longer, any replacement or repaired of the product or component is for a period of ninety (90) days or the remaining period of the initial warranty. The Company shall not be responsible for any software, firmware, information, or memory data contained in, stored in, or integrated with the product repaired by the customer’s return, whether or not during the warranty period.
Warranty limitations and exceptions
Except above limited warranty, if the product is damaged by over usage, incorrectly use, ignore, accident, unusual physical pressure or voltage, unauthorized modification, alteration or services rendered by someone other than the Company or its authorized agent, the company will not have to bear additional obligations. Except using the product properly in the proper application or normal usage
