HDTV SUPPLY HDTV4K601x4HDMI 4K 60 Hz 1×4 HDMI Splitter with EDID Scaling and Audio

Product Information

The 4K 60 Hz 1×4 HDMI Splitter With EDID Scaling & Audio HDTV4K601x4HDMI is a high-performance splitter that supports 1 HDMI input to 2/4 HDMI outputs simultaneously. It supports a resolution of up to 4K60Hz and is HDCP2.2 compliant. It also supports EDID management, auto-scaling function to fix different display resolutions, and has one 3.5mm audio de-embedded function. The ON/OFF power switch provides convenience for users to turn it ON/OFF without the power cable plugging and unplugging.

Product Features

• HDCP2.2 compliant
• Support video bandwidth 18 Gbps
• Video resolution is up to 4K2K@50/60Hz
• Supports 3D, HDR, Dolby Vision function
• EDID management by the DIP switch settings
• Output resolution auto scaling
• Supports 3.5mm audio de-embedded
• No need to install the driver, plug and play

Product Specification

• HDCP Compliance: HDCP 2.2
• Video Bandwidth: 18Gbps
• Resolution: 4K2K 50/60Hz
• 3D Support: All HDMI 3D TV formats
• Color Space: 4:4:4, 4K2K 30Hz 4:4:4, 1080p, 1080i, 720p, 720i, 480p, 480i
• Color Depth: All PC resolutions including 1920 x 1200
• HDMI Audio Formats: All HDMI audio formats
• HDR Formats: Supports HDR
• ESD Protection: Yes
• Connection: All HDMI connectors
• Input Ports: 1 HDMI input port
• Output Ports: 2/4 HDMI output ports
• Mechanical: Metal Enclosure Black
• Dimensions: 140X61X27MM(Packing: 185X184X55MM) for 1×2
• Weight: 60g
• Power Supply: Input AC 100~240V 50/60Hz, Output DC 5V/1A
• Power Consumption: N/A
• Operating Temperature: -5°C to +35°C
• Relative Humidity: 20~90% RH (non-condensing)
• Cable Length: For 4K60 (YCbCr 4:2:0)- –32ft / 10M; For 1080P—40ft/ 15m

Product Usage Instructions

1. Connect the HDMI input source to the input port of the splitter.
2. Connect the HDMI output devices to the output ports of the splitter.
3. Connect the power adapter to the DC 12V port of the splitter.
4. Turn on the splitter using the ON/OFF power switch located on the back panel.
5. The power indicator light on the front panel will illuminate to indicate that the splitter is on.
6. The HDMI input indicator light on the front panel will illuminate to indicate that the input source is connected.
7. The HDMI output indicators on the front panel will illuminate to indicate that the output devices are connected and receiving a signal.
8. Use the DIP switch settings on the back panel to manage EDID and auto scaling function.
9. If using the 3.5mm audio de-embedded function, connect the audio device to the audio port on the back panel.
10. To turn off the splitter, use the ON/OFF power switch located on the back panel.

Introduction

This high performance 18Gbps 1×4 HDMI2.0 Splitter, it can support 1 HDMI input to 2/4 HDMI outputs simultaneously. The resolution is up to 4K60Hz. It supports EDID management, auto scaling function to fix different display resolutions, also with one 3.5mm audio de-embedded function. The ON/OFF power switch provides conveniences for users to turn it ON/OFF without the power cable plugging and unplugging.

Features

• HDCP2.2 compliant
• Support video bandwidth 18 Gbps
• Video resolution is up to 4K2K@50/60Hz
• Support 3D, HDR, Dolby Vision function
• EDID management by the DIP switch settings
• Output resolution auto scaling
• Supports 3.5mm audio de-embedded
• No need to install the driver, plug and play

Specification

Packing

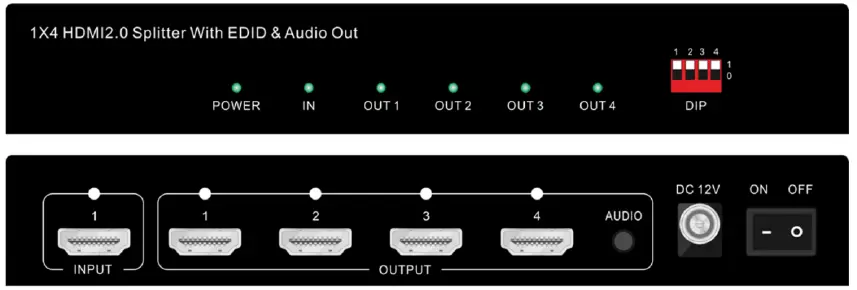

Panels

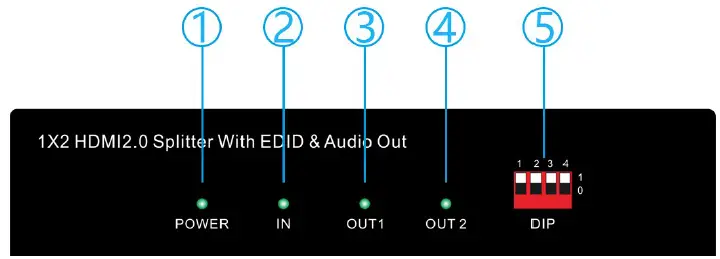

1. Front Panel(*here only takes 1×2 as example, the 1×4 will be the same functions but different indicators)

• 1. Power: Power indicator
• 2. IN: HDMI input indicator
• 3/4. OUT 1/2 HDMI outputs indicators

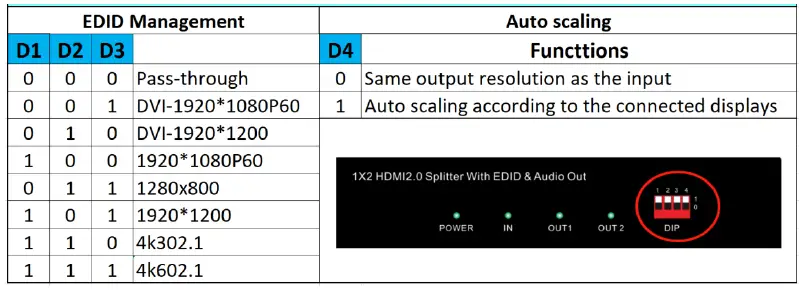

• 5. DIP: For the EDID management and auto scaling function

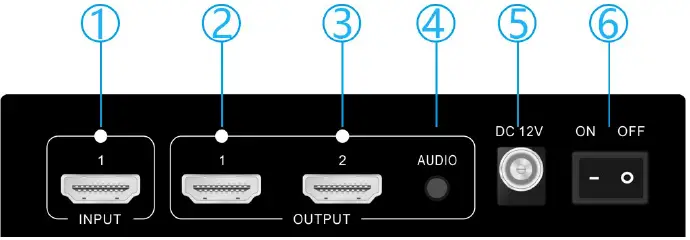

Back Panel(*here only takes 1×2 as example, the 1×4 will be the same functions but different port numbers)

• 1. INPUT: HDMI input port
• 2/3. OUT 1/2: Two HDMI output ports
• 4. AUDIO: One 3.5MM audio de-embedded
• 5. DC 12V: DC 12V 1A power supply
• 6. ON/OFF: Power switch ON/OFF

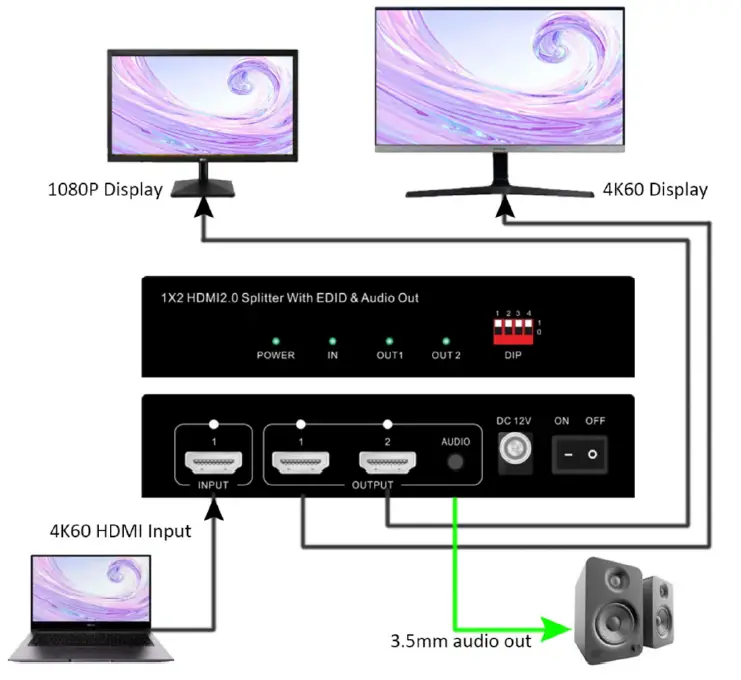

Operation diagram

(*here only takes 1×2 as example)

After-Sales

Warranty Information

• The Company warrants that the process and materials of the product are not defective under normal use and service for 2 (2) years following the date of purchase from the Company or its authorized distributors.
• If the product does not work within the guaranteed warranty period, the company will choose and pay for the repair of the defective product or component, the delivery of the equivalent product or component to the user for replacement of the defective item, or refund the payment which users have made.
• The replaced product will become the property of the Company.
• The replacement product could be new or repaired.
• Whichever is longer, any replacement or repaired of the product or component is for a period of ninety (90) days or the remaining period of the initial warranty. The Company shall not be responsible for any software, firmware, information, or memory data contained in, stored in, or integrated with the product repaired by the customer’s return, whether or not during the warranty period.

Warranty limitations and exceptions

Except above limited warranty, if the product is damaged by over usage, incorrectly use, ignore, accident, unusual physical pressure or voltage, unauthorized modification, alteration or services rendered by someone other than the Company or its authorized agent, the company will not have to bear additional obligations. Except using the product properly in the proper application or normal usage.
