DVDO-Splitter-14-SE 1×4 HDMI 2.0 18Gbps Splitter with Scaler-Audio Extraction
DVDO-Splitter-14-SE 1×4 HDMI 2.0 18Gbps Splitter with Scaler / Audio Extraction
User Manual
Version 1.0.0
Thank you for purchasing the DVDO-Splitter-14-SE 1×4 HDMI 2.0 18Gbps Splitter with Scaler / Audio Extraction. This product is designed to simultaneously route one HDMI source to four HDMI displays, supporting resolutions up to 4K2K@60Hz (4:4:4) and HDCP 2.2. It also supports audio extraction from HDMI source to optical and analog outputs, and can select COPY, AUTO modes for EDID setting. Output supports bypass and downscaling (4K->1080P) function.
Specifications
- HDMI 2.0b, HDCP2.2/HDCP1.4 compliant
- Supports HDMI resolutions up to 4K2K@50/60Hz (4:4:4)
- Supports digital and analog audio extraction output from HDMI source
- Supports output bypass and 4K->1080P downscaling function via dial switch on panel
- EDID can be selected to COPY and AUTO modes
Package Contents
The package contains:
- 1x DVDO-Splitter-14-SE 1×4 HDMI 2.0 18Gbps Splitter with Scaler / Audio Extraction
- 1x Power Adapter
- 1x User Manual
Operation Controls and Functions
Front Panel
- POWER LED: The green LED will light up when the power is on
- INPUT LED: The blue LED will light up when an input signal is detected
- OUTPUT LED: The yellow LED will light up when an output signal is detected
- DIAL SWITCH: Used to select between output bypass and downscaling (4K->1080P) function
Rear Panel
- HDMI INPUT: Connect to the HDMI source device
- HDMI OUTPUT 1-4: Connect to the HDMI display devices
- ANALOG AUDIO OUTPUT: Connect to an analog audio device
- OPTICAL AUDIO OUTPUT: Connect to an optical audio device
- DC IN: Connect to the power adapter
Application Example
The DVDO-Splitter-14-SE can be used in the following application example:
- Connect the HDMI source device to the HDMI INPUT on the splitter using an HDMI cable
- Connect the HDMI display devices to the HDMI OUTPUTS on the splitter using HDMI cables
- Connect an analog or optical audio device to the respective audio output on the splitter if needed
- Power on the splitter using the power adapter
- Use the dial switch on the front panel to select between output bypass and downscaling (4K->1080P) function if needed
For optimum performance and safety, please read the user manual carefully before connecting, operating, or adjusting this product.
Please keep this manual for future reference. It is highly recommended to use surge protection systems to protect and extend the life of your equipment due to the sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.
Introduction
The 1×4 HDMI 2.0 Splitter simultaneously routes one HDMI source to four HDMI displays. It supports resolutions up to 4K2K@60Hz (4:4:4) and HDCP 2.2. This product supports audio extraction from HDMI source to optical and analog outputs. It can select COPY, AUTO modes for EDID setting. Output supports bypass and downscaling (4K->1080P) function.
Features
- HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.
- Supports HDMI resolutions up to 4K2K@50/60Hz (4:4:4)
- Supports digital and analog audio extraction output from HDMI source.
- Supports output bypass and 4K->1080P downscaling function via dial switch on panel.
- EDID can be selected to COPY and AUTO modes.
( COPY: Copies OUT 1 port EDID setting to all output ports, If no HDMI OUT 1 EDID is detected then the unit will copy HDMI OUT 2. If no HDMI OUT 1 and 2 EDID is detected then the unit will copy HDMI OUT 3, etc. The priority order is OUT 1 to OUT 4.
AUTO: Compare OUT 1~OUT 4 EDID settings and output the best resolution to all outputs.) - Supports analog audio PCM 2.0.
- Supports optical audio pass-through format LPCM 2.0/2.1/5.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1.
Package Contents
- 1× 1×4 HDMI 2.0 Splitter
- 1× 5V/1A Power Adapter
- 1× User Manual
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolutions | 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4 :4:4) |
| Color Depth | 4K60Hz 8-bit, 1080P 12-bit |
| Color Space | RGB, YCbCr 4:4:4 , YCbCr 4:2:2 |
| HDMI Audio Formats | LPCM, Dolby Digital/ Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| L/R Audio Formats | PCM 2.0 |
| Optical Audio Formats | LPCM [2.0/2 .l ]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD -HRA 5.1 |
| ESD Protection | Human-body Model: ± 8kV (Air-gap discharge) I ± 4kV (Contact discharge) |
| Connections | |
| Input ports | 1 X HDMI Type A [19 -pin female] |
| Output ports |
|
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 180mm(W) X 62mm(D) X 14mm(H) |
| Weight | 227g |
| Power Supply | Input : AC100~24ov S0/60Hz, Output : DCSV/1A(US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 3.SW (max) |
| Operating Temperature | 0° c ~ 40• c / 32• F ~ 104 ° F |
| Storage Temperature | -20· c ~ 60° c / -4° F~ 140• F |
| Relative Humidity | 20~90% RH (non -condensing) |
Operation Controls and Functions

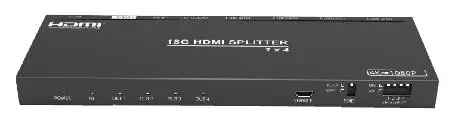

Front Panel
| Number | Name | Function description |
| 1 | POWER LED | This blue LED will illuminate when the unit has connected power supply. |
| 2 | HDMI INPUT LED | This blue LED will illuminate when the HDMI IN has connected an active HDMI source device with a HDMI cable. |
| 3 | HDMI OUTPUT LED | These blue LEDs will illuminate when the HDMI OUT port has connected an active display device with a HDMI cable. |
| 4 | SERVICE port | Firmware update used. (Manufacturer use only.} |
| 5 | EDID | AUTO: Compare the EDID setting of the HDMI OUT 1~ 4 Port disolay device then |
| transmit the best EDID signal to source device, the source device will transmit again the EDID signal to all outputs. COPY: Copy the HDMI OUT 1 port EDID setting to source device (If no HDMI OUT 1 capable EDID is detected then the unit will copy HDMI OUT 2. If no HDMI OUT 1~2 capable EDID is detected then the unit will copy HDMI OUT 3, etc. The priority order is OUT 1 to OUT 4). | ||
| 6 | Dial switch (4K→ 1080P) | OFF: When the dial switch is dialed to‘ OFF’ position, signal input and output is bypass status. ON: When the dial switch is dialed to‘ ON’ position, signal input will downscale (4k->1080P ) output. |
Rear Panel

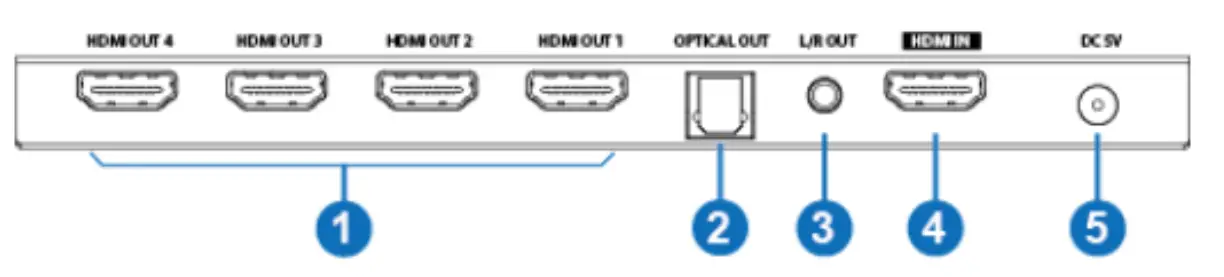

| Number | Name | Function description |
| 1 | HDMI OUTPUT | Connect to HDMI display device such as TV or monitor. |
| 2 | OPTICAL OUT | Optical audio output. (This port outputs audio from HDMI IN port.) |
| 3 | L/ROUT | Analog audio output. (This port outputs audio from HDMI IN port.) |
| 4 | HDMI IN | Connect to HDMI source device such as DVD player or PS4. |
| s | DCSV | Plug the SV/1A DC power supply into the unit and connect the adapter to an AC out let . |

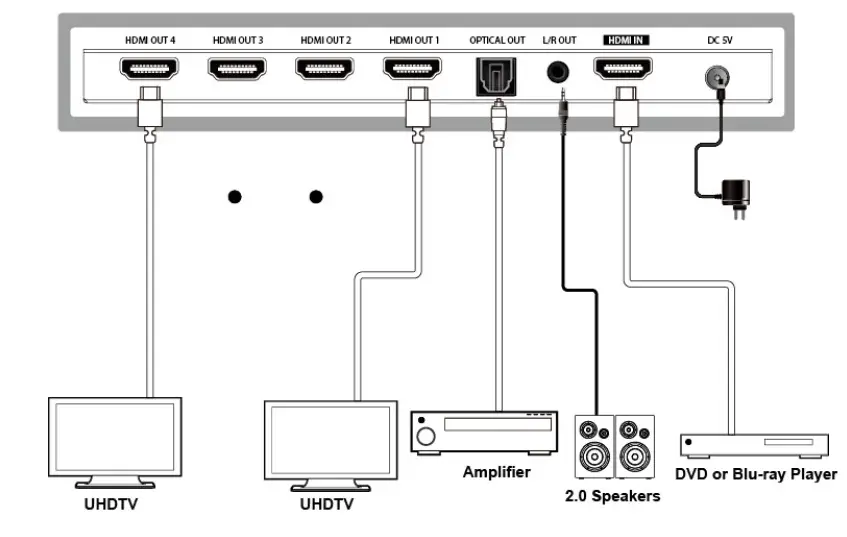

Application Example
