Orei HD-1016 10.2Gbps 1×16 HDMI Splitter
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shocks, lightning strikes, etc. The use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.
Introduction
This high-performance 10.2Gbps 1×16 HDMI Splitter can split one HDMI input into ten HDMI outputs simultaneously. Supported input/output video resolution is up to 4K×2K@50/60Hz YCbCr 4:2:0. HDR and Dolby Vision functions are available. In addition, this splitter supports four modes of EDID setting.
Features
- HDCP1.4 compliant
- Support video bandwidth of 10.2 Gbps
- Video resolution is up to 4K×2K@50/60Hz YCbCr 4:2:0
- Support 3D, HDR, and Dolby Vision function
- EDID can be selected with four modes by dialing the switch on the panel, including 1080P@60Hz-2ch, 4K@30Hz-2ch, copying HDMI OUT 1, and comparing all outputs.
- No need to install the driver, plug and play
Package Contents
- 1×10.2Gbps 1×16 HDMI Splitter
- 1×DC 12V/1A Power Adapter
- 1×User Manual
Specifications
| Technical | |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 10.2Gbps |
|
Video Resolution | 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200 |
| 3D Support | Yes |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit |
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| HDR Formats | HDR10, HDR10+, Dolby Vision |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Connection | |
| Input Ports | 1×HDMI Type A [19-pin female] |
| Output Ports | 16×HDMI Type A [19-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 251mm(W)×60mm(D)×30mm(H) |
| Weight | 500g |
| Power Supply | Input: AC100~240V 50/60Hz Output: DC 12V/1A |
| Power Consumption | 7.8W (max) | |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F | |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F | |
| Relative Humidity | 20~90% RH (non-condensing) | |
| Resolution / Cable Length | 4K@30Hz – Feet / Meters | 1080P60Hz – Feet / Meters |
| HDMI IN / OUT | 32ft / 10M | 50ft / 15M |
| The use of a “Premium High-Speed HDMI” cable is highly recommended. | ||
Operation Controls and Functions

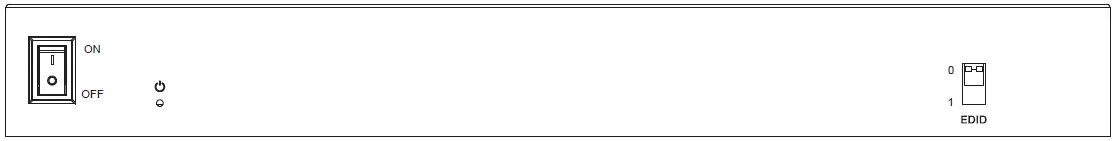

Front Panel
| Name | Function Description |
| Power Switch | Turn on/off the power supply for the Splitter |
| Power LED | When the Splitter is connected to the power supply and the power switch is turned on, the red LED illuminates. |
|
EDIT | 0 means OFF, and 1 means ON. 00: All HDMI OUT ports output default 1080P@60Hz-2ch. 01: All HDMI OUT ports output default 4K@30Hz-2ch. 10: Copy HDMI OUT 1 port EDID setting to all outputs. If no HDMI OUT 1 capable EDID is detected then the unit will output default 1080P@60Hz-2ch. 11: Compare all HDMI OUT ports EDID then output the best EDID to all output ports. |

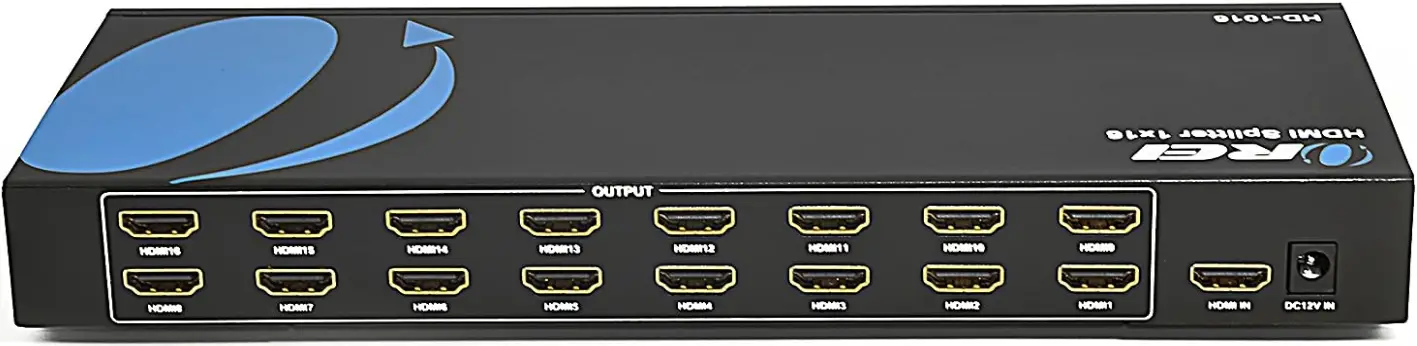

Rear Panel
| Name | Function Description |
| HDMI OUT 1~16 LED | Green LED indicates that the HDMI OUT ports are connected to active display devices. |
| HDMI OUT 1~16 | HDMI outputs for displays 1 to 16. |
| HDMI IN LED | Green LED indicates that the HDMI IN port is connected to an active source device. |
| HDMI IN | HDMI source input. |
| DC 12V | DC 12V input for 12V 1A power adapter. |

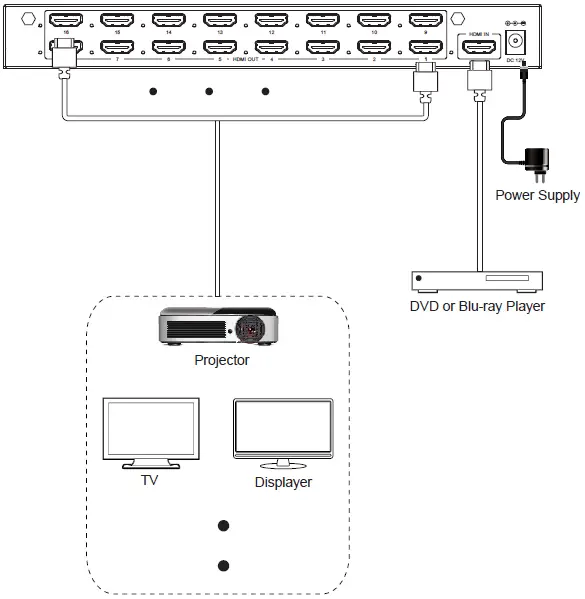

Application Example
FAQ’s
What is the function of the Orei HD-1016 HDMI Splitter?
The Orei HD-1016 is a HDMI splitter that allows you to take a single HDMI input source and distribute it simultaneously to up to 16 HDMI output displays, creating multiple identical video and audio signals.
What version of HDMI does the HD-1016 support?
The Orei HD-1016 supports HDMI 1.4b, which allows for video resolutions up to 4K@30Hz and audio formats like DTS-HD Master Audio and Dolby TrueHD.
How many displays can I connect to the HD-1016 HDMI splitter?
You can connect up to 16 HDMI displays to the HD-1016 splitter.
Does the HD-1016 support 3D video?
Yes, the HD-1016 supports 3D video formats.
What is the maximum video resolution supported by the HDMI splitter?
The Orei HD-1016 supports video resolutions up to 4K@30Hz (3840x2160 pixels).
Can I use this splitter to extend my desktop across multiple displays?
No, the HD-1016 is a simple HDMI splitter that duplicates the same video and audio signal to all connected displays, rather than extending the desktop.
Does the splitter require an external power source?
Yes, the Orei HD-1016 HDMI splitter requires an external power adapter to function correctly. It does not draw power from the HDMI input source.
What is the maximum distance between the HDMI splitter and connected displays?
The maximum distance between the HD-1016 and connected displays largely depends on the HDMI cables used. Generally, high-quality HDMI cables can support distances up to 15 meters (approximately 50 feet).
Can I use this splitter to connect different types of displays (e.g., one 4K TV and one 1080p monitor)?
Yes, the HD-1016 can distribute the same HDMI signal to different types of displays, but the highest resolution supported by all displays will be limited to the lowest common resolution among them.
Does the HDMI splitter support HDCP (High-bandwidth Digital Content Protection)?
Yes, the Orei HD-1016 HDMI splitter supports HDCP, allowing you to watch protected content on compatible displays.
Can I daisy-chain multiple HD-1016 splitters for even more displays?
While some HDMI splitters support daisy-chaining, the Orei HD-1016 does not have this capability. It is recommended to use additional splitters for additional displays.
Is the Orei HD-1016 HDCP 2.2 compliant?
No, the HD-1016 supports HDCP 1.4 but not HDCP 2.2. Keep this in mind when connecting sources that require HDCP 2.2 compliance.
