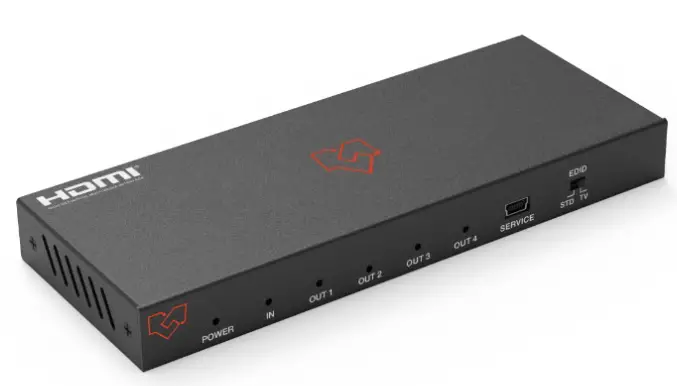

VigilLink VL-SP14-1 1×4 HDMI 2.0 Splitter 18Gbps
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference.
A surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shocks, lightning strikes, etc. The use of surge protection systems is highly recommended to protect and extend the life of your equipment.
Introduction
This 1×4 HDMI 18Gbps Splitter is an advanced solution for splitting a single HDMI signal into 4 HDMI displays. It provides high-performance audio and video output through HDMI cables up to 4K2K@60Hz 4:4:4 and can receive and transmit up to 18Gbps of bandwidth with no data loss. (Supporting the latest features, you can be assured of reliable and high-quality HDMI distribution.)
Features
- HDMI 2.0b, HDCP 2.2 compliant
- Supports video format up to 4K2K@60Hz with 8-bit RGB/YCbCr 4:4:4/YCBCR 4:2:2
- Support 3D frame sequential video format up to 1080p@60
- Supports 3D frame sequential video format up to 4K2K@30Hz
- Supports high-resolution VESA mode video format up to QSXGA@60Hz
- Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- Supports smart EDID control
- Compact design for an easy and flexible installation
Package Contents
- 1 × 1×4 HDMI 18Gbps Splitter
- 1 × 5V/1A DC Power Adapter
- 1 × User Manual
Specifications
| Technical | |
| Video Bandwidth | 600MHz/18Gbps |
| Input Ports | 1×HDMI Type A[19-pin female] |
| Output Ports | 4×HDMI Type A[19-pin female] |
| Output Resolution | 480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz |
| ESD Protection | v |
| Power Supply | 5V/1A DC (US/EU standards, CE/FCC/UL certified) |
| Dimensions | 63mm (W) × 163mm (D) × 16mm (H) |
| Weight | 260g |
| Chassis Material | Metal |
| Silkscreen Color | Black |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
|
Relative Humidity | 20~90% RH (non-condensing) Snippet_31864EE8C.idms |
| Power Consumption | 2W |
Operation Controls and Functions

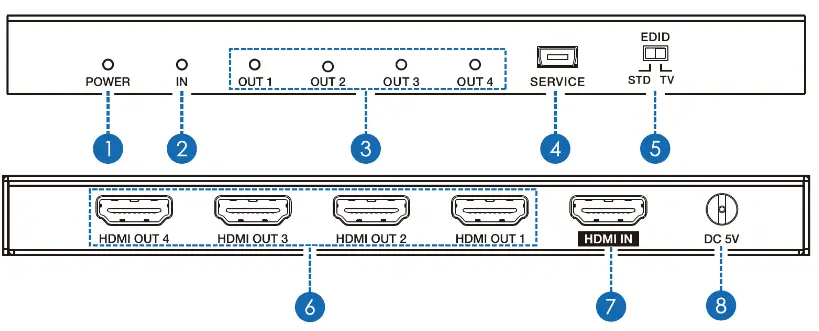

| No. | Name | Function Description |
| 1 | POWER LED | This blue LED illuminates when the device isconnected to the power supply. |
| 2 | IN LED | This blue LED illuminates when the Sourceisconnected to the device. |
| 3 | OUT LED | These blue LEDs will light up to indicate whichHDMI outputs are connected to an active TV/ display/monitor. |
| 4 | SERVICE | Firmware update use only. |
|
5 | EDID STD | When in ‘STD’ mode, the unit will use its built-in EDID settings. In this mode, the video output will be sent to 1080p@60Hz and the audio output at LPCM 2CH Stereo. Use this mode if there are display problems in TV Mode. |
|
EDID TV | When in ‘TV’ mode, the unit will read the EDID settings of the display device connectedto HDMI OUT 1. If it detects a 4K2K capable EDID setting it will transmit the signal in that format to all outputs. If no 4K2K capable EDIDis detected, then the unit will output the best resolution that all displays can support. | |

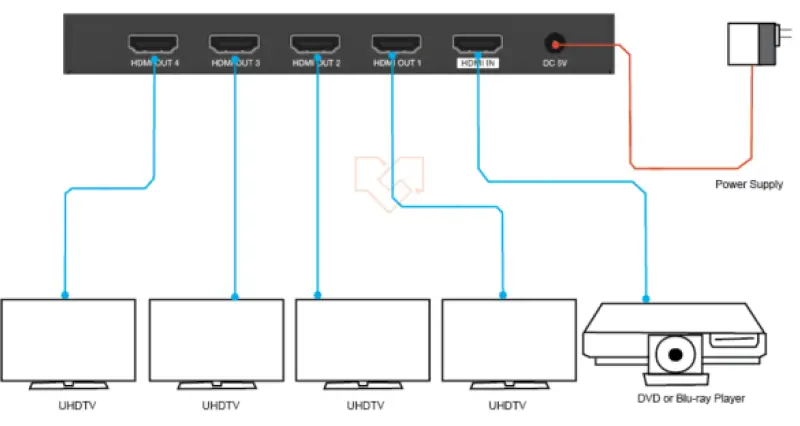

| 6 | HDMI OUT 1~4 | Connect each of the HDMI outputs to an HDMIdisplay for simultaneous HDMI distribution or cascade the output to another transmitter to extend the operating distance. |
| 7 | HDMI IN | Connect the input port to the HDMI splitter output of your source devices such as a DVDplayer or set-top box with an HDMI cable. |
| 8 | DC 5V | Plug the 5V DC power supply into the unit and connected the adaptor to an AC outlet. |
