VLSP-16H20
1×16 HDMI 2.0 Splitter 18Gbps
User Manual

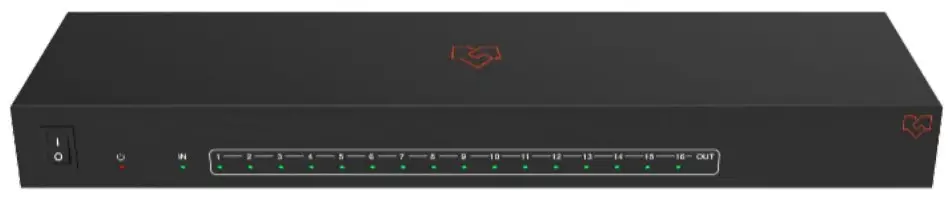

VLSP-16H20 1×16 HDMI 2.0 Splitter 18Gbps
Thank you for purchasing this product
Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference.
A surge protection device is recommended.
This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc. The use of surge protection systems is highly recommended t o protect and extend the life of your equipment.
Introduction
The 18Gbps 1×16 HDMI Splitter can distribute 1 HDMI source signal t o 16 HDMI display devices synchronously. Supported video resolution is up to 4K2K@50/60Hz 4: 4 : 4 . The product supports advanced EDID management.
It also supports HDR, HDR10, HDR10+, HLG, and Dolby vision functions. This product is widely used in multimedia conference halls, TV teaching, large-screen display projects, and other places.
Features
- HDMI 2.0b, HDCP 2.2/ 1.x and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- Support video resolution up t o 4K2K@50/60Hz 4:4:4
- Support digital audio format: DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD
- Support HDR, HDR10, HDR10+, HLG, and Dolby vision
- Advanced EDID management
- Compact design for easy and flexible installation
Package Contents
- 1 18Gbps 1×16 HDMI Splitter
- 1x 12V/2.5A DC Locking Power Adapter
- 1 User Manual
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2/1.x |
| Video Bandwidth | 594MHzJ18Gbps |
| Video Resolution | Up to 4k2k@50/60Hz 4:4:4 |
| Color Depth | 8-bit,10-bit,12-bit(1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2/4:2:0 |
| HDR | Support HDR, HDR10, HDR10+, HLG, Dolby vision |
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby- TrueHD, DTS-HD |
| ESD Protection | Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input | 1xHDMI Type A (19-pin female) |
| Output | 16xHDMI Type A (19-pin female) |
| Control | |
| Mechanical | |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Dimensions | 300mm (W) x 100mm (D) x 28mm (H) |
| Weight | 900g |
| Power Supply | Input: AC100 – 240V 50/60Hz, Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 12W |
| Operation Temperature | 0°C – 40°C / 32°F – 104°F |
| Storage Temperature | -20°C – 60°C / -4°F – 140°F |
| Relative Humidity | 20-90% RH (non-condensing) |
Operation Controls and Functions

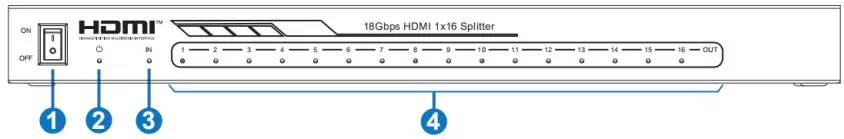

Front Panel

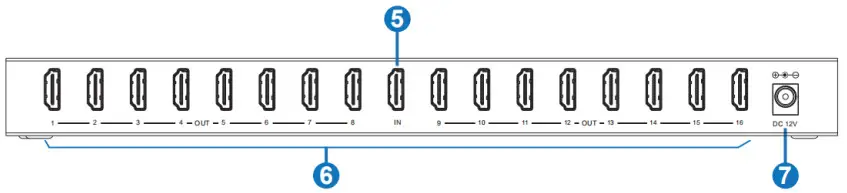

Rear Panel

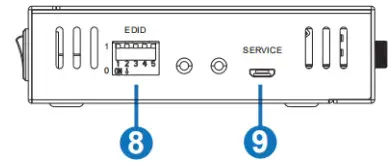

Side Panel
| No. | Name | Function Description |
| 1 | POWER switch | Press this switch to power on/off the device. |
| 2 | POWER LED | When the device is powered on, the power LED will be on. |
| 3 | IN LED | The green LED will be on when tto he HDMI IN port connects an active source device. |
| 4 | OUT LED (1-16) | When the HDMI OUT port connects to an active display device, the corresponding green OUT LED will be on. |
| 5 | HDMI IN port | HDMI input ports connect to HDMI source devices such as DVDs or set-top boxes with an HDMI cable. |
| 6 | HDMI OUT port (1-16) | HDMI output port, connect to the HDMI display A device such as a TV or Monitor with an HDMI cable. |
| 7 | DC 12V | Plug the DC 12V power supply into the unit and connect the adaptor to an AC outlet. |
| 8 | EDID DIAL switch | It is used to set EDID mode. Please refer to Section “6. EDID Mode” for details. |
| 9 | SERVICE port | Firmware update port. |
EDID Mode
| EDID Mode | EDID Description |
| 11111 | 1080P, Stereo Audio 2.0 |
| 11110 | 1080P, Dolby/DTS 5.1 |
| 11101 | 1080P, HD Audio 7.1 |
| 11100 | 10801, Stereo Audio 2.0 |
| 11011 | 10801, Dolby/DTS 5.1 |
| 11010 | 10801, HD Audio 7.1 |
| 11001 | 1080P 3D, Stereo Audio 2.0 |
| 11000 | 1080P 3D, Dolby/DTS 5.1 |
| 10111 | 1080P 3D, HD Audio 7.1 |
| 10110 | 4K2K30Hz444, Stereo Audio 2.0 |
| 10101 | 4K2K30Hz_444, Dolby/DTS 5.1 |
| 10100 | 4K2K30Hz444, HD Audio 7.1 |
| 10011 | 4K2K60Hz420, Stereo Audio 2.0 |
| 10010 | 4K2K60Hz_420, Dolby/DTS 5.1 |
| 10001 | 4K2K60Hz420, HD Audio 7.1 |
| 10000 | 4K2K60Hz444, Stereo Audio 2.0 |
| 01111 | 4K2K60Hz_444, Dolby/DTS 5.1 |
| 01110 | 4K2K60Hz444, HD Audio 7.1 |
| 01101 | 4K2K60Hz444, Stereo Audio 2.0 HDR |
| 01100 | 4K2K60Hz_444, Dolby/DTS 5.1 HDR |
| 01011 | 4K2K60Hz444, HD Audio 7.1HDR |
| 01010 | copy output 1 |
| 01001 | 1080P, Stereo Audio 2.0 |
| 01000 | 1080P, Stereo Audio 2.0 |
| 00111 | 1080P, Stereo Audio 2.0 |
| 00110 | 1080P, Stereo Audio 2.0 |
| 00101 | 1080P, Stereo Audio 2.0 |
| 00100 | 1080P, Stereo Audio 2.0 |
| 00011 | 1080P, Stereo Audio 2.0 |
| 00010 | 1080P, Stereo Audio 2.0 |
| 00001 | 1080P, Stereo Audio 2.0 |
| 00000 | PC control mode |

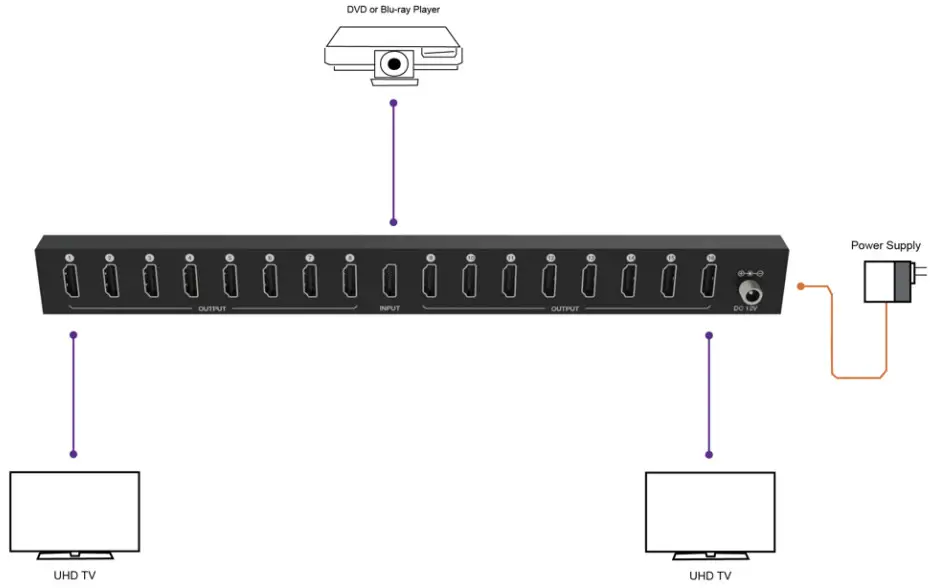

Application Example
