Ezcoo HDMI Splitter EZ-SP12 1×2 4K 60Hz 4:4:4 HDR Audio Extractor

INTRODUCTION

4K HDMI splitter 1×2 supports HDMI 2.0 4K 60Hz 4:4:4 18Gbps 8bit, HDR D-o-l-b-y Vision, 4K@60Hz 4:2:2 10bit HDR10 and 4K60Hz (4:2:0 10-bit) HDR,1080p 120Hz with xvYCC, x.V.Color & deep color. NO VRR. NO ARC. NO 4K120Hz ONLY HDMI output 2 support down-scale 4K60/4K50/4K30Hz to 1080p 60Hz. Firmware Upgradeable Splitter.

HDMI SPLITTER

HDMI Splitter 1×2 plays 4K and 1080P simultaneously. Set EDID No.31 via micro-usb, get 4K 60Hz HDR D-o-l-b-y Vision TV and 7.1ch D-o-l-b-y Atmos soundbar in sync.Pls, ensure the Source, TV, and Receiver/soundbar support them both. Supports 4K HDR TV and 1080p Capture Card work in sync.

What’s In the Box

1x HDMI Splitter
1x Power Adapter
2x Mounting Ear
1x Hook Loop
1x User Manual
2x Reusable Cable Tie

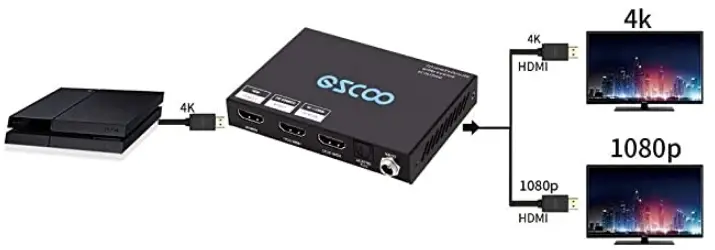

Scene Application

4K TV & 1080P TV can work together;
No need to reduce HDMI resolution and
change 4K TV, you just get an HDMI scaler splitter

Scaler

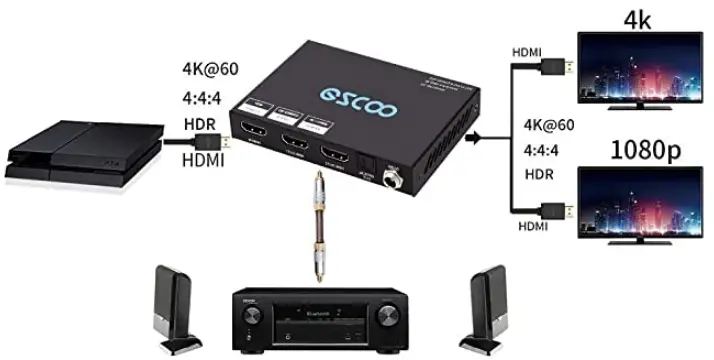

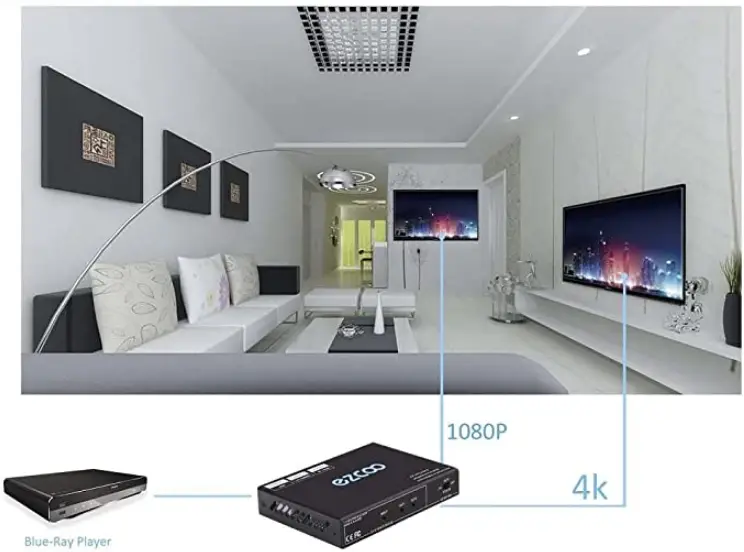

Distribute 4K HDMI signal to one 4K UHD TV and one 1080P TV simultaneously. It’s much cheaper than adding a 4K UHD TV. HDMI 4K@60Hz (4:4:4) HDR with HDCP2.2. Get high-end audio from Optical out to AV receiver.

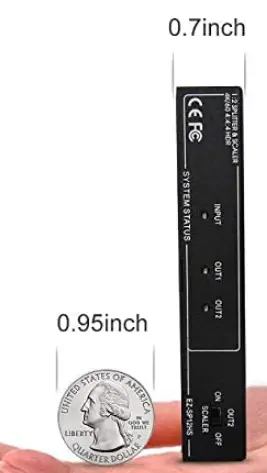

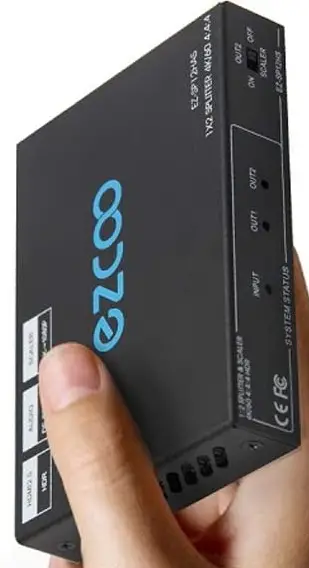

Slim Design For Concealed Installation

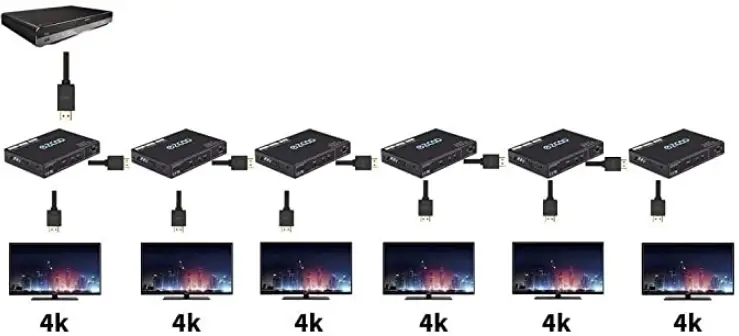

Digital Signage Daisy Chain Cascade

Specification

Color HDMI Splitter 1×2
Connector Type HDMI 2.0
Brand Ezcoo
Compatible Devices Atmos 7.1CH Soundbar Speaker, Chromecast, google tv, Xbox series x, TOSLINK OPTICAL SPDIF 5.1CH audio, AVR, PC, laptop, monitor, projector, Fire TV, Xfinity box, PS4 PS5, Apple TV
Cable Type HDMI
Weight 6.4 ounces
Dimensions 4 x 2.8 x 0.7 inches

Features

., High-End HDMI Splitter for Dual Monitor Duplicate/Mirror OR 4K & 1080p TV work in Sync for Xbox, PS5 1080p120Hz, Roku, IPS gaming monitor>> HDMI splitter OUT 2 down-scale 4K to 1080P ONLY. DO NOT down-scale HDR D-o-l-b-y Vision (4K60 4:2:2) and Frequency, otherwise, wash out >> CEC for splitter OUT 1 only
HDMI2.0 4K60Hz 4:4:4 8bit 18Gbps, HDR D-o-l-b-y Version HDCP2.2, 1080p @120Hz/60Hz 3D, 3840×2160 @60Hz, 1440p@60Hz >> HDMI audio: D-o-l-b-y Atmos, Digital 7.1CH, DTS:X; DE-embed SPDIF Optical 5.1CH play splitter OUT 2 audio. NO ARC
Pls use a good HDMI2.0 cable less than 15m/ 49ft. >> Connect 4K TV to splitter OUT 1, 1080p TV to OUT 2, set OUT 2 SCALER ON>>Get 4K HDR D-o-l-b-y Vision & D-o-l-b-y Atmos in sync, set EDID No.31 via micro-USB by PC, same setting for 1080p 120Hz.>>Set HDCP bypass by PC. NOT support 4K60hz & 1080p120hz work in sync.
Japanese High-end IC Exclusive Algorithm. Plug & Play. Any usage issue, pls Click sold by EZCOOTECH and ask the seller FREELY >>1 to 2 HDMI splitter Daisy Chain cascade to 6 layers
Threaded power adapter to prevent power loss; Low Heat. >> Mounting Ear for easy setup. >> 4K HDMI 2-way splitter for Fire TV, N-v-i-d-ia Shield, Xfinity box, Game Video Capture, Xbox, Apple TV, PS4 Pro, Chromecast, google tv, etc. Note Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.

Troubleshooting

Please connect the 4K TV to HDMI Splitter OUT 1 firstly; after the 4K TV display well, connect the second TV to Splitter OUT 2.
Please connect 1080p TV to splitter OUT 2, when 4K and 1080p TV work together.
When turning off the TV, Splitter, please turn on Splitter OUT 1 4K TV first, when 4K and 1080p TV work together.
If HDMI source, TV support both HDR D-o-l-b-y Version D-o-l-b-y Atmos, then Splitter can support both accordingly.
About HDR, please connect the HDMI source to the TV without a splitter, test if TV can support HDMI source HDR. If the TV can not display HDMI source HDR well, that means a TV issue, not a splitter.
Please set the HDMI source HDR feature the same as Splitter HDR after step 5 testing.
SPDIF Optical 5.1CH follows Splitter OUT 2. CEC control is on HDMI OUT 1.
Splitter OUT 2 down-scale 4K to 1080p only, no another resolution; NOT down-scale D-o-l-b-y Vision, otherwise wash out.
HDMI Input/ Output cable: Less than 10 mtr HDMI 2.0 standard NEW cable

FAQs

Does this allow arc signals from the TV’s HDMI (arc) port to be returned?

The ARC capability is not supported by the HDMI SPLITTER 1×2 4K 60Hz SP12HAS.

I need to use two HDMIs to send my Xbox’s visual and audio signal—one to a television and the other to a speaker. Can this thing really help?

Xbox can be split to a single TV and a single sound bar with the use of an HDMI Splitter 1 in 2 out.

Which device would be the best if I wanted it to split one HDMI signal into two separate HDMI signals with Dolby Atmos @ 4K 60Hz?

For splitting HDMI dolby Atmos to 2 hdmi 4k 60hz dolby Atmos in both, the hdmi splitter 1×2 tiny SP12H2 may be the simplest and finest option. Use an HDMI 2.0 standard connection that is shorter than 3 metres and set the EDID mode to 4K 7.1.

Will the 1080 120hz output fall to 60hz or continue to flow through if there are two outputs, one 1080 60hz and the other 1080 120hz?

HDMI Splitter 1×2 SP12HAS is unable to produce both 1080 60 Hz and 1080 120 Hz at the same time because it does not support down-scale signal frequency. It can only downscale 4K/HDR content to 1080p.

Can I connect my 1080p monitor with 120 Hz to hdmi out 1 and my 1080p 60 Hz capture device to hdmi out 2 and receive 120 Hz from my PS5 on my display?

This usage is not supported by this HDMI splitter because it does not support down-scale frequency.

Will this support the splitting of an HD (for now) signal into two HD signals? Do the sources need to be in 4K?

If you want to receive a 4K signal, make sure your HDMI source and HDMI display devices support 4K in advance. An HDMI splitter splits a single HDMI source across two HDMI devices. A HDMI splitter can pass a 4K signal but not produce one.

Will output 2 simply be black or will output 1 also not function if the source is a 4K Dolby Vision source but output 2 does not support it?

If you don’t mind a 1080p display, set the HDMI source to 4K AUTO or 4K HDR video format. The HDMI Splitter 1×2 will then be able to downscale the 4K source to a 1080p display. Connect your 1080p display to splitter OUT 2 and turn on OUT 2 Scaler. Please click sold by EZCOOTECH to receive seller technical support by AMAZN message if you require additional technical support.

Will this support splitting one for the PS5 at 120 Hz and the other for the capture card at 60 Hz?

One HDMI Splitter for PS5 1080P 120Hz and one for a 1080p 60Hz capture card are supported.

Can I game at 120 Hz using this splitter if it supports 120 Hz on hdmi?

As stated on the product website, the HDMI Splitter 1×2 EZ-SP12 supports 1080P 120Hz, but not 4K 120Hz. 4K 120Hz already exceeds 18Gbps.

I have a 1080p 120hz and a 4k 60hz display. Can they simultaneously ensure that 4k is 4k and that a 1080 monitor operates at 120 Hz?

A 4K 60Hz monitor and a 1080 120Hz monitor cannot be used together with an HDMI splitter.

How can I connect my PS5 to the 4K + HDR signal? I receive a message saying that my device doesn’t support 2160p/HDR. I can only get 2160p or HDR, not both?

I’m not sure, however when I use this device, my NVidia Shield automatically outputs 4K to my Samsung TV. from the shield, through the receiver, and finally to the television.

Can this version of 1×4 simultaneously pass 4 outputs at 4K with HDR? Will there only be one output with CEC, too?

Four outputs on the HDMI Splitter 1×4 SP14HS simultaneously enable 4K HDR. Additionally, only HDMI OUTPUT 1 supports CEC. Make sure the TV supports CEC and attach it to the HDMI port for CEC.

Is it possible to serve a Sonos arc sound bar and a Samsung 4K TV with separate signals from an Apple TV 4K (dolby vision/atmos) set?

Thank you for your interest, but the ARC capability is not supported by the HDMI Splitter 1×2 SP12HAS.

Do HDMI splitters support Dolby Atmos?

The 4K HDMI 2.0 Splitter 1×2 SP12H2 enables synchronized operation between an Atmos sound bar and a 4K HDR TV.
