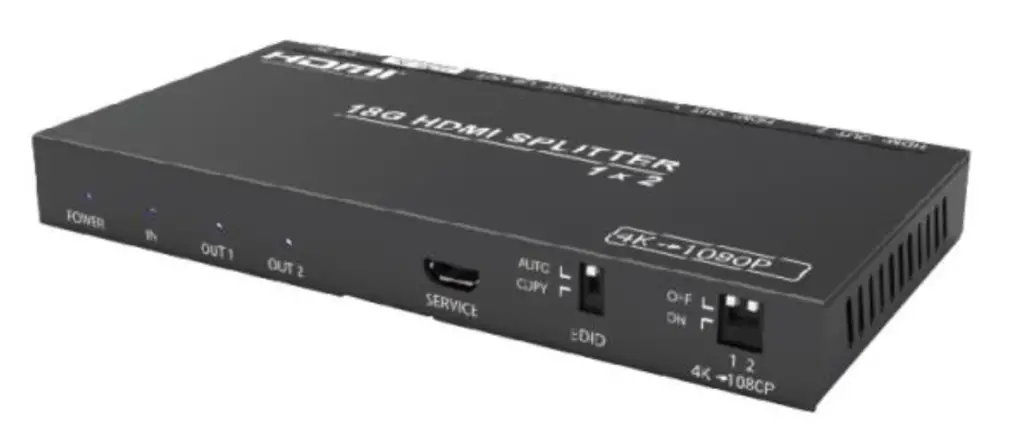

1×2 HDMI 2.0 Splitter with
Scaler/Audio Extract
User Manual
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. The use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.
Introduction
The 1×2 HDMI 2.0 Splitter simultaneously routes one HDMI source to two HDMI displays. It supports resolutions up to 4K2K@60Hz (4:4:4) and HDCP 2.2. This product supports audio extraction from an HDMI source to optical/analog outputs. Output supports bypass and downscale (4K->1080P) function.
Features
☆ HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.
☆ Supports HDMI resolution; maximum up to 4K2K@50/60Hz (4:4:4)
☆ Supports digital and analog audio extract output from HDMI source.
☆ Supports output bypass and 4K->1080P downscaling function via dial switch on the panel.
☆ EDID can be selected COPY and AUTO modes via dial switch on the panel. (COPY: It copies OUT 1 port EDID settings to all output ports; AUTO: Compares OUT 1 and OUT 2 EDID settings and outputs the best resolution to all outputs).
☆ Supports HDMI audio formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Package Contents
① 1× 1×2 HDMI 2.0 Splitter
② 1× 5V/1A Power Adapter
③ 1× User Manual
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolutions | 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4) |
| Color Depth | 4K60Hz 8-bit, 1080P 12-bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| L/R Audio Formats | PCM 2.0 |
| Optical Audio Formats | LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD,Dolby DD+,DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1 |
| ESD Protection | Human-body Model： ± 8kV (Air-gap discharge) , ± 4kV |
| (Contact discharge) | |
| Connections | |
| Input ports | 1×HDMI Type A [19-pin female] |
| Output ports | 2×HDMI Type A [19-pin female] 1×L/R Audio out [3.5mm Stereo Mini-jack] 1×Optical out [S/PDIF] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 120mm(W)×62.5mm(D)×14mm(H) |
| Weight | 166g |
| Power Supply | Input: AC100~240V 50/60Hz, Output: DC5V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 2.8W (max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
Operation Controls and Functions

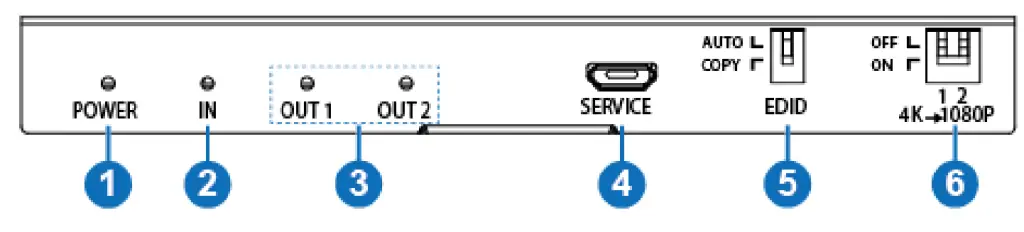

Front Panel
| Number | Name | Function description |
| 1 | POWER LED | This blue LED will illuminate when the unit has a connected power supply. |
| 2 | HDMI INPUT LED | This blue LED will illuminate when the HDMI IN has connected an active HDMI source device with an HDMI cable. |
| 3 | HDMI OUTPUT LED | These blue LEDs will illuminate when the HDMI OUT port has connected an active display device with an HDMI cable. |
| 4 | SERVICE port | Fireware update used. (Manufacturer use only.) |
| 5 | EDIT | AUTO: Compares OUT 1 and OUT 2 displays EDID settings, then output the best resolution to the source device; the source will transmit the signal again to all outputs. COPY: Copy the HDMI OUT 1 port EDID settings to the source device, the source device will transmit again the signal to all outputs. |
| 6 | Dial switch (4K→ 1080P) | OFF: When the dial switch is in the off position, signal input and output is bypass status. ON: When the dial switch is in the‘ON’ position, signal input will downscale (4k->1080P ) output. |

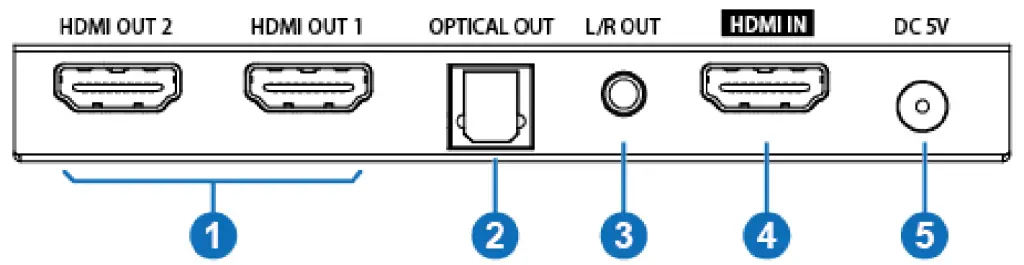

Rear Panel
| Number | Name | Function description |
| 1 | HDMI OUTPUT | Connect to HDMI display devices such as TV or monitor. |
| 2 | OPTICAL OUT | Optical audio output. |
| 3 | L/R OUT | Analog audio output. |
| 4 | HDMI IN | Connect to HDMI source devices such as Blu-ray player or PS4. |
| 5 | DC 5V | Plug the 5V/1A DC power supply into the unit and connect the adapter to an AC outlet. |

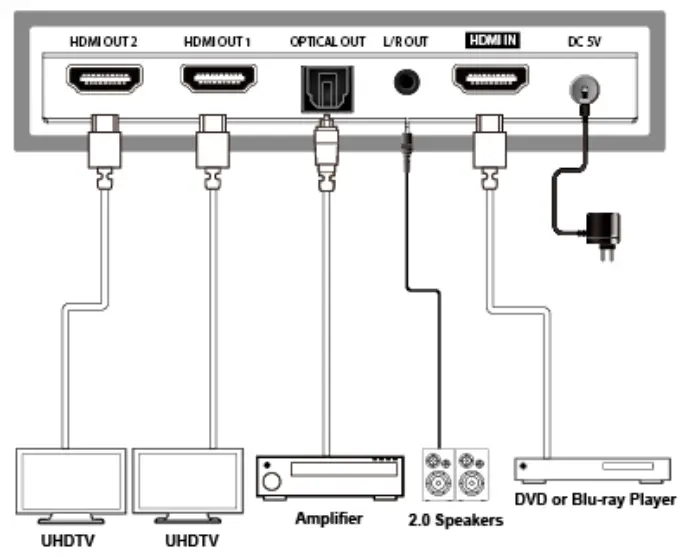

Application Example
