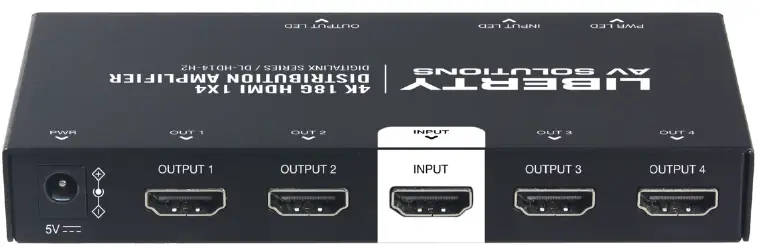

LIBERTY AV DL-HD14-H2 Digitalinx Series 1×4 HDMI 2.0 Splitter DA
PRODUCT OVERVIEW
The DigitaLinx Series is a family of extension, routing, and switching products designed to allow digital signals to extend beyond their limitations. Liberty’s latest addition, DLHD14- H2, is a 1:4 HDMI splitter with built scaling and reliably distributes one HDMI input signal to two outputs at resolutions up to 4K@60Hz 4:4:4 chroma subsampling. It follows HDCP 2.2 and HDMI 2.0b specifications, including supported data rates up to 18 Gbps, HDR (high dynamic range), 3D and HD lossless audio formats. With the built-in scaler, when connected to different displays, the corresponding HDMI output is capable of scaling down automatically (down to 1080P) to feed an optimal output signal to its attached display.
PACKAGE CONTENTS
- (1) HDMI 1:4 Splitter
- (1) DC-5V-1A Power Adapter
- (2) Mounting Brackets
PRODUCT VIEW

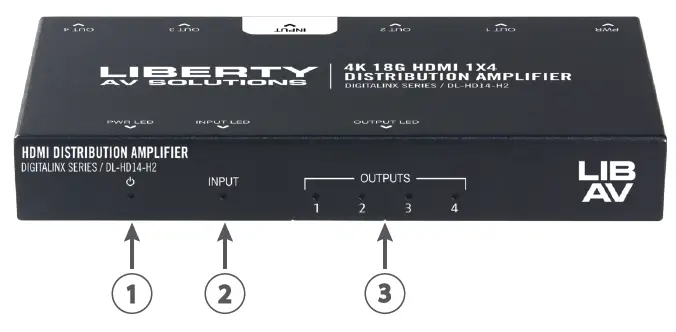

Front Panel
- Power LED: When ON/OFF device is powered ON/OFF.
- HDMI Input LED: When ON, HDMI signal is detected, when OFF no HDMI signal is detected.
- HDMI Output LED: When ON HDMI display is connected, When OFF no HDMI display is connected.

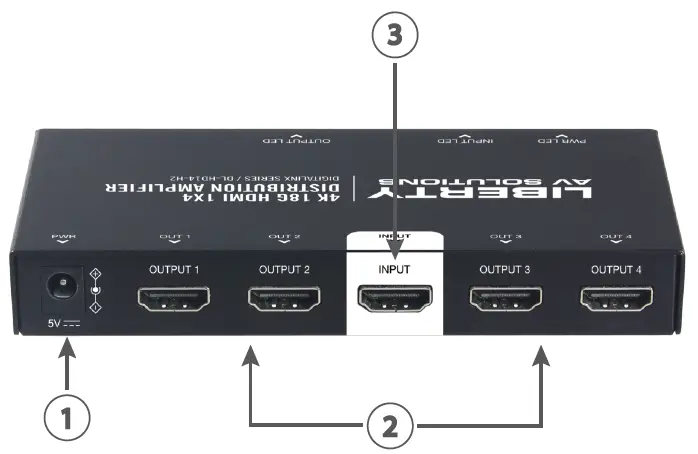

Rear Panel
- 5V: Power adapter connection.
- HDMI OUTPUT: Connect HDMI displays using High-Speed HDMI cables.
- HDMI INPUT: Connect HDMI input using a High-Speed HDMI cable.

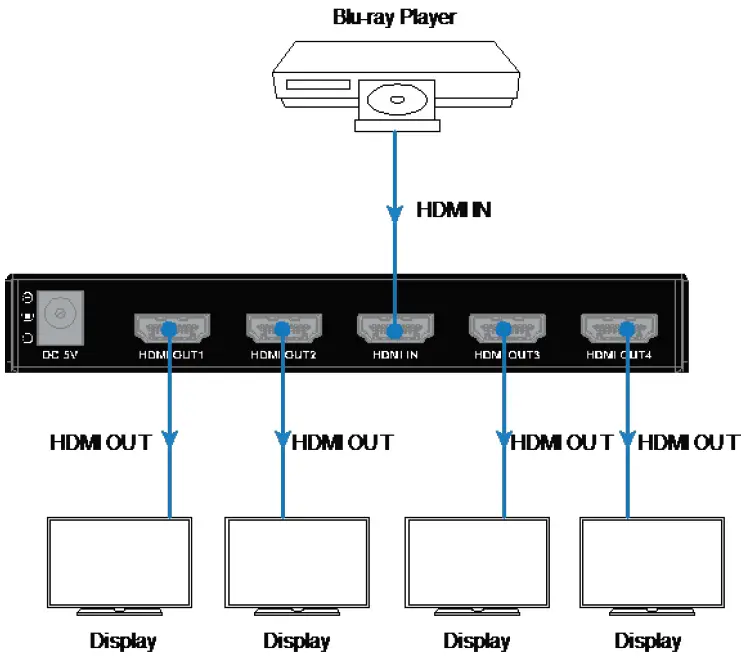

APPLICATION EXAMPLE
TECHNICAL SPECIFICATIONS
| Video | |
| Input / Output Signal Type | HDMI with 4K@60Hz 4:4:4, HDCP 2.2, HDR, 3D |
| Input / Output Resolution Support | Up to 4096×2160@60Hz, including 4K@30Hz/60Hz, 1080P/720P |
| Input Type | (1) HDMI Type A |
| Output Type | (4) HDMI Type A |
| Deep Color | 4K: 8/10/12bit 1080P: Up to 8bit |
| Maximum Data Rate | 18bps |
| Maximum Pixel Clock | 600MHz |
| HDMI Transmission Distance | Input / Output: 15m / 50’ – 1080p@60Hz Input / Output: 10m / 33’ – 4K@30Hz Input / Output: 5m / 16’ – 4K@60Hz |
| Audio | |
| Supported Formats | Fully supports audio formats in HDMI 2.0 specification, including PCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X |
| General | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) |
| Power Supply | DC 5V 1A |
| Power Consumption (Maximum) | 1.8W |
| Device Dimension (W x H x D) | 140mm x 20mm x 65.2mm/ 5.5’’ x 0.8’’ x 2.6’’ |
| Product Weight | 0.24kg/0.53lb |
| Warranty | 5 Years |
| Certification | CE, FCC, RoHS |
Thank you for your purchase.
For technical support please call our toll-free number at 800-530-8998 or email us at [email protected].
