SIIG CE-H27C11-S1 1×2 4K120Hz HDMI Splitter with EDID & Audio Extractor
Features
- Support up to 4K 120Hz 4:4:4/4:2:2/4:2:0
- Support HDCP 2.3 & 1.4
- Support HDR
- Video bandwidth 40Gbps
- Support default EDID and EDID learning
- Support audio extraction via Toslink & 3.5mm
- HDMI Audio Format PCM2/5.1/7.1,Dolby 5.1/7.1, DTS 5.1/7.1
- Toslink Audio Format PCM2, Dolby 5.1, DTS 5.1
- 3.5mm Audio Format: PCM2,
- Support resolution downscaling from 4K2K to 1080P
- Support Dolby Vision by EDID learning Supports VRR(Yariable Refresh Rate) & ALLM(Auto Low Latency Mode)
- Supports CEC pass-through on output 2
Package contents
- 1×2 4K120Hz HDMI Splitter
- Power adapter DC 5V/2A
- Quick Start Guide

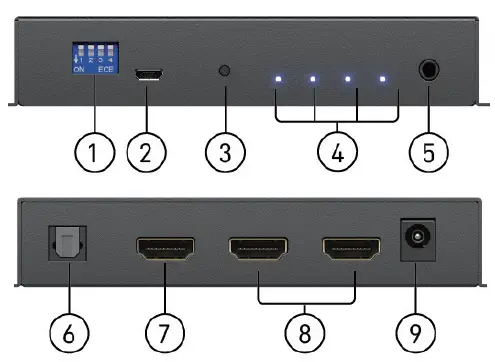

Layout

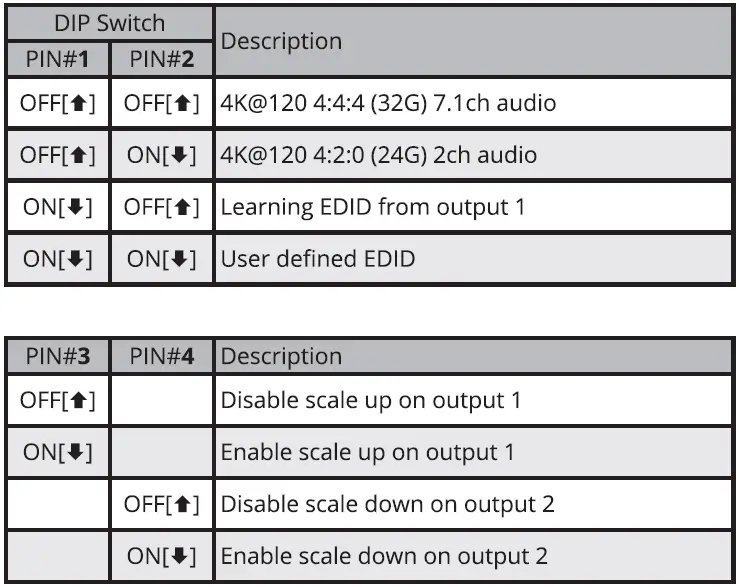

- EDID mode Dip Switch:
(Please reset the device after setting EDID dip switch) - Micro-USB Port: For F/W update
- Reset button: press 2 seconds to reset the device.
- LED Indicator: LED from left to right are HDMI 2.1 format LED, Input Signal LED, Output 1 Signal LED, Output 2 Signal LED
- Stereo 3.5mm output: PCM 2ch
- Toslink output: PCM2, Dolby 5.1 & DTS 5.1
- HDMI IN: Connect with HDMI source
- HDMI OUT 1-2: HDMI outputs to display
- Power Jack: Connect to DC 5V/2A power
NOTE
- Learning EDID from output1 mode will mask display DSC information.
- If user wants to learn completed EDID included display DSC information, please use “user defined EDID” mode to learn EDID from display
- Scale up 1080p to 4K
- Scale down 4K to 1080p
Dear Valued Customer
WE REALLY APPRECIATE
YOUR PURCHASE -thank au-
Support
For more info or tech support
http://www.siig.com/support
1×2 4K120Hz HDMI Splitter with EDID & Audio Extractor
Quick Start Guide
Copyright© 2022 by SIIG, Inc. All rights reserved.
