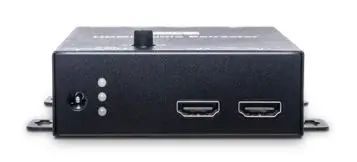

SC T HAE01 4K60Hz HDMI Audio Extractor with Up/Down Scaler
Model : HAE01
4K60Hz HDMI Audio Extractor with Up/down Scaler
Introduction
HAE01 is an HDMI multifunctional tool allowing you to extract HDMI audio to integrate external audio equipment, such as amplifiers, AV receivers, etc. Additionally, the up/down scaling function, which converts 1080p signal to 4K, or 4K signal to 1080p, allows you to save extra cost on a new HDMI monitor. Last but not least, the 5-way joystick switch can enable you to operate and setup functions efficiently.
Features
- Resolution up to 4K@60Hz 4:4:4.Built-in dual HDMI outputs.
- Built-in Toslink (digital audio) and 3.5mm phone jack (analog audio) interfaces.
- Supports resolution up/down scaling function.
- Supports chroma resampling function, 4K HDMI 4:4:4/ 4:2:2 to 4:2:0 conversion.
- Supports HDCP 2.2 to 1.4 conversion.
- Supports HDMI audio extract for integrating with external audio equipment.
- Supports OSD menu to check functions & modes.
- Supports EDID management.
Installation View
Application 1
4K HDMI Audio Extrator

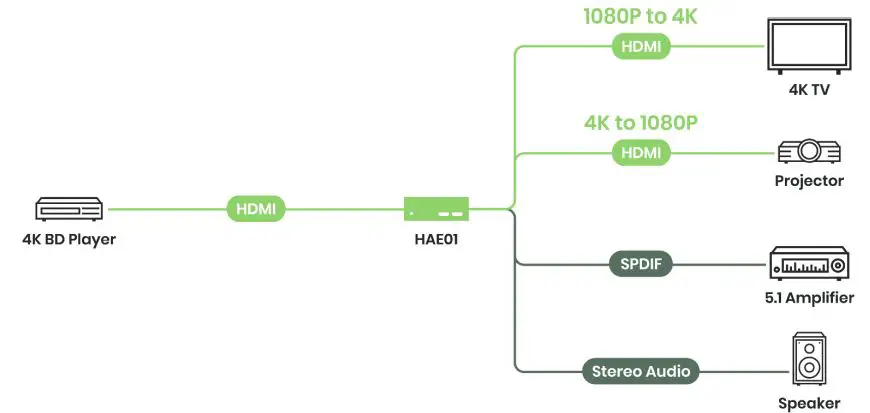

Application 2
4K HDMI Up/Down Scaler with Audio Extractor HDCP 2.2 to 1.4 and 4:4:4 to 4:2:0 and Up/Down Scale Capable Full OSD operation for all setup/EDID management

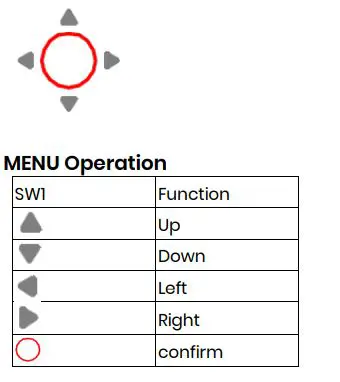

5 way Joystick Switch Function
| Main Menu | Sub Menu | Sub Menu Function |
| OUTPUT 1 MODE | NORMAL | Output video same as input Video |
| UPSCALE | 1080P Upscale to 4K | |
| EXIT | Exit Sub Menu | |
| OUTPUT 1 SUBSAMPLING | NORMAL | Output color subsampling same as Input |
| 4:4:4 à4:2:0 | 4K6G 4:4:4/4:2:2 convert to 4K3G 4:2:0 | |
| NORMAL | Output color subsampling same as Input | |
| OUTPUT 1 AUDIO MODE | OUTPUT 1 AUDIO MODE | Audio Selection |
| NORMAL | audio output | |
| MUTE | No audio output | |
| EXIT | Exit Sub Menu | |
| OUTPUT 2 MODE | AUDIO ONLY | Audio output only |
| DOWNSCALE | 4K downscale to 1080P | |
| SPLITTER | Distribution Mode（Output signal same as OUTPUT 1） | |
| EXIT | Exit Sub Menu | |
| EDID(VIDEO) | AUTO | Use OUTPUT 1 EDID as priority, if OUTPUT 1 and OUTPUT 2 not connected with TV, Default as 4K |
| OUTPUT 1 | Use OUTPUT 1 EDID | |
| OUTPUT 2 | Use OUTPUT 2 EDID | |
| PRESET 4K | Default 4K 60Hz 8bit | |
| PRESET 1080P | Default 1080P 60Hz 8bit | |
| EXIT | Exit Sub Menu | |
| EDID(AUDIO) | AUTO | Use OUTPUT 2 as priority, If OUTPUT 1 and OUTPUT 2 not connected with TV, Default as LPCM 2.0 |
| OUTPUT 1 | Use OUTPUT 1 EDID | |
| OUTPUT 2 | Use OUTPUT 2 EDID | |
| MULTI | Default AC3 and DTS Audio format | |
| LPCM 7.1CH | Default LPCM 7.1 CH Only | |
| LPCM 2CH | Default LPCM 2CH Only | |
| EXIT | Ext Sub Menu | |
| MISCELLANEOUS | Main MCU : Vx.xx | Show firmware version |
| EXIT | Exit MENU |

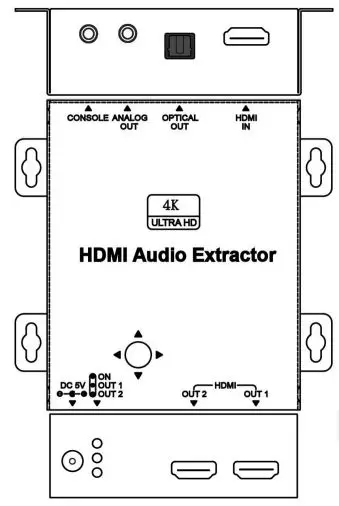

Panel View
LED Indication
| Color | LED |
| GREEN | Power |
| BLUE | Output 1 |
| RED | Output 2 |

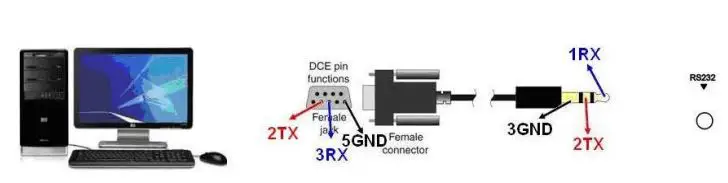

DB9(F)/3.5mm STEREO PHONE JACK DB9(F)/3.5mm STEREO PHONE JACK
| RS232 | 3.5 mm Phone Jack | ||
| Footprint | Define | Footprint | Define |
| Pin 2 | TX | Pin 1 | RX |
| Pin 3 | RX | Pin 2 | TX |
| Pin 5 | GND | Pin 3 | GND |
Trouble Shooting
- CEC function only works Output 1.
- Any HDMI output with HDCP2.2 compatible issues will cause HDMI no video output, Under HDCP 2.2 mode: any one monitor HDCP authorization failed will cause no video status, other connecting monitors will be also failed. Then monitor testing must be one by
- Up/down scale mode only support resolution conversion, frequency will be not changed.
- Under HDMI 2.0 mode, must use Premium certified HDMI cable.
HAE01 Package Include
HAE01 x 1 pcs
DC5V 1Amp Power Adapter x 1 pcs
DB9 (0F)/3.5mm STEREO PHONE JACK x 1 pcs Mounting Screw pack x 2 bags
Specification
| ITEM NO. | HAE01 |
| Support | |
| Compliance | HDMI 2.0, HDCP 2.2, 3D, HDR |
| Max. Video Resolution | 4K@60Hz 4:4:4 |
| Video Bandwidth | 18 Gbps |
| Audio Format | 7.1 LPCM 192KHz, Dolby TrueHD, DTS-HD MA |
| Ports & Interfaces | |
| Video Input | 1 x HDMI Type A |
| Video Output | 2 x HDMI Type A |
| Digital Audio | 1 x TOSLINK |
| Analog Audio | 1 x (3.5mm) Phone Jack |
| RS232 Interface | 1 x DB9 Female / 3.5mm Stereo Phone Jack (Firmware Update) |
| Power | |
| Power Supply | DC 5V 1A Regulated |
| Power Consumption | 4W |
| Ambient Temperature | |
| Operation | -10 to 45℃ |
| Storage | -30 to 70℃ |
| Humidity | Up to 95% |
| Physical Characteristics | |
| Dimensions | 109.6 x 110.5 x 36mm |
| Weight | 270g |
