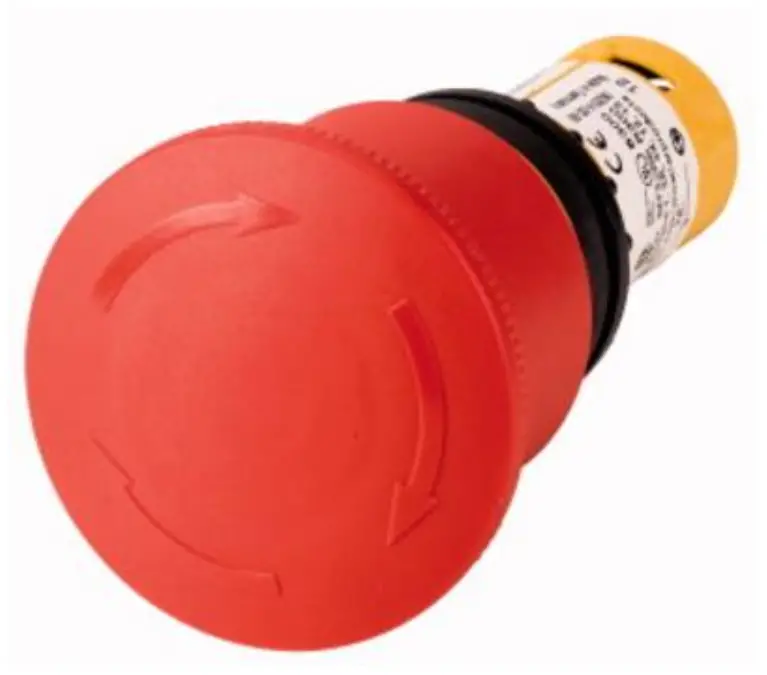

EATON C22-PVT45P-K02 Kill Switch
Electric current! Danger to life!
Only skilled or instructed persons may carry out the following operations.

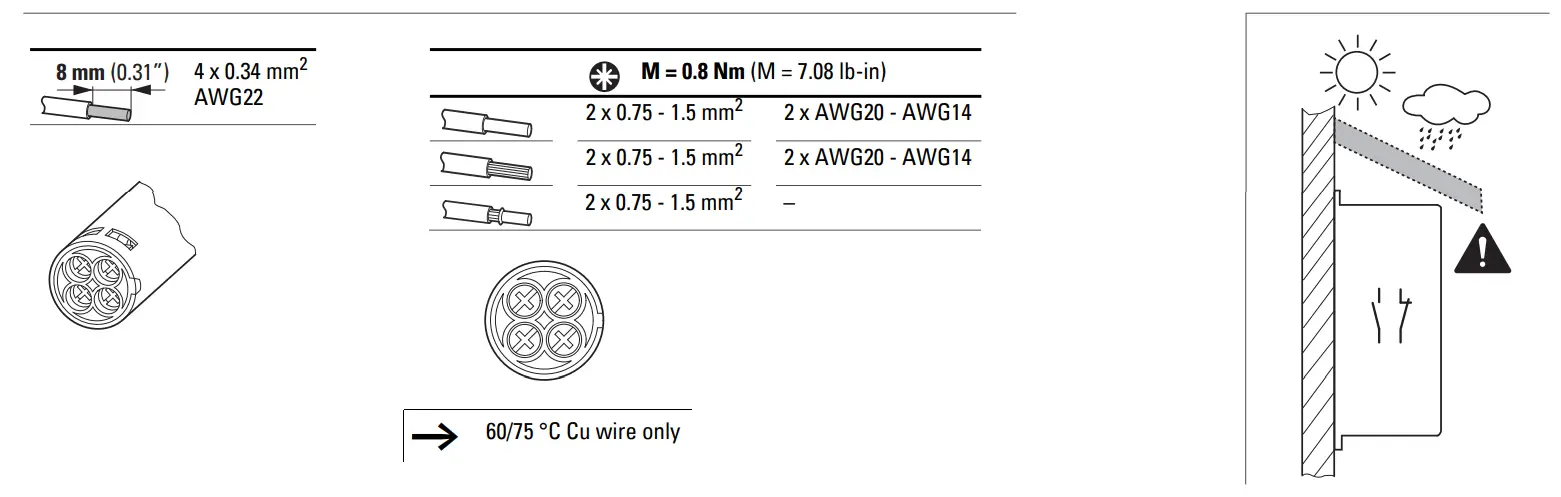

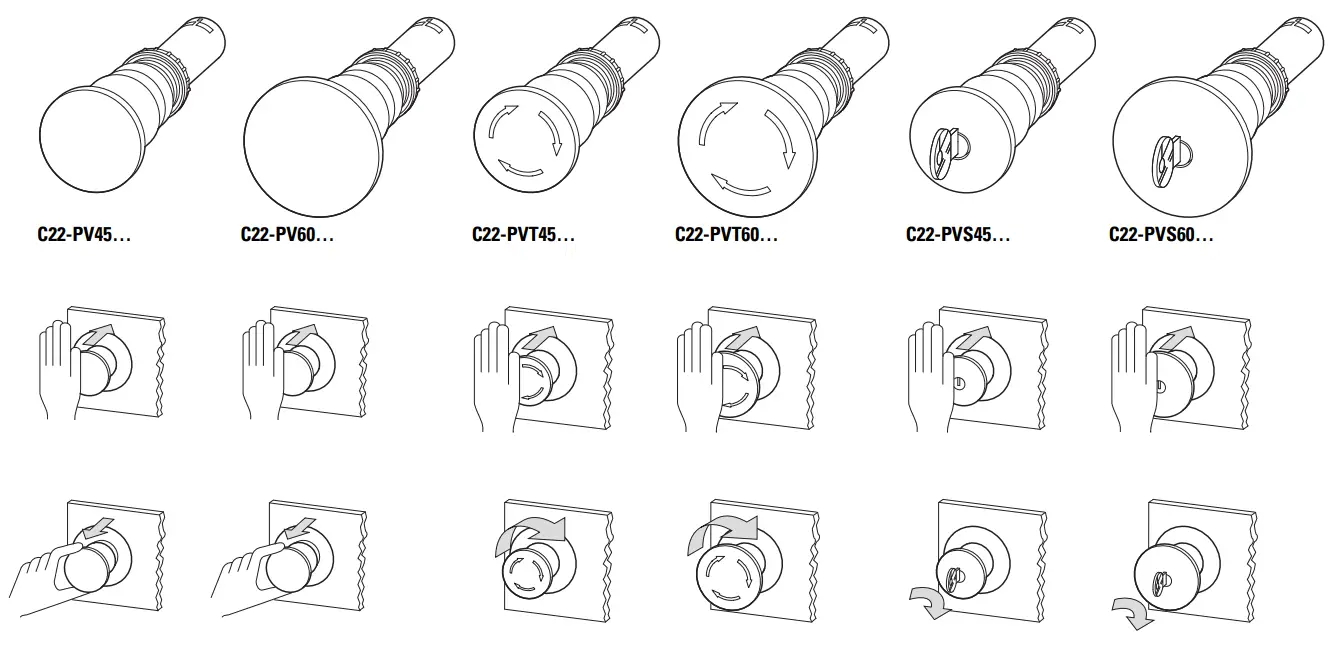

C22-PV…
M22-XPV

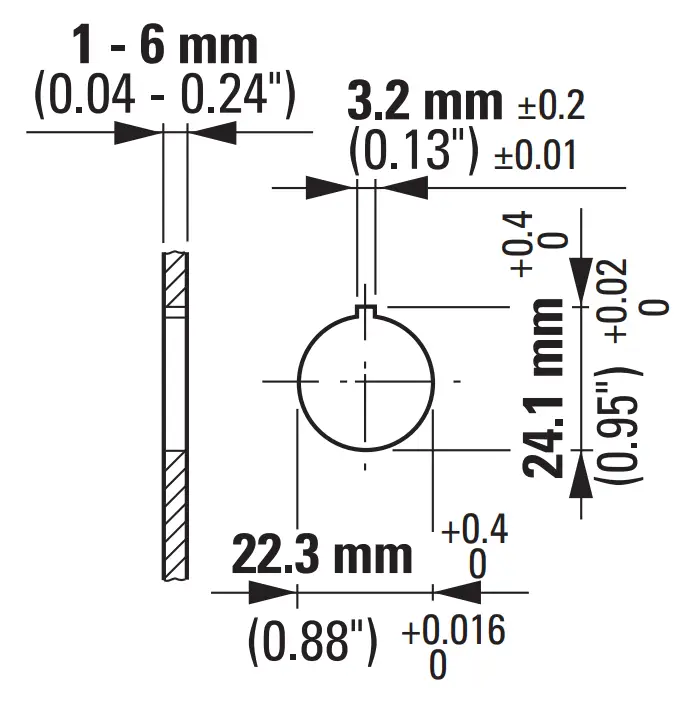

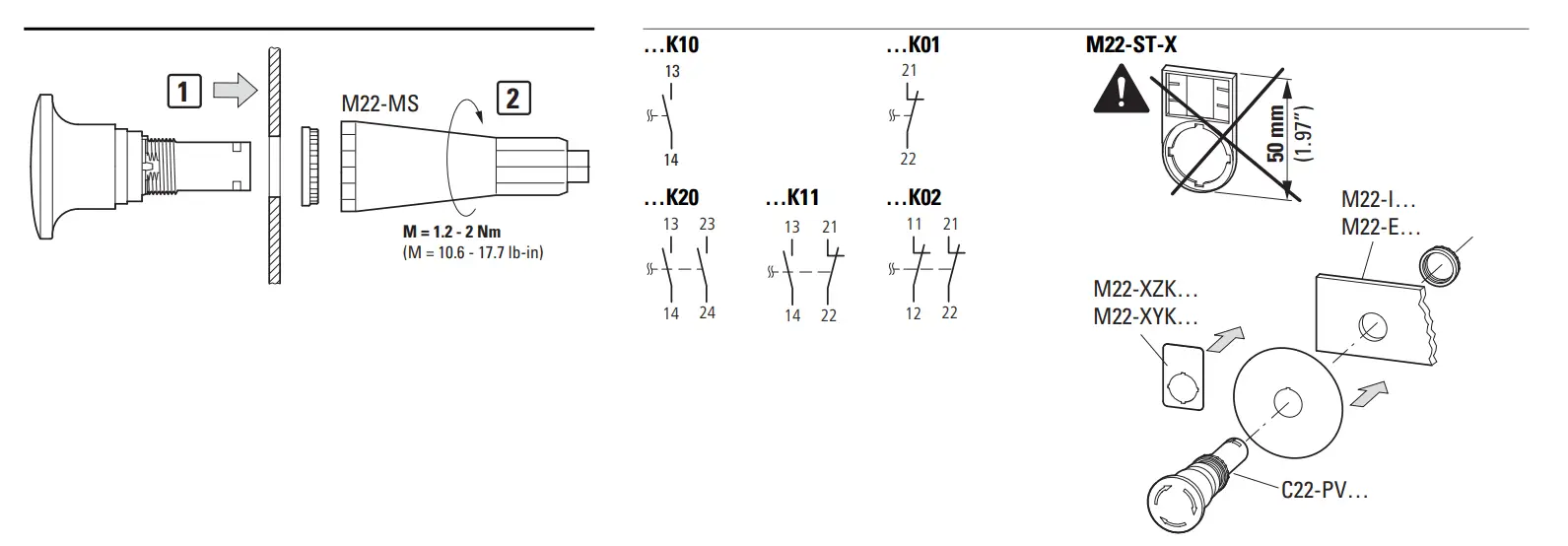

M22-X(Z)(A)(B)K…
| mm | in | |||
| a ≧ | b ≧ | a ≧ | b ≧ | |
| C22-PV…45… | 55 | 55 | 2.17 | 2.17 |
| C22-PV…60… | 70 | 70 | 2.76 | 2.76 |
| M22-XPV60-Y-… | 70 | 70 | 2.76 | 2.76 |

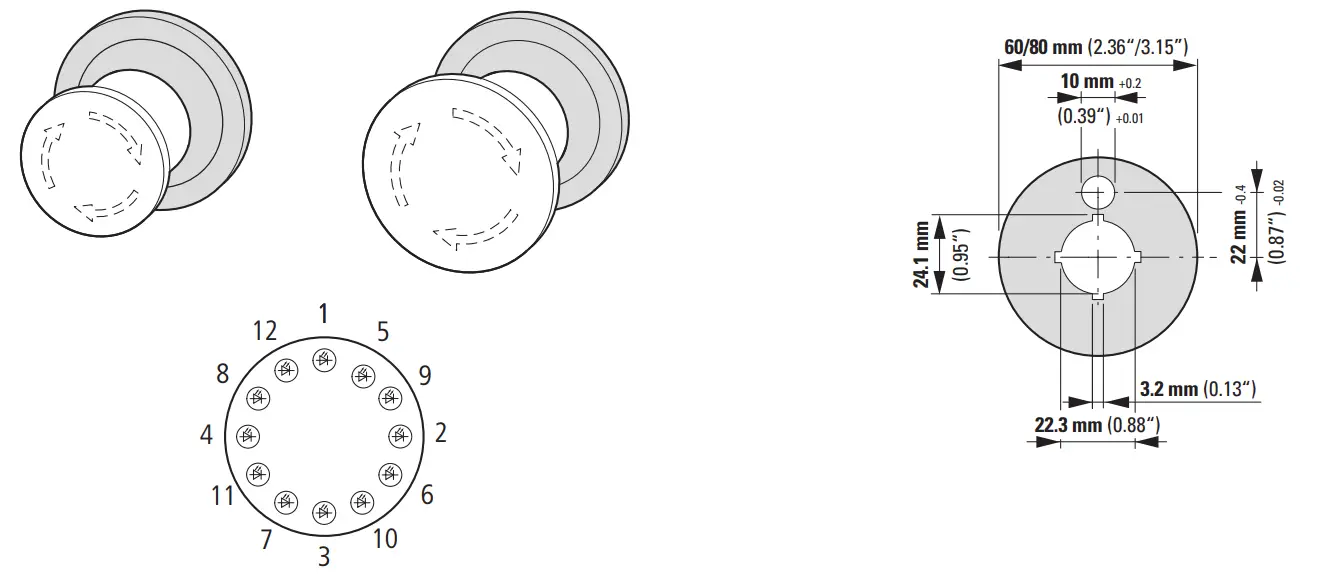

M22-XPV…

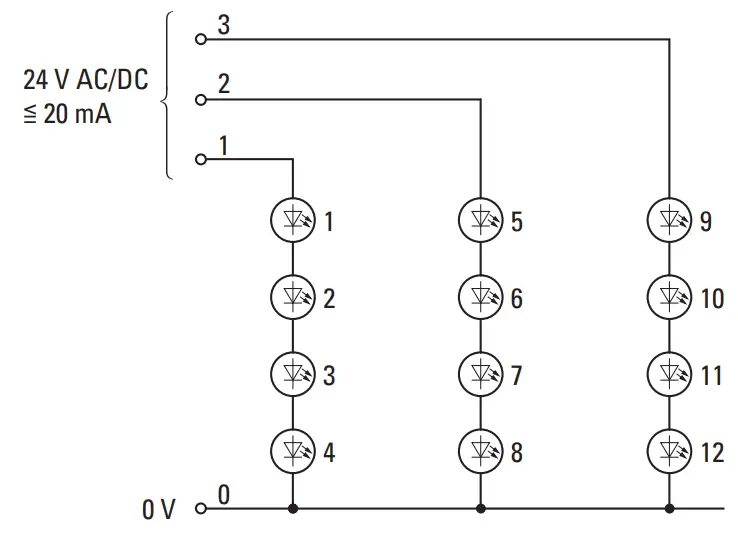

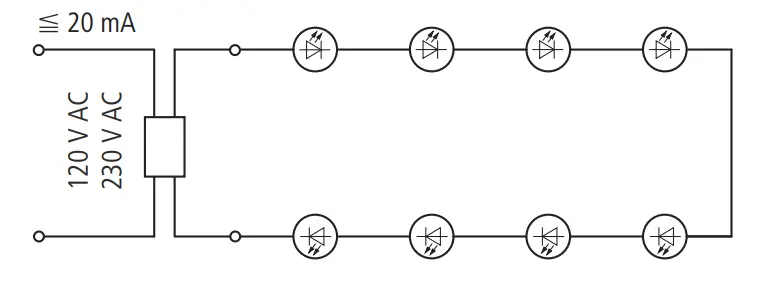

M22-XPV60-Y-24
M22-XPV60-Y-120
M22-XPV60-Y-230
| M22-(C)K... | M22-(C)K… | C22–PV... | M22–PV… | ||
| Ie AC-15 | 24 V | – | – | 4A | – |
| 115V | 6A | 6A | 2A | – | |
| 220 V 230 V 240 V | 6A | 6A | 1.5 A | – | |
| 380 V 400 V 415 V | 4A | – | – | – | |
| 500V | 2A | – | – | – | |
| Ie DC-13 | 24 V | 3A | 3A | 3A | – |
| 42V | 1.7 A | – | – | – | |
| 60V | 1.2 A | 1 A | 1 A | – | |
| 110 V | 0.6 A | 0.6 A | 0.6 A | – | |
| 220V | 0.3A | 0.3A | 0.3 A | – | |
| Ue AC | 500 V | 230V | 230 V | – | |
| Ue DC | 220 V | 220 V | 220 V | – | |
| U·I | 500 V | 250 V | 250V | – | |
| Uimn | 6000 V AC | 4000 V AC | 4000 V AC | – | |
| In | 1 kA | 1 kA | 1 kA | – | |
| IP | 20 | 20 | 67,69 | 66, 67,69 |
Safety and application notes
- Can be installed in any position.
- Install the emergency stop unit in such a way that the operator is protected against penetrating foreign particles, e.g., swarf, sand, etc.
- If emergency stop devices are connected in series, the performance level as defined in EN ISO 13849-1 may become lower due to reduced fault detection capabilities.
- When using emergency stop applications, it is required for the overall system to be validated as specified in EN ISO 13849-2.
Regular maintenance activities
- Check the emergency stop unit to ensure that it has a secure mechanical fit.
- Check the cable connections to make sure they are in good condition.
| Max. short-circuit protective devi ce | M22-(C)K... | M22-(C)K… | C22-PV… | M22-PV.. . |
| Fuseless | PKZM0-10/ FAZ-86/1 | – | – | – |
 | 10 A | 10 A | 10 A | – |
CAUTION
The devices can be used for the emergency-stop/ emergency-off functions. The definition of the functions/symbols to be used is specified in the following standards:
– IEC 60204-1 – DIN EN 60204-1
– ISO 13850 – DIN EN ISO 13850 or in the relevant national standards
