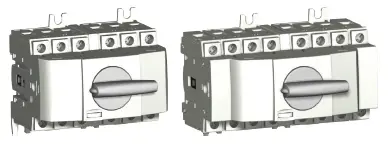

Hager HIM302 Changeover Switch
20A – 80 A

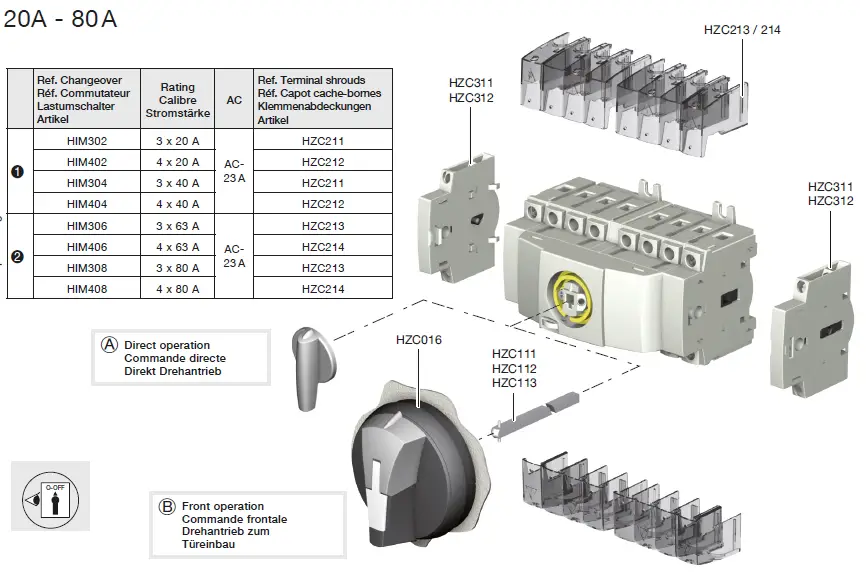

Configuration

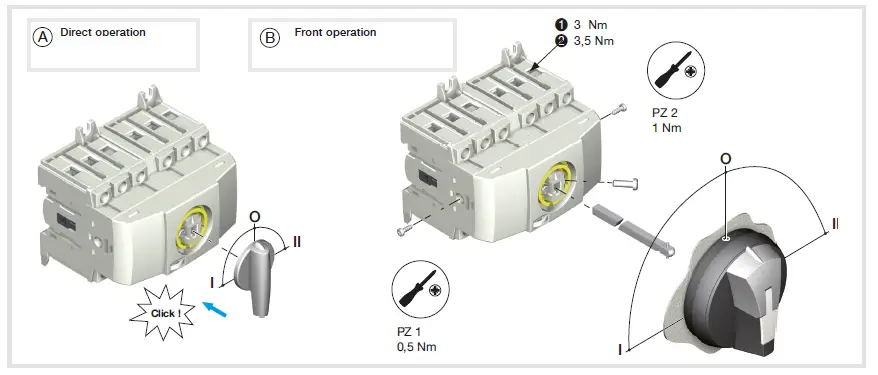

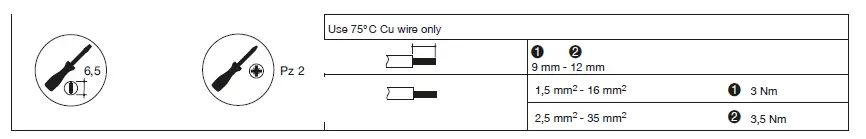

Use 75°C Cu wire only
Possible assembly with two screws

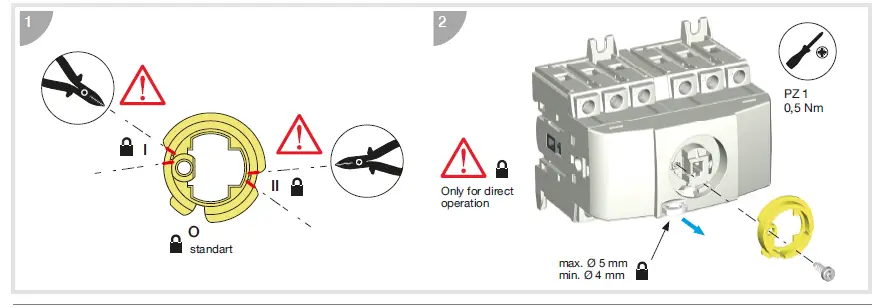

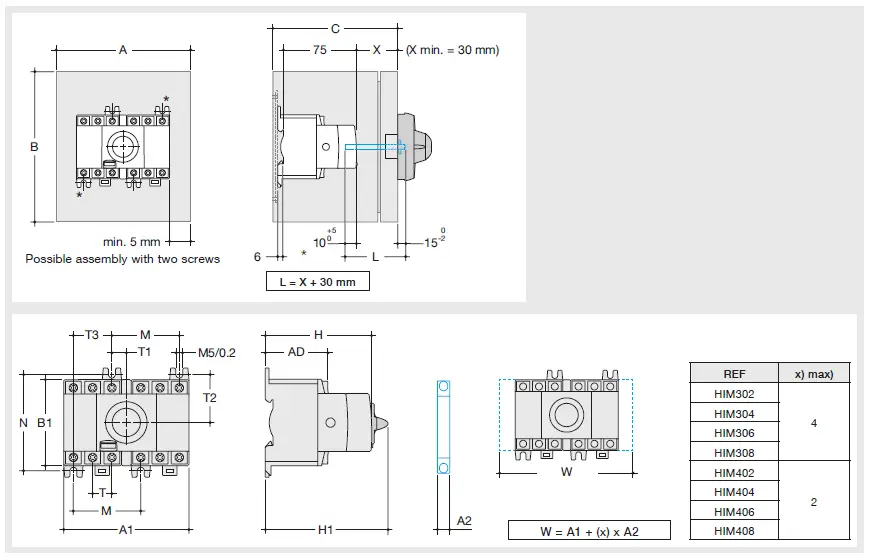

| A mm | A1 mm | A2 mm | B mm | AD mm | B1 mm | C mm | H mm | H1 mm | N mm | M mm | T mm | T1 mm | T2 mm | T3 mm | |
| HIM302 / 304 | 140 | 97,5 |
8,8 | 147 |
48,5 | 68 |
110 |
84 |
93,5 | 75 |
52,5 | 15 | 11,25 | 37,5 | 30 |
| HIM402 / 404 | 140 | 127,5 | 147 | 68 | 75 | 15 | 11,25 | 37,5 | 30 | ||||||
| HIM306 / 308 | 170 | 105 | 199 | 76 | 85 | 17,5 | 8,75 | 42,5 | 35 | ||||||
| HIM406 / 408 | 170 | 140 | 199 | 76 | 85 | 17,5 | 8,75 | 42,5 | 35 |
